BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace

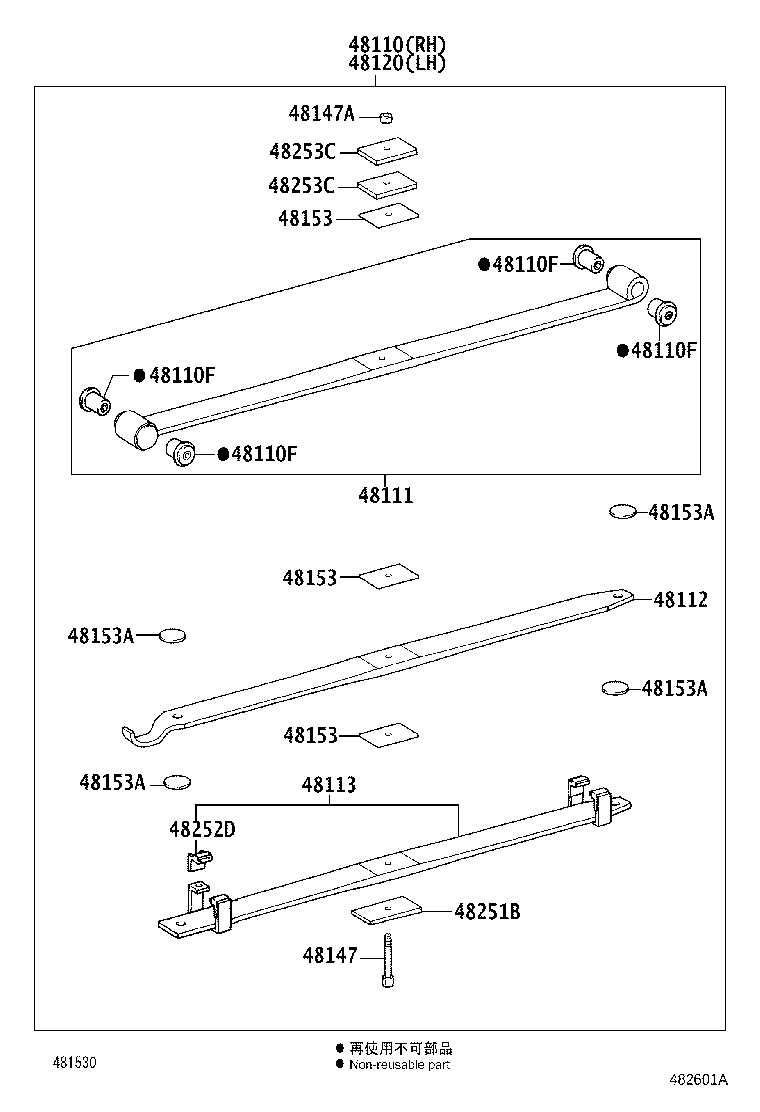

ILLUST NO. 2 OF 3(0705- )TRU300,340,500..SCB..DM5,T4..20T
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3V061 |
XZU304..T4..30T;BZU300,340..T4..20T 3枚ﾘｰﾌ,ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-3V061 |
1 | ||
| 48110-3V062 |
XZU304..T4..30T;BZU300,340..T4..20T 3枚ﾘｰﾌ,ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-3V062 |
1 | ||
| 48110-3V330 |
TRU300,340,500..SCB..(DM5,T4)..20T 3枚ﾘｰﾌ |
1 | ||
| 48110-37A00 |
BZU300,340..T4..20T 2枚ﾘｰﾌ,ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-37A00 |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU504..ST;TRU300,340,500..20T |
8 | ||
| 90389-16025 |
XZU304,314,334,354,554;BZU300,340,TRU300,XZU324,344,504,524..SCB..(DM6,DM7,T3,T4) ﾌﾛﾝﾄ |
2 | ||
| 90389-16026 |
XZU304,314,334,354,554;BZU300,340,TRU300,XZU324,344,504,524..SCB..(DM6,DM7,T3,T4) ﾘﾔ |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU504..ST;TRU300,340,500..20T |
8 | ||
| 90389-16025 |
XZU304,314,334,354,554;BZU300,340,TRU300,XZU324,344,504,524..SCB..(DM6,DM7,T3,T4) ﾌﾛﾝﾄ |
2 | ||
| 90389-16026 |
XZU304,314,334,354,554;BZU300,340,TRU300,XZU324,344,504,524..SCB..(DM6,DM7,T3,T4) ﾘﾔ |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU504..ST;TRU300,340,500..20T |
8 | ||
| 90389-16025 |
XZU304,314,334,354,554;BZU300,340,TRU300,XZU324,344,504,524..SCB..(DM6,DM7,T3,T4) ﾌﾛﾝﾄ |
2 | ||
| 90389-16026 |
XZU304,314,334,354,554;BZU300,340,TRU300,XZU324,344,504,524..SCB..(DM6,DM7,T3,T4) ﾘﾔ |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU504..ST;TRU300,340,500..20T |
8 | ||
| 90389-16025 |
XZU304,314,334,354,554;BZU300,340,TRU300,XZU324,344,504,524..SCB..(DM6,DM7,T3,T4) ﾌﾛﾝﾄ |
2 | ||
| 90389-16026 |
XZU304,314,334,354,554;BZU300,340,TRU300,XZU324,344,504,524..SCB..(DM6,DM7,T3,T4) ﾘﾔ |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3V061 |
XZU304..T4..30T;BZU300,340..T4..20T ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-3V061,運転席側 |
1 | ||
| 48101-3V071 |
XZU304..T4..30T;BZU300,340..T4..20T ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-3V071,助手席側 |
1 | ||
| 48101-37A00 |
BZU300,340..T4..20T ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-37A00,運転席側 |
1 | ||
| 48101-3V340 |
TRU300,340,500..SCB..(DM5,T4)..20T 助手席側 |
1 | ||
| 48101-3V072 |
XZU304..T4..30T;BZU300,340..T4..20T ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-3V072,助手席側 |
1 | ||
| 48101-3V330 |
TRU300,340,500..SCB..(DM5,T4)..20T 運転席側 |
1 | ||
| 48101-3V062 |
XZU304..T4..30T;BZU300,340..T4..20T ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-3V062,運転席側 |
1 | ||
| 48101-37A10 |
BZU300,340..T4..20T ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-37A10,助手席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3V070 |
XZU304..T4..30T;BZU300,340..T4..20T ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-3V071,助手席側 |
1 | ||
| 48112-3V060 |
XZU304..T4..30T;BZU300,340..T4..20T ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-3V061,運転席側 |
1 | ||
| 48102-37A10 |
BZU300,340..T4..20T ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-37A10,助手席側 |
1 | ||
| 48112-3V330 |
TRU300,340,500..SCB..(DM5,T4)..20T 運転席側 |
1 | ||
| 48112-3V062 |
XZU304..T4..30T;BZU300,340..T4..20T ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-3V062,運転席側 |
1 | ||
| 48112-3V340 |
TRU300,340,500..SCB..(DM5,T4)..20T 助手席側 |
1 | ||
| 48112-3V072 |
XZU304..T4..30T;BZU300,340..T4..20T ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-3V072,助手席側 |
1 | ||
| 48102-37A00 |
BZU300,340..T4..20T ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-37A00,運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3V072 |
XZU304..T4..30T;BZU300,340..T4..20T ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-3V072,助手席側 |
1 | ||
| 48102-3V062 |
XZU304..T4..30T;BZU300,340..T4..20T ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-3V062,運転席側 |
1 | ||
| 48102-3V340 |
TRU300,340,500..SCB..(DM5,T4)..20T 助手席側 |
1 | ||
| 48102-3V060 |
XZU304..T4..30T;BZU300,340..T4..20T ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-3V061,運転席側 |
1 | ||
| 48102-3V070 |
XZU304..T4..30T;BZU300,340..T4..20T ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-3V071,助手席側 |
1 | ||
| 48102-3V330 |
TRU300,340,500..SCB..(DM5,T4)..20T 運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3V071 |
XZU304..T4..30T;BZU300,340..T4..20T 3枚ﾘｰﾌ,ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-3V071 |
1 | ||
| 48110-37A10 |
BZU300,340..T4..20T 2枚ﾘｰﾌ,ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-37A10 |
1 | ||
| 48110-3V340 |
TRU300,340,500..SCB..(DM5,T4)..20T 3枚ﾘｰﾌ |
1 | ||
| 48110-3V072 |
XZU304..T4..30T;BZU300,340..T4..20T 3枚ﾘｰﾌ,ｲﾗｽﾄ ｻﾝｼｮｳ ﾏｰｸ = F-3V072 |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37300 |
TRU300,340,500,XZU324,354,524,554..SCB..(DM5,DM7,T4)..20T |
2 | ||
| 48147-3B230 |
BZU300,340..T4..20T 3-LEAF |
2 | ||
| 48147-37300 |
BZU300,340..T4..20T 2-LEAF |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-37130 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
BZU300,340,XZU304,344,504..(T3,T4,T5)..20T..WT 2-LEAF |
4 | ||
| 48253-3B440 |
TRU300,340,500;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,XZU504..DM6,T5;BZU300,340,XZU314,324,334,344..30T |
6 | ||
| 48253-3B440 |
BZU300,340,XZU304,344,504..(T3,T4,T5)..20T..WT 3-LEAF |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
BZU300,340,XZU304,344,504..(T3,T4,T5)..20T..WT 2-LEAF |
4 | ||
| 48253-3B440 |
TRU300,340,500;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,XZU504..DM6,T5;BZU300,340,XZU314,324,334,344..30T |
6 | ||
| 48253-3B440 |
BZU300,340,XZU304,344,504..(T3,T4,T5)..20T..WT 3-LEAF |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
BZU300,340,XZU304,344,504..(T3,T4,T5)..20T..WT 2-LEAF |
4 | ||
| 48253-3B440 |
TRU300,340,500;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,XZU504..DM6,T5;BZU300,340,XZU314,324,334,344..30T |
6 | ||
| 48253-3B440 |
BZU300,340,XZU304,344,504..(T3,T4,T5)..20T..WT 3-LEAF |
6 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
XZU554..6FC;XZU324..20T..DCRTJ;XZU304..T4..5F..30T;XZU334..30T..(DCRTJ,DCRTK);BZU300,XZU304,344..(T3,T4,T5)..20T;BZU340,XZU504,524,554..WT..(DCRTH,DCRUD,DCRUE,LPG);BZU300,XZU304,354..(DM5,T3)..(DCRTJ,DCRTK,LPG)..(CBU,IV3,IV4) 2-LEAF |
4 | ||
| 48252-37670 |
BZU300,340,XZU304,344,504..(T3,T4,T5)..20T..WT 3-LEAF |
8 | ||
| 48252-37670 |
BZU300..DM6;TRU300,340,500;XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,340,XZU314,324,334,344..SCB..30T |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
XZU554..6FC;XZU324..20T..DCRTJ;XZU304..T4..5F..30T;XZU334..30T..(DCRTJ,DCRTK);BZU300,XZU304,344..(T3,T4,T5)..20T;BZU340,XZU504,524,554..WT..(DCRTH,DCRUD,DCRUE,LPG);BZU300,XZU304,354..(DM5,T3)..(DCRTJ,DCRTK,LPG)..(CBU,IV3,IV4) 2-LEAF |
4 | ||
| 48252-37670 |
BZU300,340,XZU304,344,504..(T3,T4,T5)..20T..WT 3-LEAF |
8 | ||
| 48252-37670 |
BZU300..DM6;TRU300,340,500;XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,340,XZU314,324,334,344..SCB..30T |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
XZU554..6FC;XZU324..20T..DCRTJ;XZU304..T4..5F..30T;XZU334..30T..(DCRTJ,DCRTK);BZU300,XZU304,344..(T3,T4,T5)..20T;BZU340,XZU504,524,554..WT..(DCRTH,DCRUD,DCRUE,LPG);BZU300,XZU304,354..(DM5,T3)..(DCRTJ,DCRTK,LPG)..(CBU,IV3,IV4) 2-LEAF |
4 | ||
| 48252-37670 |
BZU300,340,XZU304,344,504..(T3,T4,T5)..20T..WT 3-LEAF |
8 | ||
| 48252-37670 |
BZU300..DM6;TRU300,340,500;XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,340,XZU314,324,334,344..SCB..30T |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
XZU554..6FC;XZU324..20T..DCRTJ;XZU304..T4..5F..30T;XZU334..30T..(DCRTJ,DCRTK);BZU300,XZU304,344..(T3,T4,T5)..20T;BZU340,XZU504,524,554..WT..(DCRTH,DCRUD,DCRUE,LPG);BZU300,XZU304,354..(DM5,T3)..(DCRTJ,DCRTK,LPG)..(CBU,IV3,IV4) 2-LEAF |
4 | ||
| 48252-37670 |
BZU300,340,XZU304,344,504..(T3,T4,T5)..20T..WT 3-LEAF |
8 | ||
| 48252-37670 |
BZU300..DM6;TRU300,340,500;XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,340,XZU314,324,334,344..SCB..30T |
8 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48235-3B630 |
BZU300,340,XZU324,354,524,554..(DM5,DM7,T4)..20T |
6 | ||
| 48114-3B060 |
TRU300,340,500..SCB..(DM5,T4)..20T |
2 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T |
8 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
XZU504..ST;TRU300,340,500..SCB..(DM5,T4)..20T |
4 | ||
| 48253-3B770 |
XZU304..DM3;XZU304..T4..30T;BZU300,340,XZU324,354,524,554..(DM5,DM7,T4)..20T |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
XZU504..ST;TRU300,340,500..SCB..(DM5,T4)..20T |
4 | ||
| 48253-3B770 |
XZU304..DM3;XZU304..T4..30T;BZU300,340,XZU324,354,524,554..(DM5,DM7,T4)..20T |
2 | ||
