Toyota Dyna/toyoace BZU340 BRAKE TUBE & CLAMP

BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011

Engine 1BZFPE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

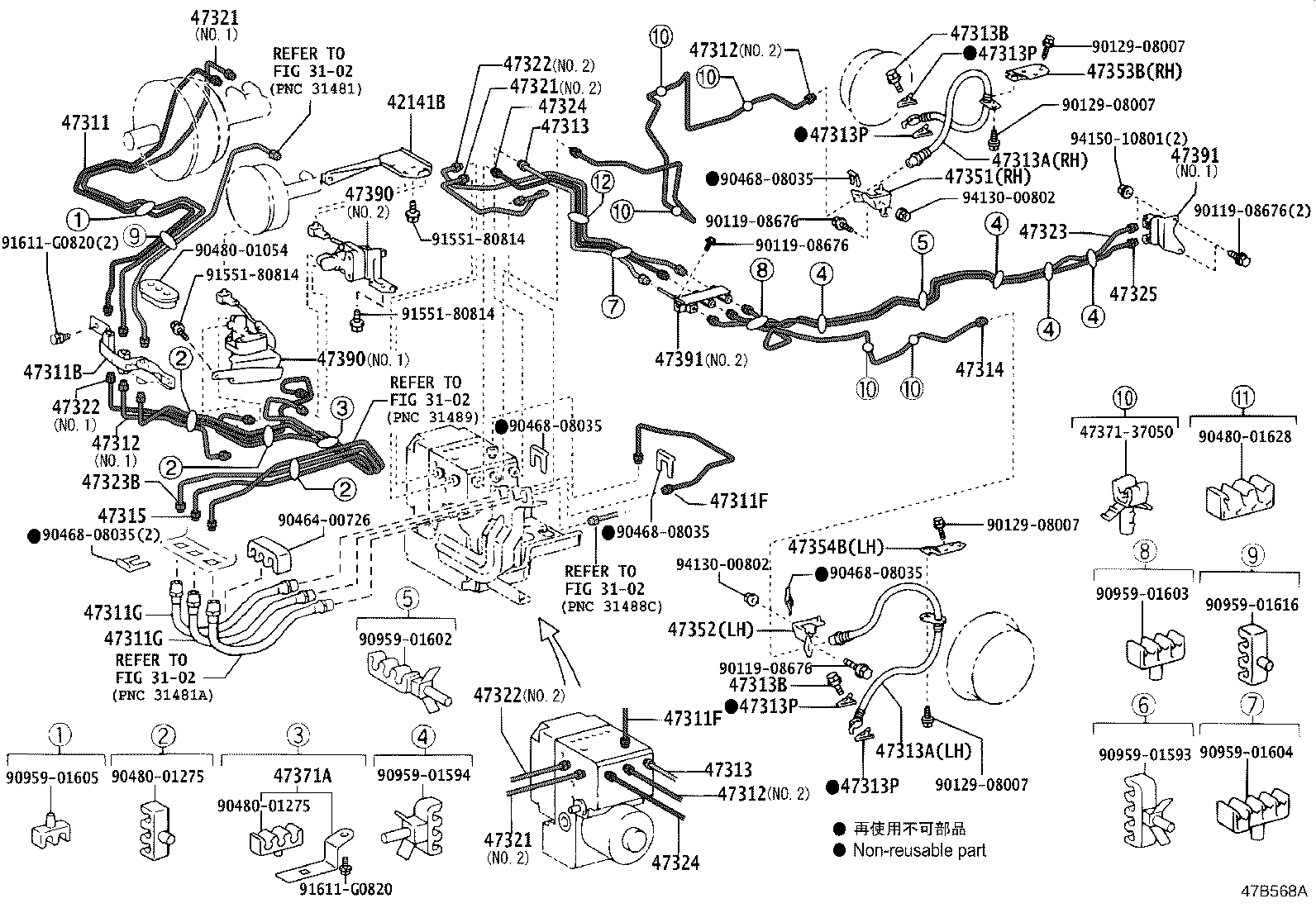

ILLUST NO. 1 OF 4(0705- )BZU300,340,TRU300,340,500

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-37162	XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568	10/2006 - 12/2999	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37440	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37440	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D83	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D83	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47312-37530	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47312-37750	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2	10/2006 - 06/2011	1
47312-37531	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47312-37530	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47312-37750	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2	10/2006 - 06/2011	1
47312-37531	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47312-37530	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47312-37750	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2	10/2006 - 06/2011	1
47312-37531	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37440	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37440	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 左側	10/2006 - 12/2999	1
90947-02A72	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 右側	10/2006 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 左側	10/2006 - 12/2999	1
90947-02A72	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 右側	10/2006 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	4
47314 - TUBE, FRONT BRAKE, NO.4
47314-37570	TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47314-37710	BZU300,340	05/2007 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1	10/2006 - 12/2999	1
47321-37420	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1	10/2006 - 12/2999	1
47321-37420	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1	10/2006 - 12/2999	1
47321-37420	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47322-37610	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47322-37611	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47322-37580	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 06/2011	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47322-37610	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47322-37611	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47322-37580	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 06/2011	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47322-37610	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47322-37611	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47322-37580	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 06/2011	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37620	XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T	10/2006 - 12/2999	1
47323-37610	BZU300,340,TRU300,340,500	05/2007 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37240	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37240	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-37380	XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T	10/2006 - 12/2999	1
47325-37370	BZU300,340,TRU300,340,500	05/2007 - 12/2999	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-37280	XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.1	10/2006 - 12/2999	1
47391-37310	XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU334,354..1NO NO.2	10/2006 - 12/2999	1
47391-37310	XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 12/2999	1
47391-37300	XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.2	10/2006 - 12/2999	1
47391-37400	XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.2	10/2006 - 12/2999	1
47391-37300	XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU314,324,334,354,368,378,388,524,554,568 NO.1	10/2006 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-37280	XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.1	10/2006 - 12/2999	1
47391-37310	XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU334,354..1NO NO.2	10/2006 - 12/2999	1
47391-37310	XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 12/2999	1
47391-37300	XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.2	10/2006 - 12/2999	1
47391-37400	XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.2	10/2006 - 12/2999	1
47391-37300	XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU314,324,334,354,368,378,388,524,554,568 NO.1	10/2006 - 12/2999	1
Common parts
47371-37050
47371-37080
90119-08676
90129-08007
90464-00726
90468-08035
90480-01054
90480-01275
90480-01628
90959-01593
90959-01594
90959-01602
90959-01603
90959-01604
90959-01605
90959-01616
91611-G0820
94130-00802
94150-10801
Linked diagrams
3102

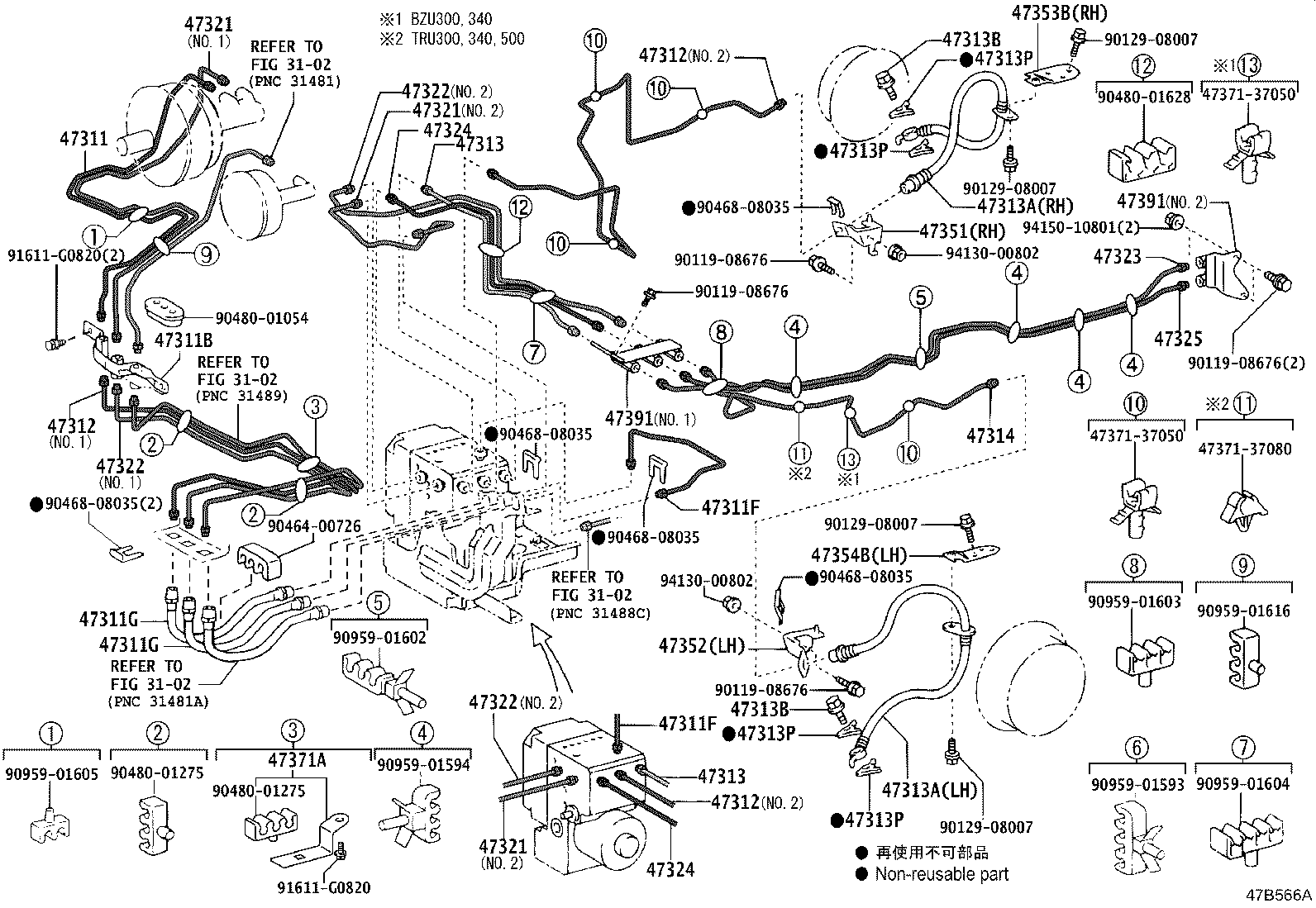

ILLUST NO. 1 OF 4(0705- )BZU300,340..IV3

Click highlighted areas on diagram

ｱﾘ(ﾌﾞﾚｰｷﾛｯｸ)

Part #	Description	Period	Qty
42141B - ATTACHMENT, SKID CONTROL WIRE, NO.1
42141-37140	XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO	10/2006 - 12/2999	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-37162	XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568	10/2006 - 12/2999	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37440	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37440	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D83	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D83	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47312-37530	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47312-37750	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2	10/2006 - 06/2011	1
47312-37531	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47312-37530	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47312-37750	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2	10/2006 - 06/2011	1
47312-37531	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47312-37530	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47312-37750	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2	10/2006 - 06/2011	1
47312-37531	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37440	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37440	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 左側	10/2006 - 12/2999	1
90947-02A72	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 右側	10/2006 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 左側	10/2006 - 12/2999	1
90947-02A72	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 右側	10/2006 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	4
47314 - TUBE, FRONT BRAKE, NO.4
47314-37570	TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47314-37710	BZU300,340	05/2007 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47323-37540	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO	10/2006 - 01/2008	1
47323-37541	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO	02/2008 - 06/2011	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1	10/2006 - 12/2999	1
47321-37420	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1	10/2006 - 12/2999	1
47321-37420	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1	10/2006 - 12/2999	1
47321-37420	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47322-37610	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47322-37611	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47322-37580	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 06/2011	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47322-37610	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47322-37611	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47322-37580	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 06/2011	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47322-37610	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47322-37611	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47322-37580	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 06/2011	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37620	XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T	10/2006 - 12/2999	1
47323-37610	BZU300,340,TRU300,340,500	05/2007 - 12/2999	1
47323B - TUBE, REAR BRAKE, NO.3
47313-37461	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO	10/2006 - 01/2008	1
47313-37462	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO	02/2008 - 06/2011	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37240	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37240	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-37380	XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T	10/2006 - 12/2999	1
47325-37370	BZU300,340,TRU300,340,500	05/2007 - 12/2999	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK
47390-37070	BZU300,340..IV3 NO.1	05/2007 - 12/2999	1
47390-37080	BZU300,340..IV3 NO.2	05/2007 - 12/2999	1
47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK
47390-37070	BZU300,340..IV3 NO.1	05/2007 - 12/2999	1
47390-37080	BZU300,340..IV3 NO.2	05/2007 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-37280	XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.1	10/2006 - 12/2999	1
47391-37310	XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU334,354..1NO NO.2	10/2006 - 12/2999	1
47391-37310	XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 12/2999	1
47391-37300	XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.2	10/2006 - 12/2999	1
47391-37400	XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.2	10/2006 - 12/2999	1
47391-37300	XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU314,324,334,354,368,378,388,524,554,568 NO.1	10/2006 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-37280	XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.1	10/2006 - 12/2999	1
47391-37310	XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU334,354..1NO NO.2	10/2006 - 12/2999	1
47391-37310	XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 12/2999	1
47391-37300	XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T NO.2	10/2006 - 12/2999	1
47391-37400	XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.2	10/2006 - 12/2999	1
47391-37300	XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU314,324,334,354,368,378,388,524,554,568 NO.1	10/2006 - 12/2999	1
Common parts
47371-37050
90119-08676
90129-08007
90464-00726
90468-08035
90480-01054
90480-01275
90480-01628
90959-01593
90959-01594
90959-01602
90959-01603
90959-01604
90959-01605
90959-01616
91551-80814
91611-G0820
94130-00802
94150-10801

BZU340-TQMMC3 (2007)

ILLUST NO. 1 OF 4(0705- )BZU300,340,TRU300,340,500

ILLUST NO. 1 OF 4(0705- )BZU300,340..IV3

Part Price Details
