BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace

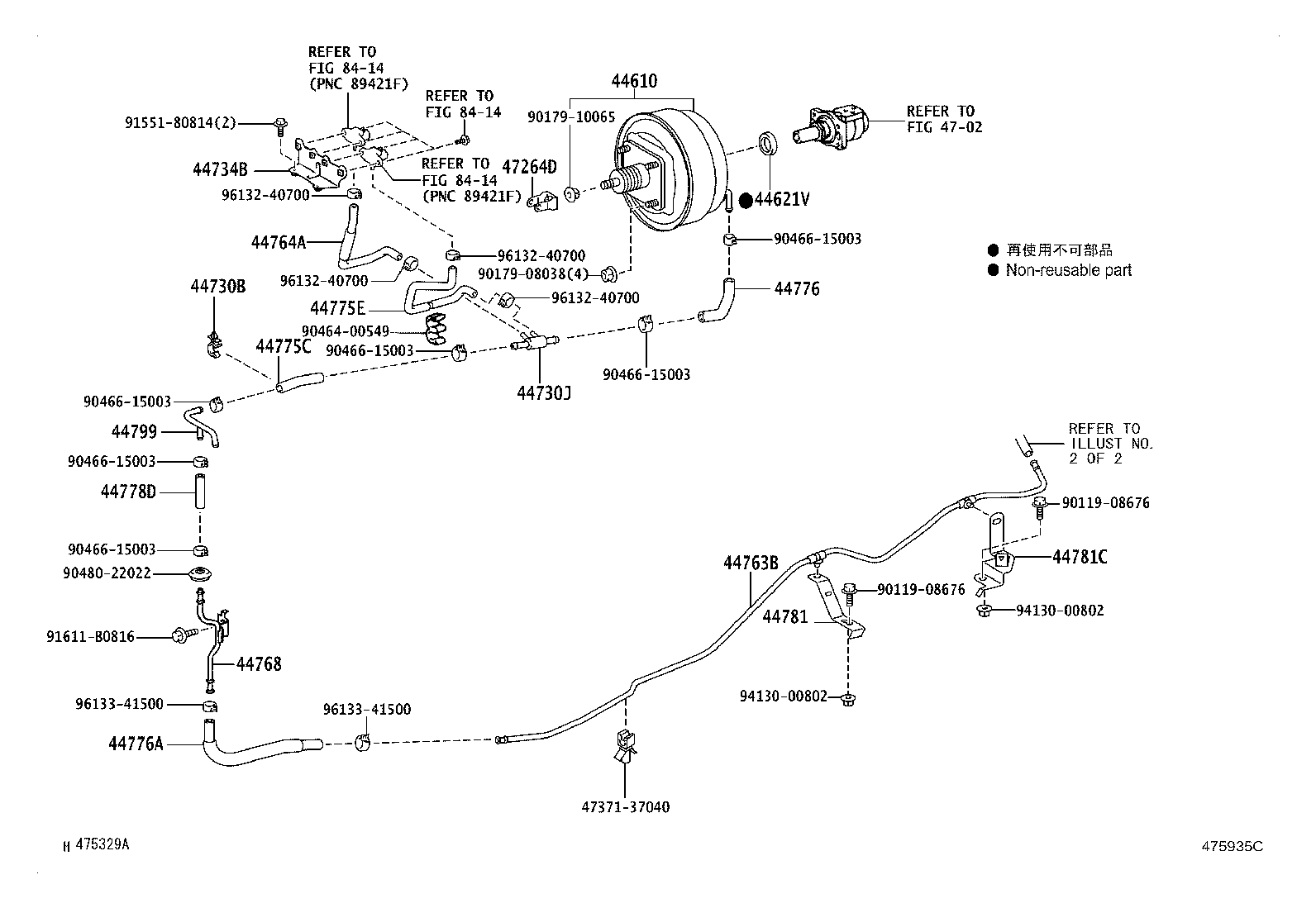

ILLUST NO. 1 OF 2(0705- )BZU300,340,TRU300,340,500
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37171 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,324,338,34#,354,368,378,388,568..20T |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37021 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37011 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37660 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T |
1 | ||
| 44764-37630 |
BZU300,340,TRU300,340,500 |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37240 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37110 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-37020 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37251 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44776-37250 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37260 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37170 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37170 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..5F |
1 | ||
| 44778-37171 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37170 |
XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 44781-37150 |
BZU300,340,TRU300,340,500,XZU368,378,388,568 |
1 | ||
| 44781C - BRACKET, HOSE CLAMP, NO.2 | ||||
| 44781-37160 |
BZU300,340,TRU300,340,500 |
1 | ||
| 44781-37020 |
XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-37010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91551-80814 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8414 | ||||

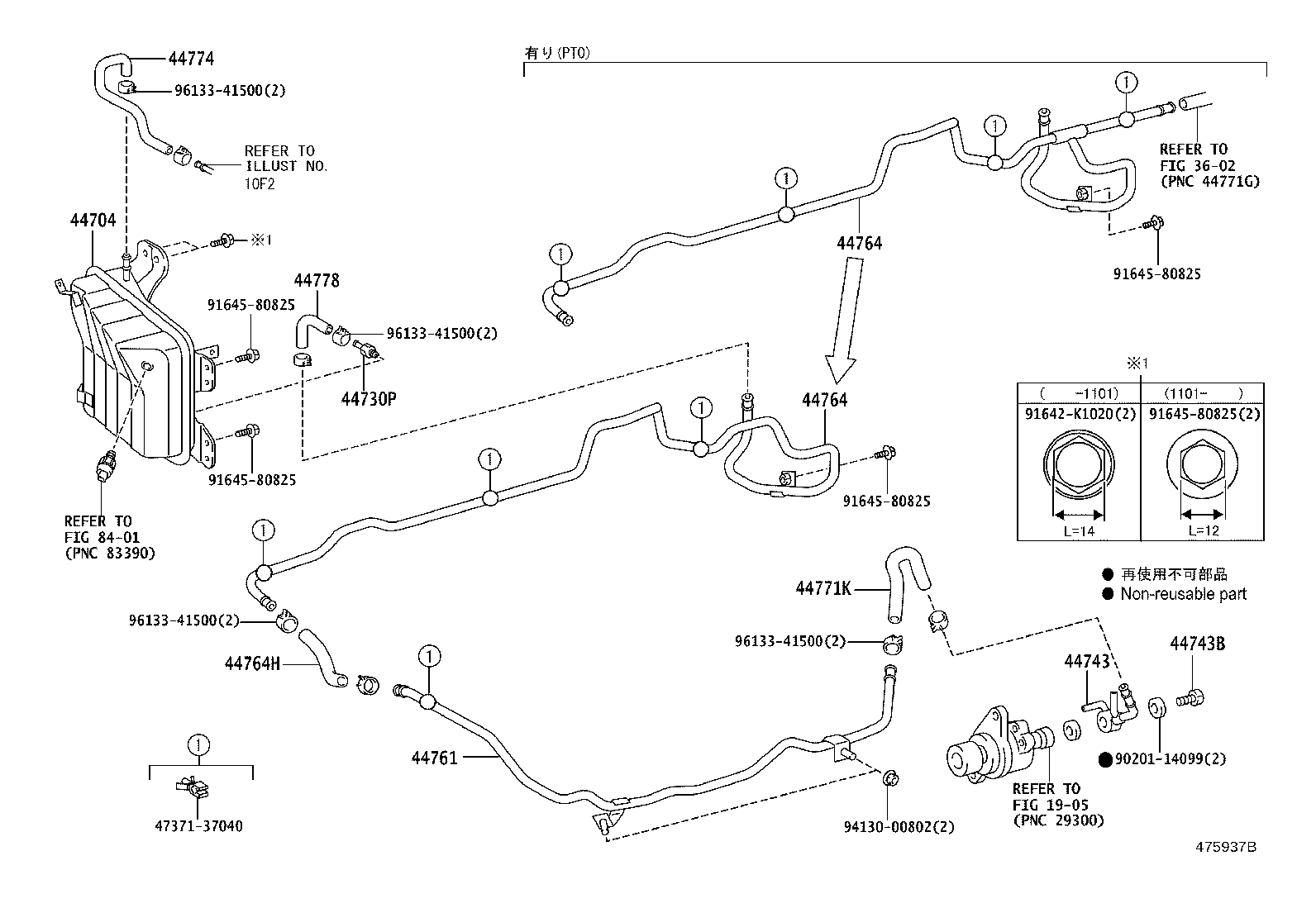

ILLUST NO. 2 OF 2(0705- )BZU300,340
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37190 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44704-37141 |
BZU300,340,TRU300,340,500..SCB |
1 | ||
| 44704-37191 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44704-37142 |
BZU300,340,TRU300,340,500..SCB |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-20100 |
TRU300,340,500 |
1 | ||
| 44730-60050 |
BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09164 |
BZU300,340 |
1 | ||
| 44743B - BOLT, UNION(FOR VACUUM PUMP UNION) | ||||
| 90401-09001 |
BZU300,340 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37471 |
TRU300,340,500 |
1 | ||
| 44761-37540 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44761-37480 |
BZU300,340 |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-37730 |
BZU300,340,TRU300,340,500..SCB..(DM6,T2,T3,T4) |
1 | ||
| 44764-37740 |
BZU300,340;TRU300..DM5 ｱﾘ(PTO) |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-37730 |
BZU300,340,TRU300,340,500..SCB..(DM6,T2,T3,T4) |
1 | ||
| 44764-37740 |
BZU300,340;TRU300..DM5 ｱﾘ(PTO) |
1 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 95446-09180 |
BZU300,340,TRU300,340,500 |
1 | ||
| 95446-09120 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37800 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T |
1 | ||
| 44771-37710 |
BZU300,340 |
1 | ||
| 44771-37891 |
TRU300,340,500 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37320 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
BZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90201-14099 | ||||
| 91642-K1020 | ||||
| 91645-80825 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 3602 | ||||
| 8401 | ||||

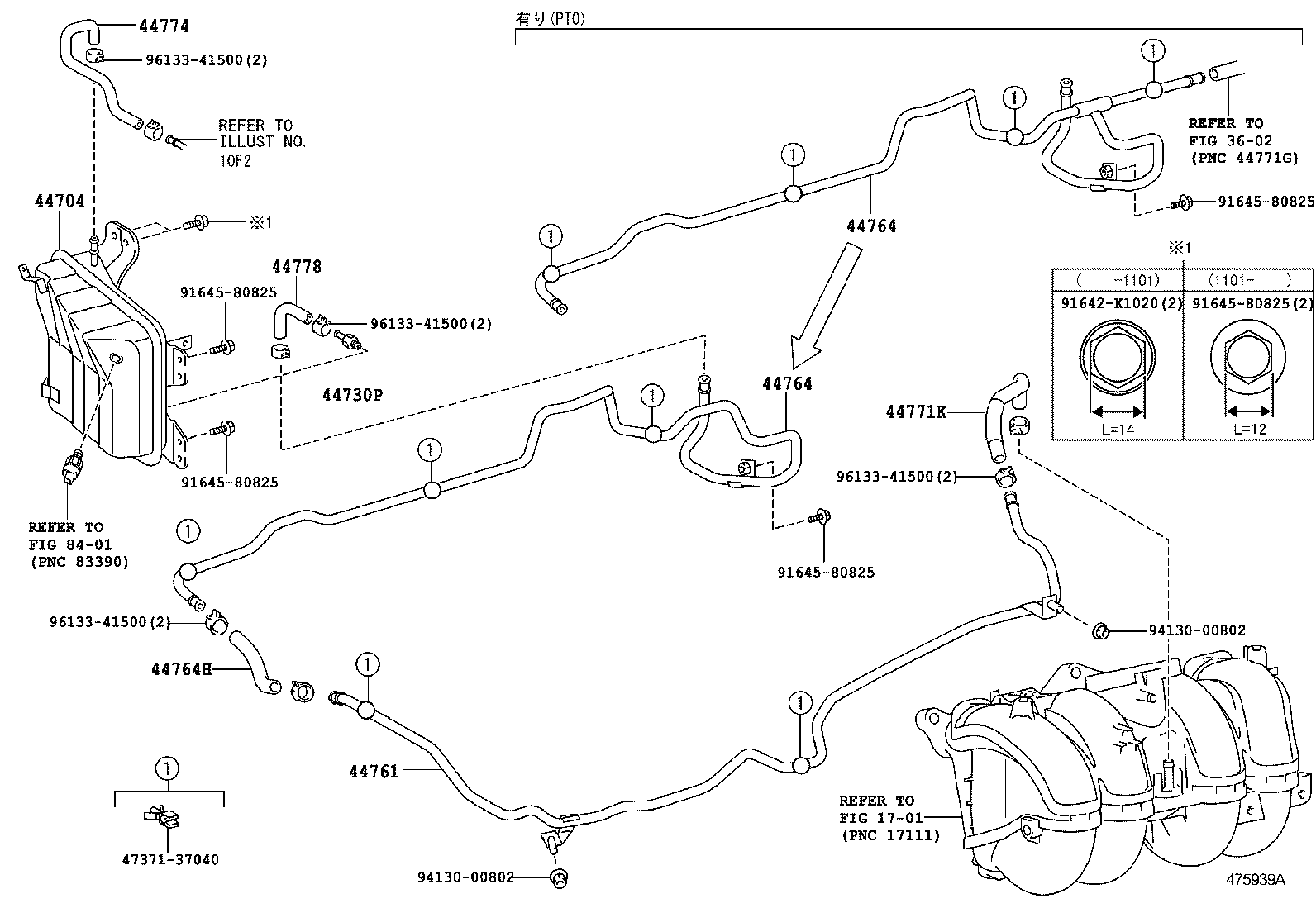

ILLUST NO. 2 OF 2(0705- )TRU300,340,500..SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37190 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44704-37141 |
BZU300,340,TRU300,340,500..SCB |
1 | ||
| 44704-37191 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) |
1 | ||
| 44704-37142 |
BZU300,340,TRU300,340,500..SCB |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-20100 |
TRU300,340,500 |
1 | ||
| 44730-60050 |
BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37471 |
TRU300,340,500 |
1 | ||
| 44761-37540 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44761-37480 |
BZU300,340 |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-37730 |
BZU300,340,TRU300,340,500..SCB..(DM6,T2,T3,T4) |
1 | ||
| 44764-37740 |
BZU300,340;TRU300..DM5 ｱﾘ(PTO) |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-37730 |
BZU300,340,TRU300,340,500..SCB..(DM6,T2,T3,T4) |
1 | ||
| 44764-37740 |
BZU300,340;TRU300..DM5 ｱﾘ(PTO) |
1 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 95446-09180 |
BZU300,340,TRU300,340,500 |
1 | ||
| 95446-09120 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37800 |
XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T |
1 | ||
| 44771-37710 |
BZU300,340 |
1 | ||
| 44771-37891 |
TRU300,340,500 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37320 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
BZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 91642-K1020 | ||||
| 91645-80825 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 3602 | ||||
| 8401 | ||||
