BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace

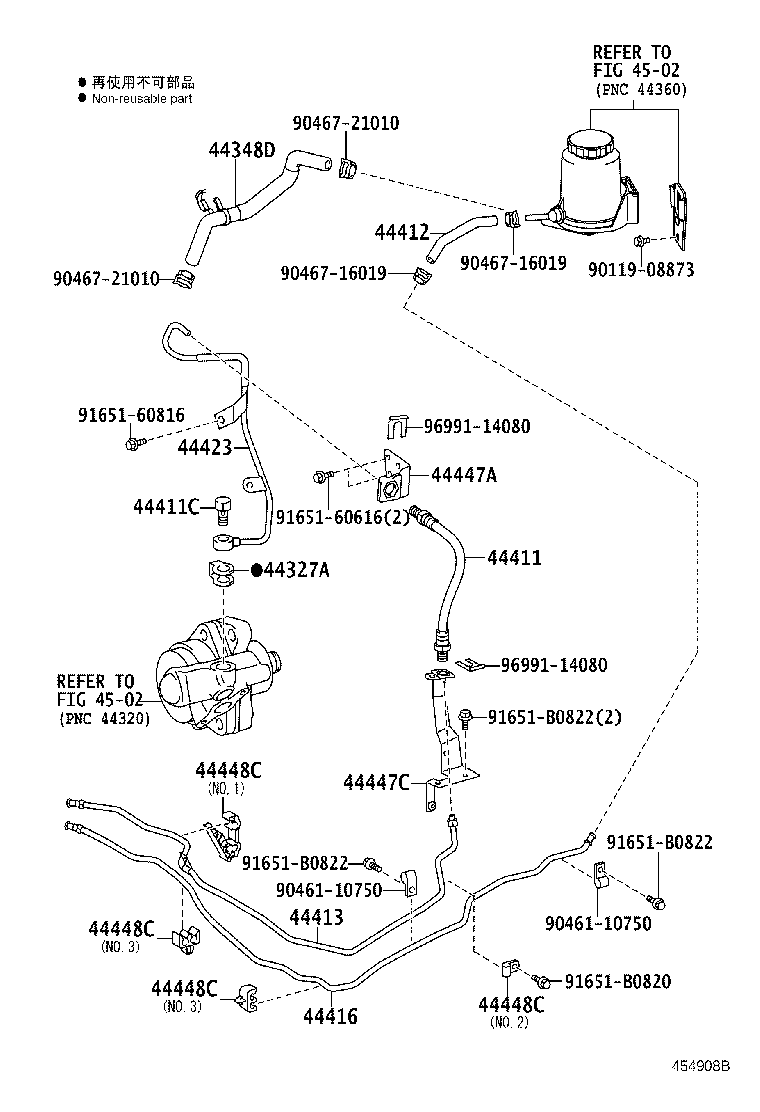

(0705- )BZU300,340
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
BZU300,340,XZU308,338,348,368,378,388,508,538,548,568 |
1 | ||
| 44327-30040 |
TRU300,340,500 |
1 | ||
| 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 | ||||
| 44348-37440 |
BZU300,340 |
1 | ||
| 44348-37400 |
XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37141 |
BZU300,340 |
1 | ||
| 44411-37410 |
TRU300,340,500 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 90401-16034 |
TRU300,340,500 |
1 | ||
| 90404-16024 |
BZU300,340 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-37270 |
BZU300,340 |
1 | ||
| 44412-37250 |
TRU300,340,500 |
1 | ||
| 44412-37230 |
XZU304..(T4,T5)..20T;XZU308,314,324,338,34#,354,50#,524,538,548,554..20T,30T |
1 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-37280 |
BZU300,340 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37630 |
TRU300,340,500 |
1 | ||
| 44416-37620 |
BZU300,340 |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-37150 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44423-37110 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44423-37060 |
BZU300,340 |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37220 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44447-37020 |
BZU300,340 |
1 | ||
| 44447C - BRACKET, HOSE SUPPORT NO.2 | ||||
| 44447-37290 |
BZU300,340 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
BZU300,340,XZU304,314,324,334,344,354,504,524,554 NO.2 |
1 | ||
| 44448-37060 |
TRU300,340,500 NO.2 |
2 | ||
| 44448-37030 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.1 |
1 | ||
| 44448-37080 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.3 |
2 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
BZU300,340,XZU304,314,324,334,344,354,504,524,554 NO.2 |
1 | ||
| 44448-37060 |
TRU300,340,500 NO.2 |
2 | ||
| 44448-37030 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.1 |
1 | ||
| 44448-37080 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.3 |
2 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
BZU300,340,XZU304,314,324,334,344,354,504,524,554 NO.2 |
1 | ||
| 44448-37060 |
TRU300,340,500 NO.2 |
2 | ||
| 44448-37030 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.1 |
1 | ||
| 44448-37080 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.3 |
2 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
BZU300,340,XZU304,314,324,334,344,354,504,524,554 NO.2 |
1 | ||
| 44448-37060 |
TRU300,340,500 NO.2 |
2 | ||
| 44448-37030 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.1 |
1 | ||
| 44448-37080 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.3 |
2 | ||
| Common parts | ||||
| 90119-08873 | ||||
| 90461-10750 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 96991-14080 | ||||
| Linked diagrams | ||||
| 4502 | ||||

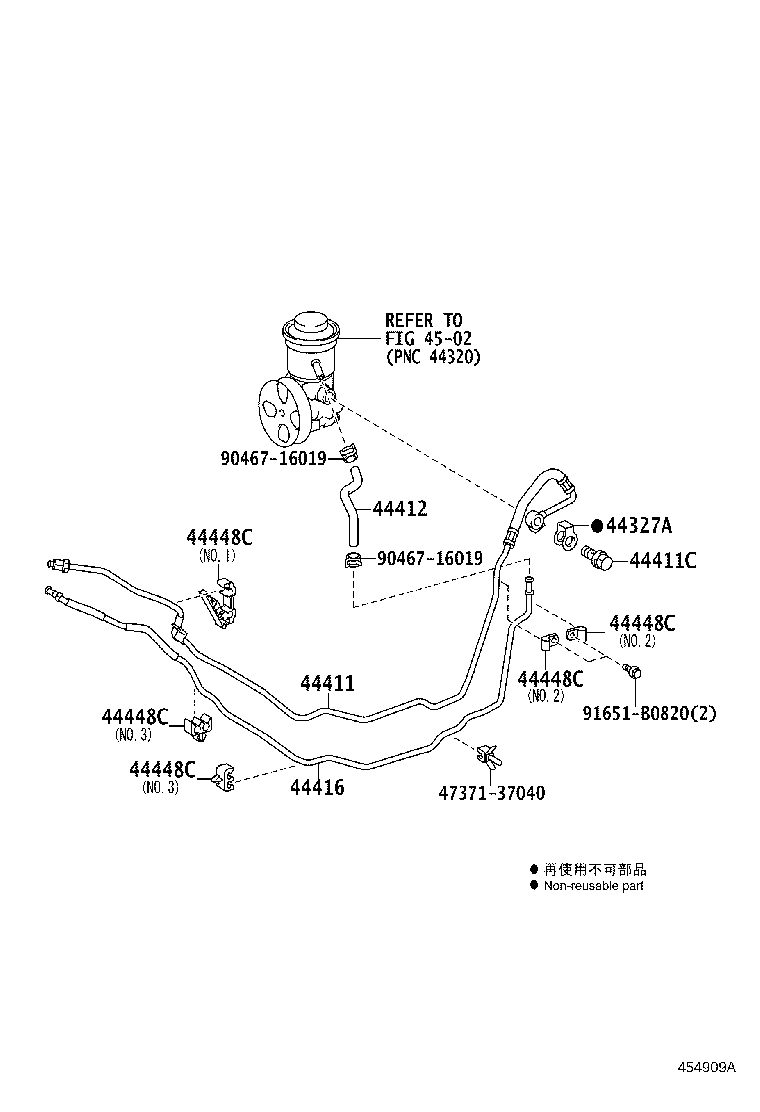

(0705- )TRU300,340,500
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
BZU300,340,XZU308,338,348,368,378,388,508,538,548,568 |
1 | ||
| 44327-30040 |
TRU300,340,500 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37141 |
BZU300,340 |
1 | ||
| 44411-37410 |
TRU300,340,500 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 90401-16034 |
TRU300,340,500 |
1 | ||
| 90404-16024 |
BZU300,340 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-37270 |
BZU300,340 |
1 | ||
| 44412-37250 |
TRU300,340,500 |
1 | ||
| 44412-37230 |
XZU304..(T4,T5)..20T;XZU308,314,324,338,34#,354,50#,524,538,548,554..20T,30T |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37630 |
TRU300,340,500 |
1 | ||
| 44416-37620 |
BZU300,340 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
BZU300,340,XZU304,314,324,334,344,354,504,524,554 NO.2 |
1 | ||
| 44448-37060 |
TRU300,340,500 NO.2 |
2 | ||
| 44448-37030 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.1 |
1 | ||
| 44448-37080 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.3 |
2 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
BZU300,340,XZU304,314,324,334,344,354,504,524,554 NO.2 |
1 | ||
| 44448-37060 |
TRU300,340,500 NO.2 |
2 | ||
| 44448-37030 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.1 |
1 | ||
| 44448-37080 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.3 |
2 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
BZU300,340,XZU304,314,324,334,344,354,504,524,554 NO.2 |
1 | ||
| 44448-37060 |
TRU300,340,500 NO.2 |
2 | ||
| 44448-37030 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.1 |
1 | ||
| 44448-37080 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.3 |
2 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
BZU300,340,XZU304,314,324,334,344,354,504,524,554 NO.2 |
1 | ||
| 44448-37060 |
TRU300,340,500 NO.2 |
2 | ||
| 44448-37030 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.1 |
1 | ||
| 44448-37080 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.3 |
2 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
BZU300,340,XZU304,314,324,334,344,354,504,524,554 NO.2 |
1 | ||
| 44448-37060 |
TRU300,340,500 NO.2 |
2 | ||
| 44448-37030 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.1 |
1 | ||
| 44448-37080 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 NO.3 |
2 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90467-16019 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 4502 | ||||
