BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

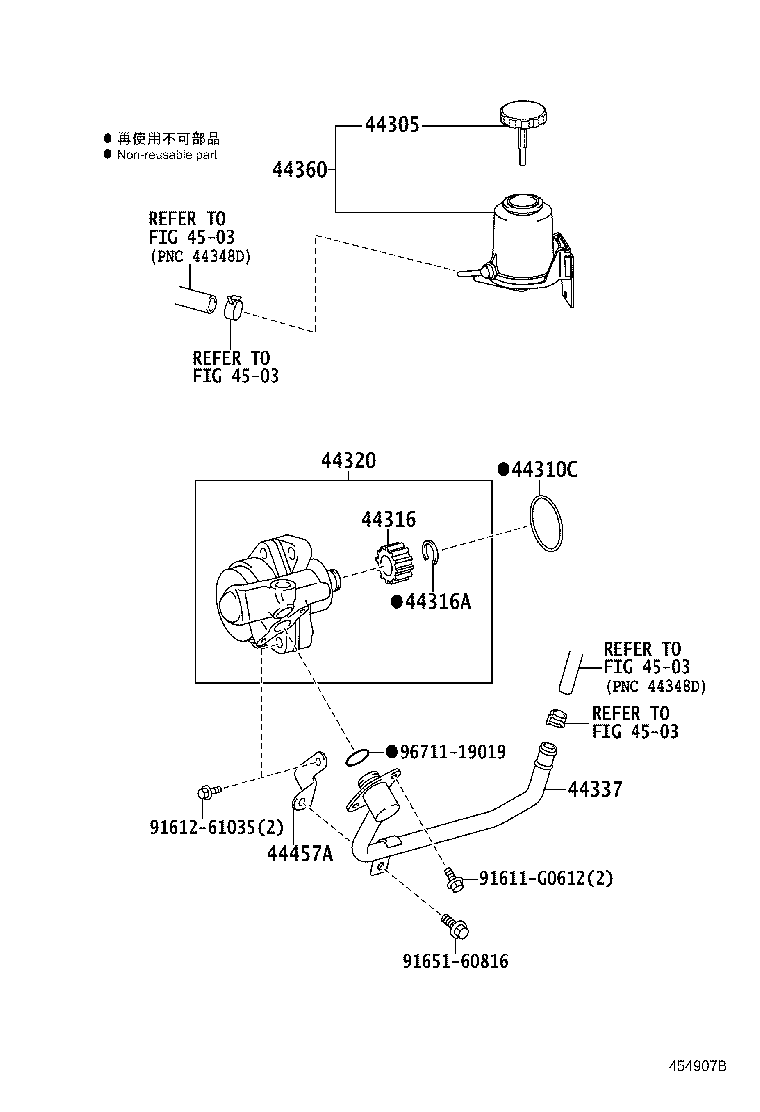

(0705- )BZU300,340

Click highlighted areas on diagram

diagram 44305 44310C 44316 44316A 44320 44337 44360 44457A 4503 4503 4503 4503 91611G0612 9161261035 9165160816 9671119019
Part # Description Qty Price
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-37030

BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
44305-37020

BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
44305-22040

TRU300,340,500

 1
44305-22060

TRU300,340,500

 1
44310C - RING, O(FOR VANE PUMP)
90301-60002

BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
44316 - GEAR, VANE PUMP
44316-36020

BZU300,340

 1
44316A - RING
96150-01700

BZU300,340

 1
44320 - PUMP ASSY, VANE
44310-37250

TRU300,340,500

 1
44310-37030

BZU300,340

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-37370

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
44337-37070

BZU300,340

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-37170

XZU378,388..SCB;XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568

 1
44360-37180

BZU300,340;XZU378,388..DCB

 1
44457A - BRACKET, TUBE SUPPORT, VANE PUMP
44457-36040

BZU300,340

 1
Common parts
91611-G0612
91612-61035
91651-60816
96711-19019
Linked diagrams
4503

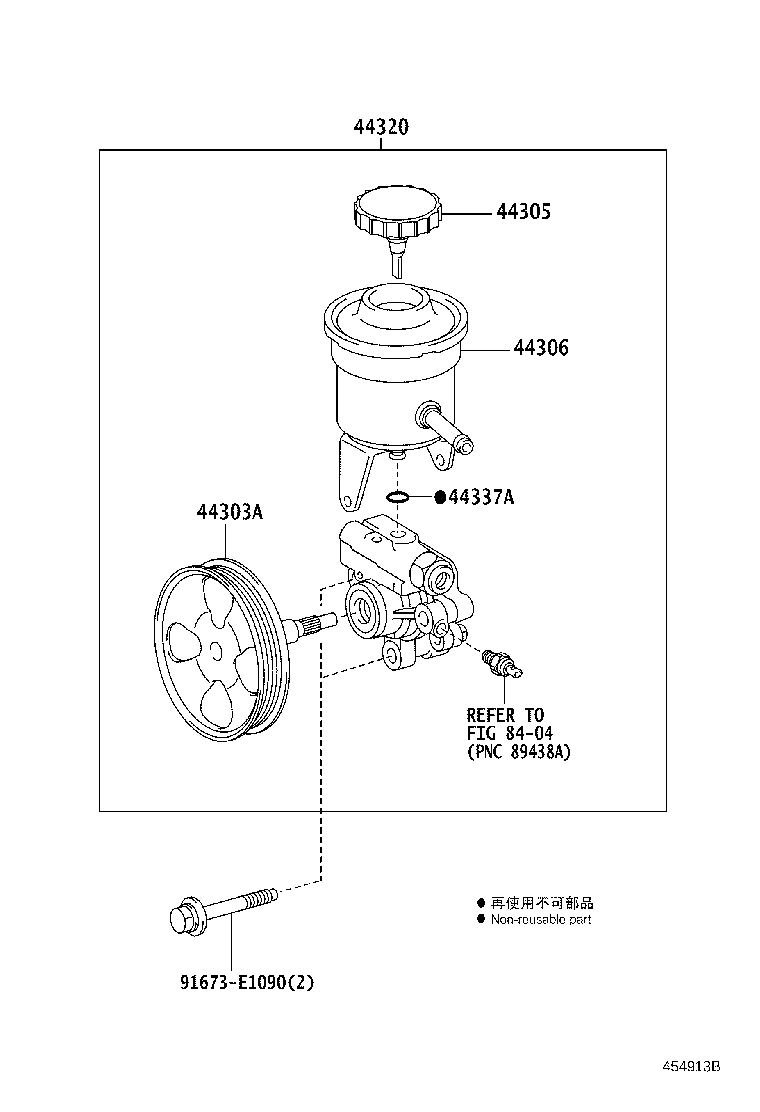

(0705- )TRU300,340,500

Click highlighted areas on diagram

diagram 44303A 44305 44306 44320 44337A 8404 91673E1090
Part # Description Qty Price
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-28010

TRU300,340,500

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-37030

BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
44305-37020

BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
44305-22040

TRU300,340,500

 1
44305-22060

TRU300,340,500

 1
44306 - RESERVOIR SUB-ASSY, VANE PUMP OIL
44306-25060

TRU300,340,500

 1
44320 - PUMP ASSY, VANE
44310-37250

TRU300,340,500

 1
44310-37030

BZU300,340

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11020

TRU300,340,500

 1
Common parts
91673-E1090
Linked diagrams
8404
