Toyota Dyna/toyoace BZU340 POWER TAKE-OFF CASE & GEAR

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
BZU340-TQMMC3 (2007)
3602 - POWER TAKE-OFF CASE & GEAR

BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011

Engine 1BZFPE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

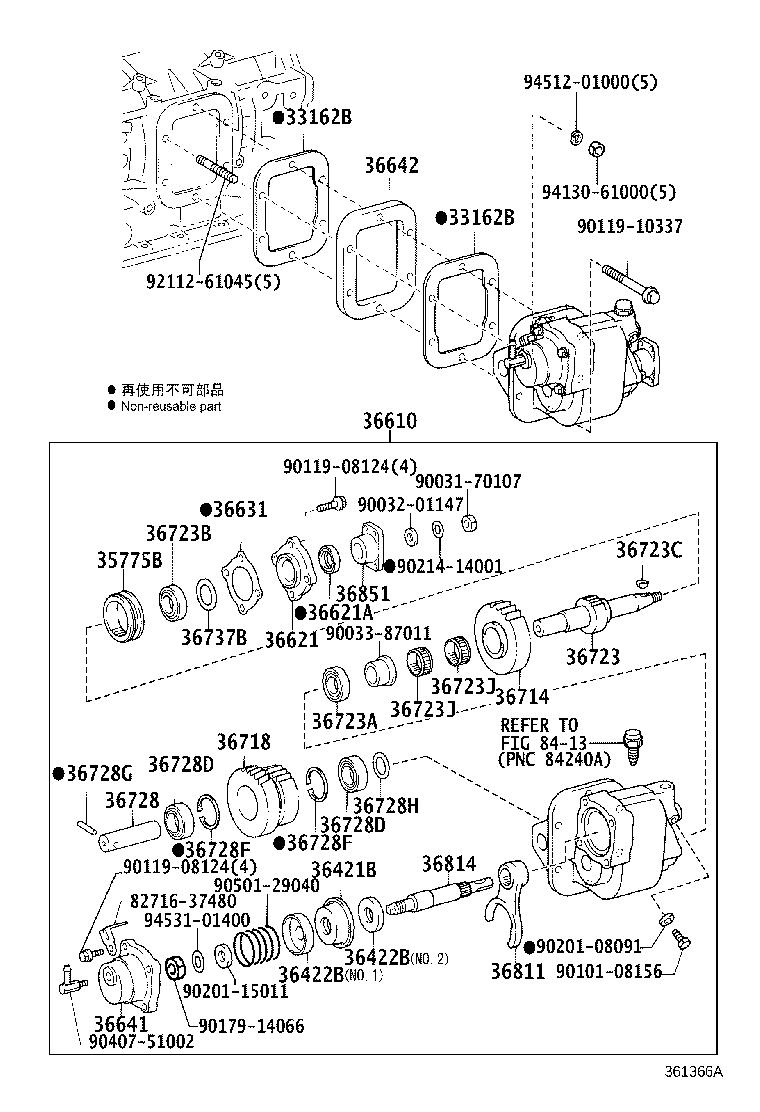

ILLUST NO. 1 OF 2(0705- )BZU300,340

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ 25KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-37030	BZU300,340	05/2007 - 12/2999	2
33162B - GASKET, POWER TAKE-OFF COVER
33162-37030	BZU300,340	05/2007 - 12/2999	2
35775B - SLEEVE, OUTPUT SHAFT
35775-37030	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36421B - DIAPHRAGM (FOR POWER TAKE-OFF)
36421-93100	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)	10/2006 - 08/2007	1
36421-37010	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)	09/2007 - 12/2999	1
36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36422-93101	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) NO.2	10/2006 - 12/2999	1
36422-93100	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) NO.1	10/2006 - 12/2999	1
36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36422-93101	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) NO.2	10/2006 - 12/2999	1
36422-93100	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) NO.1	10/2006 - 12/2999	1
36610 - POWER TAKE-OFF ASSY
36610-37191	BZU300,340	05/2007 - 06/2011	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-93200	BZU300,340;TRU300..DM5	05/2007 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-37030	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36641 - CAP, POWER TAKE-OFF SHIFT SHAFT
36641-93100	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)	10/2006 - 12/2999	1
36642 - SPACER, POWER TAKE-OFF COVER
36642-37040	BZU300,340	05/2007 - 12/2999	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37091	BZU300,340	05/2007 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37090	BZU300,340	05/2007 - 06/2011	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37030	BZU300,340	05/2007 - 12/2999	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001	BZU300,340;XZU308..DCRUE..IV6	05/2007 - 12/2999	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-22001	XZU344..35T..IV3;BZU300,340,XZU354..1NO;XZU30#..(T3,T4)..5F..IV6;TRU300,XZU304,334..(DM3,DM5,DM6,T3)..5F..(20T,40T)..(DCRTJ,DCRTK,EFI) 厚さ=16.25	10/2006 - 12/2999	1
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
90280-07011	BZU300,340;TRU300..DM5;XZU334..30T..DCRTK..IV3	10/2006 - 12/2999	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU344..35T..IV3;BZU300,340,XZU354..1NO;XZU30#..(T3,T4)..5F..IV6;XZU304,334..5F..(20T,40T)..(DCRTJ,DCRTK)..1NO	10/2006 - 12/2999	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU344..35T..IV3;BZU300,340,XZU354..1NO;XZU30#..(T3,T4)..5F..IV6;XZU304,334..5F..(20T,40T)..(DCRTJ,DCRTK)..1NO	10/2006 - 12/2999	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1	10/2006 - 12/2999	1
90564-25001	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05	10/2006 - 12/2999	1
90564-25004	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5	10/2006 - 12/2999	1
90564-25003	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2	10/2006 - 12/2999	1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90564-42003	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.17−0.23	10/2006 - 12/2999	1
90564-42004	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.47−0.53	10/2006 - 12/2999	1
90564-42002	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.07−0.13	10/2006 - 12/2999	1
90564-42001	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.02−0.08	10/2006 - 12/2999	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93104	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)	10/2006 - 12/2999	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37030	XZU334..T3..5F..CBU;XZU334,348..5F..(20T,40T)..(DCRTJ,DCRTK,DCRTM);BZU300,340,XZU304,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,33#,508,538..(T2,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-37010	BZU300,340;TRU300..DM5	05/2007 - 12/2999	1
Common parts
82716-37480
90031-70107
90032-01147
90033-87011
90101-08156
90119-08124
90119-10337
90179-14066
90201-08091
90201-15011
90214-14001
90407-51002
90501-29040
92112-61045
94130-61000
94512-01000
94531-01400
Linked diagrams
8413

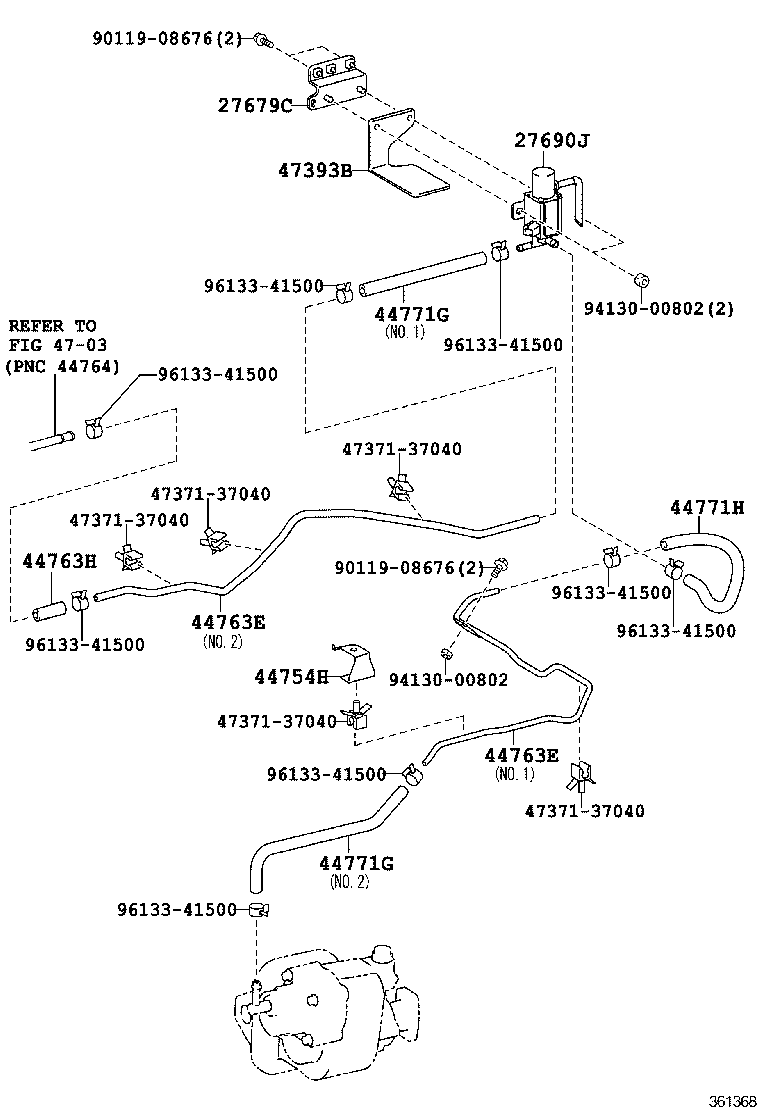

ILLUST NO. 2 OF 2(0705- )BZU300,340

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ 25KG

Part #	Description	Period	Qty
27679C - BRACKET, POWER TAKE-OFF SOLENOID
27679-78041	N04C,1BZFPE..BZU300,340,XZU334,344,504,548..SCB..5F;N04C,2TRFE..TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);N04C..XZU30#,348..(T2,T3,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	1
27690J - SOLENOID ASSY, POWER TAKE-OFF
27690-78072	1BZFPE..BZU300,340;2TRFE..TRU300..DM5	05/2007 - 12/2999	1
44754H - BRACKET, VACUUM TUBE
44754-37110	XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)	10/2006 - 12/2999	1
44763E - TUBE, HOSE TO HOSE, NO.1
44763-37410	BZU300,340 NO.1	05/2007 - 12/2999	1
44763-37820	BZU300,340;TRU300..DM5 NO.2	05/2007 - 12/2999	1
44763E - TUBE, HOSE TO HOSE, NO.1
44763-37410	BZU300,340 NO.1	05/2007 - 12/2999	1
44763-37820	BZU300,340;TRU300..DM5 NO.2	05/2007 - 12/2999	1
44763H - HOSE, VACUUM BRAKE
90445-17044	BZU300,340;XZU304..5F..20T..IV3..1NO	10/2006 - 12/2999	1
44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1
44771-37A70	BZU300,340 NO.2	05/2007 - 12/2999	1
44771-37450	BZU300,340 NO.1	05/2007 - 12/2999	1
44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1
44771-37A70	BZU300,340 NO.2	05/2007 - 12/2999	1
44771-37450	BZU300,340 NO.1	05/2007 - 12/2999	1
44771H - HOSE, VACUUM TUBE CONNECTOR, NO.2
95446-09300	BZU300,340,XZU334,344,504,548..SCB..5F;TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);XZU30#,348..(T2,T3,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)	10/2006 - 12/2999	1
47393B - INSULATOR, BRAKE TUBE HEAT
47393-37011	BZU300,340;TRU300..DM5	05/2007 - 12/2999	1
Common parts
47371-37040
90119-08676
94130-00802
96133-41500
Linked diagrams
4703

BZU340-TQMMC3 (2007)

ILLUST NO. 1 OF 2(0705- )BZU300,340

ILLUST NO. 2 OF 2(0705- )BZU300,340
