BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace

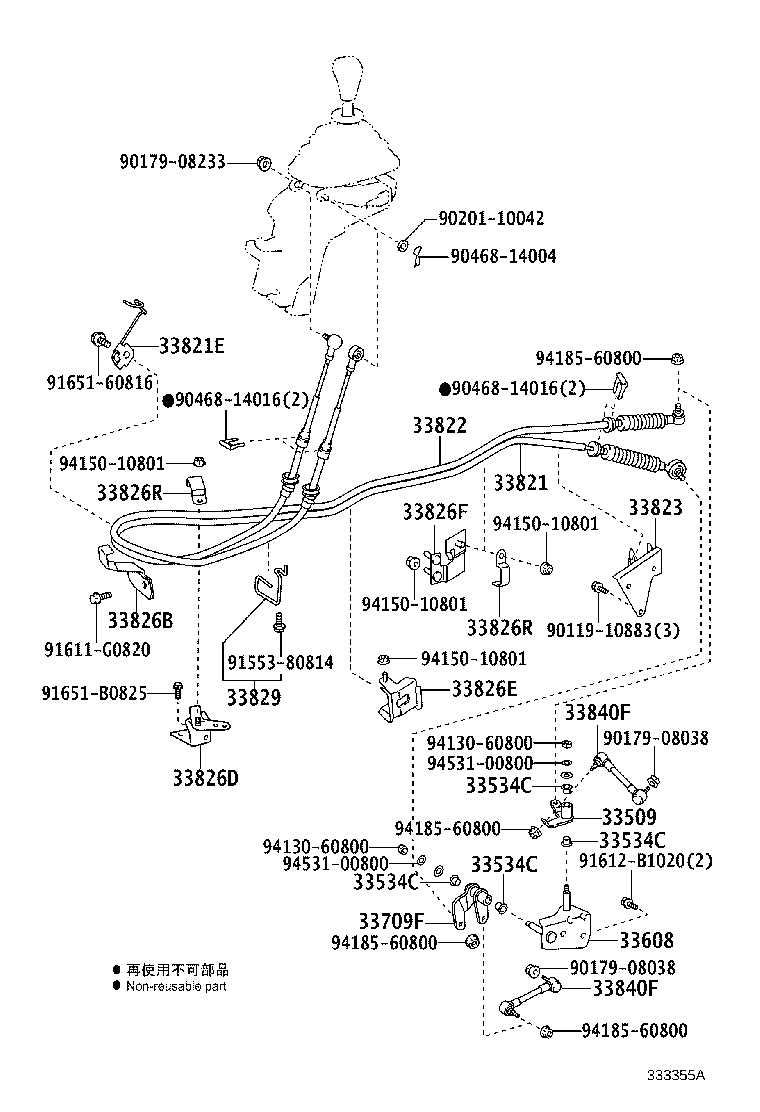

ILLUST NO. 2 OF 2(0705- )BZU300,340
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-37020 |
BZU300,340 |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-13007 |
BZU300,340 |
4 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-13007 |
BZU300,340 |
4 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-13007 |
BZU300,340 |
4 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-13007 |
BZU300,340 |
4 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-37020 |
BZU300,340 |
1 | ||
| 33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT) | ||||
| 33709-37030 |
BZU300,340 |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37F50 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) |
1 | ||
| 33820-37K20 |
TRU300,340,500 |
1 | ||
| 33820-37K10 |
BZU300,340 |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33829-37260 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33830-37210 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) |
1 | ||
| 33830-37420 |
TRU300,340,500 |
1 | ||
| 33830-37410 |
BZU300,340 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37350 |
BZU300,340 |
1 | ||
| 33823-37600 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33823-37530 |
TRU300,340,500 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33827-37141 |
BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33826-37251 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33827-37220 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33827-37120 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33827-37130 |
XZU304..(T4,T5)..20T;XZU308,314,324,338,34#,354,50#,524,538,548,554..20T,30T |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
BZU300,340,TRU300,340,500 |
2 | ||
| 33826-37580 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
BZU300,340,TRU300,340,500 |
2 | ||
| 33826-37580 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-37250 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-37050 |
BZU300,340 |
2 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-37050 |
BZU300,340 |
2 | ||
| Common parts | ||||
| 90119-10883 | ||||
| 90179-08038 | ||||
| 90179-08233 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91553-80814 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 91651-60816 | ||||
| 91651-B0825 | ||||
| 94130-60800 | ||||
| 94150-10801 | ||||
| 94185-60800 | ||||
| 94531-00800 | ||||

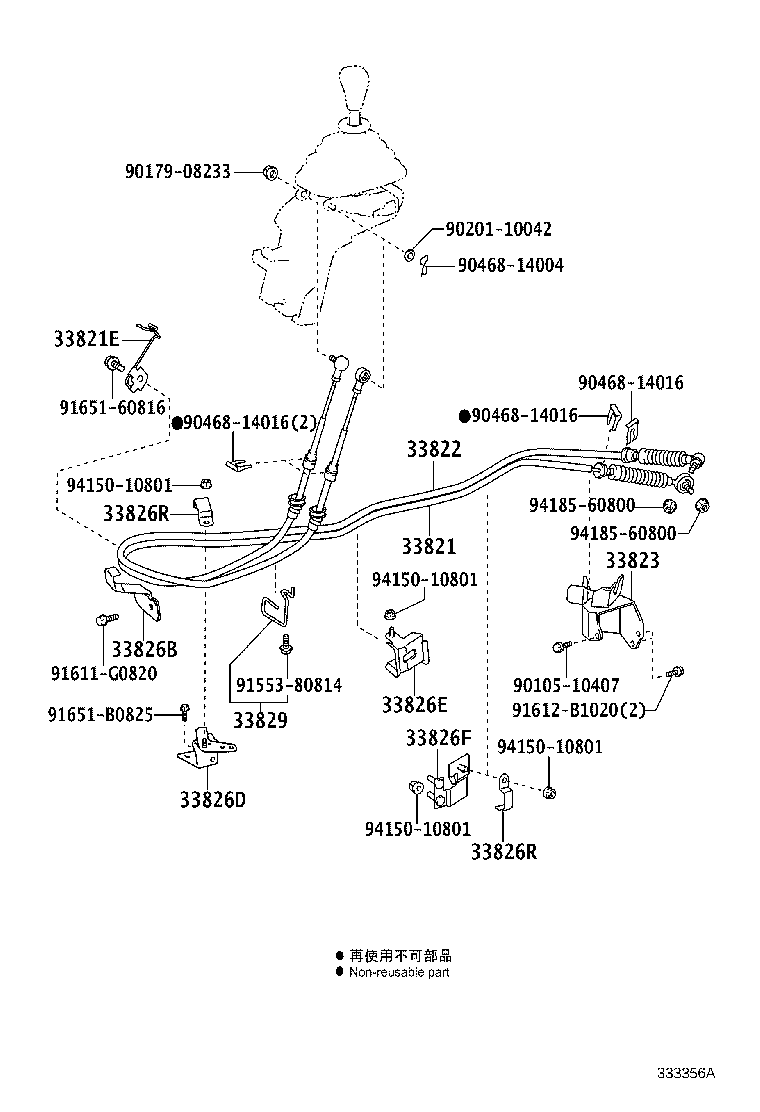

ILLUST NO. 2 OF 2(0705- )TRU300,340,500
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37F50 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) |
1 | ||
| 33820-37K20 |
TRU300,340,500 |
1 | ||
| 33820-37K10 |
BZU300,340 |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33829-37260 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33830-37210 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) |
1 | ||
| 33830-37420 |
TRU300,340,500 |
1 | ||
| 33830-37410 |
BZU300,340 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37350 |
BZU300,340 |
1 | ||
| 33823-37600 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33823-37530 |
TRU300,340,500 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33827-37141 |
BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33826-37251 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33827-37220 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33827-37120 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33827-37130 |
XZU304..(T4,T5)..20T;XZU308,314,324,338,34#,354,50#,524,538,548,554..20T,30T |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
BZU300,340,TRU300,340,500 |
2 | ||
| 33826-37580 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
BZU300,340,TRU300,340,500 |
2 | ||
| 33826-37580 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-37250 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM |
1 | ||
| Common parts | ||||
| 90105-10407 | ||||
| 90179-08233 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91553-80814 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 91651-60816 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
| 94185-60800 | ||||
