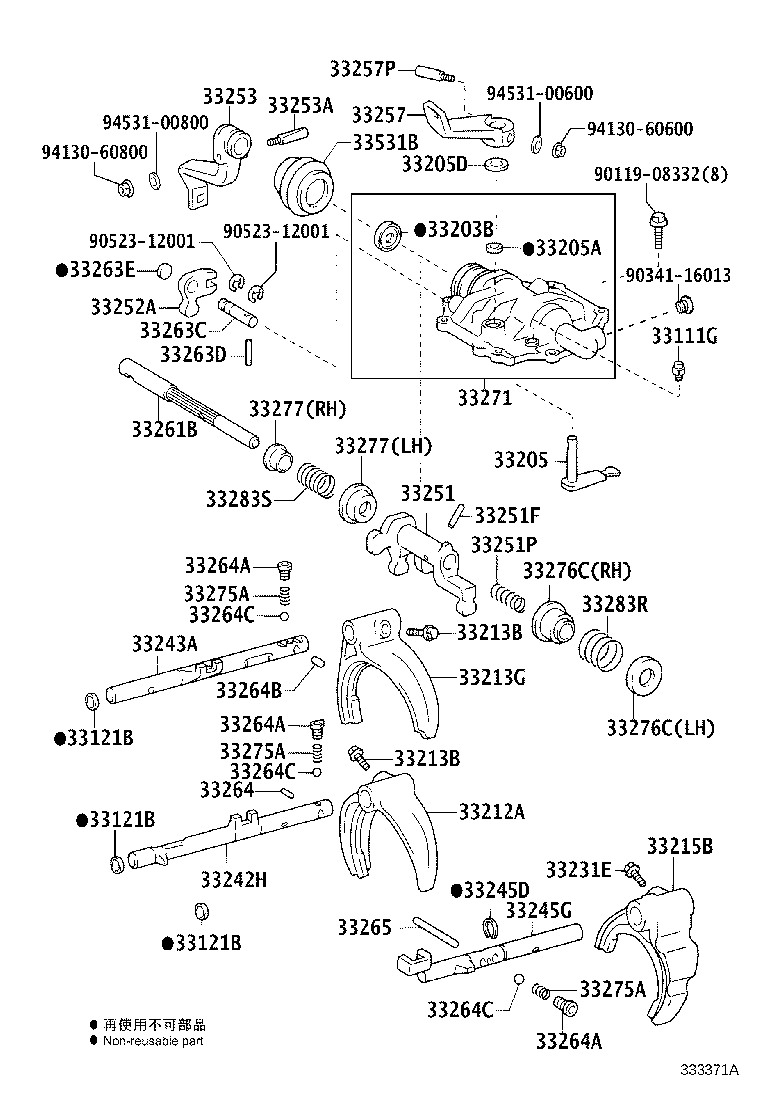

BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace
(0705- )BZU300,340
H351
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03090 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
BZU300,340 |
3 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
BZU300,340 |
3 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
BZU300,340 |
3 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-22009 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-37040 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33262-37020 |
BZU300,340 |
1 | ||
| 33262-36050 |
TRU300,340,500 |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90311-13001 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13029 |
XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F 外径=28 |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-60050 |
BZU300,340 |
1 | ||
| 33212-36031 |
TRU300,340,500 |
1 | ||
| 33210-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33210-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
TRU300,340,500 |
3 | ||
| 90105-08211 |
BZU300,340 |
2 | ||
| 90105-08211 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
TRU300,340,500 |
3 | ||
| 90105-08211 |
BZU300,340 |
2 | ||
| 90105-08211 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-36041 |
TRU300,340,500 |
1 | ||
| 33220-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33213-60060 |
BZU300,340 |
1 | ||
| 33220-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33215B - FORK, GEAR SHIFT, NO.4 | ||||
| 33212-37020 |
BZU300,340 |
1 | ||
| 33231E - BOLT(FOR REVERSE SHIFT HEAD) | ||||
| 90105-07001 |
BZU300,340 |
1 | ||
| 33242H - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33243-37040 |
BZU300,340 |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-37060 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33243-37010 |
TRU300,340,500 |
1 | ||
| 33244-37040 |
BZU300,340 |
1 | ||
| 33243-37050 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33245D - RING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT) | ||||
| 90520-14003 |
BZU300,340 |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-37030 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33242-37040 |
BZU300,340 |
1 | ||
| 33245-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-37040 |
BZU300,340 |
1 | ||
| 33251-36090 |
TRU300,340,500 |
1 | ||
| 33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER) | ||||
| 90254-05016 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-12185 |
BZU300,340 |
1 | ||
| 90501-18121 |
TRU300,340,500 右側 |
1 | ||
| 90501-16090 |
TRU300,340,500 左側 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-36010 |
TRU300,340,500 |
1 | ||
| 33252-37020 |
BZU300,340 |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-37080 |
BZU300,340 |
1 | ||
| 33253-37070 |
TRU300,340,500 |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-36030 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-37080 |
BZU300,340 |
1 | ||
| 33257-37060 |
TRU300,340,500 |
1 | ||
| 33257-37090 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-35010 |
XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F |
1 | ||
| 33261B - SHAFT, SHIFT LEVER | ||||
| 33261-37030 |
BZU300,340 |
1 | ||
| 33263C - SHAFT, SHIFT LEVER, NO.2 | ||||
| 33263-36010 |
TRU300,340,500 |
1 | ||
| 33263-37010 |
BZU300,340 |
1 | ||
| 33263D - PIN (FOR SHIFT LEVER SHAFT) | ||||
| 90250-04060 |
TRU300,340,500 |
1 | ||
| 90250-04110 |
BZU300,340 |
1 | ||
| 33263E - PLUG (FOR SHIFT LEVER SHAFT) | ||||
| 90331-14004 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-10011 |
TRU300,340,500 長さ=13.4,外径=9.53 |
1 | ||
| 90250-10023 |
BZU300,340 長さ=15.45 |
1 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90341-12008 |
BZU300,340 外径=18 |
4 | ||
| 90341-12008 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 外径=18 |
3 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90341-12008 |
BZU300,340 外径=18 |
4 | ||
| 90341-12008 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 外径=18 |
3 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90341-12008 |
BZU300,340 外径=18 |
4 | ||
| 90341-12008 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 外径=18 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-05001 |
TRU300,340,500 長さ=13 |
1 | ||
| 90361-10003 |
BZU300,340 長さ=13.6,外径=9.5 |
1 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
BZU300,340,XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
3 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
BZU300,340,XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
3 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
BZU300,340,XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
3 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-10015 |
TRU300,340,500 長さ=7.5,外径=9.67 |
1 | ||
| 90250-10035 |
BZU300,340 長さ=81.9,外径=9.53 |
1 | ||
| 33271 - HOUSING, SHIFT LEVER SHAFT | ||||
| 33207-37030 |
BZU300,340 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14194 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=31.7 |
3 | ||
| 90501-14155 |
BZU300,340 長さ=29.3 |
3 | ||
| 90501-15055 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=90.5 |
1 | ||
| 90501-16145 |
TRU300,340,500 長さ=28.8 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14194 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=31.7 |
3 | ||
| 90501-14155 |
BZU300,340 長さ=29.3 |
3 | ||
| 90501-15055 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=90.5 |
1 | ||
| 90501-16145 |
TRU300,340,500 長さ=28.8 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14194 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=31.7 |
3 | ||
| 90501-14155 |
BZU300,340 長さ=29.3 |
3 | ||
| 90501-15055 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=90.5 |
1 | ||
| 90501-16145 |
TRU300,340,500 長さ=28.8 |
3 | ||
| 33276C - SEAT, SELECT SPRING | ||||
| 33276-37030 |
BZU300,340 右側 |
1 | ||
| 33276-37040 |
BZU300,340 左側 |
1 | ||
| 33276C - SEAT, SELECT SPRING | ||||
| 33276-37030 |
BZU300,340 右側 |
1 | ||
| 33276-37040 |
BZU300,340 左側 |
1 | ||
| 33277 - SEAT, SELECT SPRING, NO.2 | ||||
| 33277-37030 |
BZU300,340 左側 |
1 | ||
| 33277-37020 |
BZU300,340 右側 |
1 | ||
| 33277 - SEAT, SELECT SPRING, NO.2 | ||||
| 33277-37030 |
BZU300,340 左側 |
1 | ||
| 33277-37020 |
BZU300,340 右側 |
1 | ||
| 33283R - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN RH) | ||||
| 90501-23150 |
BZU300,340 |
1 | ||
| 33283S - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN LH) | ||||
| 90501-20165 |
BZU300,340 |
1 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-37020 |
BZU300,340 |
1 | ||
| 33531-36060 |
TRU300,340,500 |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90341-16013 | ||||
| 90523-12001 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94531-00600 | ||||
| 94531-00800 | ||||

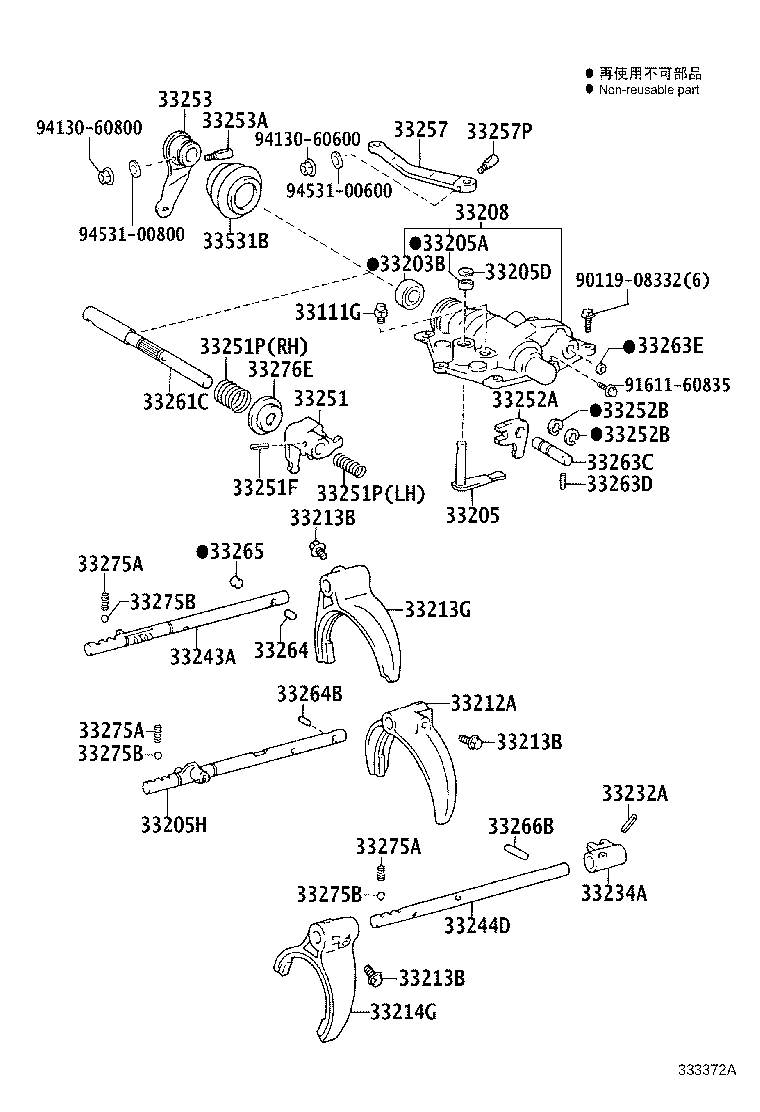

(0705- )TRU300,340,500
M153
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03090 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-22009 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-37040 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33262-37020 |
BZU300,340 |
1 | ||
| 33262-36050 |
TRU300,340,500 |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90311-13001 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13029 |
XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F 外径=28 |
1 | ||
| 33205H - SHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1 | ||||
| 33205-37030 |
TRU300,340,500 |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33207-36041 |
TRU300,340,500 |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-60050 |
BZU300,340 |
1 | ||
| 33212-36031 |
TRU300,340,500 |
1 | ||
| 33210-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33210-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
TRU300,340,500 |
3 | ||
| 90105-08211 |
BZU300,340 |
2 | ||
| 90105-08211 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
TRU300,340,500 |
3 | ||
| 90105-08211 |
BZU300,340 |
2 | ||
| 90105-08211 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
TRU300,340,500 |
3 | ||
| 90105-08211 |
BZU300,340 |
2 | ||
| 90105-08211 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-36041 |
TRU300,340,500 |
1 | ||
| 33220-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33213-60060 |
BZU300,340 |
1 | ||
| 33220-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-36060 |
TRU300,340,500 |
1 | ||
| 33214-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05016 |
TRU300,340,500 |
1 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| 33234-36011 |
TRU300,340,500 |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-37060 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33243-37010 |
TRU300,340,500 |
1 | ||
| 33244-37040 |
BZU300,340 |
1 | ||
| 33243-37050 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33244D - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-37020 |
TRU300,340,500 |
1 | ||
| 33244-37060 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33244-37070 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-37040 |
BZU300,340 |
1 | ||
| 33251-36090 |
TRU300,340,500 |
1 | ||
| 33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER) | ||||
| 90254-05016 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-12185 |
BZU300,340 |
1 | ||
| 90501-18121 |
TRU300,340,500 右側 |
1 | ||
| 90501-16090 |
TRU300,340,500 左側 |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-12185 |
BZU300,340 |
1 | ||
| 90501-18121 |
TRU300,340,500 右側 |
1 | ||
| 90501-16090 |
TRU300,340,500 左側 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-36010 |
TRU300,340,500 |
1 | ||
| 33252-37020 |
BZU300,340 |
1 | ||
| 33252B - RING, E (FOR SHIFT INNER LEVER) | ||||
| 90523-12001 |
TRU300,340,500 |
2 | ||
| 33252B - RING, E (FOR SHIFT INNER LEVER) | ||||
| 90523-12001 |
TRU300,340,500 |
2 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-37080 |
BZU300,340 |
1 | ||
| 33253-37070 |
TRU300,340,500 |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-36030 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-37080 |
BZU300,340 |
1 | ||
| 33257-37060 |
TRU300,340,500 |
1 | ||
| 33257-37090 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-35010 |
XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-36070 |
TRU300,340,500 |
1 | ||
| 33263C - SHAFT, SHIFT LEVER, NO.2 | ||||
| 33263-36010 |
TRU300,340,500 |
1 | ||
| 33263-37010 |
BZU300,340 |
1 | ||
| 33263D - PIN (FOR SHIFT LEVER SHAFT) | ||||
| 90250-04060 |
TRU300,340,500 |
1 | ||
| 90250-04110 |
BZU300,340 |
1 | ||
| 33263E - PLUG (FOR SHIFT LEVER SHAFT) | ||||
| 90331-14004 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-10011 |
TRU300,340,500 長さ=13.4,外径=9.53 |
1 | ||
| 90250-10023 |
BZU300,340 長さ=15.45 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-05001 |
TRU300,340,500 長さ=13 |
1 | ||
| 90361-10003 |
BZU300,340 長さ=13.6,外径=9.5 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-10015 |
TRU300,340,500 長さ=7.5,外径=9.67 |
1 | ||
| 90250-10035 |
BZU300,340 長さ=81.9,外径=9.53 |
1 | ||
| 33266B - PIN, SHIFT INTER LOCK, NO.3 | ||||
| 90250-10014 |
TRU300,340,500 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14194 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=31.7 |
3 | ||
| 90501-14155 |
BZU300,340 長さ=29.3 |
3 | ||
| 90501-15055 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=90.5 |
1 | ||
| 90501-16145 |
TRU300,340,500 長さ=28.8 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14194 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=31.7 |
3 | ||
| 90501-14155 |
BZU300,340 長さ=29.3 |
3 | ||
| 90501-15055 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=90.5 |
1 | ||
| 90501-16145 |
TRU300,340,500 長さ=28.8 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14194 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=31.7 |
3 | ||
| 90501-14155 |
BZU300,340 長さ=29.3 |
3 | ||
| 90501-15055 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=90.5 |
1 | ||
| 90501-16145 |
TRU300,340,500 長さ=28.8 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
TRU300,340,500 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
TRU300,340,500 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
TRU300,340,500 |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-36011 |
TRU300,340,500 |
1 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-37020 |
BZU300,340 |
1 | ||
| 33531-36060 |
TRU300,340,500 |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 91611-60835 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94531-00600 | ||||
| 94531-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
