BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace
(0705- )BZU300,340
H351
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-37030 |
BZU300,340 |
1 | ||
| 33037-37040 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33037-37050 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| 33038-37040 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33038-37020 |
XZU30#,33#,34#,354,50#,538,548..(DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33037-37022 |
BZU300,340 |
1 | ||
| 33038-37030 |
XZU30#,33#,34#,354,50#,538,548..(DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33039 - RING SET, SYNCHRONIZER, NO.3 | ||||
| 33038-37012 |
BZU300,340 |
1 | ||
| 33147 - RETAINER, BEARING, CENTER | ||||
| 33147-37011 |
BZU300,340 |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-37270 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33301-37050 |
TRU300,340,500 |
1 | ||
| 33301-37210 |
BZU300,340 |
1 | ||
| 33311-37290 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-47001 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90363-50007 |
BZU300,340 |
1 | ||
| 90363-45010 |
TRU300,340,500 |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-42023 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=3.05−3.10,ﾏｰｸ B |
1 | ||
| 90520-42025 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=3.15−3.20,ﾏｰｸ D |
1 | ||
| 90520-42003 |
TRU300,340,500 厚さ=2.55−2.60,MARK 3 |
1 | ||
| 90520-42026 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=3.20−3.25,ﾏｰｸ E |
1 | ||
| 90520-42024 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=3.10−3.15,ﾏｰｸ C |
1 | ||
| 90521-58001 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=1.73−1.87 |
1 | ||
| 90520-42006 |
TRU300,340,500 厚さ=2.70−2.75,MARK 6 |
1 | ||
| 90520-42007 |
TRU300,340,500 厚さ=2.75−2.80,MARK 7 |
1 | ||
| 90520-42004 |
TRU300,340,500 厚さ=2.60−2.65,MARK 4 |
1 | ||
| 90520-42002 |
TRU300,340,500 厚さ=2.50−2.55,MARK 2 |
1 | ||
| 90520-42005 |
TRU300,340,500 厚さ=2.65−2.70,MARK 5 |
1 | ||
| 90520-42022 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=3.00−3.05,ﾏｰｸ A |
1 | ||
| 90520-42027 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=3.25−3.30,ﾏｰｸ F |
1 | ||
| 90520-99010 |
BZU300,340 厚さ=2.36−2.46 |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| 96151-04500 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-09002 |
BZU300,340,TRU300,340,500 |
12 | ||
| 33311F - SPACER (FOR INPUT SHAFT) | ||||
| 90560-38004 |
BZU300,340,TRU300,340,500 |
2 | ||
| 33311F - SPACER (FOR INPUT SHAFT) | ||||
| 90560-38004 |
BZU300,340,TRU300,340,500 |
2 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-45005 |
BZU300,340 厚さ=2.60−2.65,ﾏｰｸ C |
1 | ||
| 90520-45008 |
BZU300,340 厚さ=2.75−2.80,ﾏｰｸ F |
1 | ||
| 90520-45007 |
BZU300,340 厚さ=2.70−2.75,ﾏｰｸ E |
1 | ||
| 90520-45004 |
BZU300,340 厚さ=2.55−2.60,ﾏｰｸ B |
1 | ||
| 90520-45003 |
BZU300,340 厚さ=2.50−2.55,ﾏｰｸ A |
1 | ||
| 90520-45006 |
BZU300,340 厚さ=2.65−2.70,ﾏｰｸ D |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-37030 |
TRU300,340,500 |
1 | ||
| 33321-37060 |
BZU300,340 |
1 | ||
| 33302-37021 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33302-37030 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-38007 |
BZU300,340 |
1 | ||
| 90366-55057 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90363-40034 |
TRU300,340,500 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-24008 |
XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F |
1 | ||
| 33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU | ||||
| 90301-31003 |
XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F |
1 | ||
| 33321M - RING, SHAFT SNAP (FOR BEARING) | ||||
| 90520-99009 |
BZU300,340 内径=106.1,外径=115.64 |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-45019 |
BZU300,340 |
1 | ||
| 90366-55060 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-41010 |
BZU300,340 厚さ=2.60,ﾏｰｸ E |
1 | ||
| 90520-41011 |
BZU300,340 厚さ=2.65,ﾏｰｸ F |
1 | ||
| 90520-41006 |
BZU300,340 厚さ=2.40−2.45,ﾏｰｸ A |
1 | ||
| 90520-41008 |
BZU300,340 厚さ=2.50−2.55,ﾏｰｸ C |
1 | ||
| 90520-41013 |
BZU300,340 厚さ=2.75,ﾏｰｸ H |
1 | ||
| 90520-41009 |
BZU300,340 厚さ=2.55−2.60,ﾏｰｸ D |
1 | ||
| 90520-41012 |
BZU300,340 厚さ=2.70,ﾏｰｸ G |
1 | ||
| 90520-41007 |
BZU300,340 厚さ=2.45−2.50,ﾏｰｸ B |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-37050 |
BZU300,340 |
1 | ||
| 33425-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33331-37070 |
TRU300,340,500 |
1 | ||
| 33425-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-54004 |
TRU300,340,500 |
1 | ||
| 90364-43009 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90364-43010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90364-47008 |
BZU300,340 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-37030 |
BZU300,340 |
1 | ||
| 33424-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33424-37040 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33424-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33033-36080 |
TRU300,340,500 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-54009 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90364-54003 |
TRU300,340,500 |
1 | ||
| 90364-54010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90364-50003 |
BZU300,340 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33044-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33034-37010 |
TRU300,340,500 |
1 | ||
| 33044-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33034-37050 |
BZU300,340 |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-58007 |
BZU300,340 |
1 | ||
| 90364-54008 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90364-47007 |
TRU300,340,500 |
1 | ||
| 90364-54011 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33426-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33335-37040 |
TRU300,340,500 |
1 | ||
| 33426-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33335-37080 |
BZU300,340 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-58005 |
TRU300,340,500 |
1 | ||
| 90364-49002 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90364-44004 |
BZU300,340 |
1 | ||
| 90364-49004 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-37061 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33036-37050 |
BZU300,340 |
1 | ||
| 33036-37010 |
TRU300,340,500 |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-48003 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90364-48004 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *156 |
1 | ||
| 90364-48003 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *155 |
1 | ||
| 90364-48005 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *157 |
1 | ||
| 90364-48006 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *158 |
1 | ||
| 90364-37012 |
TRU300,340,500 |
1 | ||
| 90364-48009 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *156 |
1 | ||
| 90364-48008 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *155 |
1 | ||
| 90364-48012 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *159 |
1 | ||
| 90364-38020 |
BZU300,340 |
1 | ||
| 90364-48010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *157 |
1 | ||
| 90364-48007 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *159 |
1 | ||
| 90364-48011 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *158 |
1 | ||
| 33354A - RACE, REVERSE GEAR BEARING, INNER | ||||
| 33354-36010 |
TRU300,340,500 |
1 | ||
| 33354-37010 |
BZU300,340 |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-37030 |
BZU300,340 |
1 | ||
| 33361-37060 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33361-37050 |
TRU300,340,500 |
1 | ||
| 33361-37051 |
TRU300,340,500 |
1 | ||
| 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) | ||||
| 90520-40015 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.50−2.55,ﾏｰｸ C |
1 | ||
| 90520-40017 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.60−2.65,ﾏｰｸ E |
1 | ||
| 90520-40018 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.65−2.70,ﾏｰｸ F |
1 | ||
| 90520-40013 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.40−2.45,ﾏｰｸ A |
1 | ||
| 90520-46004 |
BZU300,340 厚さ=2.90−2.95,ﾏｰｸ A |
1 | ||
| 90520-40014 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.45−2.50,ﾏｰｸ B |
1 | ||
| 90520-46006 |
BZU300,340 厚さ=3.00−3.05,ﾏｰｸ C |
1 | ||
| 90520-40016 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.55−2.60,ﾏｰｸ D |
1 | ||
| 90520-46009 |
BZU300,340 厚さ=3.15−3.20,ﾏｰｸ F |
1 | ||
| 90520-46005 |
BZU300,340 厚さ=2.95−3.00,ﾏｰｸ B |
1 | ||
| 90520-46007 |
BZU300,340 厚さ=3.05−3.10,ﾏｰｸ D |
1 | ||
| 90520-46008 |
BZU300,340 厚さ=3.10−3.15,ﾏｰｸ E |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36050 |
TRU300,340,500 |
1 | ||
| 33361-37040 |
BZU300,340 |
1 | ||
| 33362-37030 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-50010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.40−2.45,ﾏｰｸ A |
1 | ||
| 90520-50011 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.45−2.50,ﾏｰｸ B |
1 | ||
| 90520-50013 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.55−2.60,ﾏｰｸ D |
1 | ||
| 90520-28057 |
BZU300,340 厚さ=2.05−2.10,ﾏｰｸ 7 |
1 | ||
| 90520-50012 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.50−2.55,ﾏｰｸ C |
1 | ||
| 90520-50015 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.65−2.70,ﾏｰｸ F |
1 | ||
| 90520-28054 |
BZU300,340 厚さ=1.90−1.95,ﾏｰｸ 4 |
1 | ||
| 90520-28059 |
BZU300,340 厚さ=2.15−2.20,ﾏｰｸ 9 |
1 | ||
| 90520-28055 |
BZU300,340 厚さ=1.95−2.00,ﾏｰｸ 5 |
1 | ||
| 90520-28058 |
BZU300,340 厚さ=2.10−2.15,ﾏｰｸ 8 |
1 | ||
| 90520-43003 |
TRU300,340,500 厚さ=1.95,ﾏｰｸ=3 |
1 | ||
| 90520-43007 |
TRU300,340,500 厚さ=2.15,ﾏｰｸ=7 |
1 | ||
| 90520-50014 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.60−2.65,ﾏｰｸ E |
1 | ||
| 90520-43005 |
TRU300,340,500 厚さ=2.05,ﾏｰｸ=5 |
1 | ||
| 90520-43004 |
TRU300,340,500 厚さ=2.00,ﾏｰｸ=4 |
1 | ||
| 90520-43002 |
TRU300,340,500 厚さ=1.90,ﾏｰｸ=2 |
1 | ||
| 90520-28056 |
BZU300,340 厚さ=2.00−2.05,ﾏｰｸ 6 |
1 | ||
| 90520-43006 |
TRU300,340,500 厚さ=2.10,ﾏｰｸ=6 |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-37060 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33363-37050 |
TRU300,340,500 |
1 | ||
| 33363-37040 |
BZU300,340 |
1 | ||
| 33363-37051 |
TRU300,340,500 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-37031 |
BZU300,340 |
1 | ||
| 33364-37050 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33364-37051 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33364-36061 |
TRU300,340,500 |
1 | ||
| 33364-37040 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-37030 |
BZU300,340 |
3 | ||
| 33365-37040 |
TRU300,340,500 |
3 | ||
| 33365-37050 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
6 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-36032 |
TRU300,340,500 |
3 | ||
| 33365-60010 |
BZU300,340 |
3 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-36051 |
TRU300,340,500 |
2 | ||
| 33368-60022 |
BZU300,340 |
1 | ||
| 33368J - RING, SYNCHRONIZER (FOR 5TH GEAR) | ||||
| 33368-60043 |
BZU300,340 |
1 | ||
| 33396-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33396-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-37030 |
BZU300,340 |
2 | ||
| 33371-37040 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
6 | ||
| 33371-36030 |
TRU300,340,500 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-37030 |
BZU300,340 |
2 | ||
| 33371-37040 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
6 | ||
| 33371-36030 |
TRU300,340,500 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-36021 |
TRU300,340,500 |
2 | ||
| 33371-37030 |
BZU300,340 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-36021 |
TRU300,340,500 |
2 | ||
| 33371-37030 |
BZU300,340 |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33371-60010 |
BZU300,340 |
2 | ||
| 33392-36010 |
TRU300,340,500 |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33371-60010 |
BZU300,340 |
2 | ||
| 33392-36010 |
TRU300,340,500 |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-37020 |
BZU300,340 |
1 | ||
| 33393-36060 |
TRU300,340,500 |
1 | ||
| 33393-37040 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33394B - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-37010 |
BZU300,340 |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-36030 |
TRU300,340,500 |
1 | ||
| 33395-37030 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33395-37020 |
BZU300,340 |
1 | ||
| 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) | ||||
| 90364-28010 |
BZU300,340,XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-38006 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90365-37006 |
TRU300,340,500 |
1 | ||
| 90365-30030 |
BZU300,340 |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-27055 |
BZU300,340 厚さ=2.55−2.60,ﾏｰｸ C |
1 | ||
| 90520-27057 |
BZU300,340 厚さ=2.65−2.70,ﾏｰｸ E |
1 | ||
| 90520-27053 |
BZU300,340 厚さ=2.45−2.50,ﾏｰｸ A |
1 | ||
| 90520-27058 |
BZU300,340 厚さ=2.70−2.75,ﾏｰｸ F |
1 | ||
| 90520-27054 |
BZU300,340 厚さ=2.50−2.55,ﾏｰｸ B |
1 | ||
| 90520-27056 |
BZU300,340 厚さ=2.60−2.65,ﾏｰｸ D |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-36004 |
BZU300,340 |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-34022 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.60−2.65,ﾏｰｸ E |
1 | ||
| 90520-34020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.50−2.55,ﾏｰｸ C |
1 | ||
| 90520-34023 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.65−2.70,ﾏｰｸ F |
1 | ||
| 90520-34019 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.45−2.50,ﾏｰｸ B |
1 | ||
| 90520-34018 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.40−2.45,ﾏｰｸ A |
1 | ||
| 90520-63001 |
BZU300,340 厚さ=1.60−1.70 |
1 | ||
| 90520-34021 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.55−2.60,ﾏｰｸ D |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-26031 |
TRU300,340,500 厚さ=2.00−2.05 |
1 | ||
| 90520-26032 |
TRU300,340,500 厚さ=2.05−2.10 |
1 | ||
| 90520-26033 |
TRU300,340,500 厚さ=2.10−2.15 |
1 | ||
| 90520-29034 |
BZU300,340 厚さ=2.50−2.55,ﾏｰｸ C |
1 | ||
| 90520-26030 |
TRU300,340,500 厚さ=1.95−2.00 |
1 | ||
| 90520-29037 |
BZU300,340 厚さ=2.65−2.70,ﾏｰｸ F |
1 | ||
| 90520-29036 |
BZU300,340 厚さ=2.60−2.65,ﾏｰｸ E |
1 | ||
| 90520-29038 |
BZU300,340 厚さ=2.70−2.75,ﾏｰｸ G |
1 | ||
| 90520-26034 |
TRU300,340,500 厚さ=2.15−2.20 |
1 | ||
| 90520-26035 |
TRU300,340,500 厚さ=2.20−2.25 |
1 | ||
| 90520-29033 |
BZU300,340 厚さ=2.45−2.50,ﾏｰｸ B |
1 | ||
| 90520-29032 |
BZU300,340 厚さ=2.40−2.45,ﾏｰｸ A |
1 | ||
| 90520-29035 |
BZU300,340 厚さ=2.55−2.60,ﾏｰｸ D |
1 | ||
| 33411X - BEARING, RADIAL BALL | ||||
| 90363-32038 |
BZU300,340 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-37131 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33421-37040 |
TRU300,340,500 |
1 | ||
| 33421-37130 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33421-37120 |
BZU300,340 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-37030 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33451-37020 |
BZU300,340 |
1 | ||
| 33451-36050 |
TRU300,340,500 |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03002 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33461 - GEAR, REVERSE IDLER | ||||
| 33461-37040 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33461-37030 |
BZU300,340 |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33462-60020 |
BZU300,340 |
2 | ||
| 33462-60020 |
TRU300,340,500 |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33462-60020 |
BZU300,340 |
2 | ||
| 33462-60020 |
TRU300,340,500 |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-36150 |
BZU300;BZU340..20T 歯数=6,ﾏｰｸ 6X20−22 |
1 | ||
| 33481-36160 |
BZU340..30T;TRU300,340,500 歯数=6,ﾏｰｸ 6X23−25 |
1 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-05012 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90360-06004 |
BZU300,340 |
2 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-05012 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90360-06004 |
BZU300,340 |
2 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 35775-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33487-36070 |
TRU300,340,500 |
1 | ||
| 33487-37020 |
BZU300,340 |
1 | ||
| 36155B - RING, TRANSFER OIL SEAL | ||||
| 36155-36020 |
BZU300,340 |
2 | ||
| 36155B - RING, TRANSFER OIL SEAL | ||||
| 36155-36020 |
BZU300,340 |
2 | ||

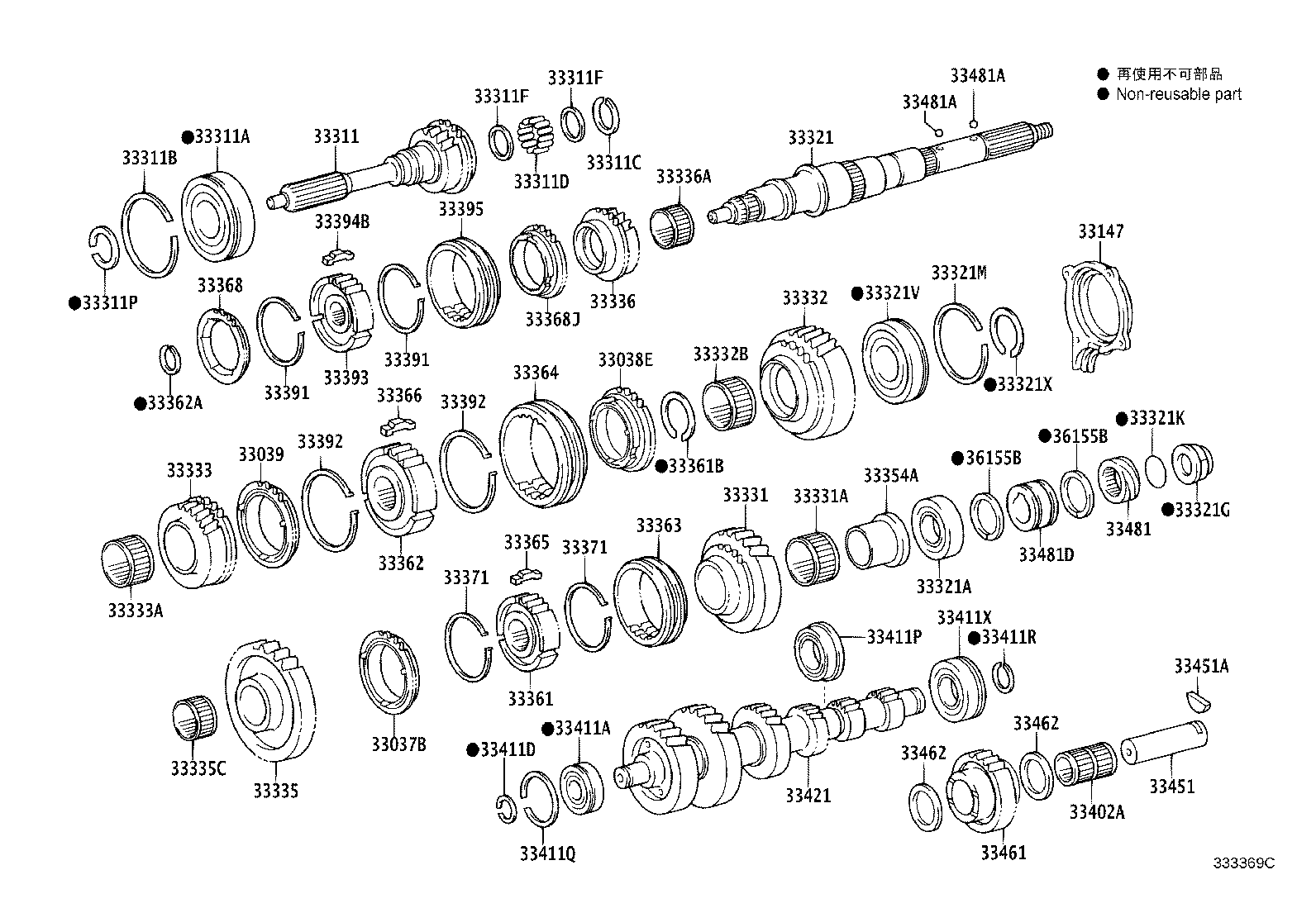

(0705- )TRU300,340,500
M153
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33311-37270 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33301-37050 |
TRU300,340,500 |
1 | ||
| 33301-37210 |
BZU300,340 |
1 | ||
| 33311-37290 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-47001 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90363-50007 |
BZU300,340 |
1 | ||
| 90363-45010 |
TRU300,340,500 |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-42023 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=3.05−3.10,ﾏｰｸ B |
1 | ||
| 90520-42025 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=3.15−3.20,ﾏｰｸ D |
1 | ||
| 90520-42003 |
TRU300,340,500 厚さ=2.55−2.60,MARK 3 |
1 | ||
| 90520-42026 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=3.20−3.25,ﾏｰｸ E |
1 | ||
| 90520-42024 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=3.10−3.15,ﾏｰｸ C |
1 | ||
| 90521-58001 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=1.73−1.87 |
1 | ||
| 90520-42006 |
TRU300,340,500 厚さ=2.70−2.75,MARK 6 |
1 | ||
| 90520-42007 |
TRU300,340,500 厚さ=2.75−2.80,MARK 7 |
1 | ||
| 90520-42004 |
TRU300,340,500 厚さ=2.60−2.65,MARK 4 |
1 | ||
| 90520-42002 |
TRU300,340,500 厚さ=2.50−2.55,MARK 2 |
1 | ||
| 90520-42005 |
TRU300,340,500 厚さ=2.65−2.70,MARK 5 |
1 | ||
| 90520-42022 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=3.00−3.05,ﾏｰｸ A |
1 | ||
| 90520-42027 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=3.25−3.30,ﾏｰｸ F |
1 | ||
| 90520-99010 |
BZU300,340 厚さ=2.36−2.46 |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| 96151-04500 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-09002 |
BZU300,340,TRU300,340,500 |
12 | ||
| 33311F - SPACER (FOR INPUT SHAFT) | ||||
| 90560-38004 |
BZU300,340,TRU300,340,500 |
2 | ||
| 33311F - SPACER (FOR INPUT SHAFT) | ||||
| 90560-38004 |
BZU300,340,TRU300,340,500 |
2 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-99009 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90520-96001 |
TRU300,340,500 |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-37030 |
TRU300,340,500 |
1 | ||
| 33321-37060 |
BZU300,340 |
1 | ||
| 33302-37021 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33302-37030 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-38007 |
BZU300,340 |
1 | ||
| 90366-55057 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90363-40034 |
TRU300,340,500 |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-88001 |
TRU300,340,500 厚さ=2.36−2.46 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-24008 |
XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F |
1 | ||
| 33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU | ||||
| 90301-31003 |
XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-37050 |
BZU300,340 |
1 | ||
| 33425-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33331-37070 |
TRU300,340,500 |
1 | ||
| 33425-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-54004 |
TRU300,340,500 |
1 | ||
| 90364-43009 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90364-43010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90364-47008 |
BZU300,340 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-37030 |
BZU300,340 |
1 | ||
| 33424-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33424-37040 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33424-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33033-36080 |
TRU300,340,500 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-54009 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90364-54003 |
TRU300,340,500 |
1 | ||
| 90364-54010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90364-50003 |
BZU300,340 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33044-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33034-37010 |
TRU300,340,500 |
1 | ||
| 33044-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33034-37050 |
BZU300,340 |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-58007 |
BZU300,340 |
1 | ||
| 90364-54008 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90364-47007 |
TRU300,340,500 |
1 | ||
| 90364-54011 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33426-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33335-37040 |
TRU300,340,500 |
1 | ||
| 33426-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33335-37080 |
BZU300,340 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-58005 |
TRU300,340,500 |
1 | ||
| 90364-49002 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90364-44004 |
BZU300,340 |
1 | ||
| 90364-49004 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-37061 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33036-37050 |
BZU300,340 |
1 | ||
| 33036-37010 |
TRU300,340,500 |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-48003 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90364-48004 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *156 |
1 | ||
| 90364-48003 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *155 |
1 | ||
| 90364-48005 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *157 |
1 | ||
| 90364-48006 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *158 |
1 | ||
| 90364-37012 |
TRU300,340,500 |
1 | ||
| 90364-48009 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *156 |
1 | ||
| 90364-48008 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *155 |
1 | ||
| 90364-48012 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *159 |
1 | ||
| 90364-38020 |
BZU300,340 |
1 | ||
| 90364-48010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *157 |
1 | ||
| 90364-48007 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *159 |
1 | ||
| 90364-48011 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F *158 |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-37003 |
TRU300,340,500 |
1 | ||
| 33338C - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
TRU300,340,500 |
1 | ||
| 33342A - PIN, STRAIGHT (FOR GEAR THRUST WASHER) | ||||
| 90250-04056 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
3 | ||
| 90250-04056 |
TRU300,340,500 |
1 | ||
| 33342B - RING, SHAFT SNAP (FOR GEAR THRUST WASHER) | ||||
| 90520-45022 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.45−2.50,ﾏｰｸ 2 |
1 | ||
| 90520-45024 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.55−2.60,ﾏｰｸ 4 |
1 | ||
| 90520-45023 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.50−2.55,ﾏｰｸ 3 |
1 | ||
| 90520-45026 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.65−2.70,ﾏｰｸ 6 |
1 | ||
| 90520-45021 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.40−2.45,ﾏｰｸ 1 |
1 | ||
| 90520-45025 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.60−2.65,ﾏｰｸ 5 |
1 | ||
| 90520-34015 |
TRU300,340,500 厚さ=3.05−3.10,ﾏｰｸ D |
1 | ||
| 90520-34011 |
TRU300,340,500 厚さ=2.95−3.00,ﾏｰｸ B |
1 | ||
| 90520-34010 |
TRU300,340,500 厚さ=2.90−2.95,ﾏｰｸ A |
1 | ||
| 90520-34012 |
TRU300,340,500 厚さ=3.00−3.05,ﾏｰｸ C |
1 | ||
| 90520-34016 |
TRU300,340,500 厚さ=3.10−3.15,ﾏｰｸ F |
1 | ||
| 33342C - WASHER, 3RD GEAR THRUST | ||||
| 33342-36021 |
TRU300,340,500 |
1 | ||
| 33342-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33354A - RACE, REVERSE GEAR BEARING, INNER | ||||
| 33354-36010 |
TRU300,340,500 |
1 | ||
| 33354-37010 |
BZU300,340 |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-37030 |
BZU300,340 |
1 | ||
| 33361-37060 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33361-37050 |
TRU300,340,500 |
1 | ||
| 33361-37051 |
TRU300,340,500 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36050 |
TRU300,340,500 |
1 | ||
| 33361-37040 |
BZU300,340 |
1 | ||
| 33362-37030 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-50010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.40−2.45,ﾏｰｸ A |
1 | ||
| 90520-50011 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.45−2.50,ﾏｰｸ B |
1 | ||
| 90520-50013 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.55−2.60,ﾏｰｸ D |
1 | ||
| 90520-28057 |
BZU300,340 厚さ=2.05−2.10,ﾏｰｸ 7 |
1 | ||
| 90520-50012 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.50−2.55,ﾏｰｸ C |
1 | ||
| 90520-50015 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.65−2.70,ﾏｰｸ F |
1 | ||
| 90520-28054 |
BZU300,340 厚さ=1.90−1.95,ﾏｰｸ 4 |
1 | ||
| 90520-28059 |
BZU300,340 厚さ=2.15−2.20,ﾏｰｸ 9 |
1 | ||
| 90520-28055 |
BZU300,340 厚さ=1.95−2.00,ﾏｰｸ 5 |
1 | ||
| 90520-28058 |
BZU300,340 厚さ=2.10−2.15,ﾏｰｸ 8 |
1 | ||
| 90520-43003 |
TRU300,340,500 厚さ=1.95,ﾏｰｸ=3 |
1 | ||
| 90520-43007 |
TRU300,340,500 厚さ=2.15,ﾏｰｸ=7 |
1 | ||
| 90520-50014 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.60−2.65,ﾏｰｸ E |
1 | ||
| 90520-43005 |
TRU300,340,500 厚さ=2.05,ﾏｰｸ=5 |
1 | ||
| 90520-43004 |
TRU300,340,500 厚さ=2.00,ﾏｰｸ=4 |
1 | ||
| 90520-43002 |
TRU300,340,500 厚さ=1.90,ﾏｰｸ=2 |
1 | ||
| 90520-28056 |
BZU300,340 厚さ=2.00−2.05,ﾏｰｸ 6 |
1 | ||
| 90520-43006 |
TRU300,340,500 厚さ=2.10,ﾏｰｸ=6 |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-37060 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33363-37050 |
TRU300,340,500 |
1 | ||
| 33363-37040 |
BZU300,340 |
1 | ||
| 33363-37051 |
TRU300,340,500 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-37031 |
BZU300,340 |
1 | ||
| 33364-37050 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33364-37051 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33364-36061 |
TRU300,340,500 |
1 | ||
| 33364-37040 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-37030 |
BZU300,340 |
3 | ||
| 33365-37040 |
TRU300,340,500 |
3 | ||
| 33365-37050 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
6 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-36032 |
TRU300,340,500 |
3 | ||
| 33365-60010 |
BZU300,340 |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-37020 |
TRU300,340,500 |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-36051 |
TRU300,340,500 |
2 | ||
| 33368-60022 |
BZU300,340 |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-36051 |
TRU300,340,500 |
2 | ||
| 33368-60022 |
BZU300,340 |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-36010 |
TRU300,340,500 |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-36010 |
TRU300,340,500 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-37030 |
BZU300,340 |
2 | ||
| 33371-37040 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
6 | ||
| 33371-36030 |
TRU300,340,500 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-37030 |
BZU300,340 |
2 | ||
| 33371-37040 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
6 | ||
| 33371-36030 |
TRU300,340,500 |
2 | ||
| 33387A - RING, REVERSE SYNCHRONIZER | ||||
| 33387-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33387-37030 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33387-37010 |
TRU300,340,500 |
1 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-36021 |
TRU300,340,500 |
2 | ||
| 33371-37030 |
BZU300,340 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-36021 |
TRU300,340,500 |
2 | ||
| 33371-37030 |
BZU300,340 |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33371-60010 |
BZU300,340 |
2 | ||
| 33392-36010 |
TRU300,340,500 |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33371-60010 |
BZU300,340 |
2 | ||
| 33392-36010 |
TRU300,340,500 |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-37020 |
BZU300,340 |
1 | ||
| 33393-36060 |
TRU300,340,500 |
1 | ||
| 33393-37040 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-39035 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.75,ﾏｰｸ D |
1 | ||
| 90520-39034 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.70,ﾏｰｸ C |
1 | ||
| 90520-39032 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.60,ﾏｰｸ A |
1 | ||
| 90520-28055 |
TRU300,340,500 厚さ=1.95−2.00,ﾏｰｸ 5 |
1 | ||
| 90520-39036 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.80,ﾏｰｸ E |
1 | ||
| 90520-39037 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.85,ﾏｰｸ F |
1 | ||
| 90520-28054 |
TRU300,340,500 厚さ=1.90−1.95,ﾏｰｸ 4 |
1 | ||
| 90520-28057 |
TRU300,340,500 厚さ=2.05−2.10,ﾏｰｸ 7 |
1 | ||
| 90520-39033 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 厚さ=2.65,ﾏｰｸ B |
1 | ||
| 90520-28059 |
TRU300,340,500 厚さ=2.15−2.20,ﾏｰｸ 9 |
1 | ||
| 90520-28056 |
TRU300,340,500 厚さ=2.00−2.05,ﾏｰｸ 6 |
1 | ||
| 90520-28058 |
TRU300,340,500 厚さ=2.10−2.15,ﾏｰｸ 8 |
1 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
3 | ||
| 33394-36020 |
TRU300,340,500 |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-36030 |
TRU300,340,500 |
1 | ||
| 33395-37030 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33395-37020 |
BZU300,340 |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33461-36090 |
TRU300,340,500 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-38006 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90365-37006 |
TRU300,340,500 |
1 | ||
| 90365-30030 |
BZU300,340 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-40075 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90363-30049 |
TRU300,340,500 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-26031 |
TRU300,340,500 厚さ=2.00−2.05 |
1 | ||
| 90520-26032 |
TRU300,340,500 厚さ=2.05−2.10 |
1 | ||
| 90520-26033 |
TRU300,340,500 厚さ=2.10−2.15 |
1 | ||
| 90520-29034 |
BZU300,340 厚さ=2.50−2.55,ﾏｰｸ C |
1 | ||
| 90520-26030 |
TRU300,340,500 厚さ=1.95−2.00 |
1 | ||
| 90520-29037 |
BZU300,340 厚さ=2.65−2.70,ﾏｰｸ F |
1 | ||
| 90520-29036 |
BZU300,340 厚さ=2.60−2.65,ﾏｰｸ E |
1 | ||
| 90520-29038 |
BZU300,340 厚さ=2.70−2.75,ﾏｰｸ G |
1 | ||
| 90520-26034 |
TRU300,340,500 厚さ=2.15−2.20 |
1 | ||
| 90520-26035 |
TRU300,340,500 厚さ=2.20−2.25 |
1 | ||
| 90520-29033 |
BZU300,340 厚さ=2.45−2.50,ﾏｰｸ B |
1 | ||
| 90520-29032 |
BZU300,340 厚さ=2.40−2.45,ﾏｰｸ A |
1 | ||
| 90520-29035 |
BZU300,340 厚さ=2.55−2.60,ﾏｰｸ D |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-37131 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33421-37040 |
TRU300,340,500 |
1 | ||
| 33421-37130 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33421-37120 |
BZU300,340 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-37030 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33451-37020 |
BZU300,340 |
1 | ||
| 33451-36050 |
TRU300,340,500 |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03002 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33461A - BEARING, REVERSE IDLER GEAR | ||||
| 90364-28018 |
TRU300,340,500 |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-37010 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33462-60020 |
BZU300,340 |
2 | ||
| 33462-60020 |
TRU300,340,500 |
1 | ||
| 33464 - WASHER, REVERSE IDLER THRUST, NO.2 | ||||
| 33464-60010 |
TRU300,340,500 |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-36150 |
BZU300;BZU340..20T 歯数=6,ﾏｰｸ 6X20−22 |
1 | ||
| 33481-36160 |
BZU340..30T;TRU300,340,500 歯数=6,ﾏｰｸ 6X23−25 |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 35775-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33487-36070 |
TRU300,340,500 |
1 | ||
| 33487-37020 |
BZU300,340 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
