BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )BZU300,340,TRU300,340,500

Click highlighted areas on diagram

H351,M153

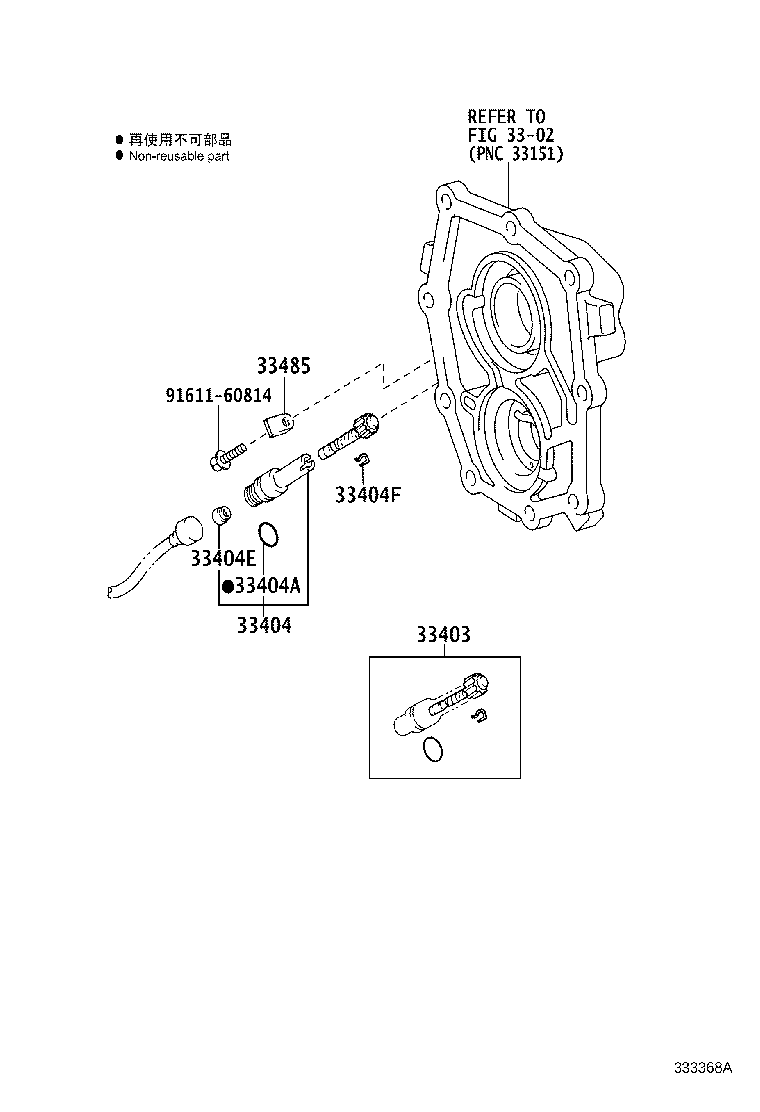

diagram 3302 33403 33404 33404A 33404E 33404F 33485 9161160814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-39245

XZU304,334..5F..IV4;TRU300,340,500,XZU334..20T,40T

歯数=24,ﾏｰｸ 24:6

 1
33482-39225

XZU344..T3..DCRTK;XZU348..T2..5F..IV3;BZU300,XZU334..5F..30T;XZU344..5F..30T..DCRTJ;XZU304..(DM3,DM6,T3)..5F;XZU304..5F..30T..DCRTJ..4NO;BZU300,XZU304..(DM6,T5)..(DCRTK,LPG)..IV3;BZU340,XZU338,348,538..5F..20T..(DCRTH,LPG)

歯数=22,ﾏｰｸ 22:6

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-36020

XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F

 1
Common parts
91611-60814
Linked diagrams
3302
