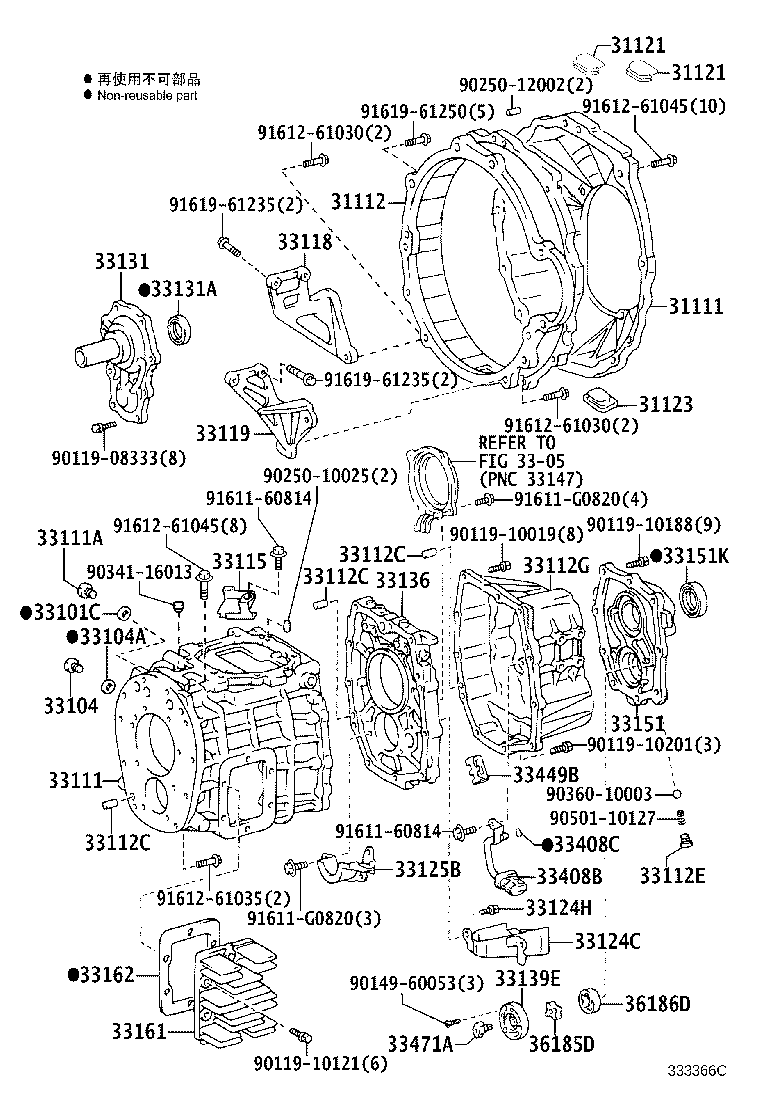

BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace
(0705- )BZU300,340
H351
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36331 |
TRU300,340,500 |
1 | ||
| 31111-37100 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 31111-37050 |
BZU300,340 |
1 | ||
| 31112 - HOUSING, CLUTCH, FRONT | ||||
| 31112-37040 |
BZU300,340 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 31121-28041 |
XZU30#,33#,34#..6F;BZU300,340,TRU300,340,500,XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 31121-28041 |
XZU30#,33#,34#..6F;BZU300,340,TRU300,340,500,XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| 31121-36040 |
BZU300,340,TRU300,340,500 |
1 | ||
| 31121-36110 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
BZU300,340,XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90341-18006 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-37041 |
BZU300,340 |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-14008 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90341-18006 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) | ||||
| 90250-12002 |
BZU300,340 |
6 | ||
| 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) | ||||
| 90250-12002 |
BZU300,340 |
6 | ||
| 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) | ||||
| 90250-12002 |
BZU300,340 |
6 | ||
| 33112E - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER) | ||||
| 90341-12008 |
BZU300,340 |
1 | ||
| 33112G - CASE, TRANSMISSION, REAR | ||||
| 33112-37010 |
BZU300,340 |
1 | ||
| 33115 - PLATE, TRANSMISSION OIL FILTER | ||||
| 33115-37010 |
BZU300,340 |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-37040 |
BZU300,340 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-37020 |
BZU300,340 |
1 | ||
| 33119-37090 |
TRU300,340,500 |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36030 |
TRU300,340,500 |
1 | ||
| 33124-37010 |
BZU300,340 |
1 | ||
| 33124-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91611-60814 |
BZU300,340 |
2 | ||
| 33125B - RECEIVER, MANUAL TRANSMISSION CASE | ||||
| 33125-37020 |
BZU300,340 |
1 | ||
| 33125-36020 |
TRU300,340,500 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-37050 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33018-36060 |
TRU300,340,500 |
1 | ||
| 33131-60070 |
BZU300,340 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
TRU300,340,500 |
1 | ||
| 90311-35023 |
BZU300,340,XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33136 - PLATE, TRANSMISSION INTERMEDIATE | ||||
| 33136-37011 |
BZU300,340 |
1 | ||
| 33139E - COVER, OIL PUMP | ||||
| 33139-36010 |
BZU300,340 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33017-36031 |
TRU300,340,500 |
1 | ||
| 33017-37030 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33151-37011 |
BZU300,340 |
1 | ||
| 33151K - SEAL, TYPE T OIL | ||||
| 90311-48011 |
BZU300,340 |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
TRU300..DM5;BZU300,340,XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33161-36040 |
TRU300,340,500..T2,T3,T4 |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F |
1 | ||
| 33408B - STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL(FOR REAR CAS | ||||
| 33408-37010 |
BZU300,340 |
1 | ||
| 33408C - RING, O (FOR MANUAL TRANSMISSION OIL STRAINER) | ||||
| 96721-19009 |
BZU300,340 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-36010 |
TRU300,340,500 |
1 | ||
| 33449-35010 |
BZU300,340 |
1 | ||
| 33471A - SHAFT, OIL PUMP DRIVE (FOR COUNTER GEAR) | ||||
| 33471-36010 |
BZU300,340 |
1 | ||
| 36185D - ROTOR, TRANSFER OIL PUMP DRIVE(FOR COUNTER GEAR REAR) | ||||
| 36185-60030 |
BZU300,340 |
1 | ||
| 36186D - ROTOR, TRANSFER OIL PUMP DRIVEN (FOR COUNTER GEAR REAR) | ||||
| 36186-60010 |
BZU300,340 |
1 | ||
| Common parts | ||||
| 90119-08333 | ||||
| 90119-10019 | ||||
| 90119-10121 | ||||
| 90119-10188 | ||||
| 90119-10201 | ||||
| 90149-60053 | ||||
| 90250-10025 | ||||
| 90250-12002 | ||||
| 90341-16013 | ||||
| 90360-10003 | ||||
| 90501-10127 | ||||
| 91611-60814 | ||||
| 91611-G0820 | ||||
| 91612-61030 | ||||
| 91612-61035 | ||||
| 91612-61045 | ||||
| 91619-61235 | ||||
| 91619-61250 | ||||
| Linked diagrams | ||||
| 3305 | ||||

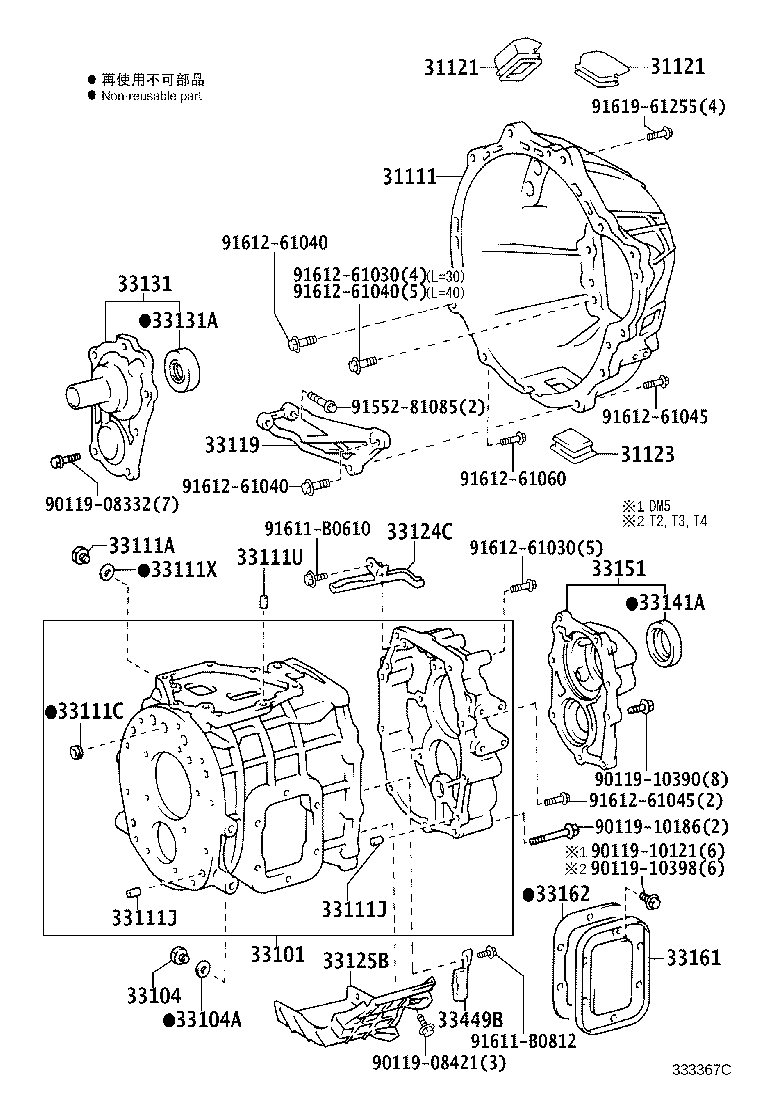

(0705- )TRU300,340,500
M153
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36331 |
TRU300,340,500 |
1 | ||
| 31111-37100 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 31111-37050 |
BZU300,340 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 31121-28041 |
XZU30#,33#,34#..6F;BZU300,340,TRU300,340,500,XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 31121-28041 |
XZU30#,33#,34#..6F;BZU300,340,TRU300,340,500,XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| 31121-36040 |
BZU300,340,TRU300,340,500 |
1 | ||
| 31121-36110 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-36130 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33101-36084 |
TRU300,340,500 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90341-18006 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-14008 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 90341-18006 |
BZU300,340,TRU300,340,500 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-11600 |
TRU300,340,500 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
TRU300,340,500 長さ=16,外径=12 |
4 | ||
| 90250-10232 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=15,外径=8 |
5 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
TRU300,340,500 長さ=16,外径=12 |
4 | ||
| 90250-10232 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=15,外径=8 |
5 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-13017 |
TRU300,340,500 長さ=12,外径=13 |
2 | ||
| 90253-11001 |
TRU300,340,500 長さ=11,外径=11 |
1 | ||
| 90253-11021 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F 長さ=8,外径=11 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
TRU300,340,500 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-37020 |
BZU300,340 |
1 | ||
| 33119-37090 |
TRU300,340,500 |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36030 |
TRU300,340,500 |
1 | ||
| 33124-37010 |
BZU300,340 |
1 | ||
| 33124-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33125B - RECEIVER, MANUAL TRANSMISSION CASE | ||||
| 33125-37020 |
BZU300,340 |
1 | ||
| 33125-36020 |
TRU300,340,500 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-37050 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33018-36060 |
TRU300,340,500 |
1 | ||
| 33131-60070 |
BZU300,340 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
TRU300,340,500 |
1 | ||
| 90311-35023 |
BZU300,340,XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-48011 |
XZU354..1NO;TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33017-36031 |
TRU300,340,500 |
1 | ||
| 33017-37030 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33151-37011 |
BZU300,340 |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
TRU300..DM5;BZU300,340,XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F |
1 | ||
| 33161-36040 |
TRU300,340,500..T2,T3,T4 |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-36010 |
TRU300,340,500 |
1 | ||
| 33449-35010 |
BZU300,340 |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-08421 | ||||
| 90119-10121 | ||||
| 90119-10186 | ||||
| 90119-10390 | ||||
| 90119-10398 | ||||
| 91552-81085 | ||||
| 91611-B0610 | ||||
| 91611-B0812 | ||||
| 91612-61030 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
| 91612-61060 | ||||
| 91619-61255 | ||||
