BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )TRU300,340,500

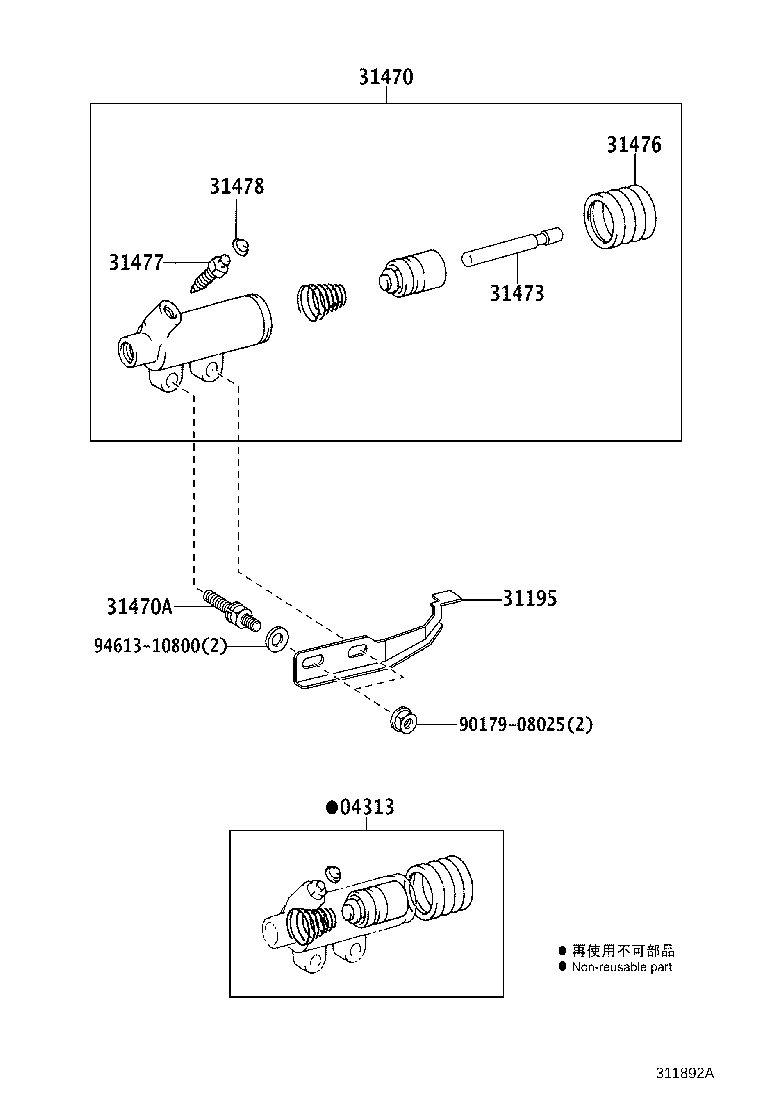

Click highlighted areas on diagram

diagram 04313 31195 31470 31470A 31473 31476 31477 31478 9017908025 9461310800
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-37030

BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM

 1
04313-53010

TRU300,340,500

 1
31195 - PLATE, CLUTCH DISC WEAR INDICATOR
31195-37110

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM

 1
31195-37070

BZU300,340

 1
31195-37060

TRU300,340,500

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-36311

TRU300,340,500

 1
31470-37080

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM

 1
31470-37050

BZU300,340

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
90109-08248

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM

*8−1.25PX25−20.1

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-37050

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM

 1
31473-37030

BZU300,340

 1
31473-35050

TRU300,340,500

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM

 1
Common parts
90179-08025
94613-10800
