BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

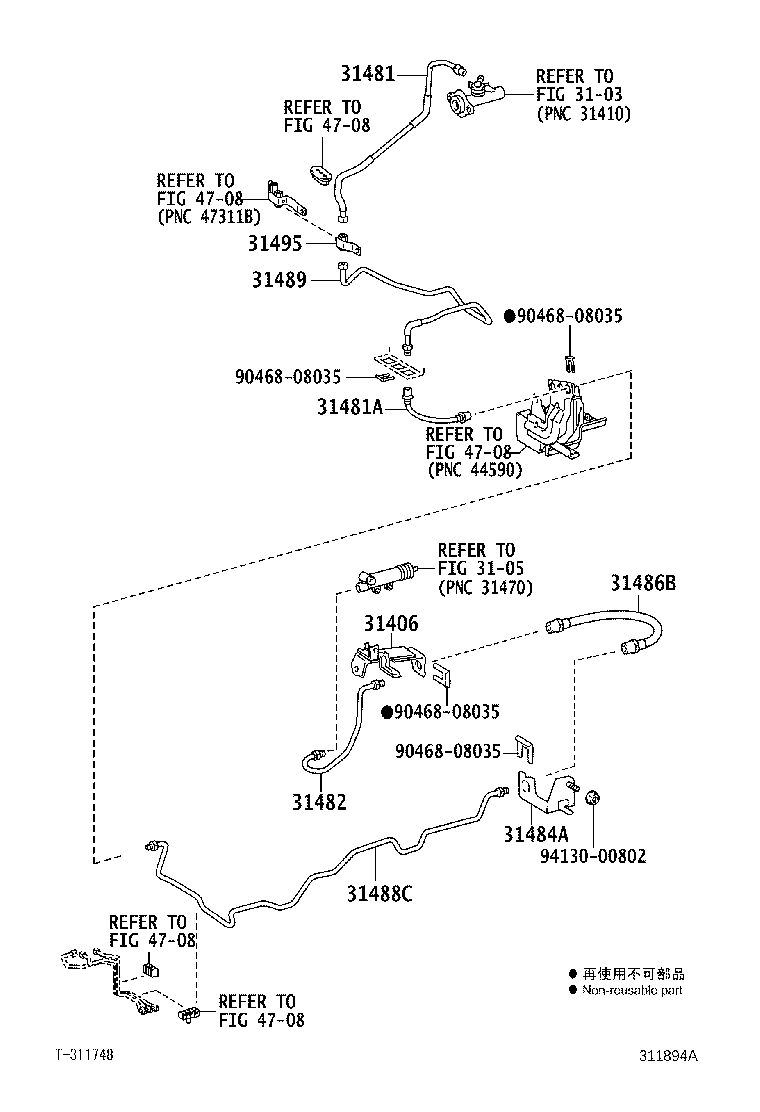

ILLUST NO. 2 OF 2(0705- )BZU300,340

Click highlighted areas on diagram

diagram 3103 3105 31406 31481 31481A 31482 31484A 31486B 31488C 31489 31495 4708 4708 4708 4708 4708 9046808035 9046808035 9046808035 9046808035 9413000802
Part # Description Qty Price
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-37020

BZU300,340

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-37121

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM

 1
31481A - HOSE, CLUTCH, NO.1
90931-01148

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-37101

BZU300,340

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-37150

BZU300,340

 1
31484-37260

TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554..MTM

 1
31486B - HOSE, MASTER CYLINDER TO RELEASE CYLINDER
31486-37050

XZU304,334..MTM..(CBU,IV3,IV6);XZU308,314,324,338,34#,354,368,378,388,50#,524,538,548,554,568..MTM

 1
31486-37060

BZU300,340

 1
31486-37100

TRU300,340,500

 1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31482-37200

BZU300,340

 1
31482-37260

TRU300,340,500

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31481-37130

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM

 1
31495 - WAY, CLUTCH TUBE
31495-37010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM

 1
Common parts
90468-08035
94130-00802
Linked diagrams
3103
3105
4708
