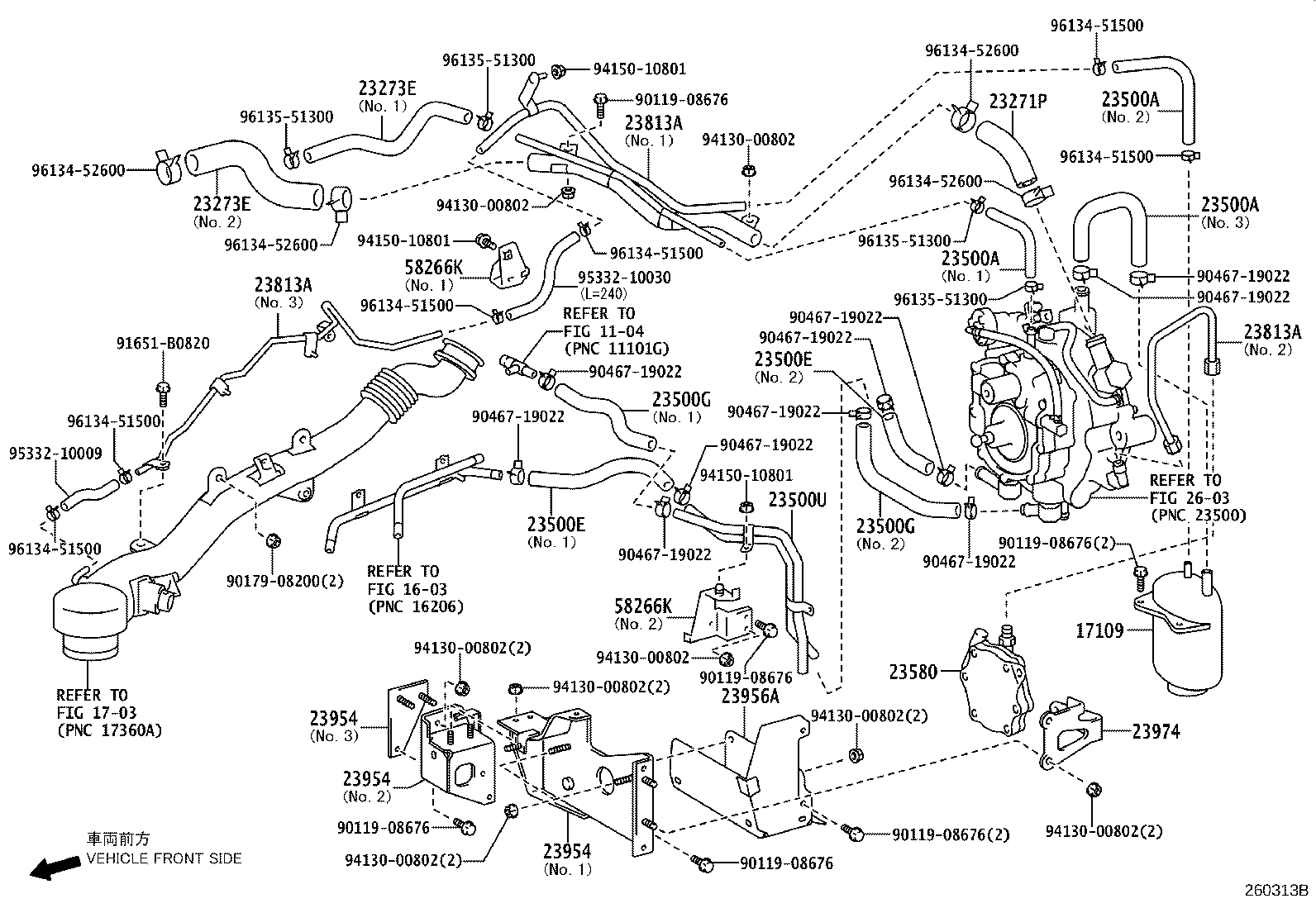

BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace
(0705- )1BZFPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17109 - TANK SUB-ASSY, INTAKE AIR SURGE | ||||
| 17109-58010 |
1BZFPE..BZU300,340 |
1 | ||
| 23271P - HOSE, FUEL, NO.1(FOR REGULATOR TO FUEL PIPE) | ||||
| 23271-75050 |
1BZFPE..BZU300,340 |
1 | ||
| 23273E - HOSE, FUEL, NO.3(FOR LPG REGULATOR TO LPG CARBURETOR) | ||||
| 23273-78161 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23273-78170 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23273E - HOSE, FUEL, NO.3(FOR LPG REGULATOR TO LPG CARBURETOR) | ||||
| 23273-78161 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23273-78170 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23500A - HOSE, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR) | ||||
| 23271-78140 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23273-78180 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23273-78190 |
1BZFPE..BZU300,340 NO.3 |
1 | ||
| 23500A - HOSE, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR) | ||||
| 23271-78140 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23273-78180 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23273-78190 |
1BZFPE..BZU300,340 NO.3 |
1 | ||
| 23500A - HOSE, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR) | ||||
| 23271-78140 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23273-78180 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23273-78190 |
1BZFPE..BZU300,340 NO.3 |
1 | ||
| 23500E - HOSE, WATER(FOR LPG REGULATOR INLET) | ||||
| 16267-78010 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 16281-78010 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23500E - HOSE, WATER(FOR LPG REGULATOR INLET) | ||||
| 16267-78010 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 16281-78010 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23500G - HOSE, WATER(FOR LPG REGULATOR OUTLET) | ||||
| 16264-78010 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 16264-78011 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 16261-78020 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23500G - HOSE, WATER(FOR LPG REGULATOR OUTLET) | ||||
| 16264-78010 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 16264-78011 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 16261-78020 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23500U - PIPE, WATER BY-PASS, NO.2(FOR LPG) | ||||
| 16278-78011 |
1BZFPE..BZU300,340 |
1 | ||
| 16278-78010 |
1BZFPE..BZU300,340 |
1 | ||
| 23580 - PREHEATER ASSY, LPG | ||||
| 23587-75040 |
1BZFPE..BZU300,340 |
1 | ||
| 23813A - PIPE, LPG FUEL | ||||
| 23813-58021 |
1BZFPE..BZU300,340 NO.3 |
1 | ||
| 23813-78021 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23813-78030 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23813A - PIPE, LPG FUEL | ||||
| 23813-58021 |
1BZFPE..BZU300,340 NO.3 |
1 | ||
| 23813-78021 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23813-78030 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23813A - PIPE, LPG FUEL | ||||
| 23813-58021 |
1BZFPE..BZU300,340 NO.3 |
1 | ||
| 23813-78021 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23813-78030 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23954 - BRACKET, LPG REGULATOR | ||||
| 23954-78030 |
1BZFPE..BZU300,340 NO.3 |
1 | ||
| 23954-78021 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23954-78010 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23954 - BRACKET, LPG REGULATOR | ||||
| 23954-78030 |
1BZFPE..BZU300,340 NO.3 |
1 | ||
| 23954-78021 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23954-78010 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23954 - BRACKET, LPG REGULATOR | ||||
| 23954-78030 |
1BZFPE..BZU300,340 NO.3 |
1 | ||
| 23954-78021 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23954-78010 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23956A - COVER, LPG REGULATOR | ||||
| 23956-78010 |
1BZFPE..BZU300,340 |
1 | ||
| 23974 - BRACKET, PREHEATER | ||||
| 23974-78010 |
1BZFPE..BZU300,340 |
1 | ||
| 58266K - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-37220 |
BZU300,340 NO.2 |
1 | ||
| 58266-37210 |
BZU300,340 NO.1 |
1 | ||
| 58266K - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-37220 |
BZU300,340 NO.2 |
1 | ||
| 58266-37210 |
BZU300,340 NO.1 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90179-08200 | ||||
| 90467-19022 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 94150-10801 | ||||
| 95332-10009 | ||||
| 95332-10030 | ||||
| 96134-51500 | ||||
| 96134-52600 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 1703 | ||||
| 2603 | ||||
