BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )1BZFPE

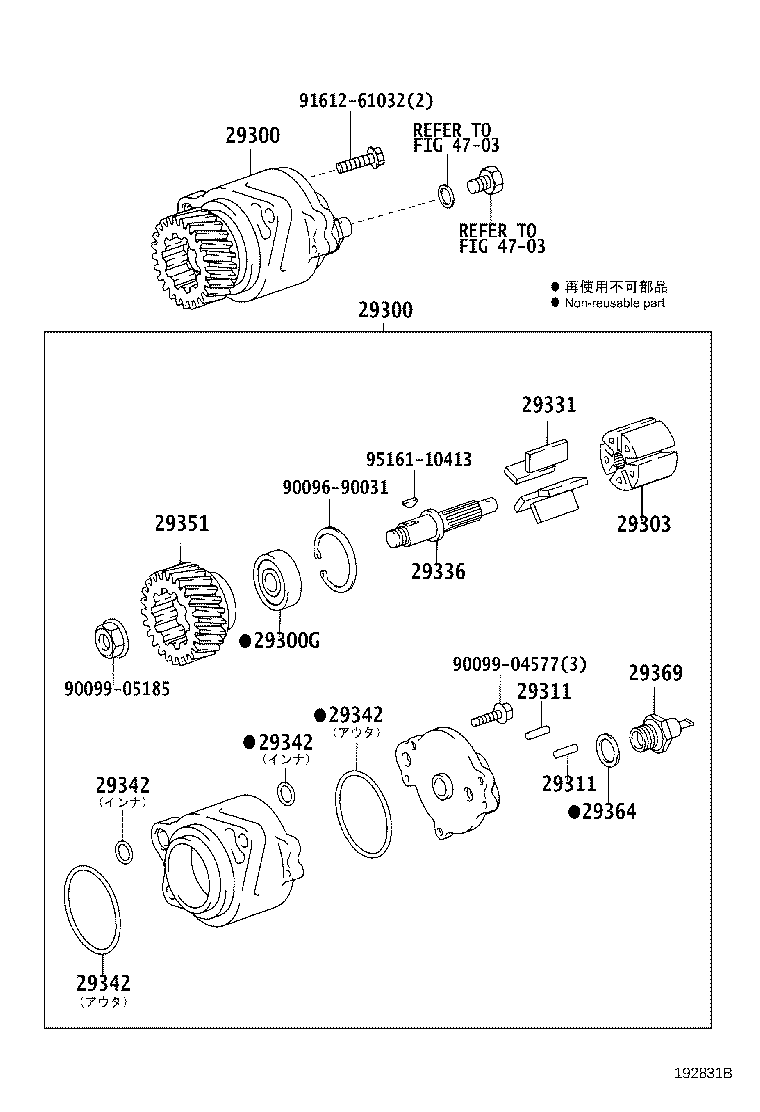

Click highlighted areas on diagram

diagram 29300 29300 29300G 29303 29311 29311 29331 29336 29342 29342 29342 29342 29351 29364 29369 4703 4703 9009690031 9009904577 9009905185 9161261032 9516110413
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-58060

1BZFPE..BZU300,340

 1
29300 - PUMP ASSY, VACUUM
29300-58060

1BZFPE..BZU300,340

 1
29300G - BEARING, BALL
90099-10185

1BZFPE..BZU300,340

 1
29303 - ROTOR SUB-ASSY, VACUUM PUMP
29337-27010

1BZFPE..BZU300,340

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

N04C,1BZFPE..BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

N04C,1BZFPE..BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
29331 - BLADE, VACUUM PUMP, A
29331-27010

1BZFPE..BZU300,340

 5
29336 - SHAFT, VACUUM PUMP
29336-58040

1BZFPE..BZU300,340

 1
29342 - PACKING, VACUUM PUMP
29342-64010

1BZFPE..BZU300,340

内側

 2
29342-58010

1BZFPE..BZU300,340

外側

 2
29342 - PACKING, VACUUM PUMP
29342-64010

1BZFPE..BZU300,340

内側

 2
29342-58010

1BZFPE..BZU300,340

外側

 2
29342 - PACKING, VACUUM PUMP
29342-64010

1BZFPE..BZU300,340

内側

 2
29342-58010

1BZFPE..BZU300,340

外側

 2
29342 - PACKING, VACUUM PUMP
29342-64010

1BZFPE..BZU300,340

内側

 2
29342-58010

1BZFPE..BZU300,340

外側

 2
29351 - GEAR, VACUUM PUMP
29351-58050

1BZFPE..BZU300,340

 1
29364 - WASHER, VACUUM PUMP
29364-66010

1BZFPE..BZU300,340

 1
29369 - VALVE SUB-ASSY, CHECK
29369-64030

1BZFPE..BZU300,340

 1
Common parts
90096-90031
90099-04577
90099-05185
91612-61032
95161-10413
Linked diagrams
4703
