BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace
Production
May 2007
-
Jun 2011
Engine
1BZFPE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )1BZFPE

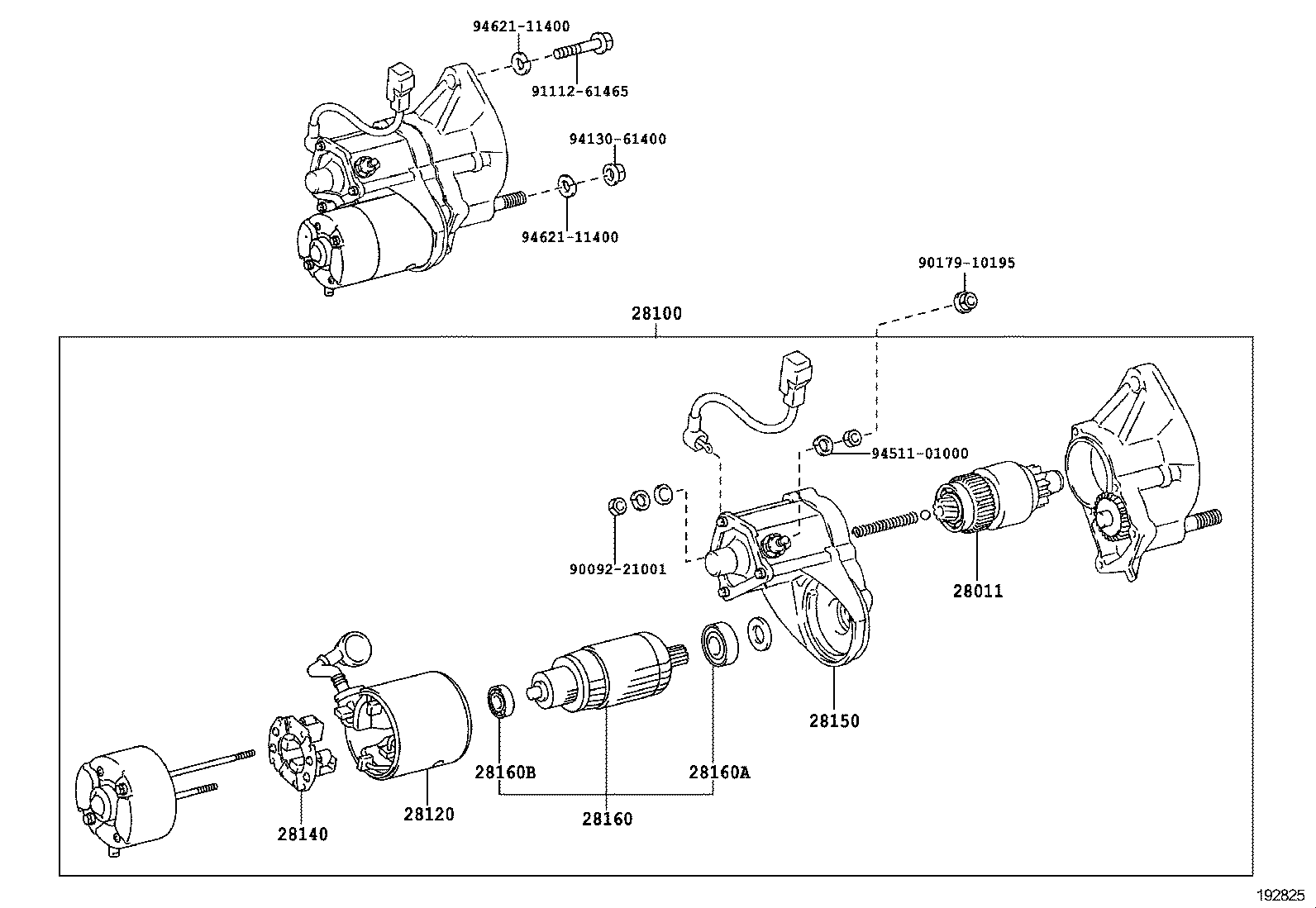

Click highlighted areas on diagram
12V 2.5KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
1BZFPE..BZU300,340 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-56351 |
1BZFPE..BZU300,340 12V 2.5KW |
1 | ||
| 28100-56350 |
1BZFPE..BZU300,340 12V 2.5KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-56350 |
1BZFPE..BZU300,340 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
1BZFPE..BZU300,340 |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-56350 |
1BZFPE..BZU300,340 |
1 | ||
| 28150-56350 |
1BZFPE..BZU300,340 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54160 |
1BZFPE..BZU300,340 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-54120 |
1BZFPE..BZU300,340 |
1 | ||
| 28160B - BEARING, STARTER ARMATURE, NO.2 | ||||
| 90099-10131 |
1BZFPE..BZU300,340 |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90179-10195 | ||||
| 91112-61465 | ||||
| 94130-61400 | ||||
| 94511-01000 | ||||
| 94621-11400 | ||||
