BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace
(0610-1010)N04C..XZU378..IV4 ; (0610-1010)N04C..XZU304..T3,T4,T5..IV3,IV4 ; (0610-1
24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-58440 |
1BZFPE..BZU300,340 12V 150A |
1 | ||
| 27060-58440 |
1BZFPE..BZU300,340 12V 150A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90148-10001 |
1BZFPE..BZU300,340 |
1 | ||
| 90148-10001 |
1BZFPE..BZU300,340 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58460 |
N04C..XZU378..IV4;N04C..XZU308,348,378,388..SCB..IV3;1BZFPE,2TRFE..BZU300,340,TRU300,340,500;N04C..XZU304,33#,344,368,50#,538,548,568..(T2,T3,T4,T5)..(IV3,IV4) 24V 80A |
1 | ||
| 27370-58460 |
N04C..XZU378..IV4;N04C..XZU308,348,378,388..SCB..IV3;1BZFPE,2TRFE..BZU300,340,TRU300,340,500;N04C..XZU304,33#,344,368,50#,538,548,568..(T2,T3,T4,T5)..(IV3,IV4) 24V 80A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
N04C..XZU378..IV4;N04C..XZU308,348,378,388..SCB..IV3;1BZFPE,2TRFE..BZU300,340,TRU300,340,500;N04C..XZU304,33#,344,368,50#,538,548,568..(T2,T3,T4,T5)..(IV3,IV4) |
1 | ||
| 27387-20130 |
N04C..XZU378..IV4;N04C..XZU308,348,378,388..SCB..IV3;1BZFPE,2TRFE..BZU300,340,TRU300,340,500;N04C..XZU304,33#,344,368,50#,538,548,568..(T2,T3,T4,T5)..(IV3,IV4) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-58460 |
1BZFPE..BZU300,340 12V 150A |
1 | ||
| 27411-58460 |
1BZFPE..BZU300,340 12V 150A |
1 | ||
| Common parts | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||

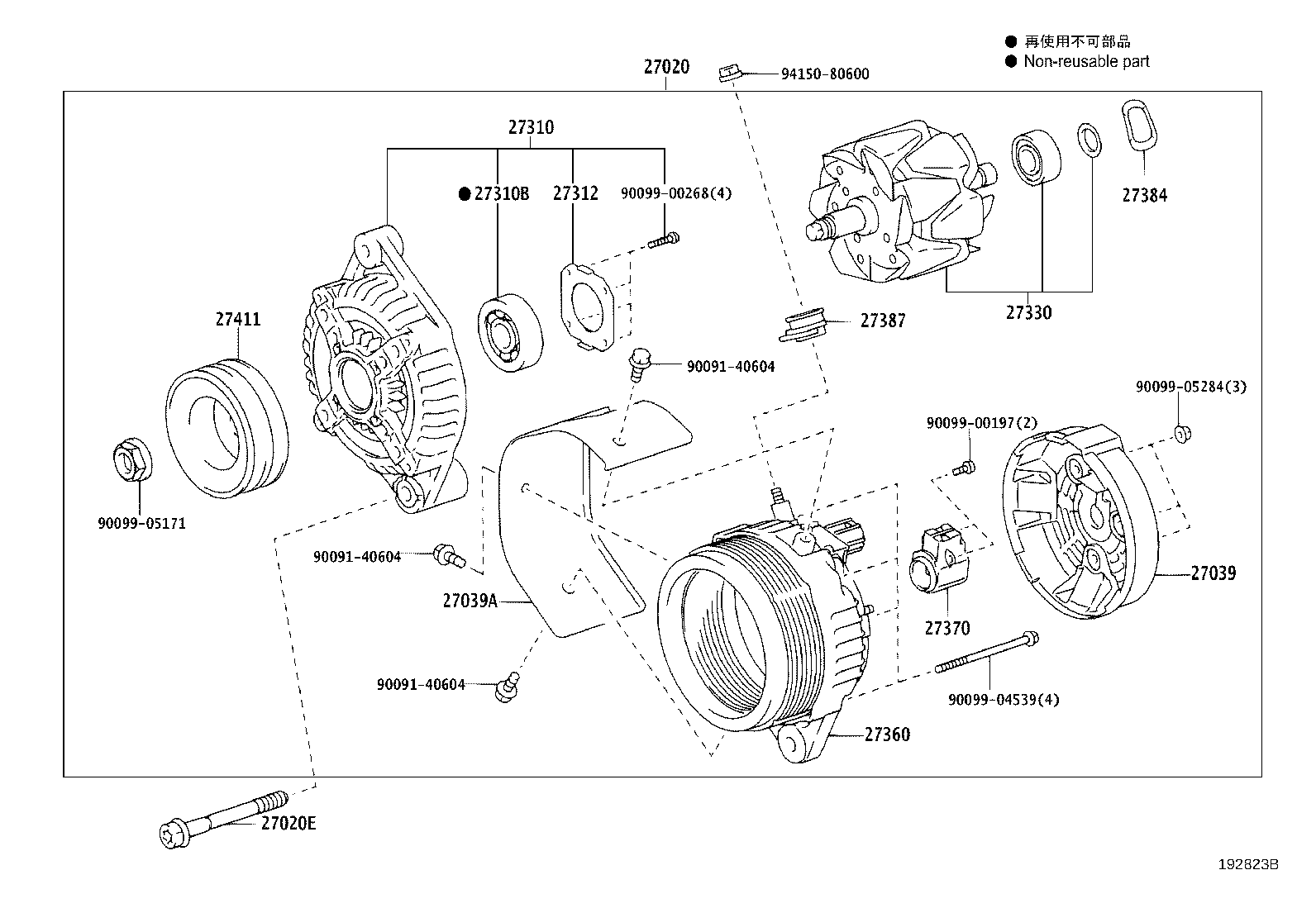

(0705- )1BZFPE
12V 150A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-58440 |
1BZFPE..BZU300,340 12V 150A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90148-10001 |
1BZFPE..BZU300,340 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-50370 |
1BZFPE..BZU300,340 |
1 | ||
| 27039A - COVER, ALTERNATOR REAR END, NO.2 | ||||
| 27041-58460 |
1BZFPE..BZU300,340 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-58460 |
1BZFPE..BZU300,340 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
1BZFPE,2TRFE..BZU300,340,TRU300,340,500 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1BZFPE,2TRFE..BZU300,340,TRU300,340,500 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-58460 |
1BZFPE..BZU300,340 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-58460 |
1BZFPE..BZU300,340 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58460 |
N04C..XZU378..IV4;N04C..XZU308,348,378,388..SCB..IV3;1BZFPE,2TRFE..BZU300,340,TRU300,340,500;N04C..XZU304,33#,344,368,50#,538,548,568..(T2,T3,T4,T5)..(IV3,IV4) 24V 80A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1BZFPE,2TRFE..BZU300,340,TRU300,340,500 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
N04C..XZU378..IV4;N04C..XZU308,348,378,388..SCB..IV3;1BZFPE,2TRFE..BZU300,340,TRU300,340,500;N04C..XZU304,33#,344,368,50#,538,548,568..(T2,T3,T4,T5)..(IV3,IV4) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-58460 |
1BZFPE..BZU300,340 12V 150A |
1 | ||
| Common parts | ||||
| 90091-40604 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 94150-80600 | ||||
(1010- )N04C..XZU378..IV4 ; (1010- )N04C..XZU304..T3,T4,T5..IV3,IV4 ; (1010-
24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-58440 |
1BZFPE..BZU300,340 12V 150A |
1 | ||
| 27060-58440 |
1BZFPE..BZU300,340 12V 150A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90148-10001 |
1BZFPE..BZU300,340 |
1 | ||
| 90148-10001 |
1BZFPE..BZU300,340 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-58460 |
1BZFPE..BZU300,340 |
1 | ||
| 27310-58460 |
1BZFPE..BZU300,340 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1BZFPE,2TRFE..BZU300,340,TRU300,340,500 |
1 | ||
| 27312-72100 |
1BZFPE,2TRFE..BZU300,340,TRU300,340,500 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-58460 |
1BZFPE..BZU300,340 |
1 | ||
| 27330-58460 |
1BZFPE..BZU300,340 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58460 |
N04C..XZU378..IV4;N04C..XZU308,348,378,388..SCB..IV3;1BZFPE,2TRFE..BZU300,340,TRU300,340,500;N04C..XZU304,33#,344,368,50#,538,548,568..(T2,T3,T4,T5)..(IV3,IV4) 24V 80A |
1 | ||
| 27370-58460 |
N04C..XZU378..IV4;N04C..XZU308,348,378,388..SCB..IV3;1BZFPE,2TRFE..BZU300,340,TRU300,340,500;N04C..XZU304,33#,344,368,50#,538,548,568..(T2,T3,T4,T5)..(IV3,IV4) 24V 80A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1BZFPE,2TRFE..BZU300,340,TRU300,340,500 |
1 | ||
| 27384-50030 |
1BZFPE,2TRFE..BZU300,340,TRU300,340,500 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
N04C..XZU378..IV4;N04C..XZU308,348,378,388..SCB..IV3;1BZFPE,2TRFE..BZU300,340,TRU300,340,500;N04C..XZU304,33#,344,368,50#,538,548,568..(T2,T3,T4,T5)..(IV3,IV4) |
1 | ||
| 27387-20130 |
N04C..XZU378..IV4;N04C..XZU308,348,378,388..SCB..IV3;1BZFPE,2TRFE..BZU300,340,TRU300,340,500;N04C..XZU304,33#,344,368,50#,538,548,568..(T2,T3,T4,T5)..(IV3,IV4) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-58460 |
1BZFPE..BZU300,340 12V 150A |
1 | ||
| 27411-58460 |
1BZFPE..BZU300,340 12V 150A |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||
| 94150-80600 | ||||
(1010- )
24V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05267 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 1107 | ||||
