BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )1BZFPE

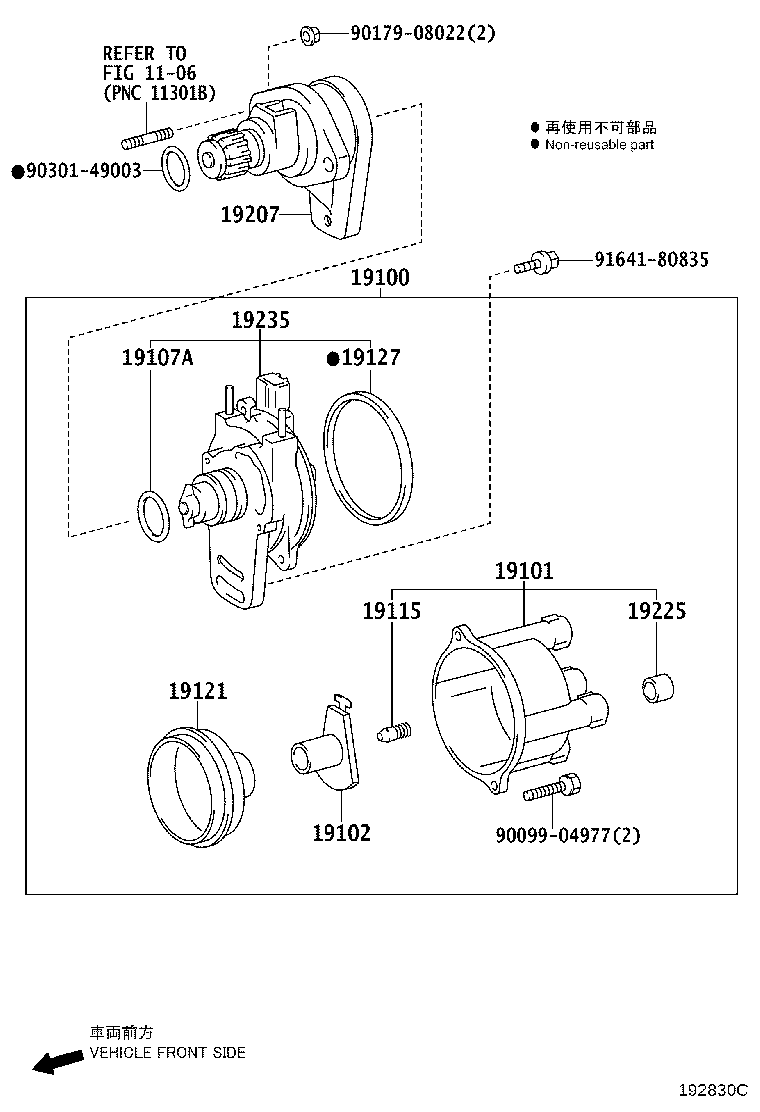

Click highlighted areas on diagram

diagram 1106 19100 19101 19102 19107A 19115 19121 19127 19207 19225 19235 9009904977 9017908022 9030149003 9164180835
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-48010

1BZFPE..BZU300,340

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-74150

1BZFPE..BZU300,340

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11370

1BZFPE..BZU300,340

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14118

1BZFPE..BZU300,340

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280

1BZFPE..BZU300,340

 1
19121 - COVER, DUST PROOF
19121-74030

1BZFPE..BZU300,340

 1
19127 - PACKING, DUST PROOF
19127-74040

1BZFPE..BZU300,340

 1
19207 - HOUSING SUB-ASSY, DISTRIBUTOR, RH
19207-48010

1BZFPE..BZU300,340

 1
19225 - CAP, RUBBER
19225-62010

1BZFPE..BZU300,340

 1
19235 - HOUSING, DISTRIBUTOR
19235-48010

1BZFPE..BZU300,340

 1
Common parts
90099-04977
90179-08022
90301-49003
91641-80835
Linked diagrams
1106
