BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )1BZFPE

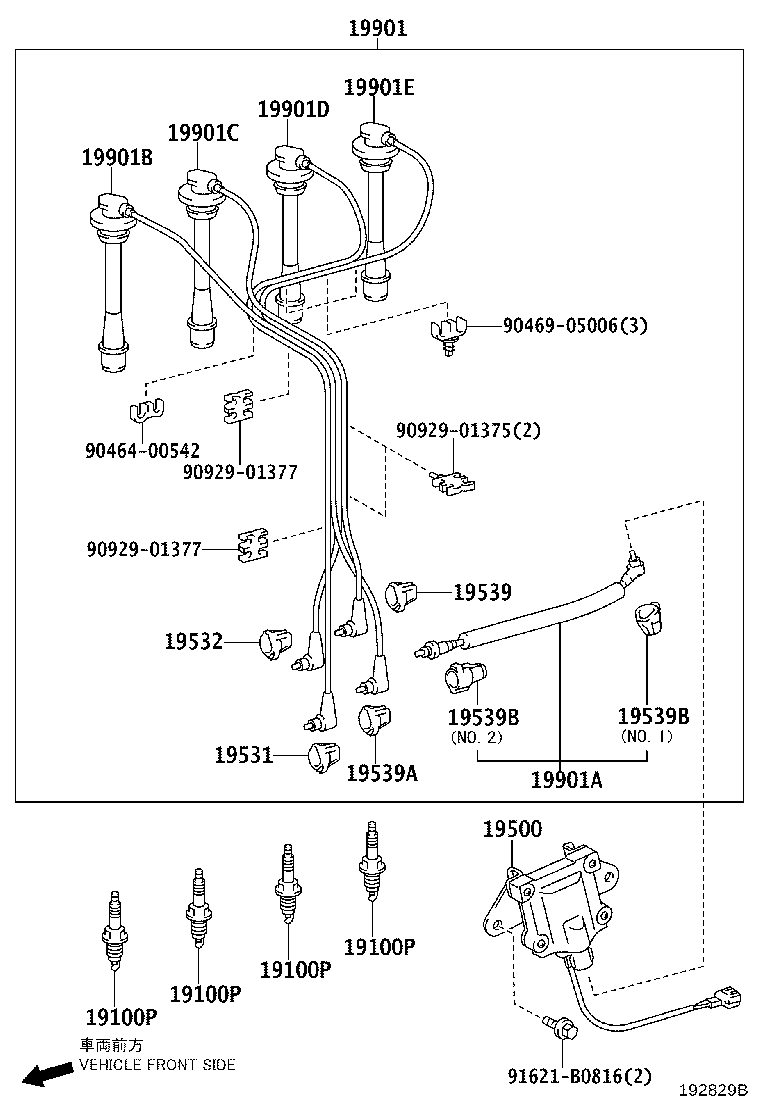

Click highlighted areas on diagram

diagram 19100P 19100P 19100P 19100P 19500 19531 19532 19539 19539A 19539B 19539B 19901 19901A 19901B 19901C 19901D 19901E 9046400542 9046905006 9092901375 9092901377 9092901377 91621B0816
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01264

1BZFPE..BZU300,340

SK20R−B5

 4
90919-01229

1BZFPE..BZU300,340

SK20R5−G

 4
19100P - PLUG, SPARK
90919-01264

1BZFPE..BZU300,340

SK20R−B5

 4
90919-01229

1BZFPE..BZU300,340

SK20R5−G

 4
19100P - PLUG, SPARK
90919-01264

1BZFPE..BZU300,340

SK20R−B5

 4
90919-01229

1BZFPE..BZU300,340

SK20R5−G

 4
19100P - PLUG, SPARK
90919-01264

1BZFPE..BZU300,340

SK20R−B5

 4
90919-01229

1BZFPE..BZU300,340

SK20R5−G

 4
19500 - COIL ASSY, IGNITION
19500-48010

1BZFPE..BZU300,340

 1
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-74010

1BZFPE..BZU300,340

 1
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1BZFPE..BZU300,340

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-62010

1BZFPE..BZU300,340

 1
19539A - HOLDER, RESISTIVE CODE, NO.5
19539-74020

1BZFPE..BZU300,340

 1
19539B - HOLDER, RESISTIVE CODE, NO.6
19539-50010

1BZFPE..BZU300,340

NO.1

 1
19539-74010

1BZFPE..BZU300,340

NO.2

 1
19539B - HOLDER, RESISTIVE CODE, NO.6
19539-50010

1BZFPE..BZU300,340

NO.1

 1
19539-74010

1BZFPE..BZU300,340

NO.2

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21600

1BZFPE..BZU300,340

 1
19901A - CORD, COIL RESISTIVE
19590-48010

1BZFPE..BZU300,340

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15486

1BZFPE..BZU300,340

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15487

1BZFPE..BZU300,340

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15488

1BZFPE..BZU300,340

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15489

1BZFPE..BZU300,340

 1
Common parts
90464-00542
90469-05006
90929-01375
90929-01377
91621-B0816
