BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )1BZFPE..BZU340

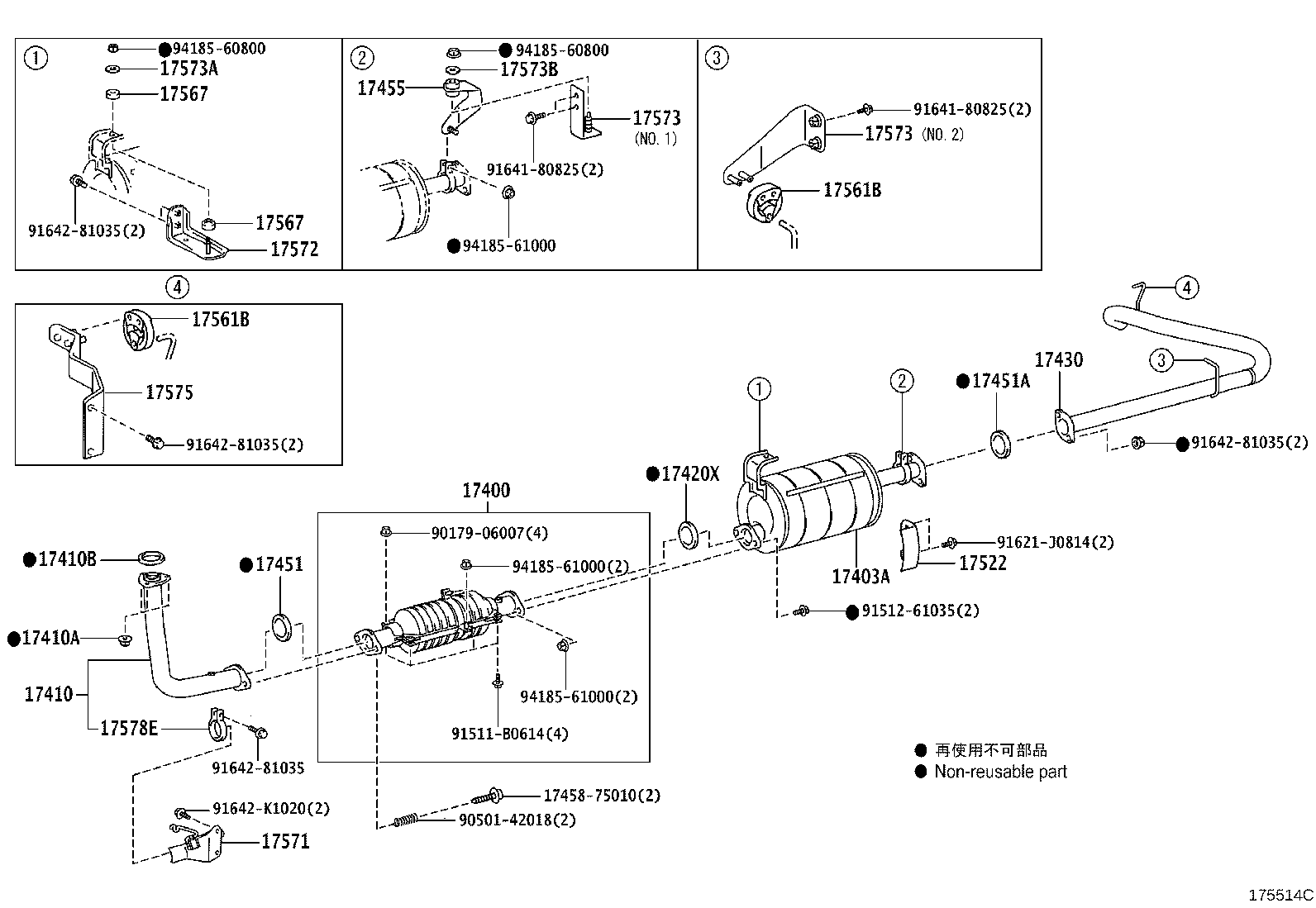

Click highlighted areas on diagram

diagram 17400 17403A 17410 17410A 17410B 17420X 17430 17451 17451A 17455 1745875010 17522 17561B 17561B 17567 17567 17571 17572 17573 17573 17573A 17573B 17575 17578E 9017906007 9050142018 91511B0614 9151261035 91621J0814 9164180825 9164180825 9164281035 9164281035 9164281035 9164281035 91642K1020 9418560800 9418560800 9418561000 9418561000 9418561000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
17406-58030

1BZFPE..BZU300,340

 1
17403A - PIPE SUB-ASSY, EXHAUST, CENTER NO.2
17403-58670

1BZFPE..BZU340

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58380

1BZFPE..BZU300,340

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1BZFPE..BZU300,340;N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE

 3
17410B - GASKET, EXHAUST PIPE
90917-06067

1BZFPE..BZU300,340

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06076

1BZFPE,2TRFE..BZU300,340,TRU300,340,500

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-75690

1BZFPE,2TRFE..BZU340,TRU340

 1
17451 - GASKET, EXHAUST PIPE
17451-74051

1BZFPE..BZU300,340

 1
17451-74040

1BZFPE..BZU300,340

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-06076

1BZFPE,2TRFE..BZU300,340,TRU300,340,500

 1
17455 - BRACKET, EXHAUST PIPE
17455-75090

1BZFPE,2TRFE..BZU340,TRU340

 1
17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2
17522-78010

1BZFPE,2TRFE..BZU340,TRU340

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78010

1BZFPE,2TRFE..BZU300,340,TRU300,340,500

 2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78010

1BZFPE,2TRFE..BZU300,340,TRU300,340,500

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-58460

1BZFPE..BZU300,340

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-78260

1BZFPE,2TRFE..BZU300,340,TRU300,340,500

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-78220

N04C..XZU548..5F..DCRTJ..IV3;N04C..XZU344..T3..5F..(30T,35T)..IV3;N04C,1BZFPE,2TRFE..BZU340,TRU340,XZU348..DCRTM,EFI,LPG

NO.2

 1
17573-78050

1BZFPE,2TRFE..BZU340,TRU340

NO.1

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-78220

N04C..XZU548..5F..DCRTJ..IV3;N04C..XZU344..T3..5F..(30T,35T)..IV3;N04C,1BZFPE,2TRFE..BZU340,TRU340,XZU348..DCRTM,EFI,LPG

NO.2

 1
17573-78050

1BZFPE,2TRFE..BZU340,TRU340

NO.1

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
16721-78010

1BZFPE,2TRFE..BZU300,340,TRU300,340,500

 1
17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5
16721-78010

1BZFPE,2TRFE..BZU300,340,TRU300,340,500

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-78210

2TRFE..TRU300..T3;N04C..XZU548..5F..DCRTJ..IV3;N04C..XZU304,334,344..T3..(30T,35T,40T)..(IV3,IV7);N04C,1BZFPE,2TRFE..BZU340,TRU340,XZU348..DCRTM,EFI,LPG

 1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010

1BZFPE..BZU300,340;N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE

 1
Common parts
17458-75010
90179-06007
90501-42018
91511-B0614
91512-61035
91621-J0814
91641-80825
91642-81035
91642-K1020
94185-60800
94185-61000
