BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace

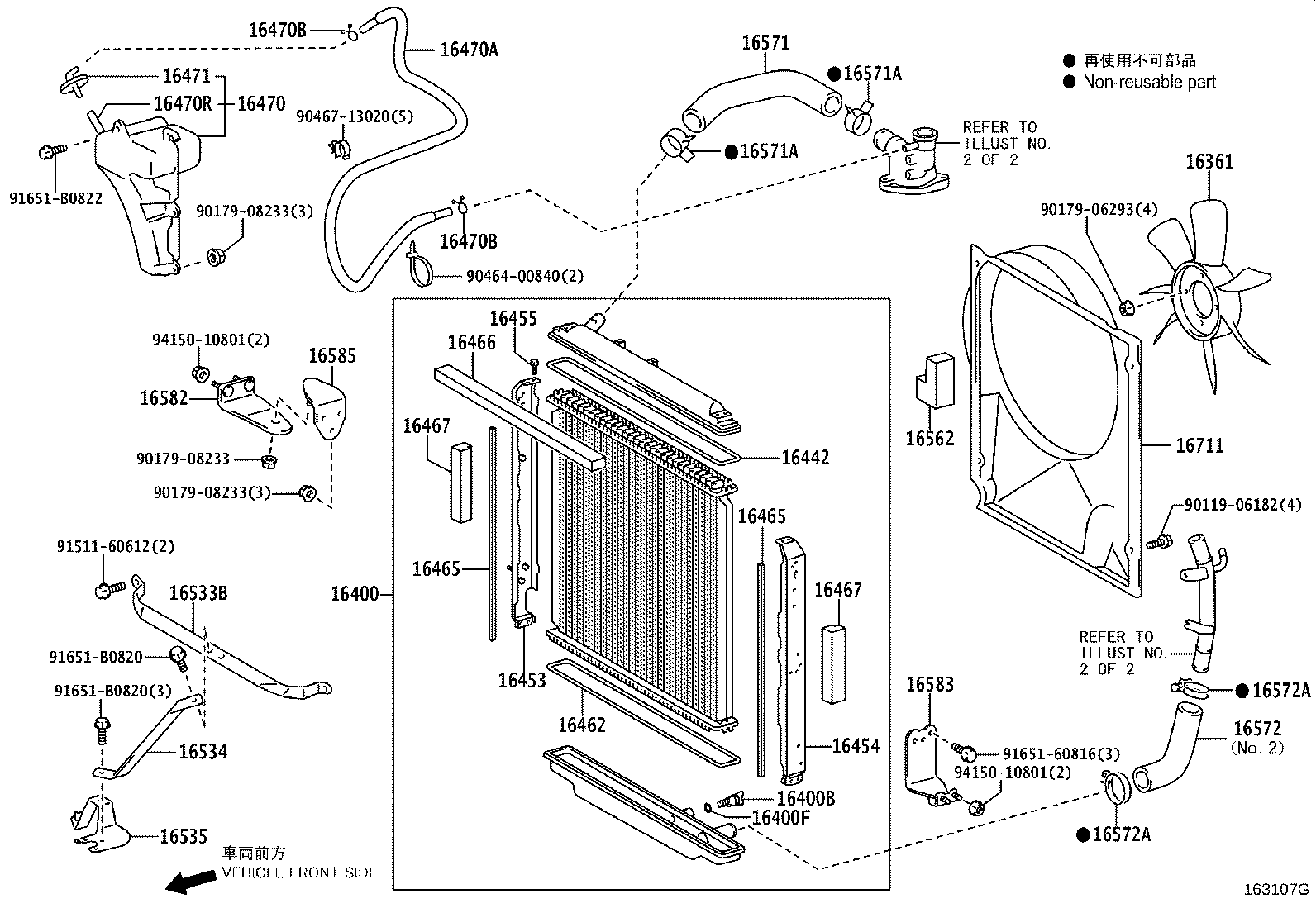

ILLUST NO. 1 OF 2(0705- )1BZFPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-56070 |
1BZFPE..BZU300,340 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78630 |
1BZFPE..BZU300,340 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1BZFPE..BZU300,340 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1BZFPE..BZU300,340 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-78080 |
1BZFPE..BZU300,340 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78630 |
1BZFPE..BZU300,340 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78550 |
1BZFPE..BZU300,340 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-61160 |
1BZFPE..BZU300,340 |
8 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-78080 |
1BZFPE..BZU300,340 |
1 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
1BZFPE..BZU300,340 |
2 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
1BZFPE..BZU300,340 |
2 | ||
| 16466 - SEAL, RADIATOR | ||||
| 16466-78160 |
1BZFPE..BZU300,340 |
1 | ||
| 16467 - SIDE SEAL | ||||
| 16467-78520 |
1BZFPE..BZU300,340 |
2 | ||
| 16467 - SIDE SEAL | ||||
| 16467-78520 |
1BZFPE..BZU300,340 |
2 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
1BZFPE..BZU300,340 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78400 |
1BZFPE..BZU300,340 長さ=1660 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1BZFPE..BZU300,340 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1BZFPE..BZU300,340 |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1BZFPE..BZU300,340 長さ=315 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
1BZFPE..BZU300,340 |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78100 |
1BZFPE..BZU300,340 |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78060 |
1BZFPE..BZU300,340 |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-78080 |
1BZFPE..BZU300,340 |
1 | ||
| 16535-78081 |
1BZFPE..BZU300,340 |
1 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-58010 |
1BZFPE..BZU300,340 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-58161 |
1BZFPE..BZU300,340 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78140 |
1BZFPE..BZU300,340 |
2 | ||
| 16581-78191 |
1BZFPE..BZU300,340 |
2 | ||
| 16581-78190 |
1BZFPE..BZU300,340 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78140 |
1BZFPE..BZU300,340 |
2 | ||
| 16581-78191 |
1BZFPE..BZU300,340 |
2 | ||
| 16581-78190 |
1BZFPE..BZU300,340 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56091 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 16572-58171 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78140 |
1BZFPE..BZU300,340 |
2 | ||
| 16581-78191 |
1BZFPE..BZU300,340 |
2 | ||
| 16581-78190 |
1BZFPE..BZU300,340 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78140 |
1BZFPE..BZU300,340 |
2 | ||
| 16581-78191 |
1BZFPE..BZU300,340 |
2 | ||
| 16581-78190 |
1BZFPE..BZU300,340 |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78060 |
1BZFPE..BZU300,340 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78061 |
1BZFPE..BZU300,340 |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78060 |
1BZFPE..BZU300,340 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-58290 |
1BZFPE..BZU300,340 |
1 | ||
| Common parts | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90464-00840 | ||||
| 90467-13020 | ||||
| 91511-60612 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 94150-10801 | ||||

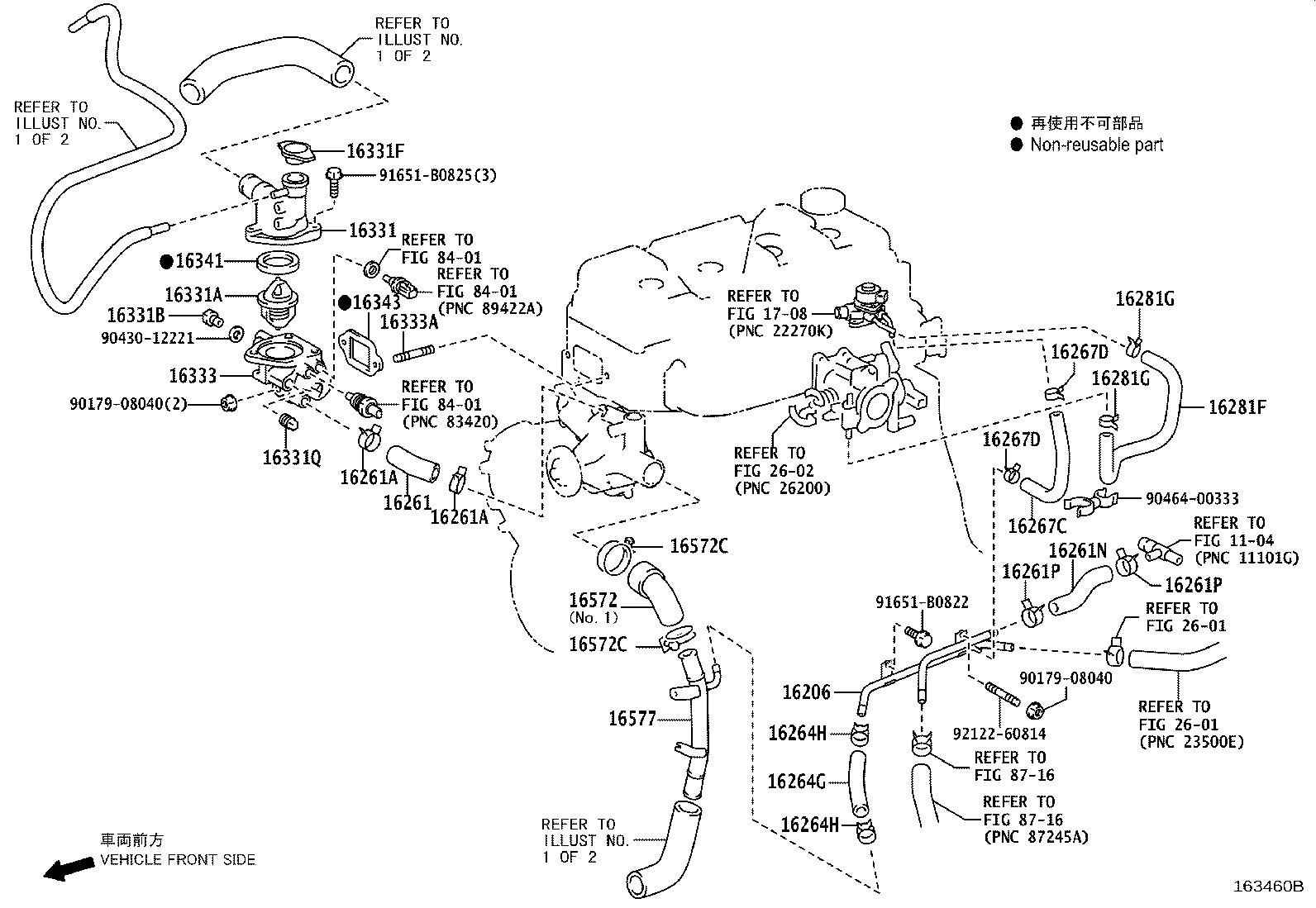

ILLUST NO. 2 OF 2(0705- )1BZFPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-48021 |
1BZFPE..BZU300,340 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-56012 |
1BZFPE..BZU300,340 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-28005 |
1BZFPE..BZU300,340 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-28005 |
1BZFPE..BZU300,340 |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-48020 |
1BZFPE..BZU300,340 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-21010 |
1BZFPE..BZU300,340 |
2 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-21010 |
1BZFPE..BZU300,340 |
2 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-48010 |
1BZFPE..BZU300,340 |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-19022 |
1BZFPE..BZU300,340 |
2 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-19022 |
1BZFPE..BZU300,340 |
2 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16267-48020 |
1BZFPE..BZU300,340 |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96135-51300 |
1BZFPE..BZU300,340 |
2 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96135-51300 |
1BZFPE..BZU300,340 |
2 | ||
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16281-48030 |
1BZFPE..BZU300,340 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96135-51300 |
1BZFPE..BZU300,340 |
2 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96135-51300 |
1BZFPE..BZU300,340 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-58080 |
1BZFPE..BZU300,340 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03102 |
1BZFPE..BZU300,340 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90341-12006 |
1BZFPE..BZU300,340 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-54750 |
1BZFPE..BZU300,340 |
1 | ||
| 16331Q - PLUG(FOR WATER OUTLET) | ||||
| 90345-54005 |
1BZFPE..BZU300,340 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-58080 |
1BZFPE..BZU300,340 |
1 | ||
| 16333A - BOLT, STUD(FOR WATER OUTLET HOUSING) | ||||
| 92112-60832 |
1BZFPE..BZU300,340 |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-56030 |
1BZFPE..BZU300,340 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-56023 |
1BZFPE..BZU300,340 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56091 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 16572-58171 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90466-41003 |
1BZFPE..BZU300,340 ﾗｼﾞｪｰﾀﾊﾟｲﾌﾟ側 |
1 | ||
| 90467-48003 |
1BZFPE..BZU300,340 ｳｫｰﾀﾊﾟｲﾌﾟ側 |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90466-41003 |
1BZFPE..BZU300,340 ﾗｼﾞｪｰﾀﾊﾟｲﾌﾟ側 |
1 | ||
| 90467-48003 |
1BZFPE..BZU300,340 ｳｫｰﾀﾊﾟｲﾌﾟ側 |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-48041 |
1BZFPE..BZU300,340 |
1 | ||
| Common parts | ||||
| 90179-08040 | ||||
| 90430-12221 | ||||
| 90464-00333 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 92122-60814 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1708 | ||||
| 2601 | ||||
| 2602 | ||||
| 8401 | ||||
| 8716 | ||||
