BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace
Production
May 2007
-
Jun 2011
Engine
1BZFPE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0705- )1BZFPE

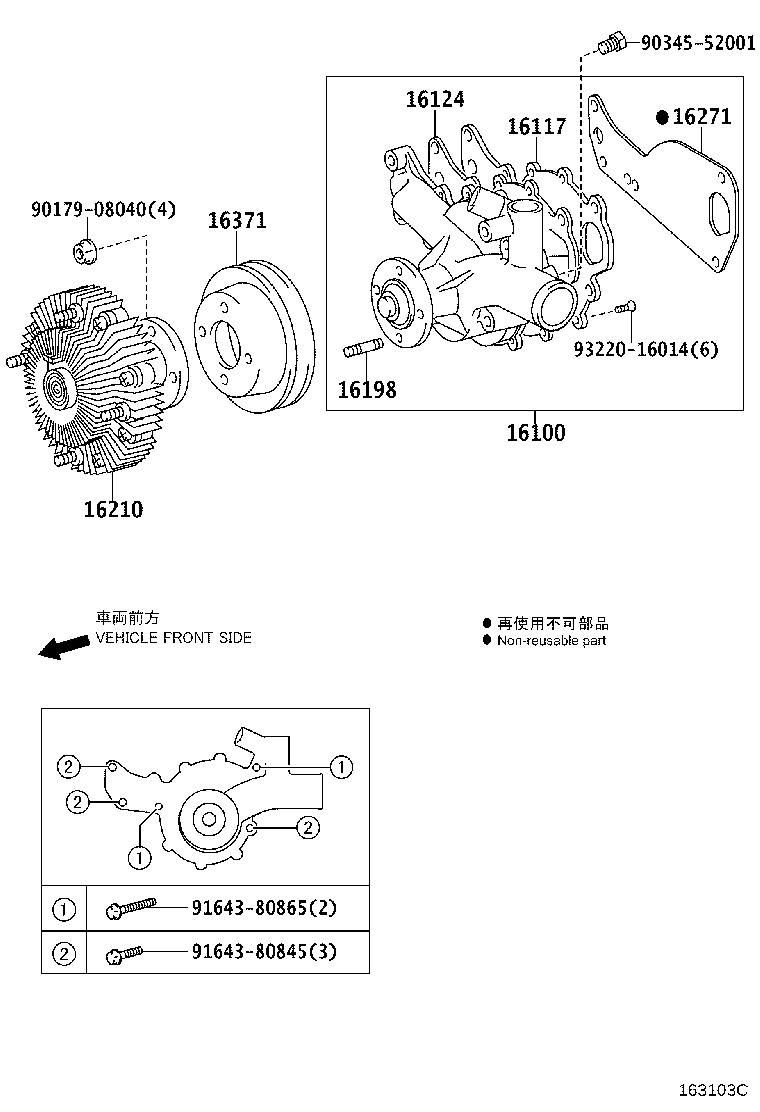

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-59166 |
1BZFPE..BZU300,340 |
1 | ||
| 16117 - PLATE, WATER PUMP | ||||
| 16117-58010 |
1BZFPE..BZU300,340 |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16124-58010 |
1BZFPE..BZU300,340 |
1 | ||
| 16198 - BOLT, STUD(FOR WATER PUMP PULLEY SEAT) | ||||
| 16198-41170 |
1BZFPE..BZU300,340 |
4 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-58030 |
1BZFPE..BZU300,340 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-58010 |
1BZFPE..BZU300,340 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-58070 |
1BZFPE..BZU300,340 |
1 | ||
| Common parts | ||||
| 90179-08040 | ||||
| 90345-52001 | ||||
| 91643-80845 | ||||
| 91643-80865 | ||||
| 93220-16014 | ||||
