BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )1BZFPE

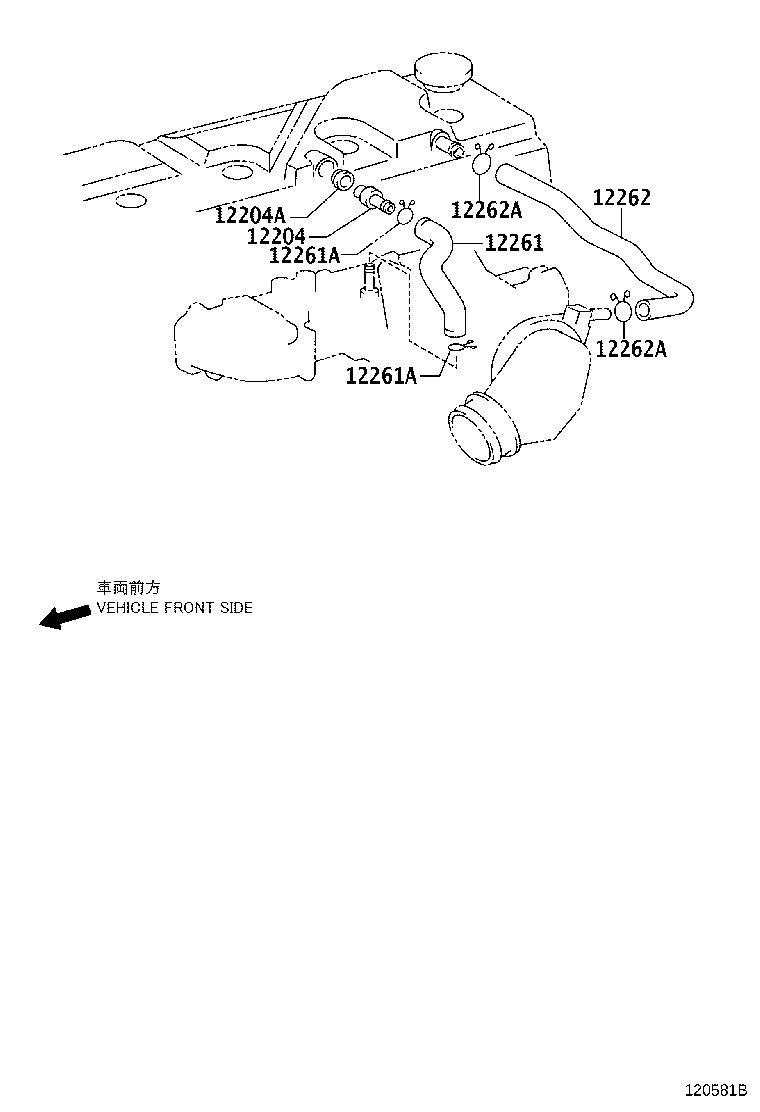

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-15022

1BZFPE..BZU300,340

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

1BZFPE..BZU300,340

 1
12261 - HOSE, VENTILATION
12261-48020

1BZFPE..BZU300,340

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

1BZFPE..BZU300,340

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

1BZFPE..BZU300,340

 2
12262 - HOSE, VENTILATION, NO.2
12262-48010

1BZFPE..BZU300,340

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17126

1BZFPE..BZU300,340

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17126

1BZFPE..BZU300,340

 2
