BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

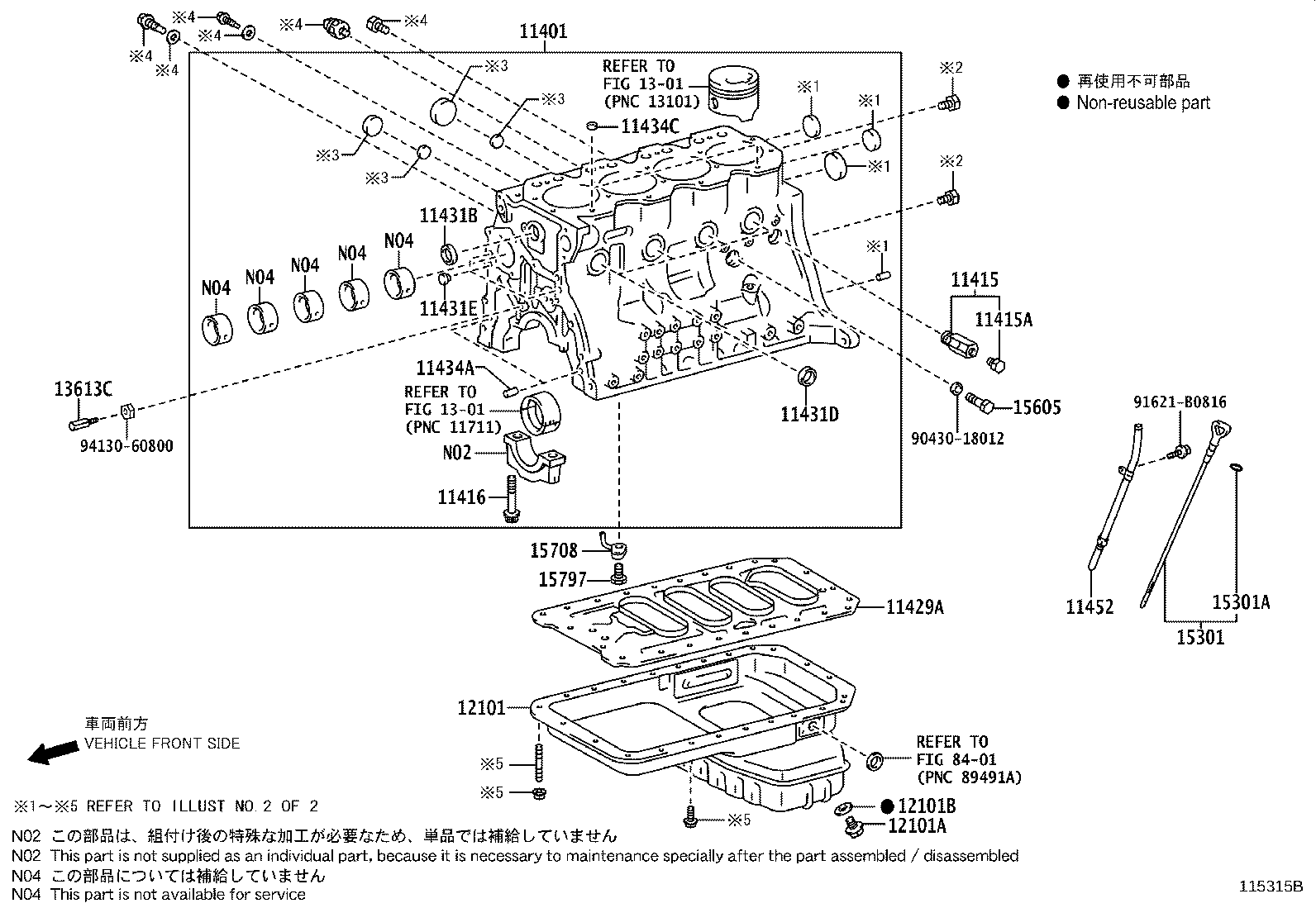

ILLUST NO. 1 OF 2(0705- )1BZFPE

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11429A 11431B 11431D 11431E 11434A 11434C 11452 12101 12101A 12101B 1301 1301 13613C 15301 15301A 15605 15708 15797 8401 9043018012 91621B0816 9413060800
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-49755

1BZFPE..BZU300,340

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09095

1BZFPE..BZU300,340

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1BZFPE..BZU300,340

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02083

1BZFPE..BZU300,340

*16−2.0PX129.5−32

 5
90910-02082

1BZFPE..BZU300,340

*16−2.0PX93.5−32

 5
11429A - PLATE, CYLINDER BLOCK STIFFENING
11429-56011

1BZFPE..BZU300,340

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-50003

1BZFPE..BZU300,340

 1
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-63500

1BZFPE..BZU300,340

OD=35

 5
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
90331-14006

1BZFPE..BZU300,340

OD=14

 3
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1BZFPE..BZU300,340

長さ=18,外径=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15008

1BZFPE..BZU300,340

長さ=9.0,外径=14.5

 2
11452 - GUIDE, OIL LEVEL GAGE
11409-48010

1BZFPE..BZU300,340

 1
12101 - PAN SUB-ASSY, OIL
12101-58170

1BZFPE..BZU300,340

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1BZFPE..BZU300,340

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1BZFPE..BZU300,340

 1
13613C - NOZZLE, OIL
90915-01015

1BZFPE..BZU300,340

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-58060

1BZFPE..BZU300,340

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

1BZFPE..BZU300,340

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-56010

1BZFPE..BZU300,340

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-58040

1BZFPE..BZU300,340

 4
15797 - BOLT, OIL NOZZLE UNION
15797-58020

1BZFPE..BZU300,340

 4
Common parts
90430-18012
91621-B0816
94130-60800
Linked diagrams
1301
8401

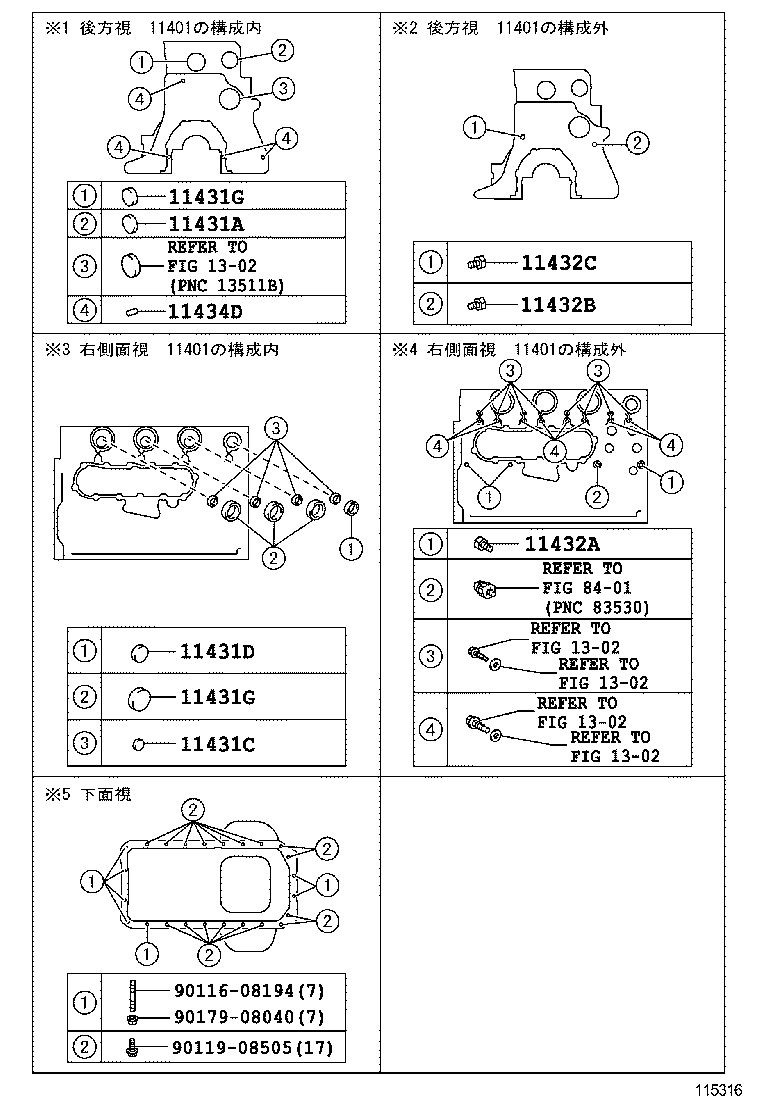

ILLUST NO. 2 OF 2(0705- )1BZFPE

Click highlighted areas on diagram

diagram 11431A 11431C 11431D 11431G 11431G 11432A 11432B 11432C 11434D 1302 1302 1302 1302 1302 8401 9011608194 9011908505 9017908040
Part # Description Qty Price
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-64500

1BZFPE..BZU300,340

OD=40

 1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-63000

1BZFPE..BZU300,340

OD=30

 4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-63500

1BZFPE..BZU300,340

OD=35

 5
11431G - PLUG, TIGHT
96411-65000

1BZFPE..BZU300,340

 4
11431G - PLUG, TIGHT
96411-65000

1BZFPE..BZU300,340

 4
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-51007

1BZFPE..BZU300,340

 3
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-53004

1BZFPE..BZU300,340

 1
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-52001

1BZFPE..BZU300,340

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08120

1BZFPE..BZU300,340

長さ=18,外径=8

 4
Common parts
90116-08194
90119-08505
90179-08040
Linked diagrams
1302
8401
