BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )1BZFPE

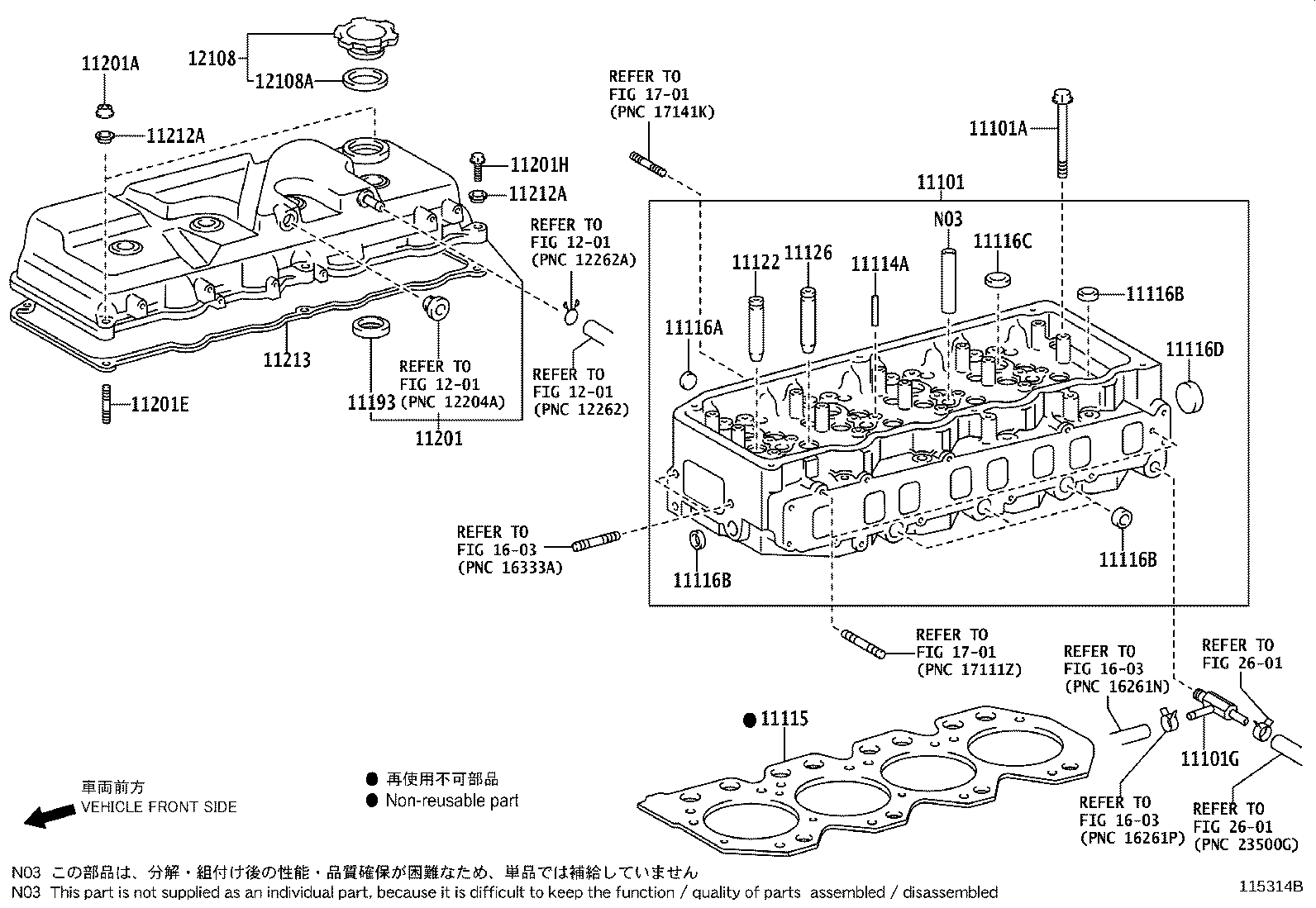

Click highlighted areas on diagram

diagram 11101 11101A 11101G 11114A 11115 11116A 11116B 11116B 11116B 11116C 11116D 11122 11126 11193 11201 11201A 11201E 11201H 11212A 11212A 11213 1201 1201 1201 12108 12108A 1603 1603 1603 1701 1701 2601 2601
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-49387

1BZFPE..BZU300,340

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02084

1BZFPE..BZU300,340

 18
11101G - UNION(FOR CYLINDER HEAD)
90404-54044

1BZFPE..BZU300,340

 1
11114A - PIN, STRAIGHT
90250-09007

1BZFPE..BZU300,340

長さ=53.5,外径=9

 8
11115 - GASKET, CYLINDER HEAD
11115-58131

1BZFPE..BZU300,340

厚さ=1.20

 1
11116A - PLUG, TIGHT, NO.1
90331-14006

1BZFPE..BZU300,340

 4
11116B - PLUG, TIGHT, NO.2
96411-62500

1BZFPE..BZU300,340

 8
11116B - PLUG, TIGHT, NO.2
96411-62500

1BZFPE..BZU300,340

 8
11116B - PLUG, TIGHT, NO.2
96411-62500

1BZFPE..BZU300,340

 8
11116C - PLUG, TIGHT, NO.3
96411-63000

1BZFPE..BZU300,340

 4
11116D - PLUG, TIGHT, NO.4
96411-64000

1BZFPE..BZU300,340

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-58020

1BZFPE..BZU300,340

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-58020

1BZFPE..BZU300,340

STD

 8
11193 - GASKET, SPARK PLUG TUBE
11193-15010

1BZFPE..BZU300,340

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-48040

1BZFPE..BZU300,340

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90179-08040

1BZFPE..BZU300,340

 2
11201E - BOLT, STUD(FOR CYLINDER HEAD COVER SET)
92112-80835

1BZFPE..BZU300,340

 2
11201H - BOLT(FOR CYLINDER HEAD COVER)
91511-B0835

1BZFPE..BZU300,340

 4
11212A - CUSHION, CYLINDER HEAD COVER
11228-56010

1BZFPE..BZU300,340

 6
11212A - CUSHION, CYLINDER HEAD COVER
11228-56010

1BZFPE..BZU300,340

 6
11213 - GASKET, CYLINDER HEAD COVER
11213-58021

1BZFPE..BZU300,340

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

1BZFPE..BZU300,340

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

1BZFPE..BZU300,340

 1
