Toyota Dyna/toyoace BZU340 BRAKE TUBE & CLAMP

BZU340-TKMQC3 (2003)

Toyota Dyna/Toyoace

Production Jun 2003 - May 2007

Engine 1BZFPE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(9905-0406)BU301,BZU300,340,RZU30#,XZU300,301,302,330,331,340,341,350

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-37161	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
47311-37160	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
47311-37162	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	04/2006 - 12/2999	1
47311-37161	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 03/2006	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47391-37010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37200	XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340..DCB,SCB	05/1999 - 06/2004	1
47311-37200	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47311-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1	06/2004 - 12/2999	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	2
90947-02D83	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	2
90947-02A79	BZU300,340,RZU30#,340	06/2004 - 12/2999	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	2
90947-02D83	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	2
90947-02A79	BZU300,340,RZU30#,340	06/2004 - 12/2999	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47312-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47312-37530	XZU306..IV6;BZU340..LPG..IV3;BZU300..T4..LPG..IV3;BZU300,XZU301,304,305,331,334,354..(DM6,T3)..5F..(IV3,IV6) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	06/2004 - 12/2999	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37110	BU346,BZU340,RZU340,XZU340,341,342,346,347	05/1999 - 06/2004	1
47312-37110	BZU340,RZU340	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47315 - TUBE, FRONT BRAKE, NO.5
47315-37070	XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T)	05/1999 - 03/2002	1
47315-37073	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
47315-37073	XZU301..20T..(IV6,IV7);BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T)	12/2003 - 06/2004	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-37122	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47321-37160	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1	06/2004 - 12/2999	1
47321-37420	XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2	06/2004 - 12/2999	1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-37200	XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340..DCB,SCB	05/1999 - 06/2004	1
47321-37200	BZU300,340,RZU30#,340..5F	06/2004 - 05/2007	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1	05/1999 - 06/2004	1
47322-37200	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 05/2007	1
47322-37580	XZU30#,31#,321,33#,34#,35#,368,378,388 NO.2	06/2004 - 05/2007	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37190	BU346,BZU340,RZU340,XZU340,341,342,346,347	05/1999 - 06/2004	1
47322-37190	BZU340,RZU340	06/2004 - 12/2999	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47351-37130	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47351-37130	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47352-37050	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47352-37050	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47353-37150	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47353-37150	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47351-37240	BU306,346,XZU30#,33#,34#	05/1999 - 06/1999	1
47354-37111	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354-37160	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354-37160	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47371-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6	06/2004 - 12/2999	1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-37050	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47371-37050	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350	05/1999 - 06/2004	1
Common parts
90119-08676
90119-08A33
90129-08007
90464-00726
90467-14006
90468-08035
90480-01054
90480-01275
90480-01311
90959-01593
90959-01594
90959-01595
90959-01602
90959-01605
90959-01616
91611-G0820
94130-00802
Linked diagrams
3102

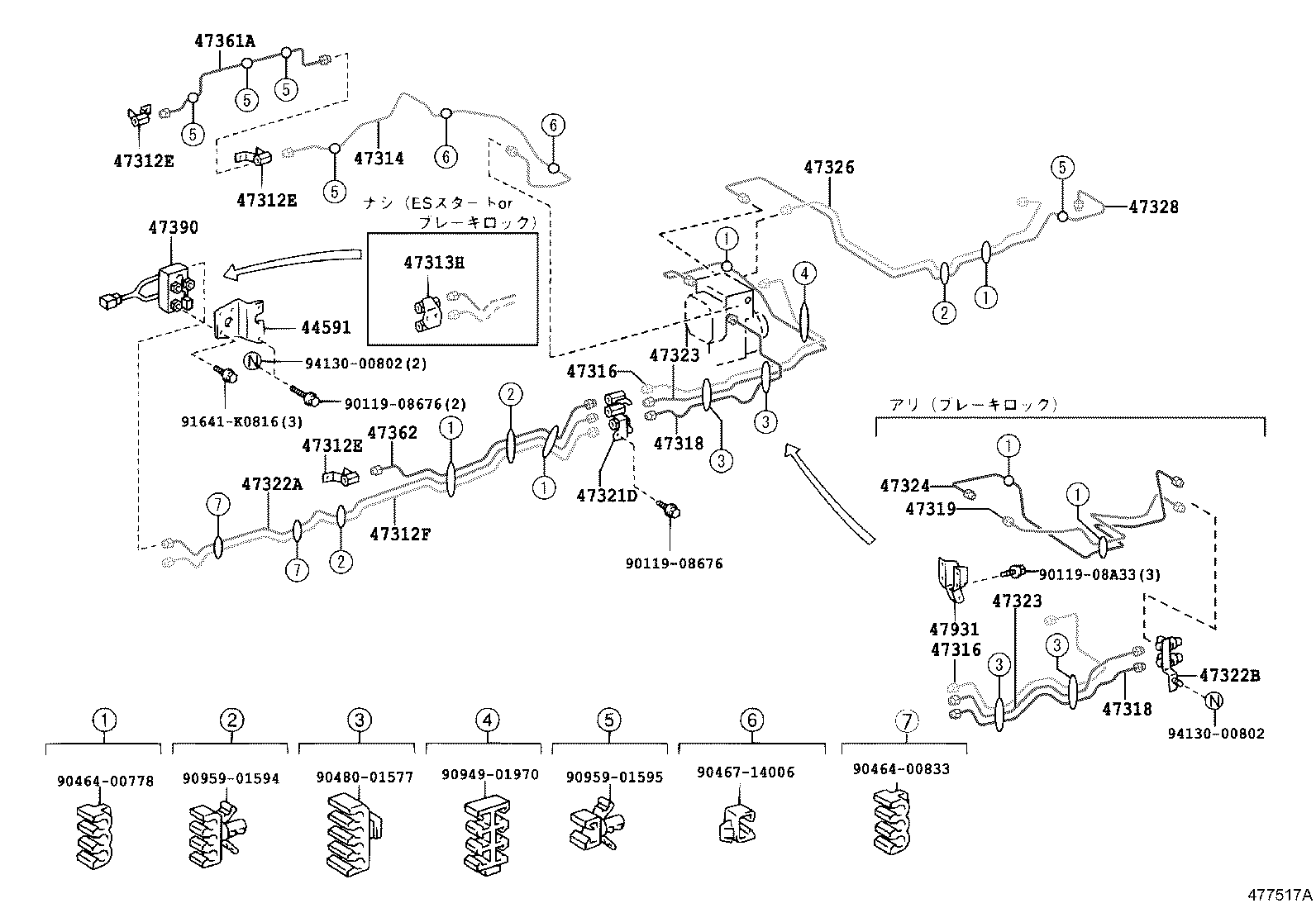

ILLUST NO. 2 OF 4(9905-0406)BU346,BZU340,RZU340,XZU340,341,342,346,347

Click highlighted areas on diagram

Part #	Description	Period	Qty
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-37050	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
44591-37050	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,32#,33#,340,341,342,346,347,350..DCB,SCB	05/1999 - 06/2004	1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-12060	BU346,BZU340,RZU340,XZU340,341,342,346,347,382	05/1999 - 06/2004	3
90412-12060	BZU340,RZU340	06/2004 - 12/2999	3
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-12060	BU346,BZU340,RZU340,XZU340,341,342,346,347,382	05/1999 - 06/2004	3
90412-12060	BZU340,RZU340	06/2004 - 12/2999	3
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-12060	BU346,BZU340,RZU340,XZU340,341,342,346,347,382	05/1999 - 06/2004	3
90412-12060	BZU340,RZU340	06/2004 - 12/2999	3
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37110	BU346,BZU340,RZU340,XZU340,341,342,346,347	05/1999 - 06/2004	1
47312-37110	BZU340,RZU340	06/2004 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37140	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47313-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12076	BU30#,346,RZU300,340,XZU30#,31#,33#,34#,35#,362,37#,382	05/1999 - 11/2000	1
90904-12076	BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4	06/2003 - 06/2004	1
90904-12076	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-37170	XZU306..DSL;XZU306..T5..DSLL;XZU301..20T..(IV6,IV7);BU30#,346,RZU300,340,XZU300,301,302,307,34#,350..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7)	05/1999 - 11/2000	1
47314-37171	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-37110	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47316-37110	BZU300,340,RZU30#,340..T2,T3,T4 NO.5	06/2004 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-37110	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47316-37110	BZU300,340,RZU30#,340..T2,T3,T4 NO.5	06/2004 - 12/2999	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B29	BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	2
90947-02B29	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B29	BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	2
90947-02B29	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	2
47318 - TUBE, FRONT BRAKE, NO.8
47318-37050	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47318-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47318-37230	XZU301,350..5F..IV6;XZU301..5F..DSLL..IV4;XZU301..DSLL..IV3..4NO;BZU300,340,XZU302,331,342..(T3,T4)..5F..(DSLL,LPG) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	05/1999 - 06/2004	1
47318-37230	BZU300,340..(T3,T4)..LPG..IV3 ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	06/2004 - 12/2999	1
47318-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-37050	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47318-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47318-37230	XZU301,350..5F..IV6;XZU301..5F..DSLL..IV4;XZU301..DSLL..IV3..4NO;BZU300,340,XZU302,331,342..(T3,T4)..5F..(DSLL,LPG) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	05/1999 - 06/2004	1
47318-37230	BZU300,340..(T3,T4)..LPG..IV3 ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	06/2004 - 12/2999	1
47318-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-37060	XZU331..T3..5F..IV3;XZU306..5F..DSLL..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU350..(T3,T4)..(DSL,LPG);XZU300,301,330..(T3,T4,T5)..5F..(IV3,IV6,IV7)	06/2003 - 06/2004	1
47319-37060	BZU300,340..(T3,T4)..LPG..IV3	06/2004 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-12009	XZU362..DM5,DM7;XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#..(DM3,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
90412-12059	XZU331..DSL..IV4;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;XZU301..5F..30T..(IV4,IV6);XZU301..4FC..30T..DSL..(IV4,IV6);XZU302,331,342,346..5F..(CNG,DSLL,LPG);BU301,BZU300,340,RZU301,XZU350,371..1NO;XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO	05/1999 - 06/2004	1
90412-12059	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37190	BU346,BZU340,RZU340,XZU340,341,342,346,347	05/1999 - 06/2004	1
47322-37190	BZU340,RZU340	06/2004 - 12/2999	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90904-13055	BZU300..DM6,T3;BZU300..T4..LPG;XZU306..5F..DSLL..IV3;BZU340,XZU350..DSL,LPG;XZU302,331..(DM6,T3)..5F..IV3;XZU302..(T4,T5)..(295T,30T)..IV3;XZU300,301,330..(DM6,T3,T4,T5)..5F..(IV3,IV6,IV7)	06/2003 - 06/2004	1
90904-13055	BZU340..LPG..IV3;BZU300..T4..LPG..IV3;BZU300..(DM6,T3)..IV3	06/2004 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37050	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47323-37070	XZU306..T5..DSLL;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..IV4;XZU301..T4..4FC..IV3..1NO;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU302,341,342..(T3,T4)..LPG;XZU300,301,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	05/1999 - 06/2004	1
47323-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47323-37070	BZU300,340..(T3,T4)..LPG..IV3 ｱﾘ(ABS)	06/2004 - 12/2999	1
47323-37530	XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47323-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37050	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47323-37070	XZU306..T5..DSLL;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..IV4;XZU301..T4..4FC..IV3..1NO;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU302,341,342..(T3,T4)..LPG;XZU300,301,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	05/1999 - 06/2004	1
47323-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47323-37070	BZU300,340..(T3,T4)..LPG..IV3 ｱﾘ(ABS)	06/2004 - 12/2999	1
47323-37530	XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47323-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90412-12051	BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
90412-12051	XZU301..(DM6,T3,T4,T5)..WT..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..WT..(CBU,IV6);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(03S,06S,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) NO.4	06/2004 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37310	XZU331..T3..5F..IV3;XZU306..5F..DSLL..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU350..(T3,T4)..(DSL,LPG);XZU300,301,330..(T3,T4,T5)..5F..(IV3,IV6,IV7)	06/2003 - 06/2004	1
47324-37310	BZU300,340..(T3,T4)..LPG..IV3	06/2004 - 12/2999	1
47324-37240	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-37150	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47325-37320	XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-37170	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47326-37170	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
47326-37490	XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT	06/2004 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-37240	XZU331,340,341..SCB..(20T,295T,30T);BU346,BZU300,340,RZU300,XZU300,301,302,330,342,346,347..T3..(20T,295T,30T)..(CBU,IV3,IV6,IV7)	05/1999 - 06/2004	1
47327-37240	XZU341..T3..20T;XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,346..T3..(20T,30T)	06/2004 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-37010	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47328-37340	XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT	06/2004 - 12/2999	1
47328-37010	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
47329 - TUBE, REAR BRAKE, NO.9
47329-37100	XZU341..T3..20T;XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,346..T3..(20T,30T)	06/2004 - 12/2999	1
47329-37100	XZU331,340,341..SCB..(20T,295T,30T);BU346,BZU300,340,RZU300,XZU300,301,302,330,342,346,347..T3..(20T,295T,30T)..(CBU,IV3,IV6,IV7)	05/1999 - 06/2004	1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050	XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT	06/2004 - 12/2999	1
47345-36050	XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT	05/1999 - 06/2004	1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050	XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT	05/1999 - 06/2004	1
47345-36050	XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT	06/2004 - 12/2999	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37110	BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47353-37110	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47353-37240	BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47353-37240	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(DCB,SCB)..WT	06/2004 - 12/2999	1
47361A - TUBE, FRONT BRAKE, NO.10
47361-37061	BZU340,RZU340	06/2004 - 12/2999	1
47362 - TUBE, FRONT BRAKE, NO.11
47362-37010	BZU340,RZU340	06/2004 - 12/2999	1
47362-37010	BU346,BZU340,RZU340,XZU340,341,342,346,347	05/1999 - 06/2004	1
47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK
47390-37020	BZU300,340,RZU30#,340..5F	06/2004 - 12/2999	1
47931 - BRACKET, LOAD SENSING VALVE
47931-37020	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
Common parts
90034-61046
90119-08676
90119-08A33
90464-00778
90464-00833
90467-14006
90468-08035
90480-01577
90949-01006
90949-01970
90959-01594
90959-01595
91612-B1020
91615-60816
91641-K0816
91651-60614
94130-00802

ILLUST NO. 3 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ｱﾘ(ABS)

Part #	Description	Period	Qty
44540 - ACTUATOR ASSY, ABS & TRACTION
44540-37010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 03/2000	1
44050-37020	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
44050-37040	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-37030	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 05/2007	1
44590-37010	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
44590-37010	XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	1
Common parts
90099-05277
90119-08676

ILLUST NO. 2 OF 5(0406- )XZU30#,33#,34#,354..DM3,DM6,T1,T2,T3,T4,T5..CBU,IV3,IV6,IV7

Click highlighted areas on diagram

W(ABS) 4X2 SHORT,S/LONG,LONG

Part #	Description	Period	Qty
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37110	BU346,BZU340,RZU340,XZU340,341,342,346,347	05/1999 - 06/2004	1
47312-37110	BZU340,RZU340	06/2004 - 12/2999	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37110	BU346,BZU340,RZU340,XZU340,341,342,346,347	05/1999 - 06/2004	1
47312-37110	BZU340,RZU340	06/2004 - 12/2999	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37110	BU346,BZU340,RZU340,XZU340,341,342,346,347	05/1999 - 06/2004	1
47312-37110	BZU340,RZU340	06/2004 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-12009	XZU362..DM5,DM7;XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#..(DM3,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
90412-12059	XZU331..DSL..IV4;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;XZU301..5F..30T..(IV4,IV6);XZU301..4FC..30T..DSL..(IV4,IV6);XZU302,331,342,346..5F..(CNG,DSLL,LPG);BU301,BZU300,340,RZU301,XZU350,371..1NO;XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO	05/1999 - 06/2004	1
90412-12059	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37190	BU346,BZU340,RZU340,XZU340,341,342,346,347	05/1999 - 06/2004	1
47322-37190	BZU340,RZU340	06/2004 - 12/2999	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37190	BU346,BZU340,RZU340,XZU340,341,342,346,347	05/1999 - 06/2004	1
47322-37190	BZU340,RZU340	06/2004 - 12/2999	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37190	BU346,BZU340,RZU340,XZU340,341,342,346,347	05/1999 - 06/2004	1
47322-37190	BZU340,RZU340	06/2004 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-37170	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47326-37170	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
47326-37490	XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT	06/2004 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-37010	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47328-37340	XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT	06/2004 - 12/2999	1
47328-37010	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
Common parts
90119-08A46
90464-00778
90464-00833
90480-01620
90480-01621
90959-01593
90959-01594

ILLUST NO. 3 OF 5(0406- )03S..ATM ; (0406- )XZU306..SCB,VAN..03S,T4..5F..CBU,IV3 ; (0406- )

Click highlighted areas on diagram

W/O(ABS) CLAMP:LH SIDE=2,RH SIDE=3

Part #	Description	Period	Qty
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B29	BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	2
90947-02B29	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT	06/2004 - 12/2999	2
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90412-12051	BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6)	05/1999 - 06/2004	1
90412-12051	XZU301..(DM6,T3,T4,T5)..WT..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..WT..(CBU,IV6);BZU300,340,RZU30#,340,XZU304,305,306,308,33#,34#,368,378,388..(03S,06S,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) NO.4	06/2004 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-37240	XZU331,340,341..SCB..(20T,295T,30T);BU346,BZU300,340,RZU300,XZU300,301,302,330,342,346,347..T3..(20T,295T,30T)..(CBU,IV3,IV6,IV7)	05/1999 - 06/2004	1
47327-37240	XZU341..T3..20T;XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,346..T3..(20T,30T)	06/2004 - 12/2999	1
47329 - TUBE, REAR BRAKE, NO.9
47329-37100	XZU341..T3..20T;XZU331,341,344..30T;BZU300,340,RZU300,XZU301,304,334,346..T3..(20T,30T)	06/2004 - 12/2999	1
47329-37100	XZU331,340,341..SCB..(20T,295T,30T);BU346,BZU300,340,RZU300,XZU300,301,302,330,342,346,347..T3..(20T,295T,30T)..(CBU,IV3,IV6,IV7)	05/1999 - 06/2004	1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36050	XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT	06/2004 - 12/2999	1
47345-36050	XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT	05/1999 - 06/2004	1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36050	XZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T3,T5)..(20T,30T)..WT	05/1999 - 06/2004	1
47345-36050	XZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT	06/2004 - 12/2999	1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47353-37240	BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47353-37240	XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(DCB,SCB)..WT	06/2004 - 12/2999	1
Common parts
90034-61046
90119-08676
90129-08007
90468-08035
90949-01006
91612-B1020
91651-60614

ILLUST NO. 4 OF 5(0406- )BZU300,340,RZU30#,340

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
44540 - ACTUATOR ASSY, ABS & TRACTION
44540-37010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 03/2000	1
44050-37020	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
44050-37040	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-37030	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 05/2007	1
44590-37010	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
44590-37010	XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	1
Common parts
90099-05277
90119-08676

ILLUST NO. 4 OF 5(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
44540 - ACTUATOR ASSY, ABS & TRACTION
44540-37010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 03/2000	1
44050-37020	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
44050-37040	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-37030	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 05/2007	1
44590-37010	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
44590-37010	XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	1
Common parts
90099-05277
90119-08676

ILLUST NO. 1 OF 5(0406- )BZU300,340,RZU30#,340

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-37161	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
47311-37160	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
47311-37162	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	04/2006 - 12/2999	1
47311-37161	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 03/2006	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47391-37010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37200	XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340..DCB,SCB	05/1999 - 06/2004	1
47311-37200	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47311-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1	06/2004 - 12/2999	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	2
90947-02D83	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	2
90947-02A79	BZU300,340,RZU30#,340	06/2004 - 12/2999	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79	XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#	05/1999 - 06/2004	2
90947-02D83	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	2
90947-02A79	BZU300,340,RZU30#,340	06/2004 - 12/2999	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47312-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47312-37530	XZU306..IV6;BZU340..LPG..IV3;BZU300..T4..LPG..IV3;BZU300,XZU301,304,305,331,334,354..(DM6,T3)..5F..(IV3,IV6) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	06/2004 - 12/2999	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37110	BU346,BZU340,RZU340,XZU340,341,342,346,347	05/1999 - 06/2004	1
47312-37110	BZU340,RZU340	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A72	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側	05/1999 - 06/2004	1
90947-02B27	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側	05/1999 - 06/2004	1
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	2
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47389-30010	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	4
47315 - TUBE, FRONT BRAKE, NO.5
47315-37070	XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T)	05/1999 - 03/2002	1
47315-37073	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
47315-37073	XZU301..20T..(IV6,IV7);BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T)	12/2003 - 06/2004	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-37122	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47321-37160	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1	06/2004 - 12/2999	1
47321-37420	XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2	06/2004 - 12/2999	1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-37200	XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340..DCB,SCB	05/1999 - 06/2004	1
47321-37200	BZU300,340,RZU30#,340..5F	06/2004 - 05/2007	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1	05/1999 - 06/2004	1
47322-37200	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 05/2007	1
47322-37580	XZU30#,31#,321,33#,34#,35#,368,378,388 NO.2	06/2004 - 05/2007	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37190	BU346,BZU340,RZU340,XZU340,341,342,346,347	05/1999 - 06/2004	1
47322-37190	BZU340,RZU340	06/2004 - 12/2999	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47351-37130	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T	05/1999 - 06/2004	1
47352-37050	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47353-37150	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47351-37240	BU306,346,XZU30#,33#,34#	05/1999 - 06/1999	1
47354-37111	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354-37160	XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG)	05/1999 - 06/2004	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
47371-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6	06/2004 - 12/2999	1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-37050	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47371-37050	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350	05/1999 - 06/2004	1
Common parts
90119-08676
90119-08A33
90129-08007
90464-00726
90467-14006
90468-08035
90480-01054
90480-01275
90480-01311
90959-01593
90959-01594
90959-01595
90959-01602
90959-01605
90959-01616
91611-G0820
Linked diagrams
3102

ILLUST NO. 2 OF 5(0406- )BZU340,RZU340

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-37050	BZU300,340,RZU30#,340	06/2004 - 05/2007	1
44591-37050	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,32#,33#,340,341,342,346,347,350..DCB,SCB	05/1999 - 06/2004	1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-12060	BU346,BZU340,RZU340,XZU340,341,342,346,347,382	05/1999 - 06/2004	3
90412-12060	BZU340,RZU340	06/2004 - 12/2999	3
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-12060	BU346,BZU340,RZU340,XZU340,341,342,346,347,382	05/1999 - 06/2004	3
90412-12060	BZU340,RZU340	06/2004 - 12/2999	3
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-12060	BU346,BZU340,RZU340,XZU340,341,342,346,347,382	05/1999 - 06/2004	3
90412-12060	BZU340,RZU340	06/2004 - 12/2999	3
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37110	BU346,BZU340,RZU340,XZU340,341,342,346,347	05/1999 - 06/2004	1
47312-37110	BZU340,RZU340	06/2004 - 12/2999	1
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12076	BU30#,346,RZU300,340,XZU30#,31#,33#,34#,35#,362,37#,382	05/1999 - 11/2000	1
90904-12076	BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4	06/2003 - 06/2004	1
90904-12076	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-37170	XZU306..DSL;XZU306..T5..DSLL;XZU301..20T..(IV6,IV7);BU30#,346,RZU300,340,XZU300,301,302,307,34#,350..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7)	05/1999 - 11/2000	1
47314-37171	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-37110	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47316-37110	BZU300,340,RZU30#,340..T2,T3,T4 NO.5	06/2004 - 12/2999	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-37110	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47316-37110	BZU300,340,RZU30#,340..T2,T3,T4 NO.5	06/2004 - 12/2999	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-37050	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47318-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47318-37230	XZU301,350..5F..IV6;XZU301..5F..DSLL..IV4;XZU301..DSLL..IV3..4NO;BZU300,340,XZU302,331,342..(T3,T4)..5F..(DSLL,LPG) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	05/1999 - 06/2004	1
47318-37230	BZU300,340..(T3,T4)..LPG..IV3 ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	06/2004 - 12/2999	1
47318-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-37050	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47318-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47318-37230	XZU301,350..5F..IV6;XZU301..5F..DSLL..IV4;XZU301..DSLL..IV3..4NO;BZU300,340,XZU302,331,342..(T3,T4)..5F..(DSLL,LPG) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	05/1999 - 06/2004	1
47318-37230	BZU300,340..(T3,T4)..LPG..IV3 ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	06/2004 - 12/2999	1
47318-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-37060	XZU331..T3..5F..IV3;XZU306..5F..DSLL..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU350..(T3,T4)..(DSL,LPG);XZU300,301,330..(T3,T4,T5)..5F..(IV3,IV6,IV7)	06/2003 - 06/2004	1
47319-37060	BZU300,340..(T3,T4)..LPG..IV3	06/2004 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-12009	XZU362..DM5,DM7;XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#..(DM3,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
90412-12059	XZU331..DSL..IV4;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;XZU301..5F..30T..(IV4,IV6);XZU301..4FC..30T..DSL..(IV4,IV6);XZU302,331,342,346..5F..(CNG,DSLL,LPG);BU301,BZU300,340,RZU301,XZU350,371..1NO;XZU301,302..20T..(CNG,DSL,LPG)..(IV3,IV6)..1NO	05/1999 - 06/2004	1
90412-12059	BZU300,340,RZU30#,340	06/2004 - 12/2999	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37190	BU346,BZU340,RZU340,XZU340,341,342,346,347	05/1999 - 06/2004	1
47322-37190	BZU340,RZU340	06/2004 - 12/2999	1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90904-13055	BZU300..DM6,T3;BZU300..T4..LPG;XZU306..5F..DSLL..IV3;BZU340,XZU350..DSL,LPG;XZU302,331..(DM6,T3)..5F..IV3;XZU302..(T4,T5)..(295T,30T)..IV3;XZU300,301,330..(DM6,T3,T4,T5)..5F..(IV3,IV6,IV7)	06/2003 - 06/2004	1
90904-13055	BZU340..LPG..IV3;BZU300..T4..LPG..IV3;BZU300..(DM6,T3)..IV3	06/2004 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37050	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47323-37070	XZU306..T5..DSLL;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..IV4;XZU301..T4..4FC..IV3..1NO;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU302,341,342..(T3,T4)..LPG;XZU300,301,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	05/1999 - 06/2004	1
47323-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47323-37070	BZU300,340..(T3,T4)..LPG..IV3 ｱﾘ(ABS)	06/2004 - 12/2999	1
47323-37530	XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47323-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37050	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47323-37070	XZU306..T5..DSLL;XZU331..T3..5F..IV3;XZU306..T5..4FC..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..IV4;XZU301..T4..4FC..IV3..1NO;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU302,341,342..(T3,T4)..LPG;XZU300,301,330,350..(T3,T4,T5)..5F..(DSL,LPG)..(IV3,IV6,IV7) ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ)	05/1999 - 06/2004	1
47323-37140	XZU301,350..IV6;XZU306..DSLL..CBU;XZU341..4FC..295T;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU302,342,346..(T3,T4)..(CNG,DSLL,LPG)	05/1999 - 06/2004	1
47323-37070	BZU300,340..(T3,T4)..LPG..IV3 ｱﾘ(ABS)	06/2004 - 12/2999	1
47323-37530	XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47323-37140	BZU300,340,RZU30#,340..T2,T3,T4	06/2004 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37310	XZU331..T3..5F..IV3;XZU306..5F..DSLL..IV3;XZU301..5F..20T..(IV6,IV7);XZU302..(T3,T4,T5)..(295T,30T)..IV3;BZU300,340,XZU350..(T3,T4)..(DSL,LPG);XZU300,301,330..(T3,T4,T5)..5F..(IV3,IV6,IV7)	06/2003 - 06/2004	1
47324-37310	BZU300,340..(T3,T4)..LPG..IV3	06/2004 - 12/2999	1
47324-37240	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-37170	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47326-37170	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
47326-37490	XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT	06/2004 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-37010	XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6)	05/1999 - 06/2004	1
47328-37340	XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT	06/2004 - 12/2999	1
47328-37010	BZU300,340,RZU30#,340..T2,T3,T4 ｱﾘ(ABS)	06/2004 - 12/2999	1
47361A - TUBE, FRONT BRAKE, NO.10
47361-37061	BZU340,RZU340	06/2004 - 12/2999	1
47362 - TUBE, FRONT BRAKE, NO.11
47362-37010	BZU340,RZU340	06/2004 - 12/2999	1
47362-37010	BU346,BZU340,RZU340,XZU340,341,342,346,347	05/1999 - 06/2004	1
47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK
47390-37020	BZU300,340,RZU30#,340..5F	06/2004 - 12/2999	1
47931 - BRACKET, LOAD SENSING VALVE
47931-37020	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
Common parts
90119-08676
90119-08A33
90464-00778
90464-00833
90467-14006
90480-01577
90949-01970
90959-01594
90959-01595
91641-K0816
94130-00802

ILLUST NO. 4 OF 4(0610- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90099-05277
90119-08676

ILLUST NO. 1 OF 4(0610- )ST ; (0610- )6FC..30T..4NO ; (0610- )XZU344..20T,30T ; (0610- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
47371-37050
47371-37080
90119-08676
90129-08007
90464-00447
90464-00726
90468-08035
90480-01054
90480-01275
90480-01311
90480-01628
90959-01603
90959-01604
90959-01605
90959-01616
90959-01622
91611-G0820
94130-00802
Linked diagrams
3102

ILLUST NO. 2 OF 4(0610- )BZU300,340,TRU300,340,500,XZU334,354..CBU,IV3,IV6..1NO

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-08A46
90464-00778
90464-00833
90480-01620
90480-01621
90959-01593
90959-01594

ILLUST NO. 3 OF 4(0610- )BZU300,XZU304..T4..30T ; (0610- )BZU300,XZU30#..DM3,DM6,T5 ; (0610-

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90034-61046
90119-08676
90129-08007
90468-08035
91612-B1020

ILLUST NO. 3 OF 4(0610- )XZU548..DCRUE ; (0610- )BZU300,TRU300,XZU304..T3 ; (0610- )BZU340,

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90034-61046
90119-08676
90129-08007
90468-08035
91612-B1020

ILLUST NO. 2 OF 4(9905-0406)XZU410..4FC ; (9905-0406)XZU412..CNG; (9905-0406)XZU430..40TOV ; (9905-

Click highlighted areas on diagram

ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸ & LSPV)

Part #	Description	Period	Qty	Price
Common parts
90034-61046
90119-08676
90119-08A46
90129-08007
90464-00778
90467-14006
90468-08035
90480-01577
90949-01006
90949-01871
90949-01970
90959-01593
90959-01594
90959-01595
91611-G0820
91612-B1020
91651-60614
94130-00802

ILLUST NO. 2 OF 4(9905-0406)BZU410 ; (9905-0406)XZU410..40T ; (9905-0406)XZU400..40T..IV3,IV6 ; (001

Click highlighted areas on diagram

ﾅｼ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ & LSPV)

Part #	Description	Period	Qty	Price
Common parts
90034-61046
90119-08676
90119-08A46
90129-08007
90464-00778
90467-14006
90468-08035
90480-01577
90949-01970
90959-01593
90959-01594
90959-01595
91611-G0820
91612-B1020
91641-K0816

ILLUST NO. 2 OF 4(9905-0406)5F..DSLL ; (9905-0406)T4..30T..DSLL ;(9905-0406)XZU421..5F..IV3 ; (9905

Click highlighted areas on diagram

ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ) & ﾅｼ(LSPV)

Part #	Description	Period	Qty	Price
Common parts
90034-61046
90119-08676
90119-08A46
90129-08007
90464-00778
90467-14006
90468-08035
90480-01577
90949-01970
90959-01593
90959-01594
90959-01595
91611-G0820
91612-B1020
91641-K0816

ILLUST NO. 1 OF 4(0310-0406)XZU414..30T..DCRL,DSLL ; (0406- )XZU424..6F..35T..DCRL,DCRTK..IV3 ; (

Click highlighted areas on diagram

ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸ)

Part #	Description	Period	Qty	Price
Common parts
90119-08676
90129-08007
90464-00726
90468-08035
90480-01054
90480-01275
90480-01311
90480-01621
90949-01540
90959-01595
90959-01602
90959-01603
90959-01605
90959-01616
91551-80814
91611-B0816
91611-G0820
91641-K0816
94130-00802
Linked diagrams
3102

ILLUST NO. 3 OF 4(9905-0406)BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 ; (0406- )BZU

Click highlighted areas on diagram

ｱﾘ(ABS)

Part #	Description	Period	Qty	Price
Common parts
90099-05277
91641-C0814
94130-00802

BZU340-TKMQC3 (2003)

ILLUST NO. 1 OF 4(9905-0406)BU301,BZU300,340,RZU30#,XZU300,301,302,330,331,340,341,350

ILLUST NO. 2 OF 4(9905-0406)BU346,BZU340,RZU340,XZU340,341,342,346,347

ILLUST NO. 3 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 2 OF 5(0406- )XZU30#,33#,34#,354..DM3,DM6,T1,T2,T3,T4,T5..CBU,IV3,IV6,IV7

ILLUST NO. 3 OF 5(0406- )03S..ATM ; (0406- )XZU306..SCB,VAN..03S,T4..5F..CBU,IV3 ; (0406- )

ILLUST NO. 4 OF 5(0406- )BZU300,340,RZU30#,340

ILLUST NO. 4 OF 5(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388

ILLUST NO. 1 OF 5(0406- )BZU300,340,RZU30#,340

ILLUST NO. 2 OF 5(0406- )BZU340,RZU340

ILLUST NO. 4 OF 4(0610- )

ILLUST NO. 1 OF 4(0610- )ST ; (0610- )6FC..30T..4NO ; (0610- )XZU344..20T,30T ; (0610- )

ILLUST NO. 2 OF 4(0610- )BZU300,340,TRU300,340,500,XZU334,354..CBU,IV3,IV6..1NO

ILLUST NO. 3 OF 4(0610- )BZU300,XZU304..T4..30T ; (0610- )BZU300,XZU30#..DM3,DM6,T5 ; (0610-

ILLUST NO. 3 OF 4(0610- )XZU548..DCRUE ; (0610- )BZU300,TRU300,XZU304..T3 ; (0610- )BZU340,

ILLUST NO. 2 OF 4(9905-0406)XZU410..4FC ; (9905-0406)XZU412..CNG; (9905-0406)XZU430..40TOV ; (9905-

ILLUST NO. 2 OF 4(9905-0406)BZU410 ; (9905-0406)XZU410..40T ; (9905-0406)XZU400..40T..IV3,IV6 ; (001

ILLUST NO. 2 OF 4(9905-0406)5F..DSLL ; (9905-0406)T4..30T..DSLL ;(9905-0406)XZU421..5F..IV3 ; (9905

ILLUST NO. 1 OF 4(0310-0406)XZU414..30T..DCRL,DSLL ; (0406- )XZU424..6F..35T..DCRL,DCRTK..IV3 ; (

ILLUST NO. 3 OF 4(9905-0406)BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 ; (0406- )BZU

Part Price Details
