Toyota Dyna/toyoace BZU300 POWER TAKE-OFF CASE & GEAR

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
BZU300A-TYMMM3 (2003)
3602 - POWER TAKE-OFF CASE & GEAR

BZU300A-TYMMM3 (2003)

Toyota Dyna/Toyoace

Production Jun 2003 - May 2007

Engine 1BZFNE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

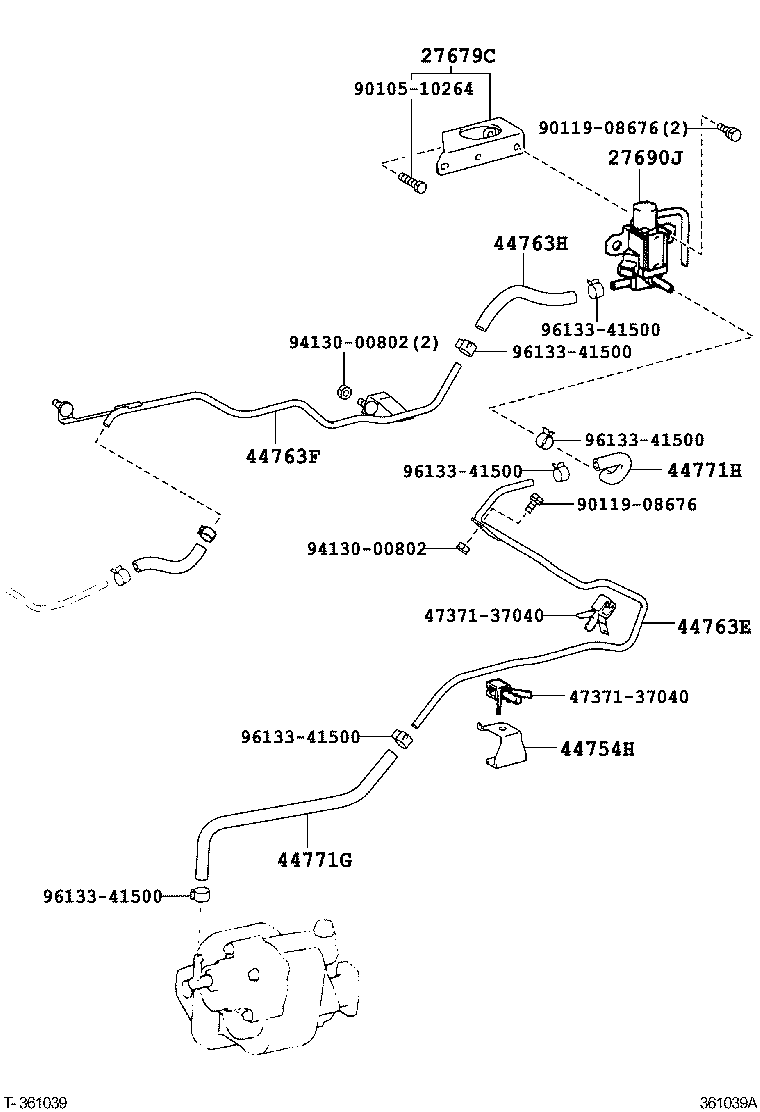

ILLUST NO. 2 OF 3(9905-0406)30T..IV7 ; (9905-0406)BZU300..DM6,T3; (9905-0406)BZU300..T4..LPG ; (990

Click highlighted areas on diagram

ﾊﾞｷﾕ-ﾑｼｷ

Part #	Description	Period	Qty
27679C - BRACKET, POWER TAKE-OFF SOLENOID
27679-78061	1BZ#,3RZFE..BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
27679-78061	1BZ#,3RZFE..BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
27679-78061	1BZ#,3RZFE..BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
27679-78061	1BZ#,3RZFE..BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
27690J - SOLENOID ASSY, POWER TAKE-OFF
27690-78072	1BZFNE..BZU300..DM6;1BZFPE,3RZ#..BZU300,340,RZU30#,340..5F	06/2004 - 12/2999	1
27690-78072	1BZFNE..BZU300..DM6;1BZFPE,3RZ#..BZU300,340,RZU30#,340..5F	06/2004 - 12/2999	1
27690-78072	1BZFNE..BZU300..DM6;1BZFPE,3RZ#..BZU300,340,RZU30#,340..5F	06/2004 - 12/2999	1
27690-78072	1BZFNE..BZU300..DM6;1BZFPE,3RZ#..BZU300,340,RZU30#,340..5F	06/2004 - 12/2999	1
27690-78072	1BZFNE..BZU300..DM6;1BZFPE,3RZ#..BZU300,340,RZU30#,340..5F	07/2003 - 06/2004	1
27690-78072	1BZFNE..BZU300..DM6;1BZFPE,3RZ#..BZU300,340,RZU30#,340..5F	07/2003 - 06/2004	1
27690-78072	1BZFNE..BZU300..DM6;1BZFPE,3RZ#..BZU300,340,RZU30#,340..5F	07/2003 - 06/2004	1
27690-78072	1BZFNE..BZU300..DM6;1BZFPE,3RZ#..BZU300,340,RZU30#,340..5F	07/2003 - 06/2004	1
44754H - BRACKET, VACUUM TUBE
44754-37110	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3)	06/2004 - 12/2999	1
44754-37110	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3)	06/2004 - 12/2999	1
44754-37110	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3)	06/2004 - 12/2999	1
44754-37110	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3)	06/2004 - 12/2999	1
44763E - TUBE, HOSE TO HOSE, NO.1
44763-37410	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 12/2999	1
44763-37410	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 12/2999	1
44763-37410	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 12/2999	1
44763-37410	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 12/2999	1
44763F - TUBE, HOSE TO HOSE, NO.2
44763-37420	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6 W(LPG)	06/2004 - 12/2999	1
44763-37420	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6 W(LPG)	06/2004 - 12/2999	1
44763-37420	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6 W(LPG)	06/2004 - 12/2999	1
44763-37420	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6 W(LPG)	06/2004 - 12/2999	1
44763H - HOSE, VACUUM BRAKE
95446-09160	BZU300..DM6	06/2004 - 12/2999	1
95446-09160	BZU300..DM6	06/2004 - 12/2999	1
95446-09160	BZU300..DM6	06/2004 - 12/2999	1
95446-09160	BZU300..DM6	06/2004 - 12/2999	1
44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1
44771-37470	BZU300..DM6	06/2004 - 02/2007	1
44771-37470	BZU300..DM6	06/2004 - 02/2007	1
44771-37470	BZU300..DM6	06/2004 - 02/2007	1
44771-37470	BZU300..DM6	06/2004 - 02/2007	1
44771-37A70	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG NO.2	03/2007 - 12/2999	1
44771-37A70	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG NO.2	03/2007 - 12/2999	1
44771-37A70	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG NO.2	03/2007 - 12/2999	1
44771-37A70	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG NO.2	03/2007 - 12/2999	1
44771H - HOSE, VACUUM TUBE CONNECTOR, NO.2
95446-09130	BZU300..DM6	06/2004 - 12/2999	1
95446-09130	BZU300..DM6	06/2004 - 12/2999	1
95446-09130	BZU300..DM6	06/2004 - 12/2999	1
95446-09130	BZU300..DM6	06/2004 - 12/2999	1
Common parts
47371-37040
90119-08676
94130-00802
96133-41500
Linked diagrams
4703

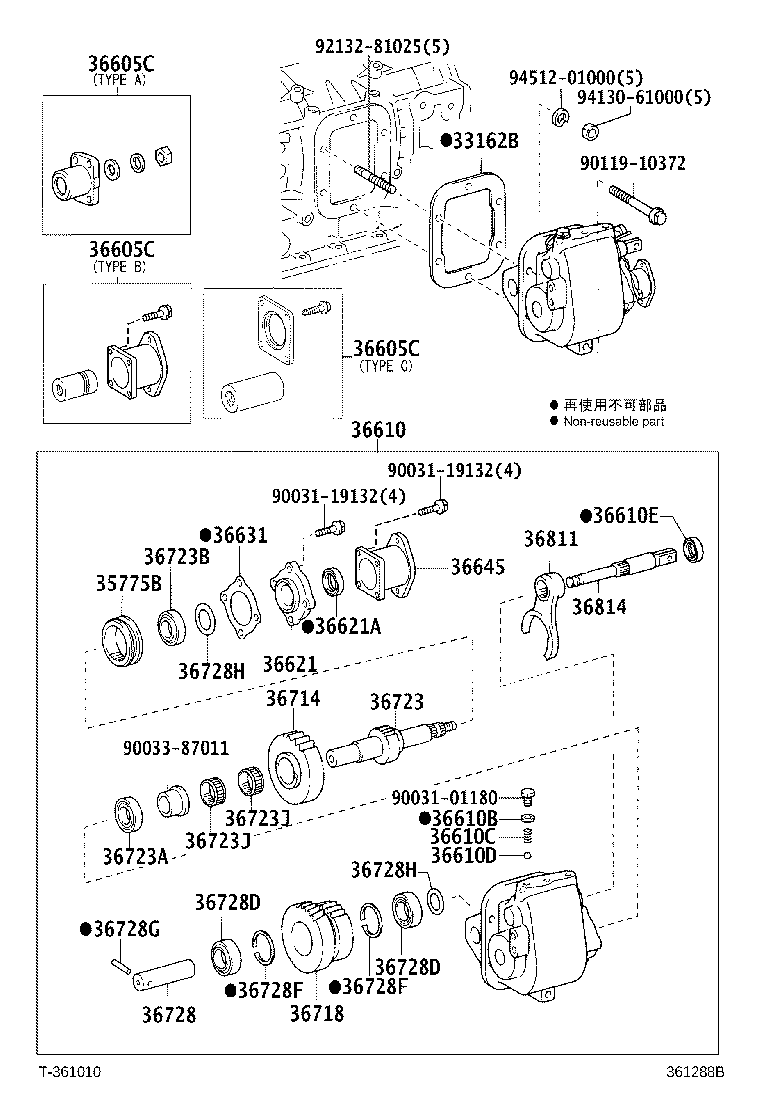

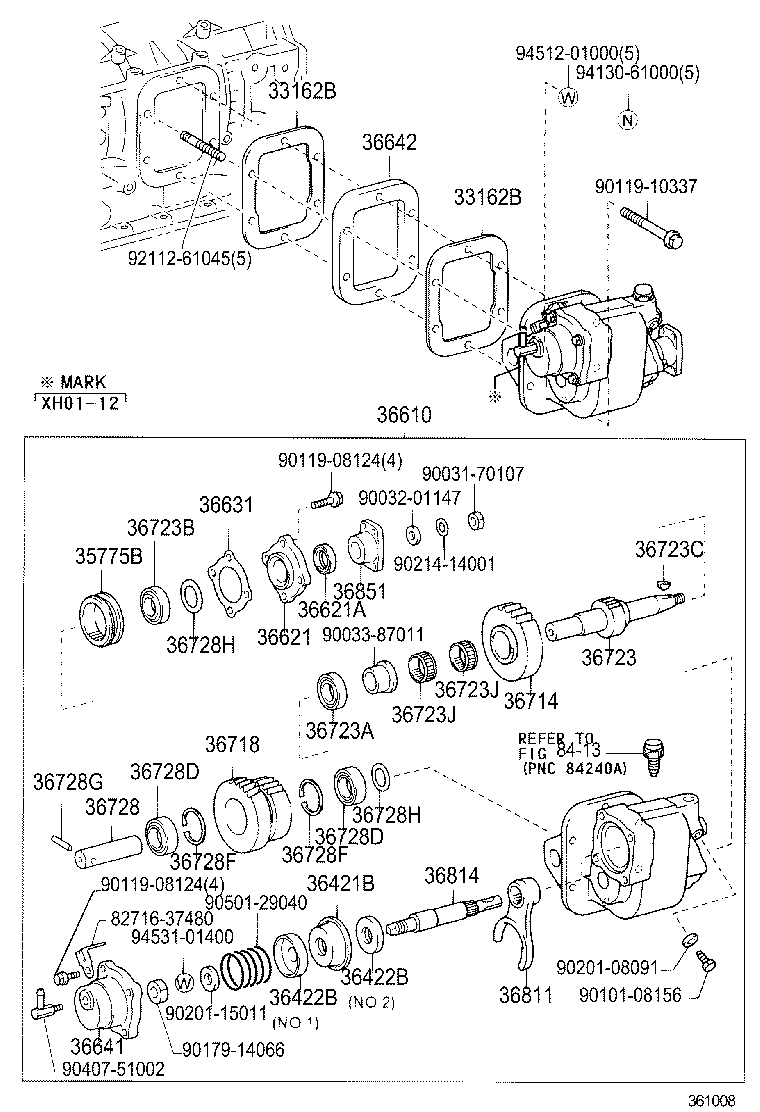

ILLUST NO. 1 OF 2(0406- )BZU340..LPG ; (0406- )BZU300..DM6,T3 ; (0406- )BZU300..T4..LPG

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ25KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-37030	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 12/2999	2
33162B - GASKET, POWER TAKE-OFF COVER
33162-37030	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 12/2999	2
35775B - SLEEVE, OUTPUT SHAFT
35775-37010	XZU302..DM3,T3;XZU306..5F..DSL;XZU321..5F..1NO;XZU306..T5..DSLL;XZU301,341..CNG,LPG;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T4,T5)..(295T,30T);BZU300,XZU362..DM5,DM6,DM7,T3;XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU340,RZU301,XZU300,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
35775-37030	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	02/2005 - 02/2007	1
35775-37010	XZU334..40T;BZU300..DM6,T3;XZU331,334..T3..5F..CBU;XZU304..(DCRL,DSLL)..(CBU,IV3);BZU300,XZU331..T4..5F..(DSL,LPG);BZU340,XZU301,305,306,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F..(DCRL,DSL,DSLL,LPG)	06/2004 - 02/2005	1
35775-37030	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	03/2007 - 12/2999	1
36421B - DIAPHRAGM (FOR POWER TAKE-OFF)
36421-93100	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	1
36421-93100	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	1
36421-93100	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	1
36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36422-93101	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2	06/2003 - 06/2004	1
36422-93100	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1	06/2003 - 06/2004	1
36422-93101	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) NO.2	06/2004 - 02/2007	1
36422-93100	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) NO.1	03/2007 - 12/2999	1
36422-93100	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) NO.1	06/2004 - 02/2007	1
36422-93101	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) NO.2	03/2007 - 12/2999	1
36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36422-93101	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2	06/2003 - 06/2004	1
36422-93100	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1	06/2003 - 06/2004	1
36422-93101	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) NO.2	06/2004 - 02/2007	1
36422-93100	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) NO.1	03/2007 - 12/2999	1
36422-93100	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) NO.1	06/2004 - 02/2007	1
36422-93101	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) NO.2	03/2007 - 12/2999	1
36610 - POWER TAKE-OFF ASSY
36610-37190	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 02/2007	1
36610-37191	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	03/2007 - 05/2007	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-93200	XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36621-93200	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	1
36621-93200	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	1
90311-25110	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-37030	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	1
36632-37030	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	1
36641 - CAP, POWER TAKE-OFF SHIFT SHAFT
36641-93100	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	1
36641-93100	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	1
36641-93100	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	1
36642 - SPACER, POWER TAKE-OFF COVER
36642-37040	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 12/2999	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37090	XZU301..295T;XZU301..CNG,LPG;XZU306..5F..DSL;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T3,T4,T5)..(295T,30T);XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);BZU340,XZU300,330,331,341,342,346,347..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36714-37090	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 02/2005	1
36714-37091	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	02/2005 - 02/2007	1
36714-37091	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	03/2007 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37090	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 02/2007	1
36718-37090	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	03/2007 - 12/2999	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37030	XZU301..295T;XZU301..CNG,LPG;XZU306..5F..DSL;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T3,T4,T5)..(295T,30T);XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);BZU340,XZU300,330,331,341,342,346,347..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36723-37030	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 02/2007	1
36723-37030	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	03/2007 - 12/2999	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	03/2007 - 12/2999	1
90366-22001	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 02/2007	1
90366-22001	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);BZU340,XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	06/2003 - 06/2004	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-22001	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=16.25	03/2007 - 12/2999	1
90366-22001	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=16.25	06/2004 - 02/2007	1
90366-22001	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) 厚さ=16.25	06/2003 - 06/2004	1
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
90280-07011	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	1
90280-07011	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	1
90280-07011	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
90364-28020	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	2
90364-28020	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
90364-28020	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	2
90364-28020	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU302..DM3,T3;XZU301..CNG,LPG;XZU306..5F..DSL;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU340,XZU300,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36728-37020	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 02/2007	1
36728-37020	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	03/2007 - 12/2999	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU301..295T;XZU301..CNG,LPG;XZU306..5F..DSL;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T3,T4,T5)..(295T,30T);XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);BZU340,XZU300,330,331,341,342,346,347..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
90366-25011	BZU300..DM6,T3;BZU300..T4..LPG;XZU301,306..5F..IV6;BZU340,XZU354..(DCRL,LPG)..1NO	06/2004 - 05/2007	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU301..295T;XZU301..CNG,LPG;XZU306..5F..DSL;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T3,T4,T5)..(295T,30T);XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);BZU340,XZU300,330,331,341,342,346,347..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
90366-25011	BZU300..DM6,T3;BZU300..T4..LPG;XZU301,306..5F..IV6;BZU340,XZU354..(DCRL,LPG)..1NO	06/2004 - 05/2007	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	2
90521-56108	BZU300..DM6,T3;BZU300,XZU306..(T2,T4,T5)..5F..(DSL,LPG);XZU301,304..(DM6,T1,T3,T4,T5)..5F..(CBU,IV3,IV6);BZU340,RZU30#,340,XZU305,331,334,336,341,344,346,354..5F..(DCRL,DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)..1NO	06/2004 - 05/2007	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	2
90521-56108	BZU300..DM6,T3;BZU300,XZU306..(T2,T4,T5)..5F..(DSL,LPG);XZU301,304..(DM6,T1,T3,T4,T5)..5F..(CBU,IV3,IV6);BZU340,RZU30#,340,XZU305,331,334,336,341,344,346,354..5F..(DCRL,DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)..1NO	06/2004 - 05/2007	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,321..(DM8,T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,331,341,342,346,347,351,352,362,372,382..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
90254-04002	BZU300..T4..LPG;BZU300,XZU354..DM6,T3;BZU340,RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DCB,SCB)..5F..(DCRL,DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	06/2004 - 05/2007	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25003	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.2	05/1999 - 06/2004	1
90564-25002	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.1	05/1999 - 06/2004	1
90564-25001	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.05	05/1999 - 06/2004	1
90564-25004	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.5	05/1999 - 06/2004	1
90564-42002	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.07−0.13	06/2004 - 02/2007	1
90564-42003	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.17−0.23	06/2004 - 02/2007	1
90564-42001	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.02−0.08	06/2004 - 02/2007	1
90564-25002	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.1	06/2004 - 02/2007	1
90564-25001	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.05	06/2004 - 02/2007	1
90564-25003	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.2	06/2004 - 02/2007	1
90564-25004	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.5	06/2004 - 02/2007	1
90564-42004	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.47−0.53	06/2004 - 02/2007	1
90564-25001	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.05	03/2007 - 12/2999	1
90564-42001	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.02−0.08	03/2007 - 12/2999	1
90564-25004	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.5	03/2007 - 12/2999	1
90564-42003	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.17−0.23	03/2007 - 12/2999	1
90564-42002	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.07−0.13	03/2007 - 12/2999	1
90564-42004	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.47−0.53	03/2007 - 12/2999	1
90564-25003	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.2	03/2007 - 12/2999	1
90564-25002	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.1	03/2007 - 12/2999	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25003	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.2	05/1999 - 06/2004	1
90564-25002	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.1	05/1999 - 06/2004	1
90564-25001	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.05	05/1999 - 06/2004	1
90564-25004	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.5	05/1999 - 06/2004	1
90564-42002	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.07−0.13	06/2004 - 02/2007	1
90564-42003	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.17−0.23	06/2004 - 02/2007	1
90564-42001	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.02−0.08	06/2004 - 02/2007	1
90564-25002	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.1	06/2004 - 02/2007	1
90564-25001	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.05	06/2004 - 02/2007	1
90564-25003	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.2	06/2004 - 02/2007	1
90564-25004	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.5	06/2004 - 02/2007	1
90564-42004	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.47−0.53	06/2004 - 02/2007	1
90564-25001	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.05	03/2007 - 12/2999	1
90564-42001	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.02−0.08	03/2007 - 12/2999	1
90564-25004	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.5	03/2007 - 12/2999	1
90564-42003	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.17−0.23	03/2007 - 12/2999	1
90564-42002	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.07−0.13	03/2007 - 12/2999	1
90564-42004	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.47−0.53	03/2007 - 12/2999	1
90564-25003	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.2	03/2007 - 12/2999	1
90564-25002	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.1	03/2007 - 12/2999	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93104	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	1
36811-93104	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	1
36811-93104	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37030	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);BZU340,XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	06/2003 - 06/2004	1
36814-37030	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 02/2007	1
36814-37030	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	03/2007 - 12/2999	1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-37010	XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36851-37010	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	1
36851-37010	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	1
Common parts
82716-37480
90031-70107
90032-01147
90033-87011
90101-08156
90119-08124
90119-10337
90179-14066
90201-08091
90201-15011
90214-14001
90407-51002
90501-29040
92112-61045
94130-61000
94512-01000
94531-01400
Linked diagrams
8413

ILLUST NO. 1 OF 2(0406- )XZU304,334..DCRL,DSLL..CBU,IV3 ; (0406- )XZU301,305,306,331,336,341,3

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ25KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-37030	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 12/2999	2
35775B - SLEEVE, OUTPUT SHAFT
35775-37010	XZU302..DM3,T3;XZU306..5F..DSL;XZU321..5F..1NO;XZU306..T5..DSLL;XZU301,341..CNG,LPG;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T4,T5)..(295T,30T);BZU300,XZU362..DM5,DM6,DM7,T3;XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU340,RZU301,XZU300,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
35775-37030	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	02/2005 - 02/2007	1
35775-37010	XZU334..40T;BZU300..DM6,T3;XZU331,334..T3..5F..CBU;XZU304..(DCRL,DSLL)..(CBU,IV3);BZU300,XZU331..T4..5F..(DSL,LPG);BZU340,XZU301,305,306,336,341,344,346,354..(DM3,DM6,T2,T3,T4,T5)..5F..(DCRL,DSL,DSLL,LPG)	06/2004 - 02/2005	1
35775-37030	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	03/2007 - 12/2999	1
36421B - DIAPHRAGM (FOR POWER TAKE-OFF)
36421-93100	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	1
36421-93100	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	1
36421-93100	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	1
36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36422-93101	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2	06/2003 - 06/2004	1
36422-93100	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1	06/2003 - 06/2004	1
36422-93101	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) NO.2	06/2004 - 02/2007	1
36422-93100	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) NO.1	03/2007 - 12/2999	1
36422-93100	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) NO.1	06/2004 - 02/2007	1
36422-93101	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) NO.2	03/2007 - 12/2999	1
36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36422-93101	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.2	06/2003 - 06/2004	1
36422-93100	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3) NO.1	06/2003 - 06/2004	1
36422-93101	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) NO.2	06/2004 - 02/2007	1
36422-93100	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) NO.1	03/2007 - 12/2999	1
36422-93100	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) NO.1	06/2004 - 02/2007	1
36422-93101	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) NO.2	03/2007 - 12/2999	1
36610 - POWER TAKE-OFF ASSY
36610-37190	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 02/2007	1
36610-37191	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	03/2007 - 05/2007	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-93200	XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36621-93200	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	1
36621-93200	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	1
90311-25110	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-37030	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	1
36632-37030	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	1
36641 - CAP, POWER TAKE-OFF SHIFT SHAFT
36641-93100	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	1
36641-93100	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	1
36641-93100	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37090	XZU301..295T;XZU301..CNG,LPG;XZU306..5F..DSL;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T3,T4,T5)..(295T,30T);XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);BZU340,XZU300,330,331,341,342,346,347..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36714-37090	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 02/2005	1
36714-37091	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	02/2005 - 02/2007	1
36714-37091	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	03/2007 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37090	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 02/2007	1
36718-37090	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	03/2007 - 12/2999	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37030	XZU301..295T;XZU301..CNG,LPG;XZU306..5F..DSL;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T3,T4,T5)..(295T,30T);XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);BZU340,XZU300,330,331,341,342,346,347..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36723-37030	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 02/2007	1
36723-37030	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	03/2007 - 12/2999	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	03/2007 - 12/2999	1
90366-22001	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 02/2007	1
90366-22001	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);BZU340,XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	06/2003 - 06/2004	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-22001	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=16.25	03/2007 - 12/2999	1
90366-22001	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=16.25	06/2004 - 02/2007	1
90366-22001	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3) 厚さ=16.25	06/2003 - 06/2004	1
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
90280-07011	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	1
90280-07011	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	1
90280-07011	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
90364-28020	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	2
90364-28020	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
90364-28020	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	2
90364-28020	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020	XZU302..DM3,T3;XZU301..CNG,LPG;XZU306..5F..DSL;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T4,T5)..(295T,30T);XZU301,321..(DM3,DM8,T3)..5F..(20T,295T);BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BZU340,XZU300,31#,320,330,331,341,342,346,347,351,352..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36728-37020	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 02/2007	1
36728-37020	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	03/2007 - 12/2999	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU301..295T;XZU301..CNG,LPG;XZU306..5F..DSL;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T3,T4,T5)..(295T,30T);XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);BZU340,XZU300,330,331,341,342,346,347..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
90366-25011	BZU300..DM6,T3;BZU300..T4..LPG;XZU301,306..5F..IV6;BZU340,XZU354..(DCRL,LPG)..1NO	06/2004 - 05/2007	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU301..295T;XZU301..CNG,LPG;XZU306..5F..DSL;XZU306..5F..DSLL..CBU;BZU300,XZU302..T4..LPG;XZU302..(T3,T4,T5)..(295T,30T);XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);BZU340,XZU300,330,331,341,342,346,347..5F..(20T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	2
90366-25011	BZU300..DM6,T3;BZU300..T4..LPG;XZU301,306..5F..IV6;BZU340,XZU354..(DCRL,LPG)..1NO	06/2004 - 05/2007	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	2
90521-56108	BZU300..DM6,T3;BZU300,XZU306..(T2,T4,T5)..5F..(DSL,LPG);XZU301,304..(DM6,T1,T3,T4,T5)..5F..(CBU,IV3,IV6);BZU340,RZU30#,340,XZU305,331,334,336,341,344,346,354..5F..(DCRL,DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)..1NO	06/2004 - 05/2007	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	BZU300..DM6,T3;BZU300..T4..LPG;XZU301..5F..(295T,30T)..4NO;XZU301..(DM3,T3)..5F..(20T,295T);BU30#,346,BZU340,RZU30#,340,XZU300,362..(T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG);XZU302,306,307,31#,33#,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,T2,T3,T4,T5)..5F..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	2
90521-56108	BZU300..DM6,T3;BZU300,XZU306..(T2,T4,T5)..5F..(DSL,LPG);XZU301,304..(DM6,T1,T3,T4,T5)..5F..(CBU,IV3,IV6);BZU340,RZU30#,340,XZU305,331,334,336,341,344,346,354..5F..(DCRL,DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)..1NO	06/2004 - 05/2007	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,321..(DM8,T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,331,341,342,346,347,351,352,362,372,382..(DM2,DM3,DM5,DM7,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
90254-04002	BZU300..T4..LPG;BZU300,XZU354..DM6,T3;BZU340,RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DCB,SCB)..5F..(DCRL,DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)	06/2004 - 05/2007	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25003	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.2	05/1999 - 06/2004	1
90564-25002	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.1	05/1999 - 06/2004	1
90564-25001	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.05	05/1999 - 06/2004	1
90564-25004	XZU301..CNG,LPG;XZU321..5F..1NO;XZU306..5F..DSLL..CBU;XZU301..(DM3,T3)..5F..(20T,295T);BZU300,XZU306,362..(T4,T5)..5F..(DSL,LPG);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU30#,346,BZU340,RZU30#,340,XZU300,31#,320,330,337..(DCB,SCB)..5F..(175T,20T,30T)..(DSL,DSLL,EFI,LPG);XZU302,307,321,331,341,342,346,347,351,352,372,382..(DM2,DM3,DM5,DM8,T2,T3,T4,T5)..5F..(DSL,DSLL,LPG)..(CBU,IV3) 厚さ=0.5	05/1999 - 06/2004	1
90564-42002	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.07−0.13	06/2004 - 02/2007	1
90564-42003	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.17−0.23	06/2004 - 02/2007	1
90564-42001	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.02−0.08	06/2004 - 02/2007	1
90564-25002	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.1	06/2004 - 02/2007	1
90564-25001	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.05	06/2004 - 02/2007	1
90564-25003	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.2	06/2004 - 02/2007	1
90564-25004	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.5	06/2004 - 02/2007	1
90564-42004	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.47−0.53	06/2004 - 02/2007	1
90564-25001	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.05	03/2007 - 12/2999	1
90564-42001	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.02−0.08	03/2007 - 12/2999	1
90564-25004	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.5	03/2007 - 12/2999	1
90564-42003	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.17−0.23	03/2007 - 12/2999	1
90564-42002	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.07−0.13	03/2007 - 12/2999	1
90564-42004	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.47−0.53	03/2007 - 12/2999	1
90564-25003	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.2	03/2007 - 12/2999	1
90564-25002	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG) 厚さ=0.1	03/2007 - 12/2999	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93104	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T;BU30#,346,BZU340,XZU340..(DCB,SCB)..(DSL,LPG);RZU30#,340,XZU300,302,306,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..MTM..(20T,295T,30T)..(CBU,IV3)	06/2003 - 06/2004	1
36811-93104	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	1
36811-93104	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37030	XZU301..295T;BZU300..DM6,T3;BZU300..T4..LPG;XZU301..(T4,T5)..5F..30T..(CBU,IV3);XZU302,340..(T3,T4,T5)..(295T,30T,35T,40T);BZU340,XZU300,306,330,331,341,342,346,347..MTM..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	06/2003 - 06/2004	1
36814-37030	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 02/2007	1
36814-37030	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	03/2007 - 12/2999	1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-37010	XZU301..295T;XZU301..CNG,LPG;BZU300..T4..LPG;XZU306..5F..DSLL..CBU;XZU301..(T4,T5)..5F..30T..(DSL,DSLL);BZU300,XZU306,341..(DM6,T3,T5)..(CNG,DSLL,LPG);BU30#,346,BZU340,RZU30#,340,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);XZU300,302,307,33#,341,342,346,347,362,372,382..(T2,T3,T4,T5)..5F..(20T,295T,30T)..(DSL,DSLL,LPG)..(CBU,IV3)	05/1999 - 06/2004	1
36851-37010	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	06/2004 - 02/2007	1
36851-37010	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)	03/2007 - 12/2999	1
Common parts
84210-12040
90031-19132
90031-70107
90033-87011
90101-08156
90119-08124
90119-10372
90179-14066
90201-08091
90201-15011
90407-51002
90501-29040
92132-81025
94130-61000
94512-01000
94531-01400

ILLUST NO. 2 OF 2(0406- )BZU300..DM6

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ

Part #	Description	Period	Qty
27679C - BRACKET, POWER TAKE-OFF SOLENOID
27679-78061	1BZ#,3RZFE..BZU300,RZU300..DM5,DM6	06/2004 - 12/2999	1
27690J - SOLENOID ASSY, POWER TAKE-OFF
27690-78072	1BZFNE..BZU300..DM6;1BZFPE,3RZ#..BZU300,340,RZU30#,340..5F	06/2004 - 12/2999	1
27690-78072	1BZFNE..BZU300..DM6;1BZFPE,3RZ#..BZU300,340,RZU30#,340..5F	07/2003 - 06/2004	1
44754H - BRACKET, VACUUM TUBE
44754-37110	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3)	06/2004 - 12/2999	1
44763E - TUBE, HOSE TO HOSE, NO.1
44763-37410	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG	06/2004 - 12/2999	1
44763F - TUBE, HOSE TO HOSE, NO.2
44763-37420	RZU301..5F..IV3;BZU300,RZU300..DM5,DM6 W(LPG)	06/2004 - 12/2999	1
44763H - HOSE, VACUUM BRAKE
95446-09160	BZU300..DM6	06/2004 - 12/2999	1
44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1
44771-37470	BZU300..DM6	06/2004 - 02/2007	1
44771-37A70	BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG NO.2	03/2007 - 12/2999	1
44771H - HOSE, VACUUM TUBE CONNECTOR, NO.2
95446-09130	BZU300..DM6	06/2004 - 12/2999	1
Common parts
47371-37040
90105-10264
90119-08676
94130-00802
96133-41500

(0610- )35T..IV3 ; (0610- )T5..30T..DCRTJ; (0610- )T3,T4..5F..IV6 ; (0610

Click highlighted areas on diagram

ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ 25KG

Part #	Description	Period	Qty	Price
Common parts
90031-01180
90031-19132
90033-87011
90119-10372
92132-81025
94130-61000
94512-01000

BZU300A-TYMMM3 (2003)

ILLUST NO. 2 OF 3(9905-0406)30T..IV7 ; (9905-0406)BZU300..DM6,T3; (9905-0406)BZU300..T4..LPG ; (990

ILLUST NO. 1 OF 2(0406- )BZU340..LPG ; (0406- )BZU300..DM6,T3 ; (0406- )BZU300..T4..LPG

ILLUST NO. 1 OF 2(0406- )XZU304,334..DCRL,DSLL..CBU,IV3 ; (0406- )XZU301,305,306,331,336,341,3

ILLUST NO. 2 OF 2(0406- )BZU300..DM6

(0610- )35T..IV3 ; (0610- )T5..30T..DCRTJ; (0610- )T3,T4..5F..IV6 ; (0610

Part Price Details
