Toyota Dyna/toyoace BZU300 TIMING GEAR COVER & REAR END PLATE

Part #	Description	Period	Qty
11301 - CASE SUB-ASSY, TIMING GEAR
11301-58012	1BZ#..BZU300,340	06/2004 - 12/2999	1
11301-58012	1BZ#..BZU300,340	06/2003 - 06/2004	1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120	1BZ#,4B..BU30#,346,BZU300,340 長さ=18,外径=8	05/1999 - 06/2004	2
90250-08120	1BZ#..BZU300,340 長さ=18,外径=8	06/2004 - 12/2999	2
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
90116-08169	1BZ#,4B..BU30#,346,BZU300,340	05/1999 - 06/2004	2
90116-08169	1BZ#..BZU300,340	06/2004 - 12/2999	2
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-58011	1BZ#..BZU300,340	06/2003 - 06/2004	1
11302-58011	1BZ#..BZU300,340	06/2004 - 12/2999	1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50013	1BZ#,4B..BU30#,346,BZU300,340	05/1999 - 06/2004	1
90311-50013	1BZ#..BZU300,340	06/2004 - 12/2999	1
11312 - GASKET, FRONT END PLATE
11312-56040	1BZ#,4B..BU30#,346,BZU300,340	05/1999 - 06/2004	1
11312-56040	1BZ#..BZU300,340	06/2004 - 12/2999	1
11320A - COVER ASSY, TIMING GEAR, NO.2
11320-58010	1BZ#..BZU300,340	06/2003 - 06/2004	1
11320-58010	1BZ#..BZU300,340	06/2004 - 12/2999	1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-58010	1BZ#..BZU300,340	06/2004 - 12/2999	1
11328-58010	1BZ#,4B..BU30#,346,BZU300,340	05/1999 - 06/2004	1
11336A - INSULATOR, TIMING GEAR COVER
11336-58010	1BZ#..BZU300,340	06/2003 - 06/2004	1
11336-58010	1BZ#..BZU300,340	06/2004 - 12/2999	1
11345 - BEARING, INJECTION PUMP GEAR THRUST
11345-48010	1BZ#..BZU300,340	06/2004 - 12/2999	1
11345-48010	1BZ#,4B..BU30#,346,BZU300,340	05/1999 - 06/2004	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-58011	1BZ#,4B..BU30#,346,BZU300,340	05/1999 - 06/2004	1
11381-58011	1BZ#..BZU300,340	06/2004 - 12/2999	1
11381A - SEAL, ENGINE REAR OIL
90311-95011	1BZ#,4B..BU30#,346,BZU300,340	05/1999 - 06/2004	1
90311-95011	1BZ#..BZU300,340	06/2004 - 12/2999	1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-56040	1BZ#..BZU300,340	06/2004 - 12/2999	1
11383-56040	1BZ#,4B..BU30#,346,BZU300,340	05/1999 - 06/2004	1
12281 - HANGER, ENGINE, NO.1
12281-58010	1BZ#..BZU300,340	06/2003 - 06/2004	2
12281-58010	1BZ#..BZU300,340	06/2004 - 12/2999	2
12281 - HANGER, ENGINE, NO.1
12281-58010	1BZ#..BZU300,340	06/2003 - 06/2004	2
12281-58010	1BZ#..BZU300,340	06/2004 - 12/2999	2
Common parts
90116-08169
90179-08040
90381-08002
90480-16016
91622-B1018
91651-B0825
94613-10800
Linked diagrams
1501

BZU300A-TYMMM3 (2003)

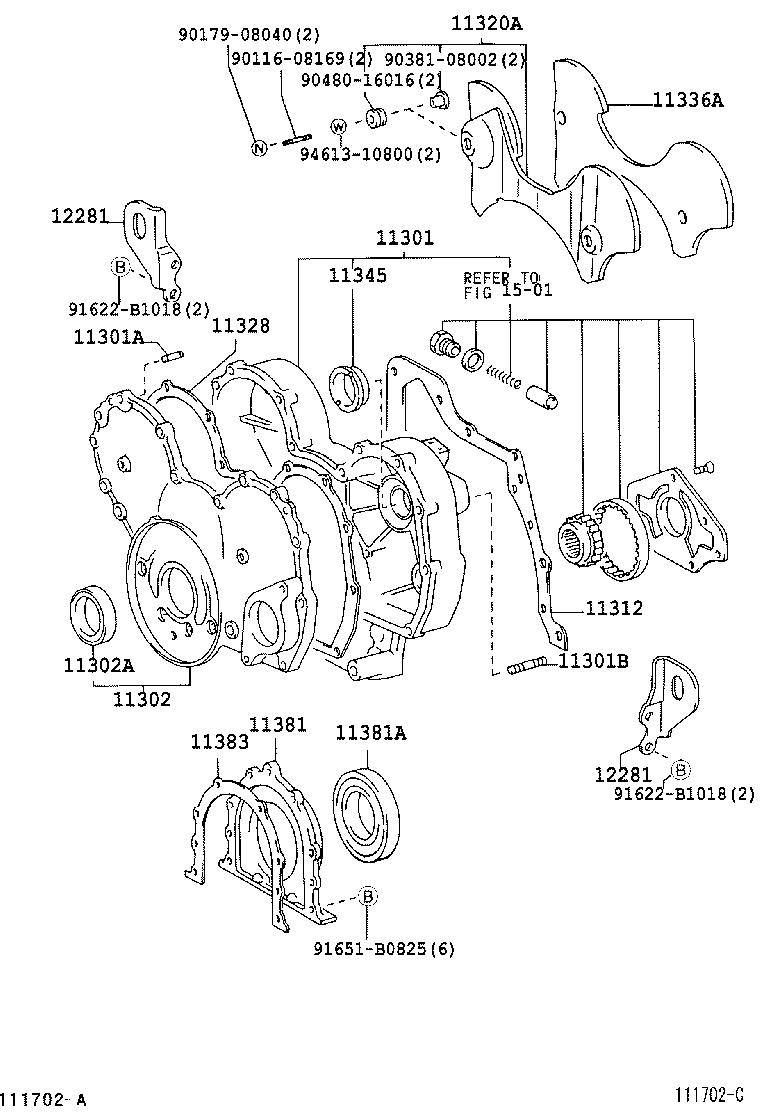

ILLUST NO. 1 OF 2(0306- )1BZ#

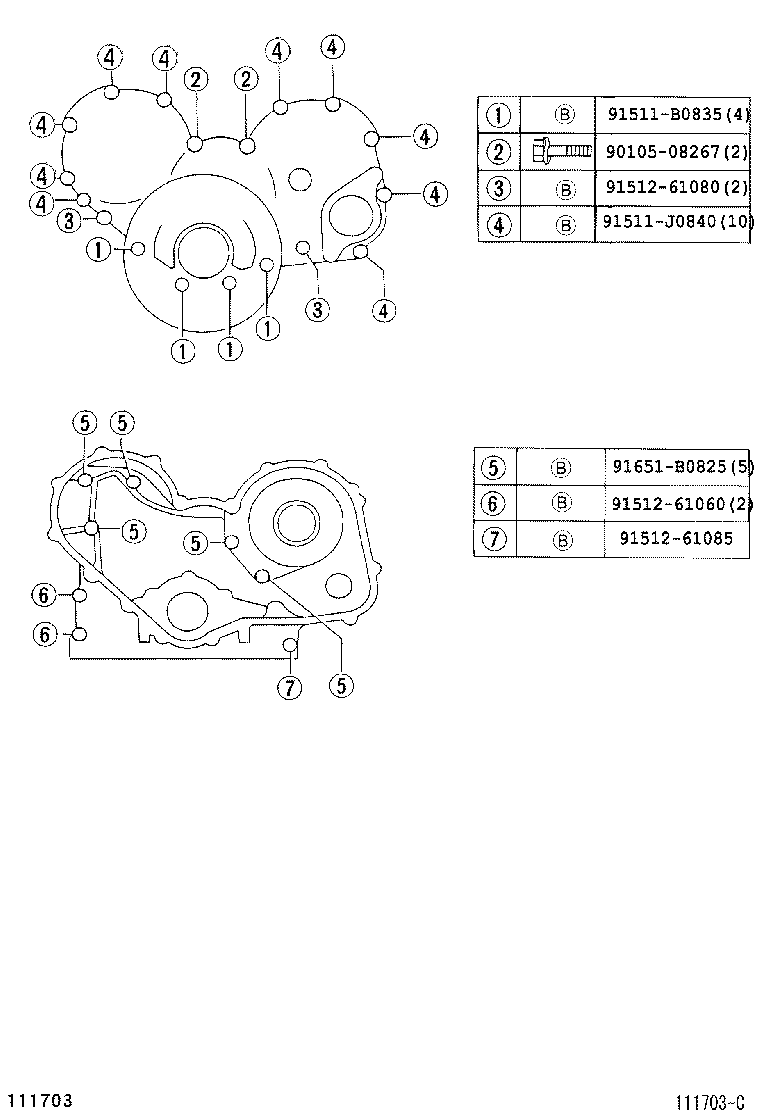

ILLUST NO. 2 OF 2(0306- )1BZ#

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
90105-08267
91511-B0835
91511-J0840
91512-61060
91512-61080
91512-61085
91651-B0825
