BZU300A-TYMMC3 (2003)
Toyota Dyna/Toyoace
Production
Jun 2003
-
May 2007
Engine
1BZFPE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0306- )1BZ#

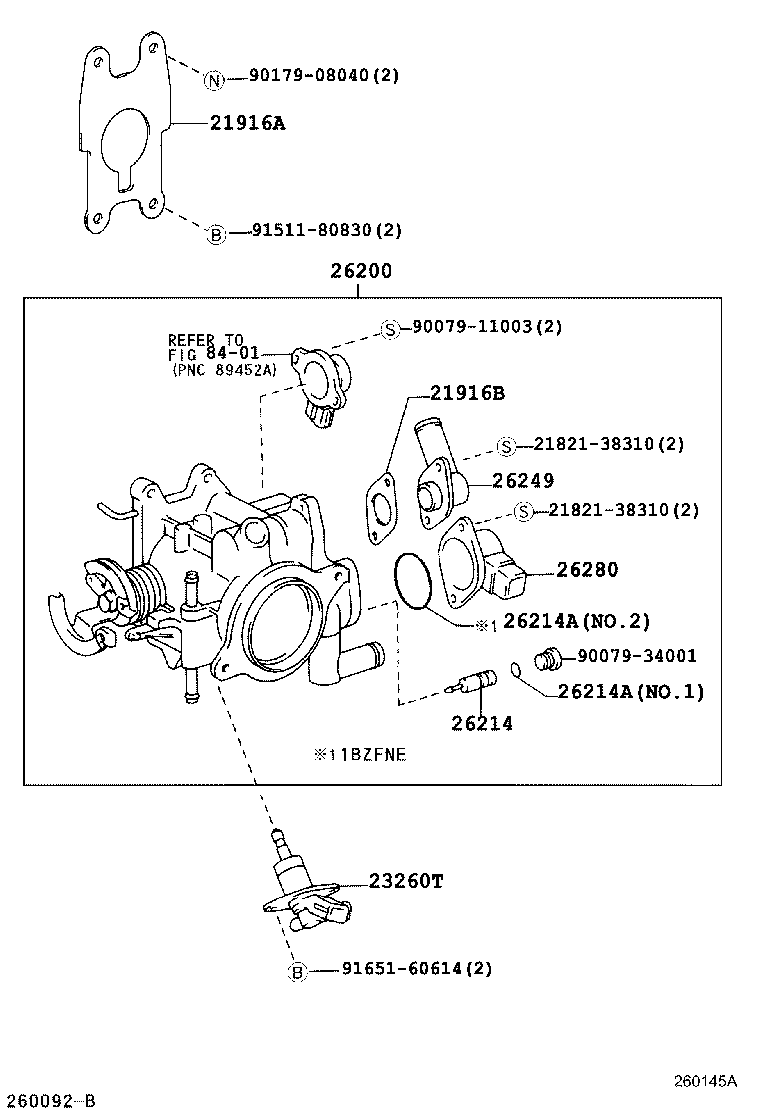

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21916A - GASKET, CARBURETOR, NO.2 | ||||
| 21916-48010 |
1BZ#..BZU300,340 |
1 | ||
| 21916-48010 |
1BZ#..BZU300,340 |
1 | ||
| 21916B - GASKET, LPG FUEL HOSE UNION | ||||
| 21916-73010 |
1BZ#..BZU300,340 |
1 | ||
| 21916-73010 |
1BZ#..BZU300,340 |
1 | ||
| 23260T - INJECTOR ASSY, LPG | ||||
| 23260-48010 |
1BZ#..BZU300,340 |
1 | ||
| 23260-48010 |
1BZ#..BZU300,340 |
1 | ||
| 26200 - CARBURETOR ASSY, LPG | ||||
| 26200-48011 |
1BZFPE..BZU300,340 |
1 | ||
| 26200-48011 |
1BZFPE..BZU300,340 |
1 | ||
| 26214 - SCREW, POWER ADJUST | ||||
| 26214-73130 |
1BZ#..BZU300,340 |
1 | ||
| 26214-73130 |
1BZ#..BZU300,340 |
1 | ||
| 26214A - RING, O(FOR POWER ADJUST) | ||||
| 90079-60005 |
1BZ#..BZU300,340 NO.1 |
1 | ||
| 90079-60005 |
1BZ#..BZU300,340 NO.1 |
1 | ||
| 26214A - RING, O(FOR POWER ADJUST) | ||||
| 90079-60005 |
1BZ#..BZU300,340 NO.1 |
1 | ||
| 90079-60005 |
1BZ#..BZU300,340 NO.1 |
1 | ||
| 26249 - UNION, FUEL HOSE(FOR LPG) | ||||
| 26249-48010 |
1BZ#..BZU300,340 |
1 | ||
| 26249-48010 |
1BZ#..BZU300,340 |
1 | ||
| 26280 - MOTOR ASSY, AIR FUEL RATIO CONTROL | ||||
| 26280-48010 |
1BZFPE..BZU300,340 |
1 | ||
| 26280-48010 |
1BZFPE..BZU300,340 |
1 | ||
| Common parts | ||||
| 21821-38310 | ||||
| 90079-11003 | ||||
| 90079-34001 | ||||
| 90179-08040 | ||||
| 91511-80830 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
