BZU300A-TYMMC3 (2003)

Toyota Dyna/Toyoace

Production Jun 2003 - May 2007
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0306- )1BZ#

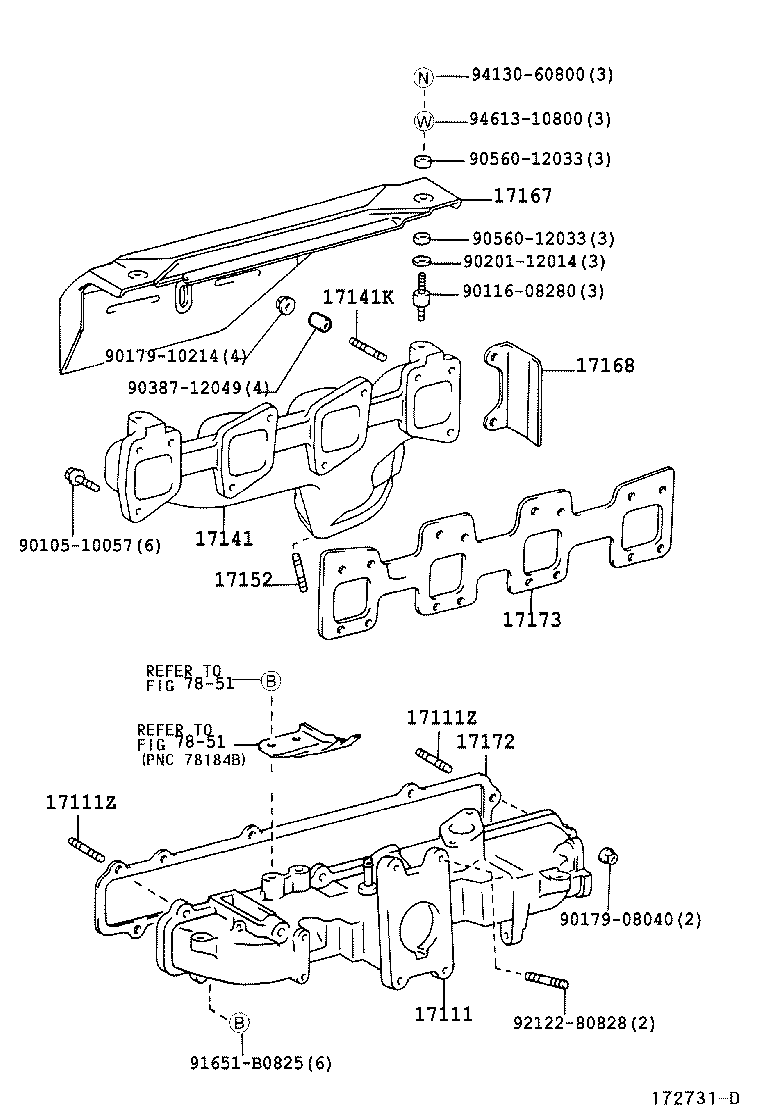

Click highlighted areas on diagram

diagram 17111 17111Z 17111Z 17141 17141K 17152 17167 17168 17172 17173 7851 7851 9010510057 9011608280 9017908040 9017910214 9020112014 9038712049 9056012033 9056012033 91651B0825 9212280828 9413060800 9461310800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-48011

1BZ#..BZU300,340

 1
17101-48011

1BZ#..BZU300,340

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92132-60820

1BZ#..BZU300,340

 2
92132-60820

1BZ#..BZU300,340

 2
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92132-60820

1BZ#..BZU300,340

 2
92132-60820

1BZ#..BZU300,340

 2
17141 - MANIFOLD, EXHAUST
17141-58031

1BZ#..BZU300,340

 1
17141-58031

1BZ#..BZU300,340

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90116-10198

1BZ#..BZU300,340

 4
90116-10198

1BZ#..BZU300,340

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90126-10006

1BZ#..BZU300,340

 3
90126-10006

1BZ#,4B..BU30#,346,BZU300,340

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-58040

1BZ#..BZU300,340

 1
17167-58040

1BZ#..BZU300,340

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-58050

1BZ#..BZU300,340

 1
17168-58050

1BZ#..BZU300,340

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17171-58010

1BZ#..BZU300,340

 1
17171-58010

1BZ#..BZU300,340

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-58030

1BZ#..BZU300,340

 1
17173-58030

1BZ#..BZU300,340

 1
Common parts
90105-10057
90116-08280
90179-08040
90179-10214
90201-12014
90387-12049
90560-12033
91651-B0825
92122-80828
94130-60800
94613-10800
Linked diagrams
7851
