BU98-MDDHTJ3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

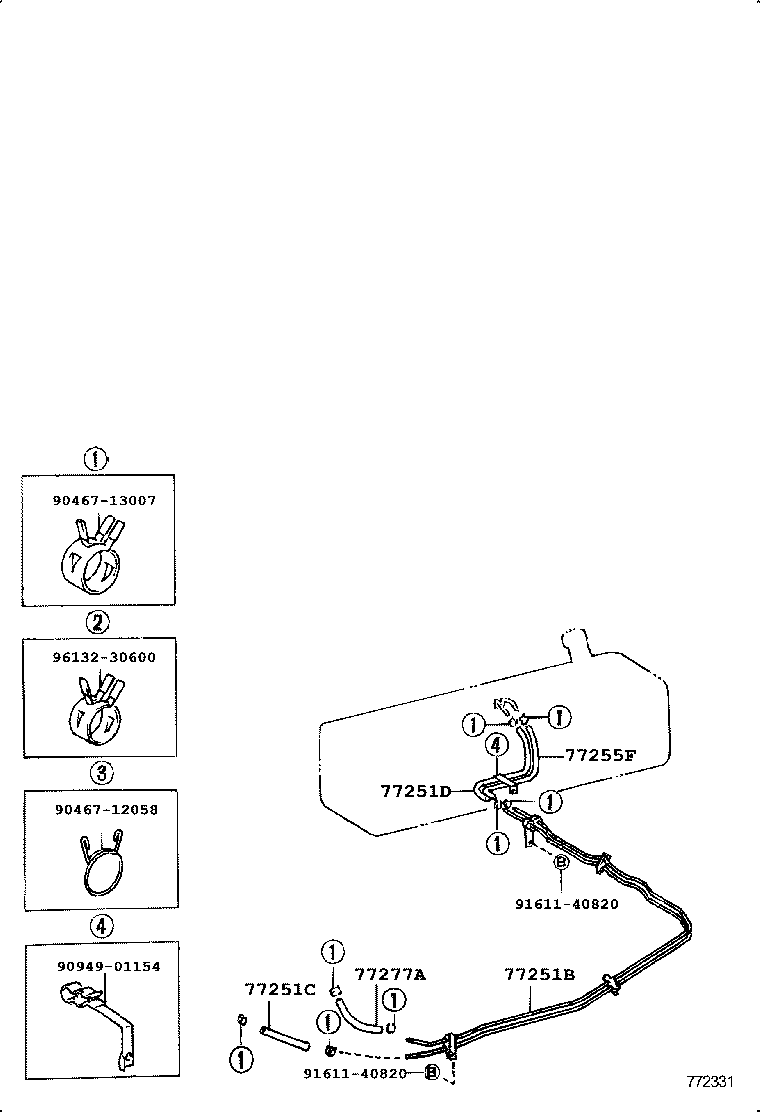

ILLUST NO. 2 OF 2(8708- )BU64,98

Click highlighted areas on diagram

diagram 77251B 77251C 77251D 77255F 77277A 9046712058 9046713007 9094901154 9161140820 9161140820 9613230600
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77205-36381

BU98

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
23271-56050

BU6#,70,8#,9#

*H,L=180

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-08030

BU98

*H,L=300

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-08030

BU98

*H,L=300

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-08020

BU6#,70,8#,9#

長さ=200,内径=8

 1
Common parts
90467-12058
90467-13007
90949-01154
91611-40820
96132-30600

ILLUST NO. 1 OF 2(8708- )BU82,85,9#..T3

Click highlighted areas on diagram

diagram 77018 77022A 77022A 77100E 77100E 77100T 77100T 77100Z 77601A 77611A 77633 77651A 77710 77712 77713 77714 9017010028 9020209047 9025003031 9038608164 9040112007 9040112007 9046107033 9046713007 9048014006 9161141025 9165140616 9331915010 9411040800 9411040800 9411040800 9613230600 9613231000 9671319019 9671319019 9671319019 9671319019 9671324011
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36230

BU85;BU6#,80,81,82,9#..20T,275,30T,35T,IV4

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU85;BU6#,80,81,82,9#..20T,275,30T,35T,IV4

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU85;BU6#,80,81,82,9#..20T,275,30T,35T,IV4

*H,L=300

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36150

BU62..(DM3,T3)..WT..20T;BU60,64,98..(DM1,DM4,T3)..WT

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BU85;BU6#,80,81,82,9#..20T,275,30T,35T,IV4

 2
77633 - STAY, FUEL TANK
77501-36022

BU98

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-36100

BU85..V;BU60,61,62,82,85,9#..(DM3,T3,TW1)..(20T,275,30T,35T)

 2
Common parts
90170-10028
90202-09047
90250-03031
90386-08164
90401-12007
90461-07033
90467-13007
90480-14006
91611-41025
91651-40616
93319-15010
94110-40800
96132-30600
96132-31000
96713-19019
96713-24011

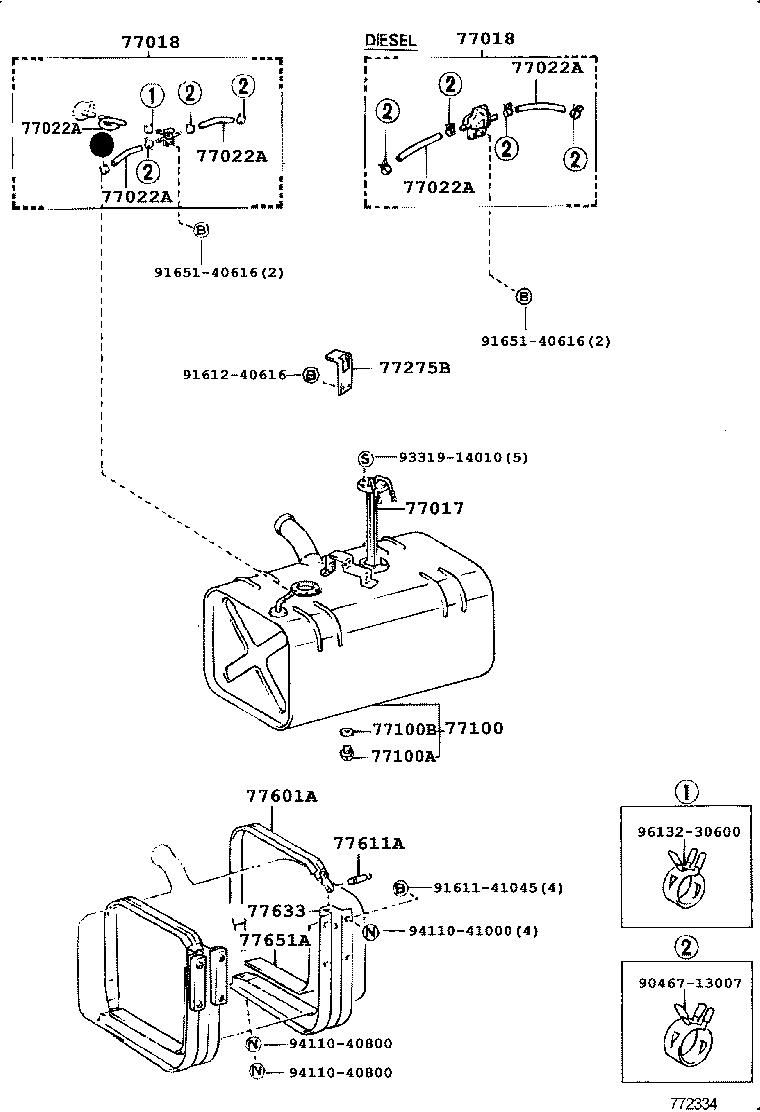

ILLUST NO. 1 OF 2(8708- )DMP,TR

Click highlighted areas on diagram

diagram 77017 77018 77018 77022A 77022A 77022A 77022A 77022A 77100 77100A 77100B 77275B 77519 77601A 77611A 77633 77651A 9046713007 9161141045 9161141045 9161240616 9165140616 9165140616 9331914010 9411040800 9411040800 9411041000 9411041000 9613230600
Part # Description Qty Price
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-36181

BU6#,82,85,9#..DM1,DM3,DM4,T3

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36230

BU85;BU6#,80,81,82,9#..20T,275,30T,35T,IV4

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36230

BU85;BU6#,80,81,82,9#..20T,275,30T,35T,IV4

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU85;BU6#,80,81,82,9#..20T,275,30T,35T,IV4

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU85;BU6#,80,81,82,9#..20T,275,30T,35T,IV4

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU85;BU6#,80,81,82,9#..20T,275,30T,35T,IV4

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU85;BU6#,80,81,82,9#..20T,275,30T,35T,IV4

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU85;BU6#,80,81,82,9#..20T,275,30T,35T,IV4

*H,L=300

 2
77100 - TANK ASSY, FUEL
77001-36482

BU98

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

BU6#,70,8#,9#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BU6#,70,8#,9#

 1
77519 - SPACER, FUEL TANK BRACKET
77519-36040

BU98

FRONT

 1
77529-36010

BU98

REAR

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36150

BU62..(DM3,T3)..WT..20T;BU60,64,98..(DM1,DM4,T3)..WT

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BU85;BU6#,80,81,82,9#..20T,275,30T,35T,IV4

 2
77633 - STAY, FUEL TANK
77501-36022

BU98

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-36100

BU85..V;BU60,61,62,82,85,9#..(DM3,T3,TW1)..(20T,275,30T,35T)

 2
Common parts
90467-13007
91611-41045
91612-40616
91651-40616
93319-14010
94110-40800
94110-41000
96132-30600

ILLUST NO. 1 OF 2(8708- )WU75,9#,YU6#

Click highlighted areas on diagram

diagram 77017 77018 77018 77022A 77022A 77022A 77022A 77022A 77100 77100A 77100B 77275B 77601A 77611A 77633 77651A 9046713007 9161141045 9161240616 9165140616 9165140616 9331914010 9411040800 9411040800 9411041000 9613230600
Part # Description Qty Price
Common parts
90467-13007
91611-41045
91612-40616
91651-40616
93319-14010
94110-40800
94110-41000
96132-30600

ILLUST NO. 2 OF 2(8708- )WU75,9#

Click highlighted areas on diagram

diagram 77251B 77251B 77251C 77251C 77252A 77252A 77252B 77252B 77252C 77252C 77256D 77256D 77256E 77256E 77277A 77277A 9046713007 9161140820 9161140820 9161140820 9161140820 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77205-36381

BU98

 1
77251B - TUBE, FUEL MAIN
77205-36381

BU98

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
23271-56050

BU6#,70,8#,9#

*H,L=180

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
23271-56050

BU6#,70,8#,9#

*H,L=180

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-08020

BU6#,70,8#,9#

長さ=200,内径=8

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-08020

BU6#,70,8#,9#

長さ=200,内径=8

 1
Common parts
90467-13007
91611-40820
94110-40800
