BU98-MDDHTJ3 (1985)

Toyota Dyna/Toyoace

Production Aug 1985 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )13B..BU98

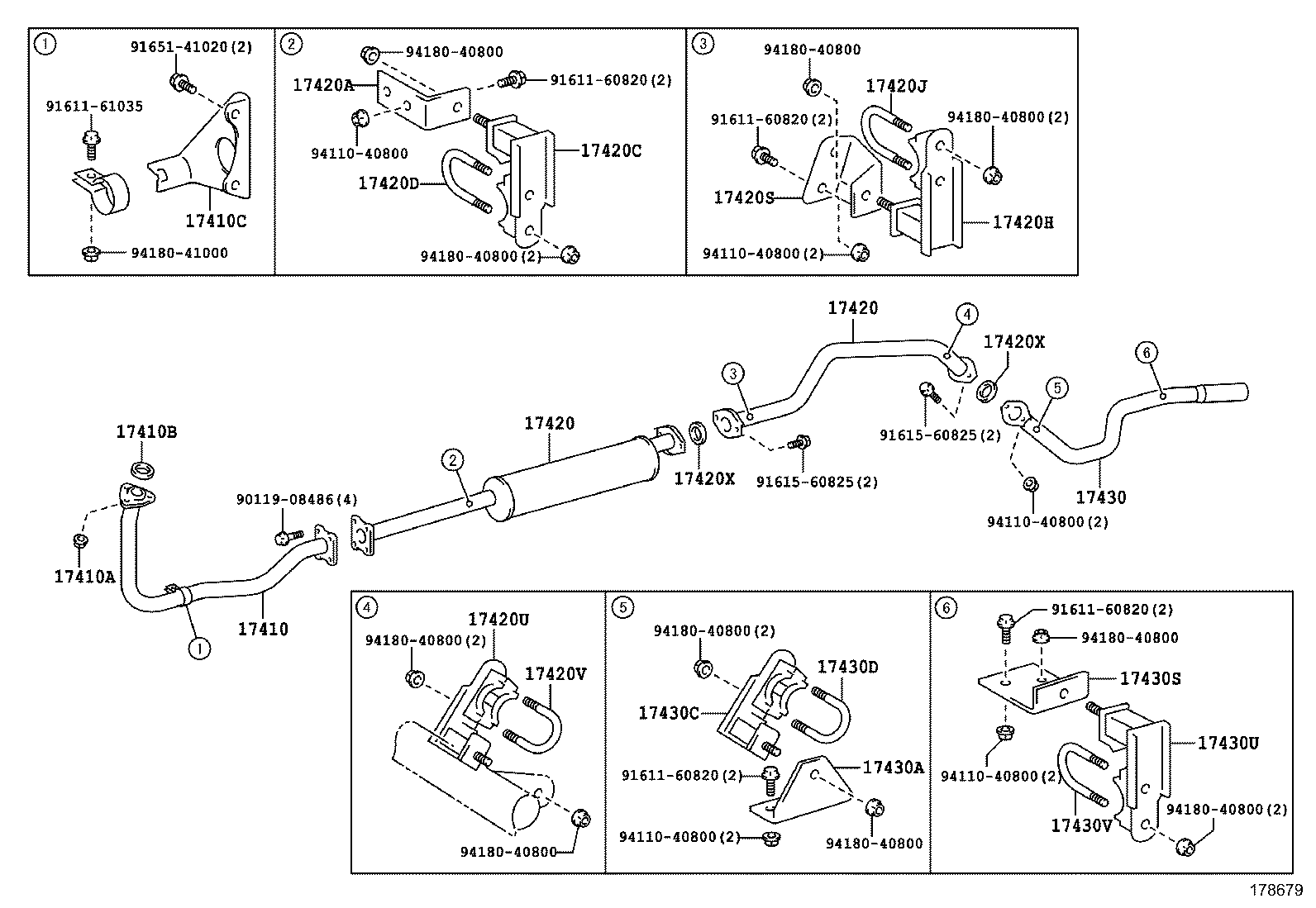

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17420 17420 17420A 17420C 17420D 17420H 17420J 17420S 17420U 17420V 17420X 17420X 17430 17430A 17430C 17430D 17430S 17430U 17430V 9011908486 9161160820 9161160820 9161160820 9161160820 9161161035 9161560825 9161560825 9165141020 9411040800 9411040800 9411040800 9411040800 9411040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58040

13B..BU85,93,98

 1
17401-58040

13B..BU85,98

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

B,11B,13B#..BU6#,70,8#,9#

 3
17410B - GASKET, EXHAUST PIPE
90917-06012

B,11B,13B..BU6#,7#,8#,93,98

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58030

13B..BU85,93,98..5F

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17430-58220

13B..BU98

RR

 1
17403-58020

13B..BU98

FR

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17430-58220

13B..BU98

RR

 1
17403-58020

13B..BU98

FR

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17572-58020

13B..BU98

 1
17420C - CLAMP NO.1, EXHAUST PIPE CENTER, FRONT
17508-47010

13B..BU98

 1
17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT
90117-08017

13B..BU98

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17508-47010

13B..BU98

 1
17420J - BOLT OR RING, EXHAUST PIPE CENTER
90117-08017

13B..BU98

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17573-58030

13B..BU98

 1
17420U - CLAMP NO.1, EXHAUST PIPE CENTER, REAR
17508-47010

13B..BU98

 1
17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR
90117-08017

13B..BU98

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012

13B#..BU85,9#

 1
90917-06008

B,11B,13B#..BU6#,7#,8#,9#

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012

13B#..BU85,9#

 1
90917-06008

B,11B,13B#..BU6#,7#,8#,9#

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58030

13B#..BU85,9#..T3

 1
17450-58040

13B..BU98

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17575-58040

13B..BU98

 1
17430C - CLAMP NO.1, EXHAUST TAIL PIPE (FOR FRONT)
17508-47010

13B..BU98

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90117-08017

13B..BU98

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17576-58010

13B..BU98

 1
17574-58040

13BT..BU85;B,11B,13B#..BU77,8#,90,93,95..T3,T4,TW1

BODY SIDE

 1
17430U - CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR)
17508-47010

13B..BU98

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90117-08017

13B..BU98

 1
Common parts
90119-08486
91611-60820
91611-61035
91615-60825
91651-41020
94110-40800
94180-40800
94180-41000
