BU98-MDDHT3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )BU61,62,64,81,82,85,9#

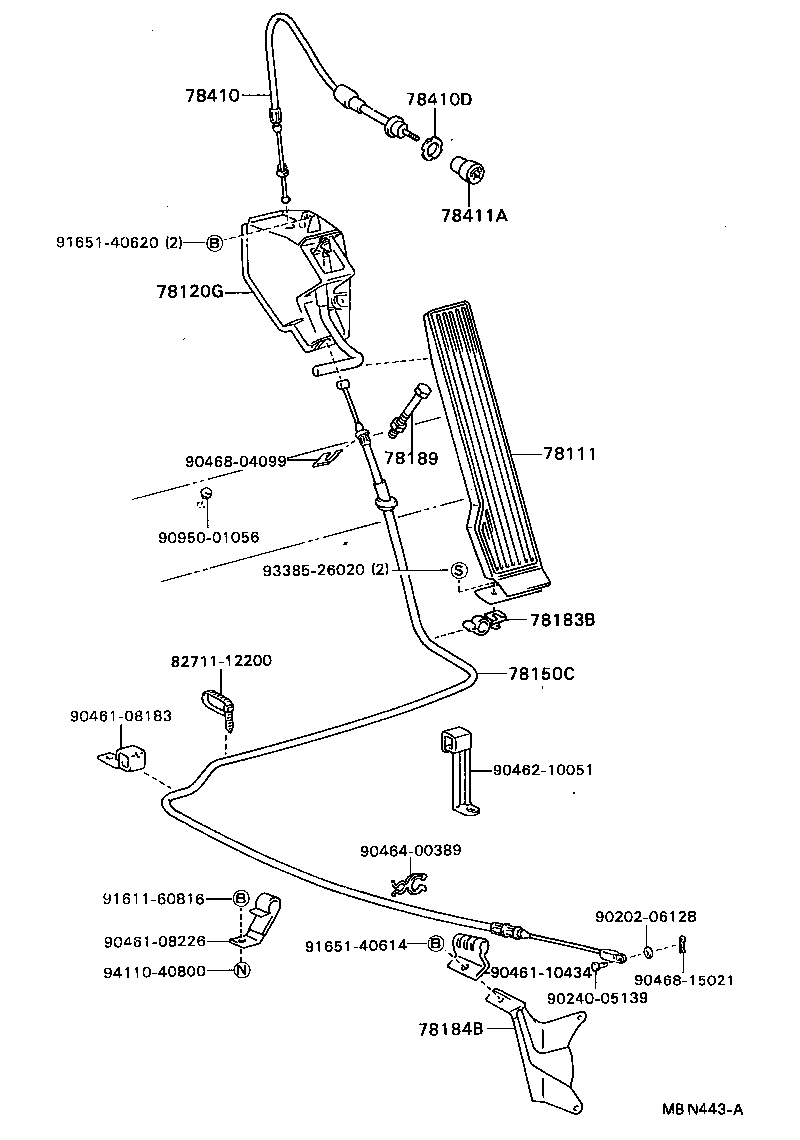

Click highlighted areas on diagram

diagram 5851 78111 78120G 78150C 78183B 78183B 78184B 78185A 78189 78410 78410D 78411A 8271112200 9020206128 9024005139 9046108183 9046108226 9046110226 9046110319 9046110434 9046210051 9046210051 9046400389 9046804099 9046815021 9095001056 9161160816 9161160816 9165140614 9165140620 9165140816 9165160620 9338526020 9411040800
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78110-95410

BU6#,70,8#,9#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78202-95402

BU85,9#

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-95467

BU85,93,98..DSL

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95406

BU60,70,80,85,93,98..DSL

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95406

BU60,70,80,85,93,98..DSL

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95405

BU85,9#

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78404-95011

BU6#,70,8#,9#

 1
78410D - NUT, THROTTLE
78314-95010

BU6#,70,8#,9#

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-22010

BU6#,70,8#,9#

 1
Common parts
82711-12200
90202-06128
90240-05139
90461-08183
90461-08226
90461-10226
90461-10319
90461-10434
90462-10051
90464-00389
90468-04099
90468-15021
90950-01056
91611-60816
91651-40614
91651-40620
91651-40816
91651-60620
93385-26020
94110-40800
Linked diagrams
5851

(8708- )WU75,9#

Click highlighted areas on diagram

diagram 78111 78120G 78150C 78183B 78184B 78189 78410 78410D 78411A 8271112200 9020206128 9024005139 9046108183 9046108226 9046110434 9046210051 9046400389 9046804099 9046815021 9095001056 9161160816 9165140614 9165140620 9338526020 9411040800
Part # Description Qty Price
Common parts
82711-12200
90202-06128
90240-05139
90461-08183
90461-08226
90461-10434
90462-10051
90464-00389
90468-04099
90468-15021
90950-01056
91611-60816
91651-40614
91651-40620
93385-26020
94110-40800
