BU98-MDDHT3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )ST ; (8708- )BU85..V ; (8708- )BU62..275,30T ; (8708- )BU8#,90,

Click highlighted areas on diagram

diagram 51900 51900 51933A 51933A 51933A 51933A 51933A 51933A 51943 66273 9161160820 9161160820 9165140616
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-36090

BU98

 1
51900-36101

BU6#,8#,93..(T1,T3,T4,TW1,TW4)..(CBU,IV3)

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-36090

BU98

 1
51900-36101

BU6#,8#,93..(T1,T3,T4,TW1,TW4)..(CBU,IV3)

 1
Common parts
91611-60820
91651-40616

(8708- )BU98

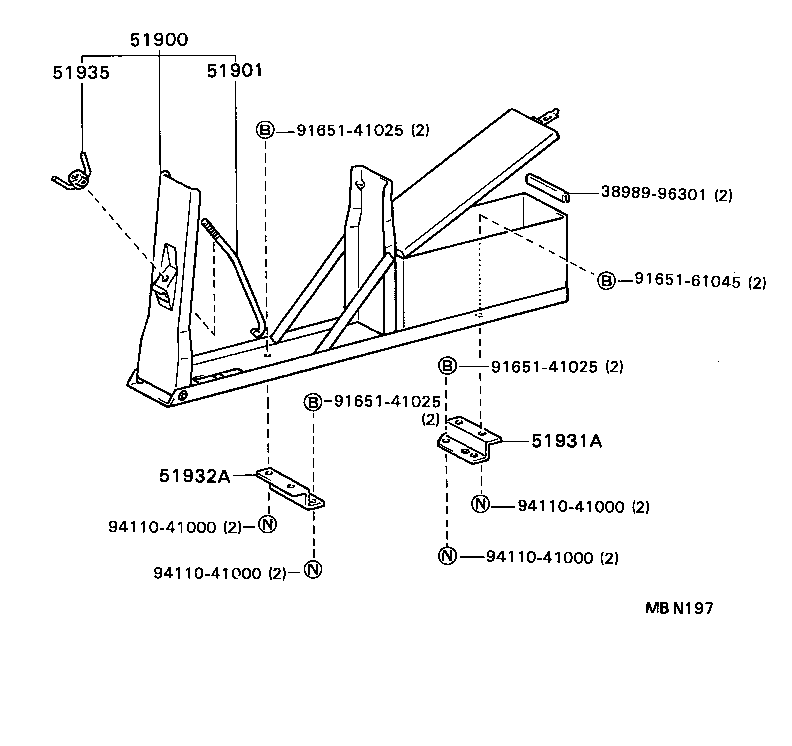

Click highlighted areas on diagram

diagram 3898996301 51900 51901 51931A 51932A 51935 9165141025 9165141025 9165141025 9165161045 9411041000 9411041000 9411041000 9411041000
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-36090

BU98

 1
51900-36101

BU6#,8#,93..(T1,T3,T4,TW1,TW4)..(CBU,IV3)

 1
51901 - ROD SUB-ASSY, SPARE WHEEL CARRIER
51951-96306

BU98

 1
51931A - STAY, SPARE WHEEL CARRIER, RH
51931-36020

BU98

 1
51932A - STAY, SPARE WHEEL CARRIER, LH
51932-36020

BU98

 1
51935 - NUT, SPARE WHEEL CARRIER EYE
51903-96302

BU98

 1
Common parts
38989-96301
91651-41025
91651-61045
94110-41000
