BU95-MDDTX3 (1984)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF 2(8409-8508)TD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
BU6#,70,8#,9#..5F |
1 | ||
| 90341-18006 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
BU6#,7#,8#,9#..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-36080 |
BU85,9#..TD |
1 | ||
| 33101-36050 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
BU6#,7#,8#,9#..5F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10214 |
BU85,9#..TD 長さ=14,外径=10,OD=10,L=14 |
1 | ||
| 90250-12216 |
BU6#,7#,8#,9#..5F 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
BU6#,7#,8#,9#..5F 長さ=17,外径=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10214 |
BU85,9#..TD 長さ=14,外径=10,OD=10,L=14 |
1 | ||
| 90250-12216 |
BU6#,7#,8#,9#..5F 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
BU6#,7#,8#,9#..5F 長さ=17,外径=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10214 |
BU85,9#..TD 長さ=14,外径=10,OD=10,L=14 |
1 | ||
| 90250-12216 |
BU6#,7#,8#,9#..5F 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
BU6#,7#,8#,9#..5F 長さ=17,外径=12 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
BU6#,7#,8#,9#..5F |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36030 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33124-36010 |
BU85,9#..TD |
1 | ||
| 33141 - RETAINER, TRANSMISSION BEARING, REAR | ||||
| 33141-36090 |
BU85,9#..TD |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-48011 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 90311-45001 |
BU6#,70,8#,9#..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-36030 |
BU85,9#..TD |
1 | ||
| 33017-36010 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33157 - GASKET, TRANSMISSION CASE, NO.2 | ||||
| 33142-36030 |
BU85,9#..TD |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
BU85,9#..TD |
1 | ||
| 33161-36010 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33162-36020 |
BU85,9#..TD |
1 | ||
| Common parts | ||||
| 90101-12412 | ||||
| 90119-10121 | ||||
| 91611-41016 | ||||
| 91611-60825 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 91619-61260 | ||||
| 91619-61265 | ||||
| 94512-01200 | ||||
ILLUST NO. 1 OF 2(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36140 |
BU85,9#..TD |
1 | ||
| 31111-36220 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36140 |
BU85,9#..TD |
1 | ||
| 31111-36220 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-36040 |
BU6#,7#,8#,9#..5F |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-36040 |
BU6#,7#,8#,9#..5F |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-36040 |
BU6#,7#,8#,9#..5F |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-36020 |
BU6#,7#,8#,9#..5F |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-36020 |
BU6#,7#,8#,9#..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-36020 |
BU6#,7#,8#,9#..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-36020 |
BU6#,7#,8#,9#..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-36050 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33131-36011 |
BU85,9#..TD |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-36050 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33131-36011 |
BU85,9#..TD |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 90311-28004 |
BU62..IV4;BU85,9#..TD |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 90311-28004 |
BU62..IV4;BU85,9#..TD |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-36010 |
BU85,9#..TD |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-36010 |
BU85,9#..TD |
1 | ||
| Common parts | ||||
| 90119-08092 | ||||
| 91611-60825 | ||||
| 91611-61030 | ||||
| 91611-61040 | ||||
| 91611-61045 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 91619-61250 | ||||
| 91619-61255 | ||||
| 91651-61050 | ||||
| 93310-16010 | ||||
ILLUST NO. 2 OF 2(8508- )CBU,IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
BU6#,70,8#,9#..5F |
1 | ||
| 90341-18006 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
BU6#,7#,8#,9#..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-36080 |
BU85,9#..TD |
1 | ||
| 33101-36050 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
BU6#,7#,8#,9#..5F |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-11600 |
BU6#,7#,8#,9#..5F..(CBU,IV3) OD=12,L=17 |
3 | ||
| 90331-16050 |
BU6#,7#,8#,9#..5F..(CBU,IV3) OD=12,L=17 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10214 |
BU85,9#..TD 長さ=14,外径=10,OD=10,L=14 |
1 | ||
| 90250-12216 |
BU6#,7#,8#,9#..5F 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
BU6#,7#,8#,9#..5F 長さ=17,外径=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10214 |
BU85,9#..TD 長さ=14,外径=10,OD=10,L=14 |
1 | ||
| 90250-12216 |
BU6#,7#,8#,9#..5F 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
BU6#,7#,8#,9#..5F 長さ=17,外径=12 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-13017 |
BU6#,7#,8#,9#..5F..(CBU,IV3) 長さ=12,外径=13,OD13 |
2 | ||
| 90253-11001 |
BU6#,7#,8#,9#..5F..(CBU,IV3) 長さ=11,外径=11,OD=11 |
1 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
BU6#,7#,8#,9#..5F |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36030 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33124-36010 |
BU85,9#..TD |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-36050 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33131-36011 |
BU85,9#..TD |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 90311-28004 |
BU62..IV4;BU85,9#..TD |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-48011 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 90311-45001 |
BU6#,70,8#,9#..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-36030 |
BU85,9#..TD |
1 | ||
| 33017-36010 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
BU85,9#..TD |
1 | ||
| 33161-36010 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33162-36020 |
BU85,9#..TD |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-36010 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10121 | ||||
| 90119-10186 | ||||
| 90119-10390 | ||||
| 91611-60610 | ||||
| 91611-60812 | ||||
| 91611-61016 | ||||
| 91611-61030 | ||||
| 91611-61045 | ||||

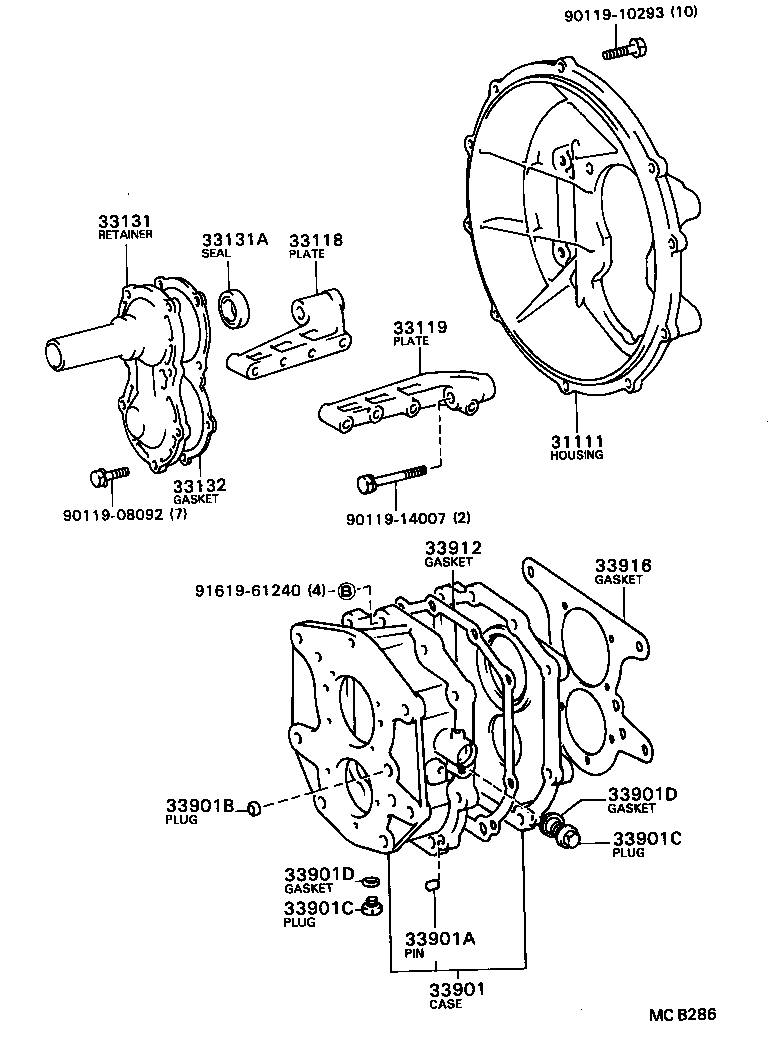

ILLUST NO. 1 OF 2(8409- )WU75,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08092 | ||||
| 90119-10293 | ||||
| 90119-14007 | ||||
| 91619-61240 | ||||
ILLUST NO. 2 OF 2(8409-8508)WU75,9# ; (8508- )WU75,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
BU6#,70,8#,9#..5F |
1 | ||
| 90341-18006 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
BU6#,7#,8#,9#..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-36080 |
BU85,9#..TD |
1 | ||
| 33101-36050 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
BU6#,7#,8#,9#..5F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10214 |
BU85,9#..TD 長さ=14,外径=10,OD=10,L=14 |
1 | ||
| 90250-12216 |
BU6#,7#,8#,9#..5F 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
BU6#,7#,8#,9#..5F 長さ=17,外径=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10214 |
BU85,9#..TD 長さ=14,外径=10,OD=10,L=14 |
1 | ||
| 90250-12216 |
BU6#,7#,8#,9#..5F 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
BU6#,7#,8#,9#..5F 長さ=17,外径=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10214 |
BU85,9#..TD 長さ=14,外径=10,OD=10,L=14 |
1 | ||
| 90250-12216 |
BU6#,7#,8#,9#..5F 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
BU6#,7#,8#,9#..5F 長さ=17,外径=12 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
BU6#,7#,8#,9#..5F |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36030 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33124-36010 |
BU85,9#..TD |
1 | ||
| 33141 - RETAINER, TRANSMISSION BEARING, REAR | ||||
| 33141-36090 |
BU85,9#..TD |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-48011 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 90311-45001 |
BU6#,70,8#,9#..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-36030 |
BU85,9#..TD |
1 | ||
| 33017-36010 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33157 - GASKET, TRANSMISSION CASE, NO.2 | ||||
| 33142-36030 |
BU85,9#..TD |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
BU85,9#..TD |
1 | ||
| 33161-36010 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
BU6#,7#,8#,9#..5F..(CBU,IV3) |
1 | ||
| 33162-36020 |
BU85,9#..TD |
1 | ||
| Common parts | ||||
| 90101-12412 | ||||
| 90119-10121 | ||||
| 91611-41016 | ||||
| 91611-60825 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 91619-61260 | ||||
| 91619-61265 | ||||
| 94512-01200 | ||||
