BU95-MDDTX (1987)
Toyota Dyna/Toyoace

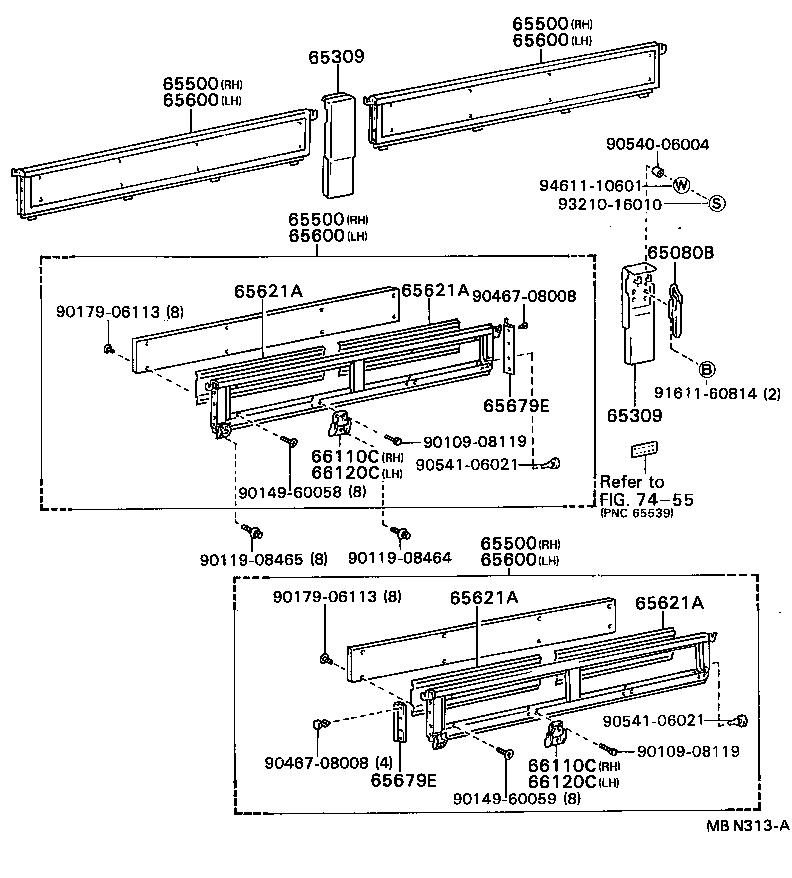

(8708- )BU93,95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65080B - HANDLE ASSY, SIDE GATE LATCH | ||||
| 65080-92701 |
BU93,95..CBU |
4 | ||
| 65309 - POST SUB-ASSY, CENTER | ||||
| 65309-92800 |
BU93,95..CBU |
2 | ||
| 65309 - POST SUB-ASSY, CENTER | ||||
| 65309-92800 |
BU93,95..CBU |
2 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-92856 |
BU93,95..CBU FRONT |
1 | ||
| 65500-92845 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ) |
1 | ||
| 65660-92803 |
BU93,95..CBU REAR |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-92856 |
BU93,95..CBU FRONT |
1 | ||
| 65500-92845 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ) |
1 | ||
| 65660-92803 |
BU93,95..CBU REAR |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-92856 |
BU93,95..CBU FRONT |
1 | ||
| 65500-92845 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ) |
1 | ||
| 65660-92803 |
BU93,95..CBU REAR |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-92856 |
BU93,95..CBU FRONT |
1 | ||
| 65500-92845 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ) |
1 | ||
| 65660-92803 |
BU93,95..CBU REAR |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-92845 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ) |
1 | ||
| 65600-92856 |
BU93,95..CBU FRONT |
1 | ||
| 65670-92803 |
BU93,95..CBU REAR |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-92845 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ) |
1 | ||
| 65600-92856 |
BU93,95..CBU FRONT |
1 | ||
| 65670-92803 |
BU93,95..CBU REAR |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-92845 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ) |
1 | ||
| 65600-92856 |
BU93,95..CBU FRONT |
1 | ||
| 65670-92803 |
BU93,95..CBU REAR |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-92845 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ) |
1 | ||
| 65600-92856 |
BU93,95..CBU FRONT |
1 | ||
| 65670-92803 |
BU93,95..CBU REAR |
1 | ||
| 65621A - PANEL, SIDE GATE | ||||
| 65621-92825 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92830 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),L=1324(RH-RR,LH-FR) |
2 | ||
| 65621-92829 |
BU93,95..CBU L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92838 |
BU93,95..CBU L=2001 |
2 | ||
| 65621-92828 |
BU93,95..CBU L=1076(RH-RR,LH-FR) |
4 | ||
| 65621A - PANEL, SIDE GATE | ||||
| 65621-92825 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92830 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),L=1324(RH-RR,LH-FR) |
2 | ||
| 65621-92829 |
BU93,95..CBU L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92838 |
BU93,95..CBU L=2001 |
2 | ||
| 65621-92828 |
BU93,95..CBU L=1076(RH-RR,LH-FR) |
4 | ||
| 65621A - PANEL, SIDE GATE | ||||
| 65621-92825 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92830 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),L=1324(RH-RR,LH-FR) |
2 | ||
| 65621-92829 |
BU93,95..CBU L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92838 |
BU93,95..CBU L=2001 |
2 | ||
| 65621-92828 |
BU93,95..CBU L=1076(RH-RR,LH-FR) |
4 | ||
| 65621A - PANEL, SIDE GATE | ||||
| 65621-92825 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92830 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),L=1324(RH-RR,LH-FR) |
2 | ||
| 65621-92829 |
BU93,95..CBU L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92838 |
BU93,95..CBU L=2001 |
2 | ||
| 65621-92828 |
BU93,95..CBU L=1076(RH-RR,LH-FR) |
4 | ||
| 65679E - SEAL, SIDE GATE | ||||
| 65679-92706 |
BU93,95..CBU FRONT |
2 | ||
| 65679-92801 |
BU93,95..CBU CENTER,REAR |
2 | ||
| 65679E - SEAL, SIDE GATE | ||||
| 65679-92706 |
BU93,95..CBU FRONT |
2 | ||
| 65679-92801 |
BU93,95..CBU CENTER,REAR |
2 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-92702 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ),2ND,3RD,4TH,5TH,6TH,7TH |
6 | ||
| 65050-92703 |
BU93,95..CBU 1ST,4TH,5TH,8TH |
4 | ||
| 65050-92704 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ),1ST,8TH |
2 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-92702 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ),2ND,3RD,4TH,5TH,6TH,7TH |
6 | ||
| 65050-92703 |
BU93,95..CBU 1ST,4TH,5TH,8TH |
4 | ||
| 65050-92704 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ),1ST,8TH |
2 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65060-92700 |
BU93,95..CBU 1ST,4TH,5TH,8TH |
4 | ||
| 65020-92700 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ),2ND,3RD,4TH,5TH,6TH,7TH |
6 | ||
| 65060-92703 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ),1ST,8TH |
2 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65060-92700 |
BU93,95..CBU 1ST,4TH,5TH,8TH |
4 | ||
| 65020-92700 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ),2ND,3RD,4TH,5TH,6TH,7TH |
6 | ||
| 65060-92703 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ),1ST,8TH |
2 | ||
| Common parts | ||||
| 90109-08119 | ||||
| 90119-08464 | ||||
| 90119-08465 | ||||
| 90149-60058 | ||||
| 90149-60059 | ||||
| 90179-06113 | ||||
| 90467-08008 | ||||
| 90540-06004 | ||||
| 90541-06021 | ||||
| 91611-60814 | ||||
| 93210-16010 | ||||
| 94611-10601 | ||||
| Linked diagrams | ||||
| 7455 | ||||

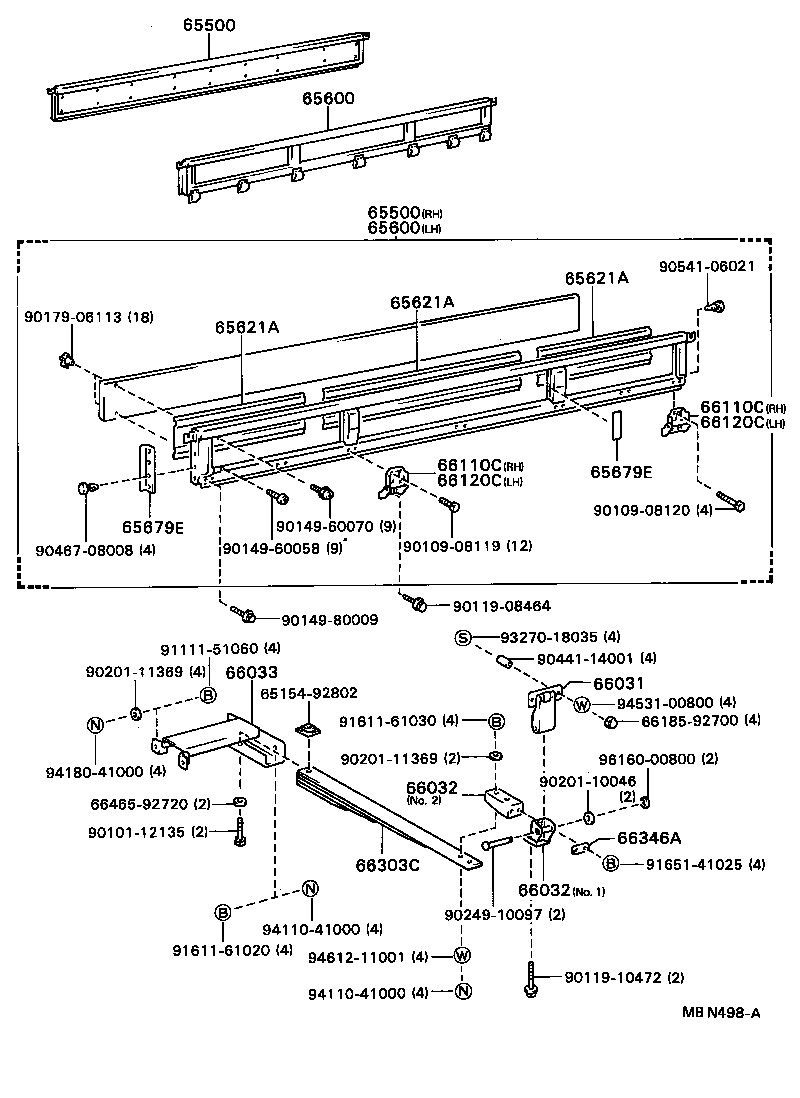

(8708- )BU93,95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-92856 |
BU93,95..CBU FRONT |
1 | ||
| 65500-92845 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ) |
1 | ||
| 65660-92803 |
BU93,95..CBU REAR |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-92856 |
BU93,95..CBU FRONT |
1 | ||
| 65500-92845 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ) |
1 | ||
| 65660-92803 |
BU93,95..CBU REAR |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-92845 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ) |
1 | ||
| 65600-92856 |
BU93,95..CBU FRONT |
1 | ||
| 65670-92803 |
BU93,95..CBU REAR |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-92845 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ) |
1 | ||
| 65600-92856 |
BU93,95..CBU FRONT |
1 | ||
| 65670-92803 |
BU93,95..CBU REAR |
1 | ||
| 65621A - PANEL, SIDE GATE | ||||
| 65621-92825 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92830 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),L=1324(RH-RR,LH-FR) |
2 | ||
| 65621-92829 |
BU93,95..CBU L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92838 |
BU93,95..CBU L=2001 |
2 | ||
| 65621-92828 |
BU93,95..CBU L=1076(RH-RR,LH-FR) |
4 | ||
| 65621A - PANEL, SIDE GATE | ||||
| 65621-92825 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92830 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),L=1324(RH-RR,LH-FR) |
2 | ||
| 65621-92829 |
BU93,95..CBU L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92838 |
BU93,95..CBU L=2001 |
2 | ||
| 65621-92828 |
BU93,95..CBU L=1076(RH-RR,LH-FR) |
4 | ||
| 65621A - PANEL, SIDE GATE | ||||
| 65621-92825 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92830 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),L=1324(RH-RR,LH-FR) |
2 | ||
| 65621-92829 |
BU93,95..CBU L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92838 |
BU93,95..CBU L=2001 |
2 | ||
| 65621-92828 |
BU93,95..CBU L=1076(RH-RR,LH-FR) |
4 | ||
| 65679E - SEAL, SIDE GATE | ||||
| 65679-92706 |
BU93,95..CBU FRONT |
2 | ||
| 65679-92801 |
BU93,95..CBU CENTER,REAR |
2 | ||
| 65679E - SEAL, SIDE GATE | ||||
| 65679-92706 |
BU93,95..CBU FRONT |
2 | ||
| 65679-92801 |
BU93,95..CBU CENTER,REAR |
2 | ||
| 66031 - BRACKET SUB-ASSY, GATE HELPER, NO.1 | ||||
| 66031-92802 |
BU93,95..CBU |
2 | ||
| 66032 - BRACKET SUB-ASSY, GATE HELPER, NO.2 | ||||
| 66032-92803 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),NO.2 |
2 | ||
| 66032-92804 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),NO.1 |
2 | ||
| 66032 - BRACKET SUB-ASSY, GATE HELPER, NO.2 | ||||
| 66032-92803 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),NO.2 |
2 | ||
| 66032-92804 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞｰﾄ),NO.1 |
2 | ||
| 66033 - BRACKET SUB-ASSY, GATE HELPER, NO.3 | ||||
| 66033-92808 |
BU93,95..CBU 右側 |
1 | ||
| 66034-92805 |
BU93,95..CBU 左側 |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-92702 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ),2ND,3RD,4TH,5TH,6TH,7TH |
6 | ||
| 65050-92703 |
BU93,95..CBU 1ST,4TH,5TH,8TH |
4 | ||
| 65050-92704 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ),1ST,8TH |
2 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-92702 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ),2ND,3RD,4TH,5TH,6TH,7TH |
6 | ||
| 65050-92703 |
BU93,95..CBU 1ST,4TH,5TH,8TH |
4 | ||
| 65050-92704 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ),1ST,8TH |
2 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65060-92700 |
BU93,95..CBU 1ST,4TH,5TH,8TH |
4 | ||
| 65020-92700 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ),2ND,3RD,4TH,5TH,6TH,7TH |
6 | ||
| 65060-92703 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ),1ST,8TH |
2 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65060-92700 |
BU93,95..CBU 1ST,4TH,5TH,8TH |
4 | ||
| 65020-92700 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ),2ND,3RD,4TH,5TH,6TH,7TH |
6 | ||
| 65060-92703 |
BU93,95..CBU ｱﾘ(1ﾏｲ ｻｲﾄﾞｹﾞ-ﾄ),1ST,8TH |
2 | ||
| 66303C - SPRING SUB-ASSY, GATE HELPER SET | ||||
| 66303-92805 |
BU93,95..CBU |
2 | ||
| 66346A - PLATE, GATE HELPER BRACKET, NO.2 | ||||
| 66346-92803 |
BU93,95..CBU |
2 | ||
| Common parts | ||||
| 65154-92802 | ||||
| 66185-92700 | ||||
| 66465-92720 | ||||
| 90101-12135 | ||||
| 90109-08119 | ||||
| 90109-08120 | ||||
| 90119-08464 | ||||
| 90119-10472 | ||||
| 90149-60058 | ||||
| 90149-60070 | ||||
| 90149-80009 | ||||
| 90179-06113 | ||||
| 90201-10046 | ||||
| 90201-11369 | ||||
| 90249-10097 | ||||
| 90441-14001 | ||||
| 90467-08008 | ||||
| 90541-06021 | ||||
| 91111-51060 | ||||
| 91611-61020 | ||||
| 91611-61030 | ||||
| 91651-41025 | ||||
| 93270-18035 | ||||
| 94110-41000 | ||||
| 94180-41000 | ||||
| 94531-00800 | ||||
| 94612-11001 | ||||
| 96160-00800 | ||||
