BU94-MDDHTJ3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

ﾘﾝｸｼｷ

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9011908703 9017908204 9017908204 9017908204 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161160816 9411041000 9414140800 9451200800 9451201000 9538102020
Part # Description Qty Price
Common parts
90119-08703
90179-08204
90201-23360
91131-50840
91611-60816
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

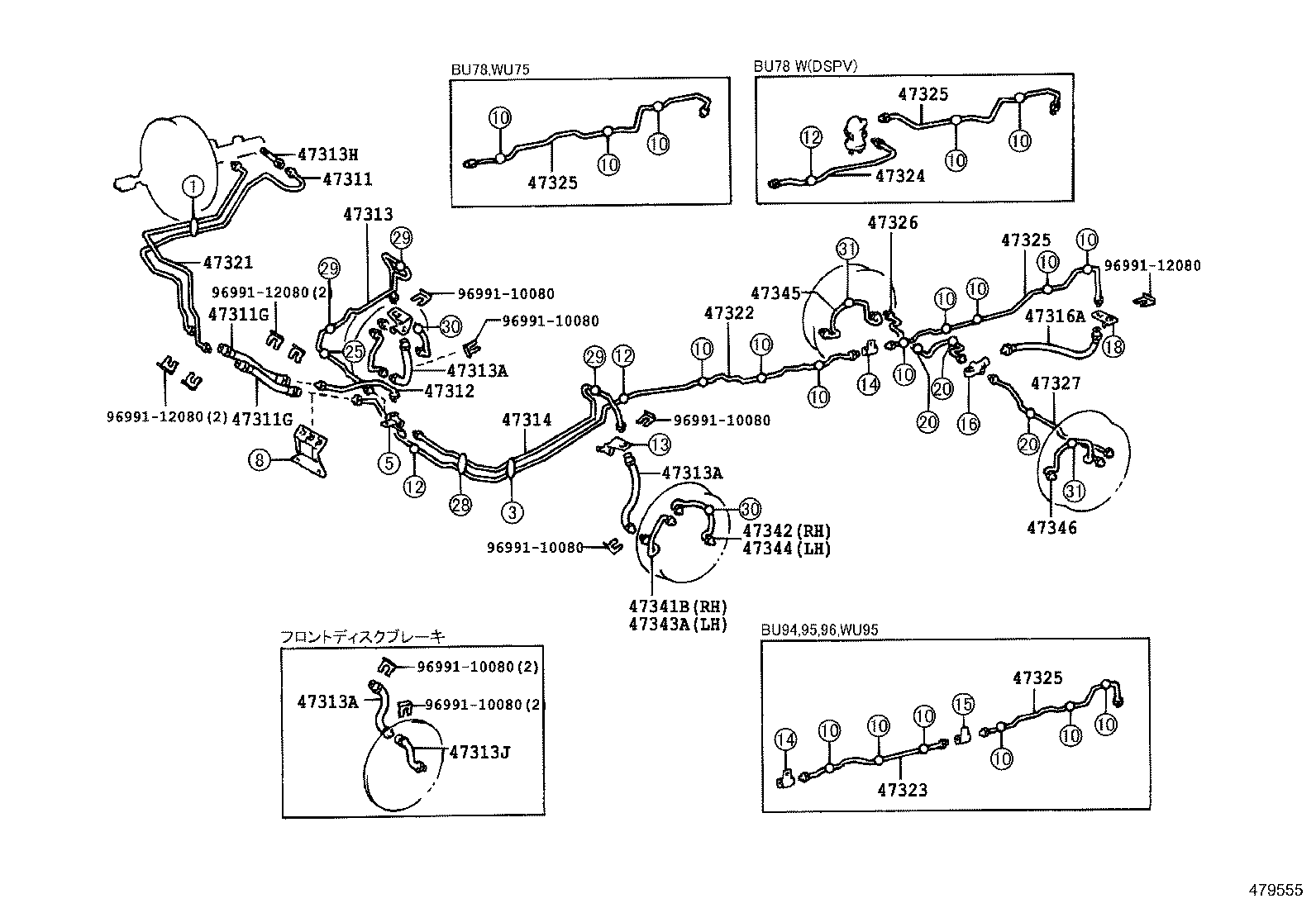

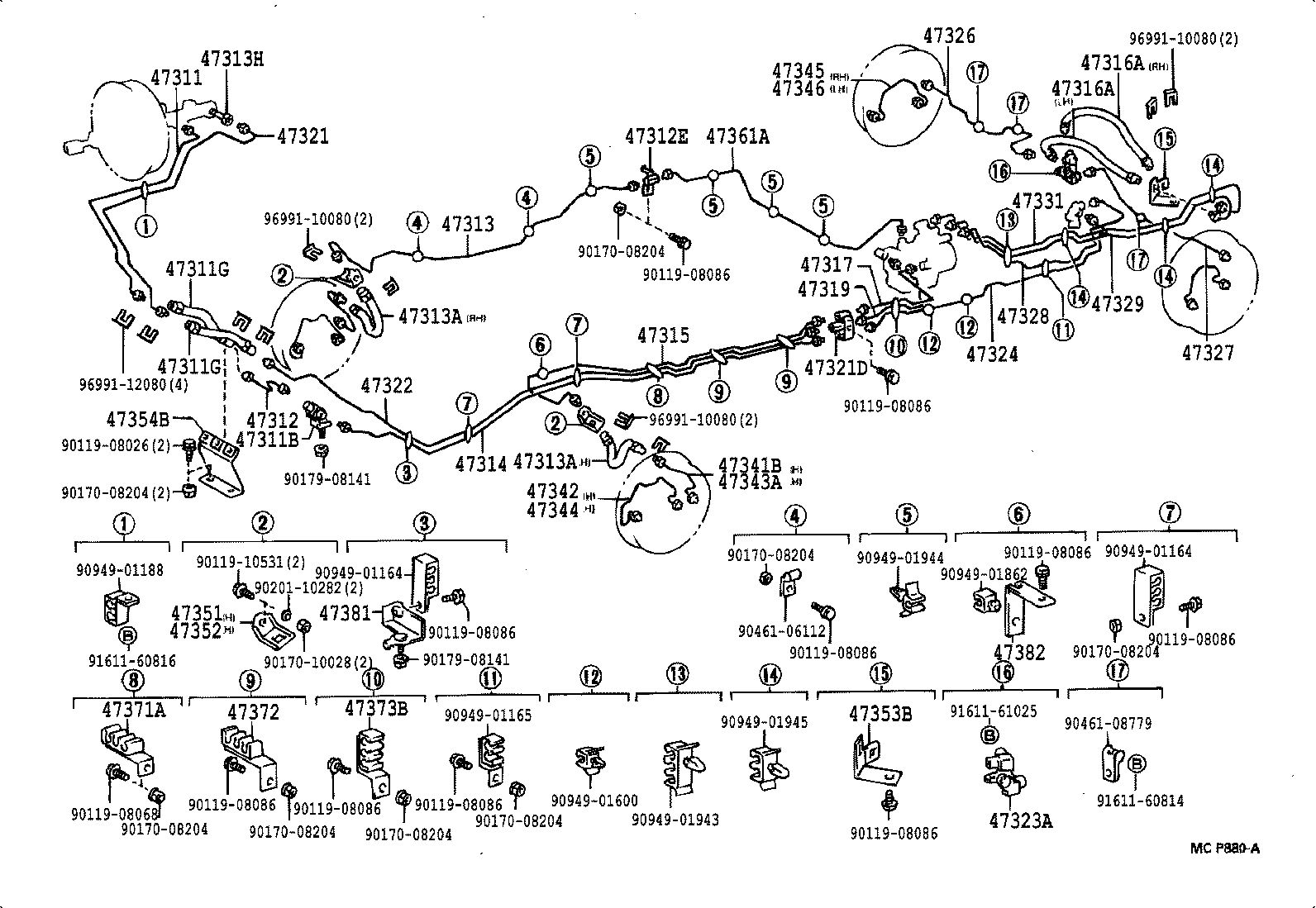

(8808- )BU78,85,88,9#

Click highlighted areas on diagram

diagram 47311 47311G 47311G 47312 47313 47313A 47313A 47313A 47313H 47313J 47314 47316A 47321 47322 47323 47324 47325 47325 47325 47325 47326 47327 47341B 47342 47343A 47344 47345 47346 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699112080 9699112080 9699112080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-36450

BU78,85,88,9#

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02519

BU78,85,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 2
96932-34305

BU78,85,88,9#

 2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02519

BU78,85,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 2
96932-34305

BU78,85,88,9#

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-36231

BU78,88,9#

 1
47312-36230

BU78,85,88,9#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36200

BU78,85,88,9#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02566

BU78,85,88,94

 2
90947-02567

BU78,85,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 2
90947-02744

BU78,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02566

BU78,85,88,94

 2
90947-02567

BU78,85,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 2
90947-02744

BU78,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02566

BU78,85,88,94

 2
90947-02567

BU78,85,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 2
90947-02744

BU78,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90404-12007

BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S)

 1
90404-12007

BU6#,7#,8#,9#

 1
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02521

BU87..V;BU60,66,87..(T3,TW1)..WT;BU67,78,85,88,94..T3,T4,TW1

 2
90947-02521

BU87..V;BU67,78,88,94..T3,T4,TW1;BU60,66,68,87..(DM1,T3,TW1)..WT

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-36280

BU78,85,88,9#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02518

BU78,85,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 1
96912-34105

BU78,85,88,9#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-36200

BU78,85,88,9#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36280

BU78,85,88,9#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-36060

BU94,95,96

 1
47323-36080

BU94,96

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36120

BU78,94,95,96

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36120

BU78,94,95,96

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36120

BU78,94,95,96

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36120

BU78,94,95,96

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-36150

BU88..T4;BU88..20T..TD;BU73,74,78,85,94;BU66,87,88..(T3,TW1)..(275,30T,IV4)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36180

BU88..T4;BU88..20T..TD;BU73,74,78,85,94;BU66,87,88..(T3,TW1)..(275,30T,IV4)

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-36090

BU87..V;BU60,66,87..(DM1,DM3,T3,TW1)..WT;BU67,68,78,85,88,94..(DM1,DM4,T3,T4,TW1)..(DSL,TD)

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-36030

BU87..V;BU60,66,87..(DM1,DM3,T3,TW1)..WT;BU67,68,78,85,88,94..(DM1,DM4,T3,T4,TW1)..(DSL,TD)

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-36090

BU87..V;BU60,66,87..(DM1,DM3,T3,TW1)..WT;BU67,68,78,85,88,94..(DM1,DM4,T3,T4,TW1)..(DSL,TD)

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47342-36030

BU87..V;BU60,66,87..(DM1,DM3,T3,TW1)..WT;BU67,68,78,85,88,94..(DM1,DM4,T3,T4,TW1)..(DSL,TD)

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36040

BU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,94..DM1,DM4,T3,T4,TW1

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36040

BU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,94..DM1,DM4,T3,T4,TW1

 1
Common parts
96991-10080
96991-12080

(8808- )BU6#,70,78,8#,9#

Click highlighted areas on diagram

diagram 47311B 47311B 47321D 47322B 47323A 47323A 47351 47351 47352 47352 47353B 47353B 47354B 47354B 47381 47381 47381 9011908042 9011908042 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011910531 9017008204 9017008204 9017008204 9017008204 9017008204 9017008204 9017008204 9017010028 9017908141 9017908141 9020110282 9046106112 9046106112 9046108602 9046108779 9046110616 9046206017 9048008343 9094901005 9094901006 9094901034 9094901035 9094901164 9094901164 9094901164 9094901165 9094901188 9094901190 9094901600 9094901601 9094901602 9161160812 9161160814 9161160816 9161161040 9161161040 9165160614 9165160614 9165160614 9165160614 9165160614 9165160614 9165160614
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-12006

BU78,85,88,9#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-12006

BU78,85,88,9#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12014

BU6#,7#,8#,9#

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90412-12014

BU94,95,96

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90413-10100

BU88..T4;BU66..DM1;BU88..20T..TD;BU68,73,74,78,85,9#;BU66,87,88..(T3,TW1)..(275,30T,IV4)

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90413-10100

BU88..T4;BU66..DM1;BU88..20T..TD;BU68,73,74,78,85,9#;BU66,87,88..(T3,TW1)..(275,30T,IV4)

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-36170

BU78,85,88,9#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-36170

BU78,85,88,9#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-36160

BU78,85,88,9#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-36160

BU78,85,88,9#

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36141

BU78,85,88,9#;BU66..DM2,DM5

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36141

BU78,85,88,9#;BU66..DM2,DM5

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36060

BU78,85,88,9#

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36060

BU78,85,88,9#

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36050

BU78,85,88,9#

 2
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36050

BU78,85,88,9#

 2
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36050

BU78,85,88,9#

 2
Common parts
90119-08042
90119-08086
90119-10531
90170-08204
90170-10028
90179-08141
90201-10282
90461-06112
90461-08602
90461-08779
90461-10616
90462-06017
90480-08343
90949-01005
90949-01006
90949-01034
90949-01035
90949-01164
90949-01165
90949-01188
90949-01190
90949-01600
90949-01601
90949-01602
91611-60812
91611-60814
91611-60816
91611-61040
91651-60614

(8808- )

Click highlighted areas on diagram

ﾕｱﾂｼｷ

diagram 31478D 31478D 47547D 47547D 47910G 47910G 47931 9017908141 9165140816 9165140820
Part # Description Qty Price
Common parts
90179-08141
91651-40816
91651-40820

(9309- )

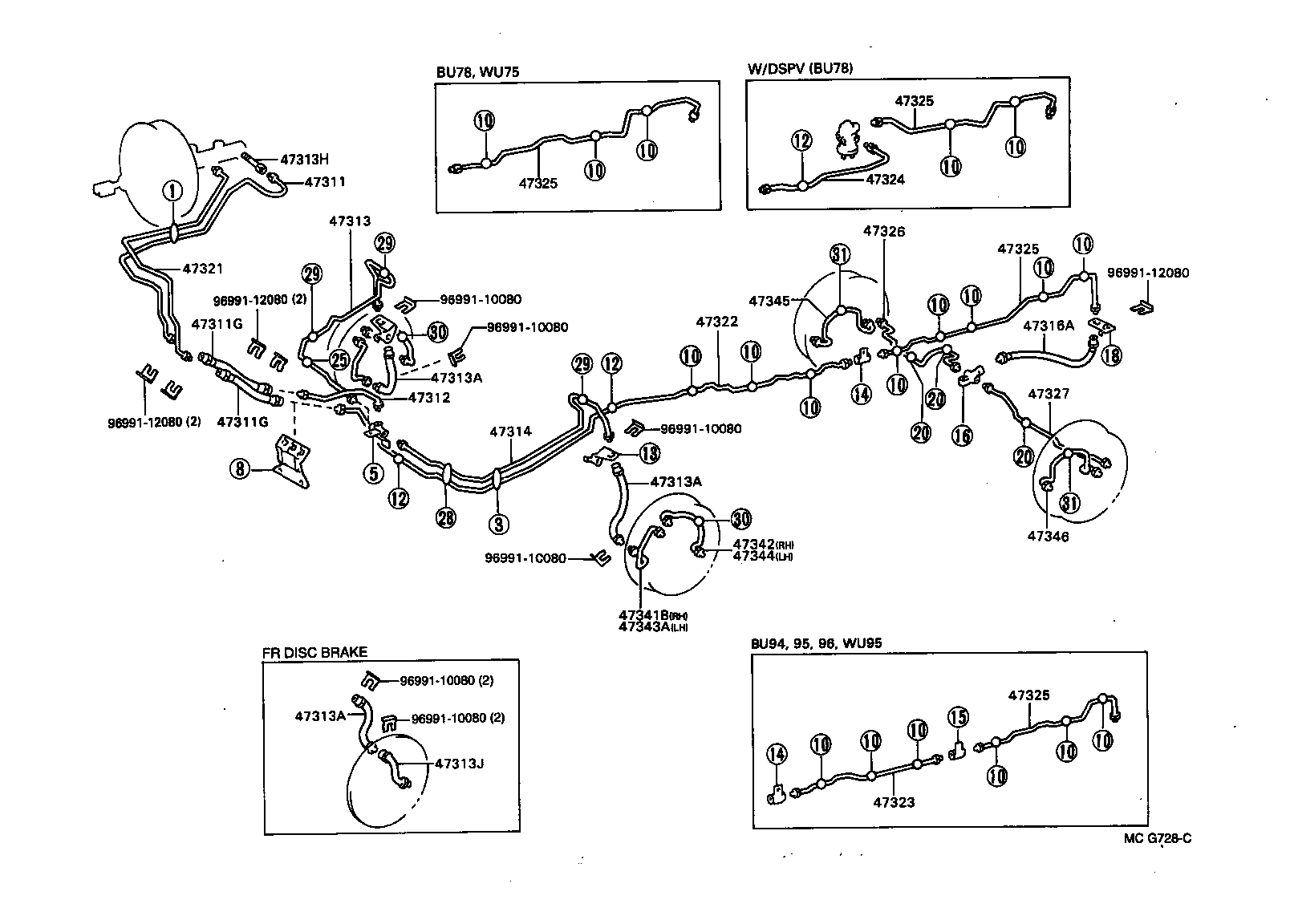

Click highlighted areas on diagram

ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)

diagram 47311 47311B 47311G 47311G 47312 47312E 47313 47313A 47313A 47313H 47314 47315 47316A 47316A 47317 47319 47321 47321D 47322 47323A 47324 47326 47327 47328 47329 47331 47341B 47342 47343A 47344 47345 47346 47351 47352 47353B 47354B 47361A 47371A 47372 47373B 47381 47382 9011908026 9011908068 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011910531 9017008204 9017008204 9017008204 9017008204 9017008204 9017008204 9017008204 9017008204 9017010028 9017908141 9017908141 9020110282 9046106112 9046108779 9094901164 9094901164 9094901165 9094901188 9094901600 9094901862 9094901943 9094901944 9094901945 9161160814 9161160816 9161161025 9699110080 9699110080 9699110080 9699112080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-36450

BU78,85,88,9#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-12006

BU78,85,88,9#

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02519

BU78,85,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 2
96932-34305

BU78,85,88,9#

 2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02519

BU78,85,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 2
96932-34305

BU78,85,88,9#

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-36231

BU78,88,9#

 1
47312-36230

BU78,85,88,9#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36200

BU78,85,88,9#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02566

BU78,85,88,94

 2
90947-02567

BU78,85,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 2
90947-02744

BU78,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02566

BU78,85,88,94

 2
90947-02567

BU78,85,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 2
90947-02744

BU78,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90404-12007

BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S)

 1
90404-12007

BU6#,7#,8#,9#

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-36280

BU78,85,88,9#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02518

BU78,85,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 1
96912-34105

BU78,85,88,9#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02518

BU78,85,88,94..T3,T4,TW1

ｱﾘ(FR ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾘﾔ ｵ-ﾄ ｱｼﾞﾔｽﾀ)

 1
96912-34105

BU78,85,88,9#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-36200

BU78,85,88,9#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12014

BU6#,7#,8#,9#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36280

BU78,85,88,9#

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90413-10100

BU88..T4;BU66..DM1;BU88..20T..TD;BU68,73,74,78,85,9#;BU66,87,88..(T3,TW1)..(275,30T,IV4)

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-36150

BU88..T4;BU88..20T..TD;BU73,74,78,85,94;BU66,87,88..(T3,TW1)..(275,30T,IV4)

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36180

BU88..T4;BU88..20T..TD;BU73,74,78,85,94;BU66,87,88..(T3,TW1)..(275,30T,IV4)

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-36090

BU87..V;BU60,66,87..(DM1,DM3,T3,TW1)..WT;BU67,68,78,85,88,94..(DM1,DM4,T3,T4,TW1)..(DSL,TD)

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-36030

BU87..V;BU60,66,87..(DM1,DM3,T3,TW1)..WT;BU67,68,78,85,88,94..(DM1,DM4,T3,T4,TW1)..(DSL,TD)

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-36090

BU87..V;BU60,66,87..(DM1,DM3,T3,TW1)..WT;BU67,68,78,85,88,94..(DM1,DM4,T3,T4,TW1)..(DSL,TD)

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47342-36030

BU87..V;BU60,66,87..(DM1,DM3,T3,TW1)..WT;BU67,68,78,85,88,94..(DM1,DM4,T3,T4,TW1)..(DSL,TD)

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36040

BU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,94..DM1,DM4,T3,T4,TW1

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36040

BU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,94..DM1,DM4,T3,T4,TW1

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-36170

BU78,85,88,9#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-36160

BU78,85,88,9#

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36141

BU78,85,88,9#;BU66..DM2,DM5

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36060

BU78,85,88,9#

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36050

BU78,85,88,9#

 2
Common parts
90119-08026
90119-08068
90119-08086
90119-10531
90170-08204
90170-10028
90179-08141
90201-10282
90461-06112
90461-08779
90949-01164
90949-01165
90949-01188
90949-01600
90949-01862
90949-01943
90949-01944
90949-01945
91611-60814
91611-60816
91611-61025
96991-10080
96991-12080

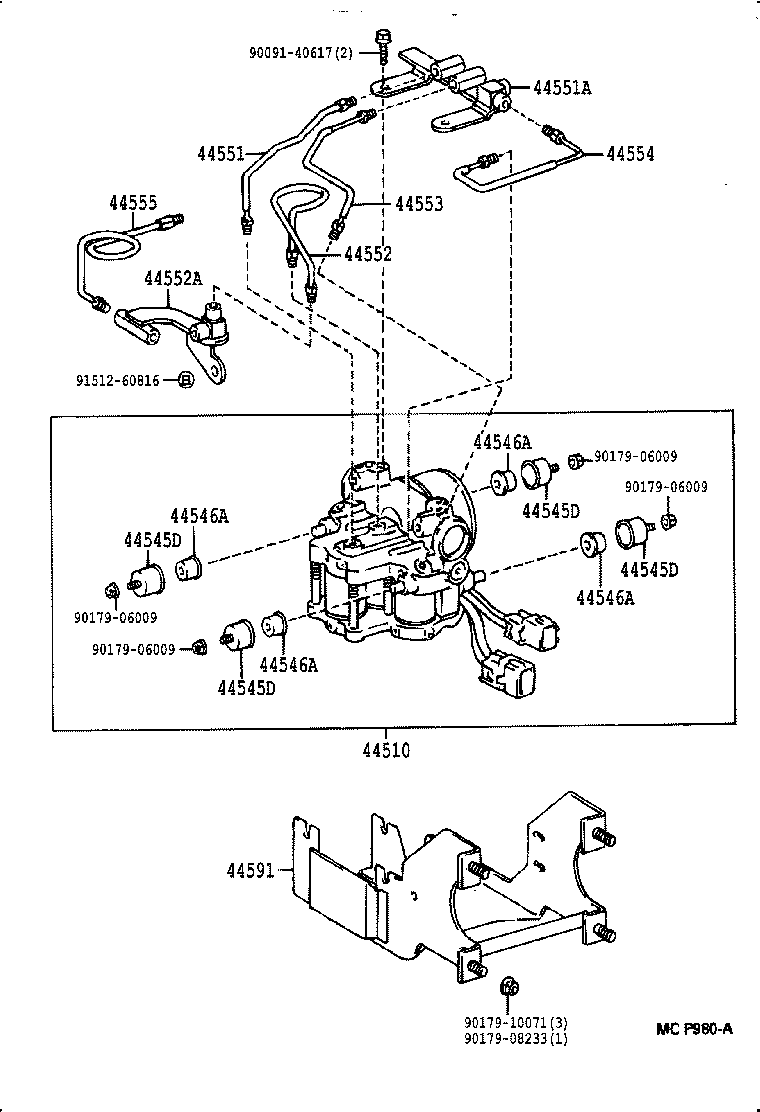

(9309- )

Click highlighted areas on diagram

ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)

diagram 44510 44545D 44545D 44545D 44545D 44546A 44546A 44546A 44546A 44551 44551A 44552 44552A 44553 44554 44555 44591 9009140617 9017906009 9017906009 9017906009 9017906009 9017908233 9017910071 9151260816
Part # Description Qty Price
Common parts
90091-40617
90179-06009
90179-08233
90179-10071
91512-60816

ILLUST NO. 1 OF 2(8808- )WU75,85,9#

Click highlighted areas on diagram

diagram 47311 47311G 47311G 47312 47313 47313A 47313A 47313A 47313H 47313J 47314 47316A 47321 47322 47323 47324 47325 47325 47325 47325 47326 47327 47341B 47342 47343A 47344 47345 47346 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699112080 9699112080 9699112080
Part # Description Qty Price
Common parts
96991-10080
96991-12080

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

diagram 47311B 47311B 47321D 47322B 47323A 47323A 47351 47351 47352 47352 47353B 47353B 47354B 47354B 47381 47381 47381 9011908042 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011910531 9017008204 9017008204 9017008204 9017008204 9017008204 9017008204 9017008204 9017010028 9017908141 9017908141 9020110282 9046106112 9046106112 9046108602 9046108779 9046110616 9046206017 9048008343 9094901005 9094901006 9094901034 9094901035 9094901164 9094901164 9094901164 9094901165 9094901188 9094901190 9094901600 9094901601 9094901602 9161160812 9161160814 9161160816 9161161040 9161161040 9165160614 9165160614 9165160614 9165160614 9165160614 9165160614 9165160614
Part # Description Qty Price
Common parts
90119-08042
90119-08086
90119-10531
90170-08204
90170-10028
90179-08141
90201-10282
90461-06112
90461-08602
90461-08779
90461-10616
90462-06017
90480-08343
90949-01005
90949-01006
90949-01034
90949-01035
90949-01164
90949-01165
90949-01188
90949-01190
90949-01600
90949-01601
90949-01602
91611-60812
91611-60814
91611-60816
91611-61040
91651-60614

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

ﾕｱﾂｼｷ

diagram 31478D 31478D 47547D 47547D 47910G 47910G 47931 9017908141 9165140816 9165140820
Part # Description Qty Price
Common parts
90179-08141
91651-40816
91651-40820

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

ﾘﾝｸｼｷ

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9011908703 9017908141 9017908146 9017908146 9020123360 9020123360 9020123360 9113150840 9113150840 9161160816 9411041000 9414140800 9451200800 9451201000 9538102020
Part # Description Qty Price
Common parts
90119-08703
90179-08141
90179-08146
90201-23360
91131-50840
91611-60816
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

ILLUST NO. 2 OF 4(9905-0406)XZU410..4FC ; (9905-0406)XZU412..CNG; (9905-0406)XZU430..40TOV ; (9905-

Click highlighted areas on diagram

ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸ & LSPV)

diagram 44591 47312E 47312E 47312E 47312F 47313 47313H 47314 47316 47316A 47316A 47318 47319 47321D 47322A 47322B 47323 47323A 47324 47325 47326 47327 47328 47329 47345 47345 47346 47346 47353 47355A 47361A 47362 47379R 47390 9003461046 9011908676 9011908676 9011908676 9011908A46 9011908A46 9011908A46 9012908007 9046400778 9046714006 9046808035 9048001577 9094901006 9094901871 9094901970 9095901593 9095901594 9095901595 91611G0820 91612B1020 9165160614 9413000802 9413000802
Part # Description Qty Price
Common parts
90034-61046
90119-08676
90119-08A46
90129-08007
90464-00778
90467-14006
90468-08035
90480-01577
90949-01006
90949-01871
90949-01970
90959-01593
90959-01594
90959-01595
91611-G0820
91612-B1020
91651-60614
94130-00802

ILLUST NO. 2 OF 4(9905-0406)BZU410 ; (9905-0406)XZU410..40T ; (9905-0406)XZU400..40T..IV3,IV6 ; (001

Click highlighted areas on diagram

ﾅｼ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ & LSPV)

diagram 44591 47312E 47312E 47312E 47312F 47312F 47313H 47314 47316 47316A 47316A 47318 47321D 47322A 47322A 47323 47323A 47326 47327 47328 47329 47345 47346 47353 47355A 47361A 47362 47379R 47379R 47390 9003461046 9011908676 9011908676 9011908A46 9012908007 9046400778 9046714006 9046808035 9048001577 9094901970 9095901593 9095901594 9095901595 91611G0820 91612B1020 91641K0816
Part # Description Qty Price
Common parts
90034-61046
90119-08676
90119-08A46
90129-08007
90464-00778
90467-14006
90468-08035
90480-01577
90949-01970
90959-01593
90959-01594
90959-01595
91611-G0820
91612-B1020
91641-K0816

ILLUST NO. 2 OF 4(9905-0406)5F..DSLL ; (9905-0406)T4..30T..DSLL ;(9905-0406)XZU421..5F..IV3 ; (9905

Click highlighted areas on diagram

ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ) & ﾅｼ(LSPV)

diagram 44591 47312E 47312E 47312E 47312F 47312F 47313H 47314 47316 47316A 47316A 47318 47319 47321D 47322A 47322A 47322B 47323 47323A 47324 47326 47327 47328 47329 47345 47346 47353 47355A 47361A 47362 47379R 47379R 47390 9003461046 9011908676 9011908676 9011908676 9011908A46 9012908007 9046400778 9046714006 9046808035 9048001577 9094901970 9095901593 9095901594 9095901595 91611G0820 91612B1020 91641K0816
Part # Description Qty Price
Common parts
90034-61046
90119-08676
90119-08A46
90129-08007
90464-00778
90467-14006
90468-08035
90480-01577
90949-01970
90959-01593
90959-01594
90959-01595
91611-G0820
91612-B1020
91641-K0816

ILLUST NO. 4 OF 4(9905-0011)XZU382 ; (9905-0012)DSL,DSLL,TDEFI..CBU,IV3

Click highlighted areas on diagram

ｱﾘ(LSPV)

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47924 47924 47931 47933 47935 47935A 47936 47937 9011908A33 9017008016 9017908204 9017908204 9017908204 9020108062 9020123360 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 91611B0816 9411040800 9411040800 9461210800
Part # Description Qty Price
Common parts
90119-08A33
90170-08016
90179-08204
90201-08062
90201-23360
91131-50840
91611-B0816
94110-40800
94612-10800
