BU93-MDDHT (1987)
Toyota Dyna/Toyoace
Production
Aug 1987
-
Aug 1988
Engine
13B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )DYN

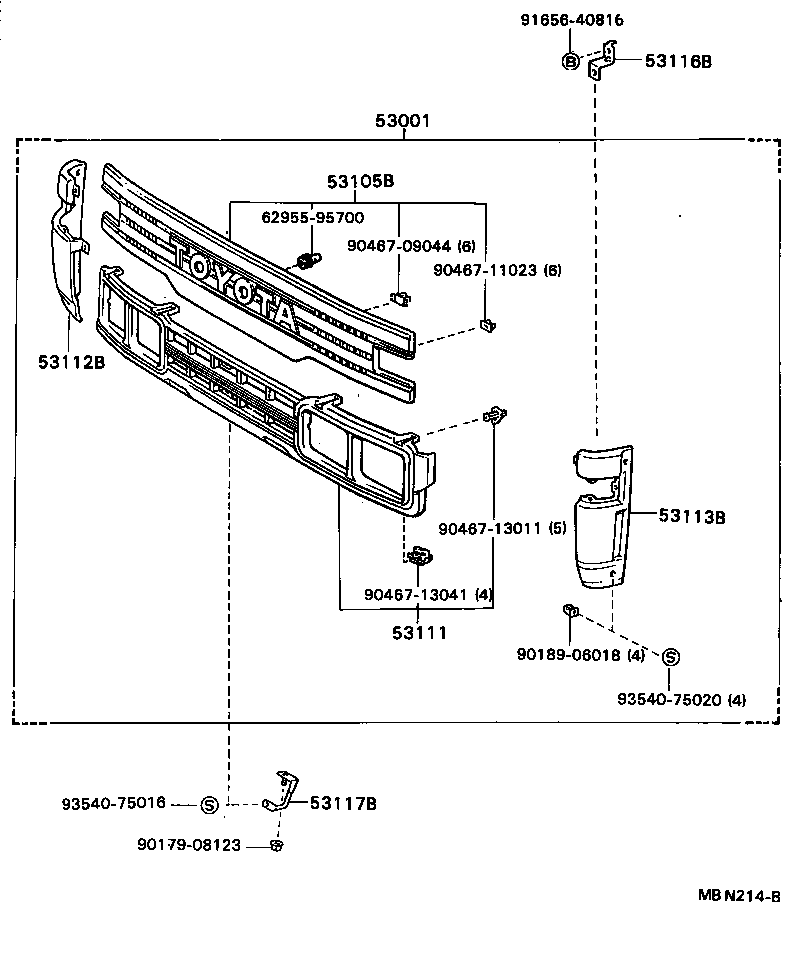

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53105B - GARNISH SUB-ASSY, RADIATOR GRILLE | ||||
| 53105-95408 |
BU85,9#..DYN GRAY M |
1 | ||
| 53105-95406 |
BU85,9#..DYN BEIGE M |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-95422 |
BU85..V;BU93,95,98..DYN BEIGE M |
1 | ||
| 53111-95424 |
BU85..V;BU93,95,98..DYN GRAY M |
1 | ||
| 53112B - GRILLE, RADIATOR SIDE, RH | ||||
| 53112-95405 |
BU85..V;BU93,95,98..DYN BEIGE M |
1 | ||
| 53112-95407 |
BU85..V;BU93,95,98..DYN GRAY M |
1 | ||
| 53113B - GRILLE, RADIATOR SIDE, LH | ||||
| 53113-95409 |
BU85..V;BU93,95,98..DYN GRAY M |
1 | ||
| 53113-95407 |
BU85..V;BU93,95,98..DYN BEIGE M |
1 | ||
| 53116B - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-95404 |
BU85,9# |
1 | ||
| 53117B - BRACKET, RADIATOR GRILLE, LOWER | ||||
| 53117-95406 |
BU85,9# |
1 | ||
| Common parts | ||||
| 62955-95700 | ||||
| 90179-08123 | ||||
| 90189-06018 | ||||
| 90467-09044 | ||||
| 90467-11023 | ||||
| 90467-13011 | ||||
| 90467-13041 | ||||
| 91656-40816 | ||||
| 93540-75016 | ||||
| 93540-75020 | ||||
(8708- )DYN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 62955-95700 | ||||
| 90179-08123 | ||||
| 90189-06018 | ||||
| 90467-09044 | ||||
| 90467-11023 | ||||
| 90467-13011 | ||||
| 90467-13041 | ||||
| 91656-40816 | ||||
| 93540-75016 | ||||
| 93540-75020 | ||||
