BU93-MDDHT (1987)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-36070 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-36060 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90116-14004 |
BU85,9# |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-36180 |
BU85,9# |
1 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14034 |
BU85,9# 長さ=150 |
1 | ||
| 90101-14477 |
BU85,9# 長さ=60 |
3 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14034 |
BU85,9# 長さ=150 |
1 | ||
| 90101-14477 |
BU85,9# 長さ=60 |
3 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14034 |
BU85,9# 長さ=150 |
1 | ||
| 90101-14477 |
BU85,9# 長さ=60 |
3 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14034 |
BU85,9# 長さ=150 |
1 | ||
| 90101-14477 |
BU85,9# 長さ=60 |
3 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-30171 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-30171 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44251D - WASHER(FOR PITMAN ARM) | ||||
| 90204-30040 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44251D - WASHER(FOR PITMAN ARM) | ||||
| 90204-30040 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-36470 |
BU85,9# |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-36470 |
BU85,9# |
1 | ||
| Common parts | ||||
| 90170-14012 | ||||
| 90201-14005 | ||||
ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-36180 |
BU85,9# |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-36080 |
BU85,9# |
1 | ||
| 44016 - CASE SUB-ASSY, WORM BEARING | ||||
| 44016-36030 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44101A - SEAL, TYPE T OIL(FOR STEERING WORM) | ||||
| 90029-21010 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44101C - RING, HOLE SNAP(FOR STEERING WORM OIL SEAL) | ||||
| 90029-52002 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20005 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=74 |
1 | ||
| 90029-20006 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=79.4 |
1 | ||
| 96711-19009 |
BU85;BU61,62,64,81,82,9#..DM2,DM3,T2,T3,T4,TW1 ID=8.8 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20005 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=74 |
1 | ||
| 90029-20006 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=79.4 |
1 | ||
| 96711-19009 |
BU85;BU61,62,64,81,82,9#..DM2,DM3,T2,T3,T4,TW1 ID=8.8 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20005 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=74 |
1 | ||
| 90029-20006 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=79.4 |
1 | ||
| 96711-19009 |
BU85;BU61,62,64,81,82,9#..DM2,DM3,T2,T3,T4,TW1 ID=8.8 |
1 | ||
| 44101G - SEAL, DUST(FOR STEERING WORM) | ||||
| 90029-20700 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20007 |
BU85;BU61,62,64,81,82,9#..DM2,DM3,T2,T3,T4,TW1 内径=39.4,ID=39.4 |
1 | ||
| 90029-20009 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT 内径=41 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20007 |
BU85;BU61,62,64,81,82,9#..DM2,DM3,T2,T3,T4,TW1 内径=39.4,ID=39.4 |
1 | ||
| 90029-20009 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT 内径=41 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-56602 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT 内径=42 |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90116-14004 |
BU85,9# |
1 | ||
| 44107K - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-35042 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44107Q - HOUSING SUB-ASSY, STEERING W/NAME PLATE | ||||
| 44107-36180 |
BU85,9# |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-36080 |
BU85,9# |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20008 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=84.4 |
1 | ||
| 90029-20009 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=41 |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20008 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=84.4 |
1 | ||
| 90029-20009 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=41 |
1 | ||
| 44108E - RING(FOR SECTOR COVER) | ||||
| 90029-56602 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-37010 |
BU85;BU61,62,64,81,82,9#..DM2,DM3,T2,T3,T4,TW1 |
1 | ||
| 44164A - RING, POWER PISTON | ||||
| 44164-36040 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44165 - RING, SEAL, NO.1 | ||||
| 44165-36040 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 44167-37010 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-36011 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| Common parts | ||||
| 90029-01002 | ||||
| 91611-61025 | ||||

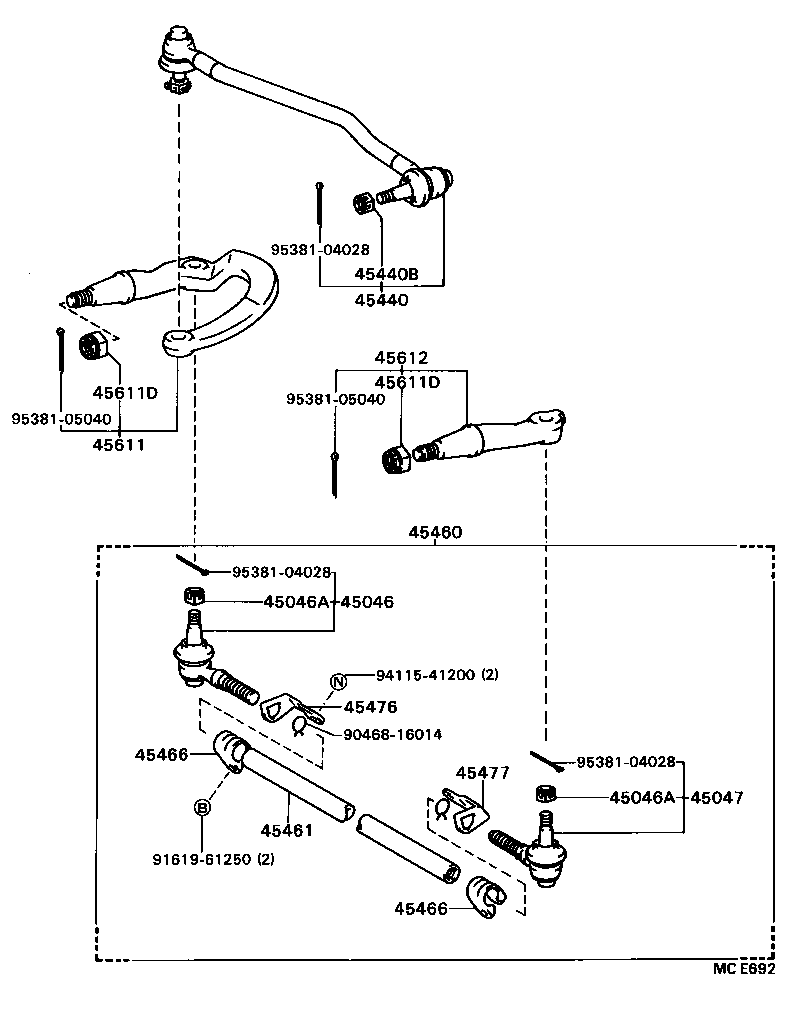

(8708- )BU85,93,98
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39205 |
BU85,9# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 94146-71800 |
BU6#,70,8#,9# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 94146-71800 |
BU6#,70,8#,9# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39125 |
BU85,9# |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-39065 |
BU85,93,98 |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 94146-71800 |
BU6#,70,8#,9# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39285 |
BU85,93,98 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-36070 |
BU85,93,98 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36010 |
BU85,9# |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36010 |
BU85,9# |
2 | ||
| 45476 - PLATE, TURNING STOPPER | ||||
| 45476-36010 |
BU85,9# |
1 | ||
| 45477 - PLATE, STOPPER | ||||
| 45477-36010 |
BU85,9# |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-39045 |
BU85,93,98 |
1 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90179-22007 |
BU6#,70,8#,93,98 |
2 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90179-22007 |
BU6#,70,8#,93,98 |
2 | ||
| 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) | ||||
| 90280-07012 |
BU6#,70,8#,93,98 |
2 | ||
| 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) | ||||
| 90280-07012 |
BU6#,70,8#,93,98 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-39165 |
BU85,93,98 |
1 | ||
| Common parts | ||||
| 90468-16014 | ||||
| 91619-61250 | ||||
| 94115-41200 | ||||
| 95381-04028 | ||||
ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-36070 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-36060 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90116-14004 |
BU85,9# |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-36180 |
BU85,9# |
1 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14034 |
BU85,9# 長さ=150 |
1 | ||
| 90101-14477 |
BU85,9# 長さ=60 |
3 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14034 |
BU85,9# 長さ=150 |
1 | ||
| 90101-14477 |
BU85,9# 長さ=60 |
3 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14034 |
BU85,9# 長さ=150 |
1 | ||
| 90101-14477 |
BU85,9# 長さ=60 |
3 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14034 |
BU85,9# 長さ=150 |
1 | ||
| 90101-14477 |
BU85,9# 長さ=60 |
3 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-30171 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-30171 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44251D - WASHER(FOR PITMAN ARM) | ||||
| 90204-30040 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44251D - WASHER(FOR PITMAN ARM) | ||||
| 90204-30040 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-36470 |
BU85,9# |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-36470 |
BU85,9# |
1 | ||
| Common parts | ||||
| 90170-14012 | ||||
| 90201-14005 | ||||
ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-36180 |
BU85,9# |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-36080 |
BU85,9# |
1 | ||
| 44016 - CASE SUB-ASSY, WORM BEARING | ||||
| 44016-36030 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44101A - SEAL, TYPE T OIL(FOR STEERING WORM) | ||||
| 90029-21010 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44101C - RING, HOLE SNAP(FOR STEERING WORM OIL SEAL) | ||||
| 90029-52002 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20005 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=74 |
1 | ||
| 90029-20006 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=79.4 |
1 | ||
| 96711-19009 |
BU85;BU61,62,64,81,82,9#..DM2,DM3,T2,T3,T4,TW1 ID=8.8 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20005 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=74 |
1 | ||
| 90029-20006 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=79.4 |
1 | ||
| 96711-19009 |
BU85;BU61,62,64,81,82,9#..DM2,DM3,T2,T3,T4,TW1 ID=8.8 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20005 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=74 |
1 | ||
| 90029-20006 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=79.4 |
1 | ||
| 96711-19009 |
BU85;BU61,62,64,81,82,9#..DM2,DM3,T2,T3,T4,TW1 ID=8.8 |
1 | ||
| 44101G - SEAL, DUST(FOR STEERING WORM) | ||||
| 90029-20700 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20007 |
BU85;BU61,62,64,81,82,9#..DM2,DM3,T2,T3,T4,TW1 内径=39.4,ID=39.4 |
1 | ||
| 90029-20009 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT 内径=41 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20007 |
BU85;BU61,62,64,81,82,9#..DM2,DM3,T2,T3,T4,TW1 内径=39.4,ID=39.4 |
1 | ||
| 90029-20009 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT 内径=41 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-56602 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT 内径=42 |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90116-14004 |
BU85,9# |
1 | ||
| 44107K - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-35042 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44107Q - HOUSING SUB-ASSY, STEERING W/NAME PLATE | ||||
| 44107-36180 |
BU85,9# |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-36080 |
BU85,9# |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20008 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=84.4 |
1 | ||
| 90029-20009 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=41 |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20008 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=84.4 |
1 | ||
| 90029-20009 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT ID=41 |
1 | ||
| 44108E - RING(FOR SECTOR COVER) | ||||
| 90029-56602 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-37010 |
BU85;BU61,62,64,81,82,9#..DM2,DM3,T2,T3,T4,TW1 |
1 | ||
| 44164A - RING, POWER PISTON | ||||
| 44164-36040 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44165 - RING, SEAL, NO.1 | ||||
| 44165-36040 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 44167-37010 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-36011 |
BU85,9#;BU62,82..(DM2,DM3,T3,TW1)..WT |
1 | ||
| Common parts | ||||
| 90029-01002 | ||||
| 91611-61025 | ||||
(8708- )WU75,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39205 |
BU85,9# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 94146-71800 |
BU6#,70,8#,9# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 94146-71800 |
BU6#,70,8#,9# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39125 |
BU85,9# |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-39065 |
BU85,93,98 |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 94146-71800 |
BU6#,70,8#,9# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39285 |
BU85,93,98 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-36070 |
BU85,93,98 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36010 |
BU85,9# |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36010 |
BU85,9# |
2 | ||
| 45476 - PLATE, TURNING STOPPER | ||||
| 45476-36010 |
BU85,9# |
1 | ||
| 45477 - PLATE, STOPPER | ||||
| 45477-36010 |
BU85,9# |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-39045 |
BU85,93,98 |
1 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90179-22007 |
BU6#,70,8#,93,98 |
2 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90179-22007 |
BU6#,70,8#,93,98 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-39165 |
BU85,93,98 |
1 | ||
| Common parts | ||||
| 90468-16014 | ||||
| 91619-61250 | ||||
| 94115-41200 | ||||
| 95381-04028 | ||||
| 95381-05040 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
