BU91-MDFTXJ3 (1989)

Toyota Dyna/Toyoace

Production Oct 1989 - May 1995
Engine 14BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )BU78,88,9#

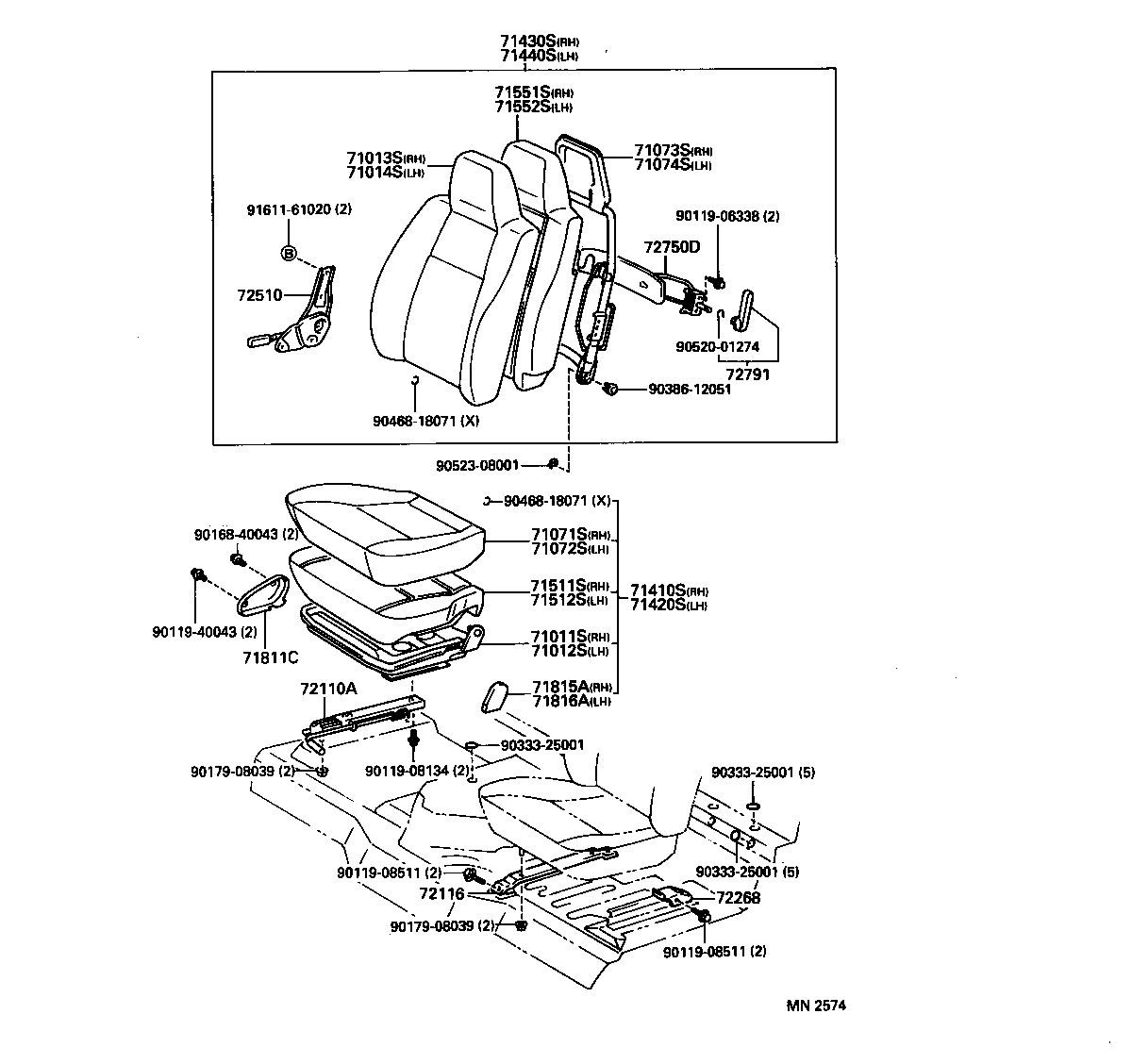

Click highlighted areas on diagram

diagram 71011S 71012S 71013S 71014S 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71811C 71815A 71816A 72110A 72116 72268 72510 72750D 72791 9011906338 9011908134 9011908511 9011908511 9011940043 9016840043 9017908039 9017908039 9033325001 9033325001 9033325001 9038612051 9046818071 9046818071 9052001274 9052308001 9161161020
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95417

BU6#,70,78,8#,9#..CBU,IV3

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71011-95417

BU88..06S;BU88,94..TD;BU6#,70,83,84,87,91,96..CBU,IV3

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71011-95417

BU78,9#;BU88..30T..TD;BU88..03S..DSL;BU88..20T..TD..IV3;BU88..TOY..20T..TD..CBU

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ) OR ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ & ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71011-95417

BU88..06S;BU88,94..TOY..TD;BU78,88,94..DYN..03S;BU6#,70,83,84,87,91,96..CBU,IV3

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71011-95414

BU6#,70,78,8#,9#

 1
71011-95418

BU78,9#;BU88..30T..TD;BU88..03S..DSL;BU88..20T..TD..IV3;BU88..TOY..20T..TD..CBU

ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ) OR ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ & ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-95418

BU78,9#;BU88..30T..TD;BU88..03S..DSL;BU88..20T..TD..IV3;BU88..TOY..20T..TD..CBU

ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ)

 1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-95413

BU6#,70,78,8#,9#

 1
71013-37030

BU6#,70,78,8#,9#

 1
71013-37010

BU87,88,9#;BU66..275,30T;BU67,70,78,83,84..DM1,DM4,HRF,SRF,T2,T4;BU60,66..(DM2,DM3,DM5,T1,TW1,TW2,TW4)..(CBU,IV3)

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71013-37030

BU78,88,9#;BU60,66,70,87..HRF,SRF,TW1,TW2,TW4

 1
71013-37010

BU6#,70,78,8#,9#..CBU,IV3

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71013-95412

BU6#,70,78,8#,9#..CBU,IV3

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-9541901

BU78,85,88,9#..TOY..03S

BLACK,TRIM8#

 1
71014-9541901

BU78,88,9#..03S

BLACK,TRIM1#

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-95B0204

BU6#,78,8#,9#..TOY..03S

BLUE,TRIM8#

 1
71071-37090D1

BU96..4FC..TD;BU87,96..TR..5F..03S;BU67,78,88,91,94..03S;BU66..DM2,DM3,DM5,T2,T3,T4

ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),RED,TRIM1#

 1
71071-9547104

BU96..TOY..4FC..TD;BU87,96..TOY..5F..03S;BU66..TOY..(DM2,DM3,DM5,T2,T3,T4);BU67,78,85,88,90,91,94,95..TOY..03S

ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71071-9547204

BU6#,78,8#,9#..TOY

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71071-37020B1

BU6#,70,78,8#,9#..CBU,IV3

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),GRAY,TRIM1#

 1
71071-37090D1

BU96..4FC..TD;BU87..03S..(20T,30T);BU67,78,88,91,94..03S;BU87,96..5F..(275,35T);BU66..DM2,DM3,DM5,T2,T3,T4

ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),RED,TRIM1#

 1
71071-37080B1

BU6#,78,8#,9#..03S

GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-95B4304

BU78,85,88,9#..TOY

BLUE,TRIM8#

 1
71072-95B5004

BU96..TOY..5F;BU96..TOY..4FC..TD;BU78,85,88,90,91,94,95..TOY..03S

ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71072-95B5104

BU96..TOY..5F;BU96..TOY..4FC..TD;BU78,85,88,90,91,94,95..TOY..03S

(ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71072-95B4504

BU78,85,88,9#..TOY..03S

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,BLUE,TRIM8#

 1
71072-37270B1

BU78,88,9#

GRAY,TRIM1#

 1
71072-37320D1

BU96..5F;BU96..4FC..TD;BU78,88,91,94..03S

(ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),RED,TRIM1#

 1
71072-37310D1

BU96..5F;BU96..4FC..TD;BU78,88,91,94..03S

ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),RED,TRIM1#

 1
71072-37280B1

BU78,88,9#..03S

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,GRAY,TRIM1#

 1
71071-37080B1

BU78,9#;BU88..30T..TD;BU88..03S..DSL;BU88..20T..TD..IV3;BU88..TOY..20T..TD..CBU

ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ) OR ((ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ)),GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9547904

BU6#,78,8#,9#..TOY..03S

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71073-9548404

BU6#,78,8#,9#..TOY..03S

BLUE,TRIM8#

 1
71073-9548004

BU96..TOY..4FC..TD;BU87,96..TOY..5F..03S;BU66..TOY..(DM2,DM3,DM5,T2,T3,T4);BU67,78,85,88,90,91,94,95..TOY..03S

ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71073-37090D0

BU96..4FC..TD;BU87,96..TR..5F..03S;BU67,78,88,91,94..03S;BU66..DM2,DM3,DM5,T2,T3,T4

ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),RED,TRIM1#

 1
71073-37080B1

BU6#,78,8#,9#..03S

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),GRAY,TRIM1#

 1
71073-37090D0

BU96..4FC..TD;BU87..03S..(20T,30T);BU67,78,88,91,94..03S;BU87,96..5F..(275,35T);BU66..DM2,DM3,DM5,T2,T3,T4

ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),RED,TRIM1#

 1
71073-37260B0

BU6#,78,8#,9#..03S

GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-95B2704

BU78,85,88,9#..TOY..03S

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,BLUE,TRIM8#

 1
71074-95B3304

BU78,85,88,9#..TOY..03S

BLUEN,TRIM8#

 1
71074-95B3404

BU96..TOY..5F;BU96..TOY..4FC..TD;BU78,85,88,90,91,94,95..TOY..03S

ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71074-95B2804

BU96..TOY..5F;BU96..TOY..4FC..TD;BU78,85,88,90,91,94,95..TOY..03S

(ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71074-37350D0

BU96..5F;BU96..4FC..TD;BU78,88,91,94..03S

ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),RED,TRIM1#

 1
71074-37340B1

BU78,88,9#..03S

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,GRAY,TRIM1#

 1
71073-37070B1

BU78,9#;BU88..30T..TD;BU88..03S..DSL;BU88..20T..TD..IV3;BU88..TOY..20T..TD..CBU

ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ) OR ((ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ)),GRAY,TRIM1#

 1
71074-37330B1

BU78,88,9#..03S

GRAY,TRIM1#

 1
71074-37360D0

BU96..5F;BU96..4FC..TD;BU78,88,91,94..03S

(ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),RED,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9545904

BU6#,78,8#,9#..TOY..03S

***,BLUE,TRIM8#

 1
71410-9546304

BU96..TOY..4FC..TD;BU87,96..TOY..5F..03S;BU66..TOY..(DM2,DM3,DM5,T2,T3,T4);BU67,78,85,88,90,91,94,95..TOY..03S

***,ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71410-37040B0

BU88..06S;BU88,94..TD;BU6#,70,83,84,87,91,96..CBU,IV3

***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),GRAY,TRIM1#

 1
71410-37110D0

BU96..4FC..TD;BU87,96..TR..5F..03S;BU67,78,88,91,94..03S;BU66..DM2,DM3,DM5,T2,T3,T4

***,ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),RED,TRIM1#

 1
71410-9546404

BU6#,78,8#,9#..TOY

***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71410-37110D0

BU96..4FC..TD;BU87..03S..(20T,30T);BU67,78,88,91,94..03S;BU87,96..5F..(275,35T);BU66..DM2,DM3,DM5,T2,T3,T4

***,ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),RED,TRIM1#

 1
71410-37100B0

BU6#,78,8#,9#..03S

***,GRAY,TRIM1#

 1
71410-37260B0

BU78,9#;BU88..30T..TD;BU88..03S..DSL;BU88..20T..TD..IV3;BU88..TOY..20T..TD..CBU

***,ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ),GRAY,TRIM1#

 1
71410-37040B0

BU78,9#;BU88..30T..TD;BU88..03S..DSL;BU88..TOY..20T..TD

***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ) OR ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ & ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),GRAY,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-95B2904

BU78,85,88,9#..TOY

***,BLUE,TRIM8#

 1
71420-95B3104

BU78,85,88,9#..TOY..03S

***,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,BLUE,TRIM8#

 1
71420-95B3704

BU96..TOY..5F;BU96..TOY..4FC..TD;BU78,85,88,90,91,94,95..TOY..03S

***,(ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71420-95B3604

BU96..TOY..5F;BU96..TOY..4FC..TD;BU78,85,88,90,91,94,95..TOY..03S

***,ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71420-37280B0

BU78,88,9#

***,GRAY,TRIM1#

 1
71410-37260B0

BU78,9#;BU88..30T..TD;BU88..03S..DSL;BU88..20T..TD..IV3;BU88..TOY..20T..TD..CBU

***,ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ) OR ((ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ)),GRAY,TRIM1#

 1
71420-37290B0

BU78,88,9#..03S

***,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,GRAY,TRIM1#

 1
71420-37330D0

BU96..5F;BU96..4FC..TD;BU78,88,91,94..03S

***,(ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),RED,TRIM1#

 1
71420-37320D0

BU96..5F;BU96..4FC..TD;BU78,88,91,94..03S

***,ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),RED,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9546104

BU6#,78,8#,9#..TOY..03S

***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71430-9546204

BU96..TOY..4FC..TD;BU87,96..TOY..5F..03S;BU66..TOY..(DM2,DM3,DM5,T2,T3,T4);BU67,78,85,88,90,91,94,95..TOY..03S

***,ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71430-9546904

BU6#,78,8#,9#..TOY..03S

***,BLUE,TRIM8#

 1
71430-37090D0

BU96..4FC..TD;BU87,96..TR..5F..03S;BU67,78,88,91,94..03S;BU66..DM2,DM3,DM5,T2,T3,T4

***,ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),RED,TRIM1#

 1
71430-37080B0

BU6#,78,8#,9#..03S

***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),GRAY,TRIM1#

 1
71430-37090D0

BU96..4FC..TD;BU87..03S..(20T,30T);BU67,78,88,91,94..03S;BU87,96..5F..(275,35T);BU66..DM2,DM3,DM5,T2,T3,T4

***,ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),RED,TRIM1#

 1
71430-37260B0

BU6#,78,8#,9#..03S

***,GRAY,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-95B1004

BU96..TOY..5F;BU96..TOY..4FC..TD;BU78,85,88,90,91,94,95..TOY..03S

***,(ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71440-95B1204

BU78,85,88,9#..TOY..03S

***,BROWN,TRIM8#

 1
71440-95B1304

BU96..TOY..5F;BU96..TOY..4FC..TD;BU78,85,88,90,91,94,95..TOY..03S

***,ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),BLUE,TRIM8#

 1
71440-95B0904

BU78,85,88,9#..TOY..03S

***,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,BLUE,TRIM8#

 1
71440-37350B0

BU78,88,9#..03S

***,GRAY,TRIM1#

 1
71440-37360B0

BU78,88,9#..03S

***,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,GRAY,TRIM1#

 1
71440-37370D0

BU96..5F;BU96..4FC..TD;BU78,88,91,94..03S

***,ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),RED,TRIM1#

 1
71440-37380D0

BU96..5F;BU96..4FC..TD;BU78,88,91,94..03S

***,(ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ),RED,TRIM1#

 1
71430-37070B0

BU78,9#;BU88..30T..TD;BU88..03S..DSL;BU88..20T..TD..IV3;BU88..TOY..20T..TD..CBU

***,ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ) OR ((ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ)),GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95400

BU6#,70,78,8#,9#

 1
71511-95404

BU6#,70,78,8#,9#..CBU,IV3

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-95402

BU78,85,88,9#

 1
71502-95402

BU96..5F;BU96..4FC..TD;BU78,88,91,94..03S

ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 1
71511-95400

BU78,9#;BU88..30T..TD;BU88..03S..DSL;BU88..20T..TD..IV3;BU88..TOY..20T..TD..CBU

ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ)

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37010

BU96..4FC..TD;BU87,96..TR..5F..03S;BU67,78,88,91,94..03S;BU66..DM2,DM3,DM5,T2,T3,T4

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ & ﾗﾝﾊﾞ ｻﾎﾟ-ﾄ)

 1
71551-95404

BU6#,78,8#,9#..03S

 1
71551-37010

BU96..4FC..TD;BU87..03S..(20T,30T);BU67,78,88,91,94..03S;BU87,96..5F..(275,35T);BU66..DM2,DM3,DM5,T2,T3,T4

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ & ﾗﾝﾊﾞ ｻﾎﾟ-ﾄ)

 1
71551-95404

BU6#,70,78,8#,9#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-95408

BU96..5F;BU96..4FC..TD;BU78,85,88,90,91,94,95..03S

ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ)

 2
71551-95404

BU78,9#;BU88..30T..TD;BU88..03S..DSL;BU88..20T..TD..IV3;BU88..TOY..20T..TD..CBU

ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ)

 1
71552-95408

BU96..5F;BU96..4FC..TD;BU78,88,91,94..03S

ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ & ﾗﾝﾊﾞ ｻﾎﾟ-ﾄ)

 1
71552-95408

BU78,85,88,9#..03S

 1
71811C - COVER, RECLINING ADJUSTER, RH
71811-95J01B0

BU6#,7#,8#,9#

GRAY,TRIM1#

 1
71811-95J0114

BU6#,72,74,78,8#,9#..TOY

BLUE,TRIM8#

 1
71811-95J01B0

BU78,9#;BU88..30T..TD;BU88..03S..DSL;BU88..20T..TD..IV3;BU88..TOY..20T..TD..CBU

2ｻﾞｾｷ ｼ-ﾄ,GRAY,TRIM1#

 2
71815A - COVER, FRONT SEAT CUSHION HINGE, RH
71815-95J0014

BU6#,72,74,78,8#,9#..TOY

BLUE,TRIM8#

 1
71815-95J00B0

BU6#,7#,8#,9#

GRAY,TRIM1#

 1
71816A - COVER, FRONT SEAT CUSHION HINGE, LH
71815-95J00B0

BU78,9#;BU88..30T..TD;BU88..03S..DSL;BU88..20T..TD..IV3;BU88..TOY..20T..TD..CBU

ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ),GRAY,TRIM1#

 1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-95408

BU78,9#;BU88..30T..TD;BU88..03S..DSL;BU88..20T..TD..IV3;BU88..TOY..20T..TD..CBU

ｱﾘ(RH,LH ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ)

 2
72110-95408

BU6#,7#,8#,9#

 1
72116 - RAIL, SEAT TRACK, LOWER LH
72116-95402

BU78,88,9#..03S

 1
72268 - PLATE, SEAT TRACK STOP, NO.2
72268-95400

BU78,88,9#..03S

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-95J0014

BU6#,72,74,78,8#,9#..TOY

BLUE,TRIM8#

 1
72510-95J0011

BU6#,7#,8#,9#

GRAY,TRIM1#

 1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-37010

BU6#,70,78,8#,9#

 1
72791 - LEVER, LUMBAR SUPPORT
72791-20030B0

BU6#,7#,8#,9#

GRAY,TRIM1#

 1
Common parts
90119-06338
90119-08134
90119-08511
90119-40043
90168-40043
90179-08039
90333-25001
90386-12051
90468-18071
90520-01274
90523-08001
91611-61020
