BU90-MDFTX (1988)
Toyota Dyna/Toyoace

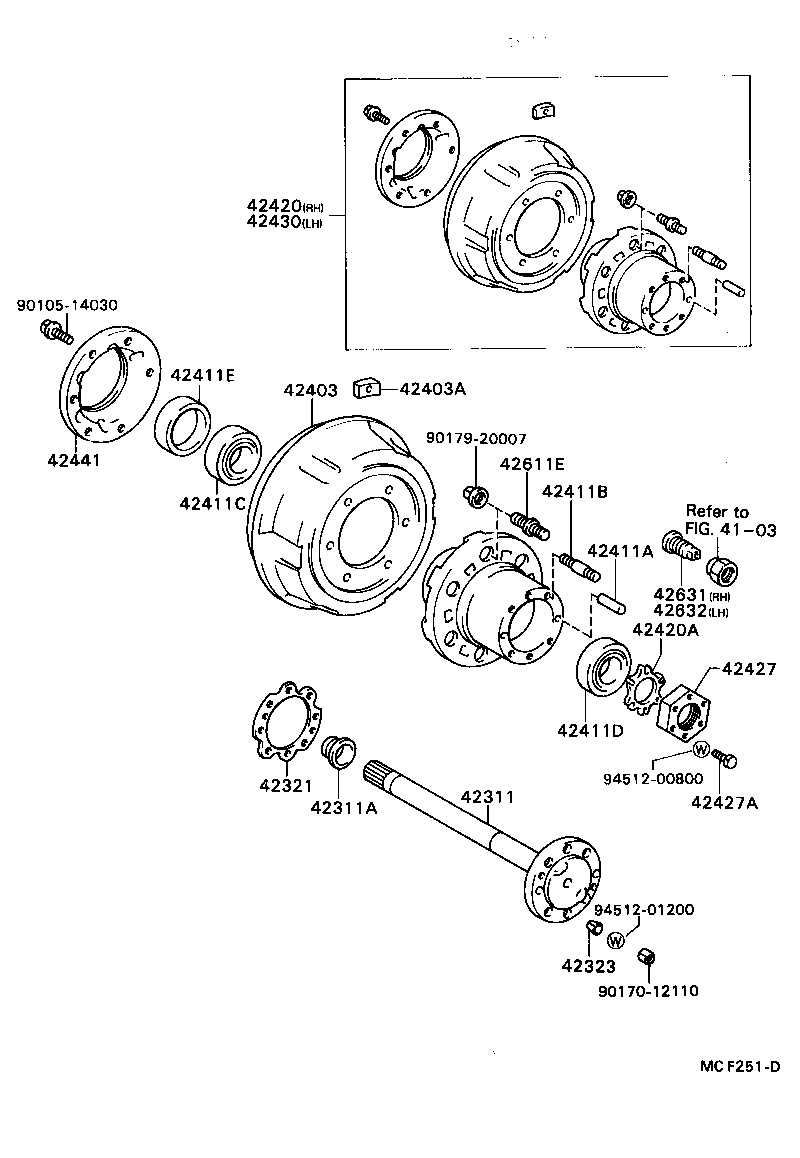

(8808- )BU90,91,95,96
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36131 |
BU90,91,95,96 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-41001 |
BU90,91,95,96 |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36020 |
BU90,91,95,96 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36020 |
BU90,91,95,96 |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36110 |
BU90,91,95,96 |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01117 |
BU90,91,95,96 10G |
1 | ||
| 90937-01122 |
BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,9#..DM1,DM4,T3,T4,TW1 60G |
1 | ||
| 90937-01121 |
BU90,91,95,96 50G |
1 | ||
| 90937-01119 |
BU90,91,95,96 30G |
1 | ||
| 90937-01120 |
BU90,91,95,96 40G |
1 | ||
| 90937-01118 |
BU90,91,95,96 20G |
1 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-13066 |
BU90,91,95,96 |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-12009 |
BU90,91,95,96 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-66006 |
BU90,91,95,96 |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-57046 |
BU90,91,95,96 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-88102 |
BU90,91,95,96 |
2 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36120 |
BU90,91,95,96 |
1 | ||
| 42420A - WASHER, CLAW (FOR REAR AXLE SHAFT) | ||||
| 90214-57002 |
BU90,91,95,96 |
2 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36020 |
BU90,91,95,96 |
2 | ||
| 42427A - BOLT (FOR REAR AXLE BEARING LOCK NUT SET) | ||||
| 90109-08015 |
BU90,91,95,96 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36120 |
BU90,91,95,96 |
1 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-36040 |
BU90,91,95,96 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02046 |
BU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,9#..DM1,DM4,T3,T4,TW1 左側 |
1 | ||
| 90942-02045 |
BU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,9#..DM1,DM4,T3,T4,TW1 右側 |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-55031 |
BU90,91,95,96 |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-55031 |
BU90,91,95,96 |
6 | ||
| Common parts | ||||
| 90105-14030 | ||||
| 90170-12110 | ||||
| 90179-20007 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
| Linked diagrams | ||||
| 4103 | ||||

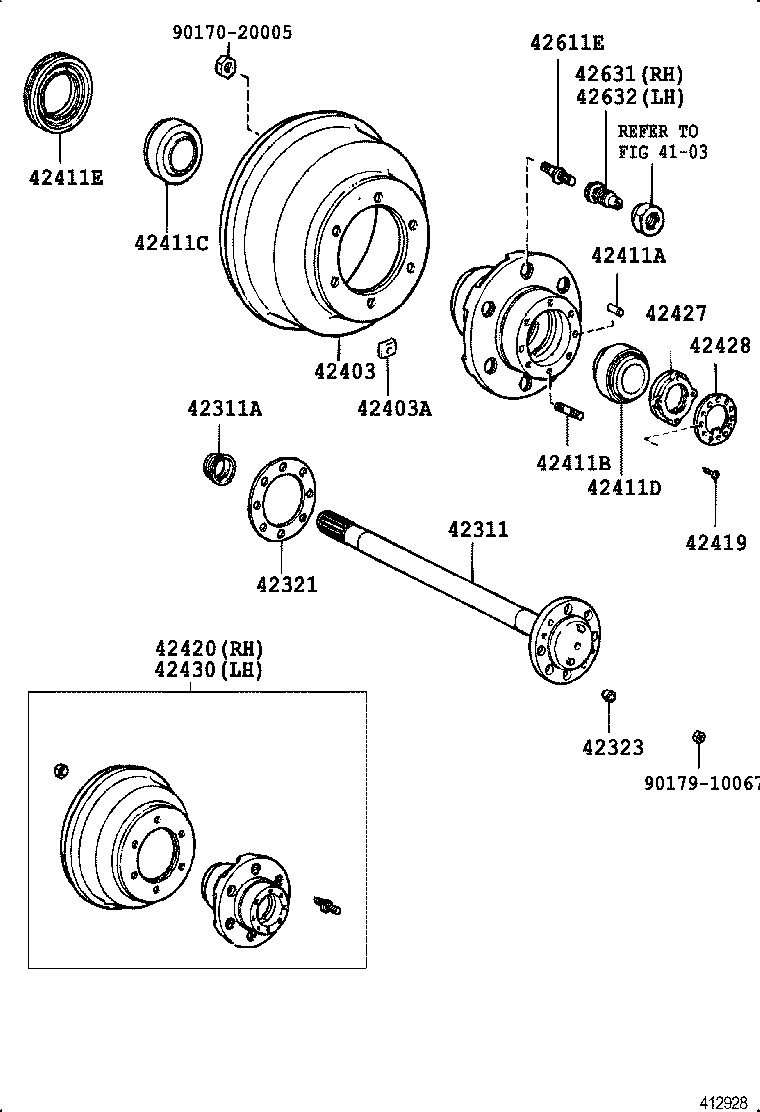

(8808- )BU67,68,73,74,85,94 ; (8808- )BU60,66,72,87..DM1,DM3,DM4,T1,T3,TW1 ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36131 |
BU90,91,95,96 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-41001 |
BU90,91,95,96 |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36020 |
BU90,91,95,96 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36020 |
BU90,91,95,96 |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36110 |
BU90,91,95,96 |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01117 |
BU90,91,95,96 10G |
1 | ||
| 90937-01122 |
BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,9#..DM1,DM4,T3,T4,TW1 60G |
1 | ||
| 90937-01121 |
BU90,91,95,96 50G |
1 | ||
| 90937-01119 |
BU90,91,95,96 30G |
1 | ||
| 90937-01120 |
BU90,91,95,96 40G |
1 | ||
| 90937-01118 |
BU90,91,95,96 20G |
1 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-13066 |
BU90,91,95,96 |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-12009 |
BU90,91,95,96 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-66006 |
BU90,91,95,96 |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-57046 |
BU90,91,95,96 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-88102 |
BU90,91,95,96 |
2 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36120 |
BU90,91,95,96 |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36020 |
BU90,91,95,96 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36120 |
BU90,91,95,96 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02046 |
BU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,9#..DM1,DM4,T3,T4,TW1 左側 |
1 | ||
| 90942-02045 |
BU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,9#..DM1,DM4,T3,T4,TW1 右側 |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-55031 |
BU90,91,95,96 |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-55031 |
BU90,91,95,96 |
6 | ||
| Common parts | ||||
| 90170-20005 | ||||
| 90179-10067 | ||||
| Linked diagrams | ||||
| 4103 | ||||

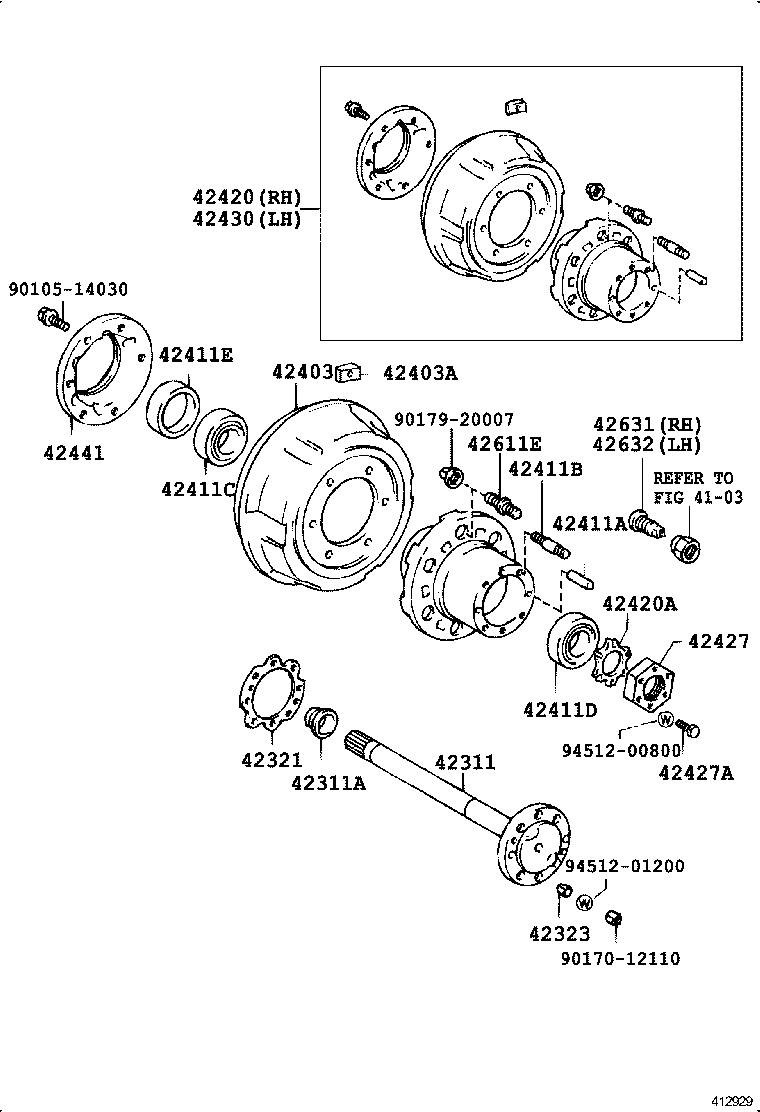

(8808- )BU90,91,95,96
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36131 |
BU90,91,95,96 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-41001 |
BU90,91,95,96 |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36020 |
BU90,91,95,96 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36020 |
BU90,91,95,96 |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36110 |
BU90,91,95,96 |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01117 |
BU90,91,95,96 10G |
1 | ||
| 90937-01122 |
BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,9#..DM1,DM4,T3,T4,TW1 60G |
1 | ||
| 90937-01121 |
BU90,91,95,96 50G |
1 | ||
| 90937-01119 |
BU90,91,95,96 30G |
1 | ||
| 90937-01120 |
BU90,91,95,96 40G |
1 | ||
| 90937-01118 |
BU90,91,95,96 20G |
1 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-13066 |
BU90,91,95,96 |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-12009 |
BU90,91,95,96 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-66006 |
BU90,91,95,96 |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-57046 |
BU90,91,95,96 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-88102 |
BU90,91,95,96 |
2 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36120 |
BU90,91,95,96 |
1 | ||
| 42420A - WASHER, CLAW (FOR REAR AXLE SHAFT) | ||||
| 90214-57002 |
BU90,91,95,96 |
2 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36020 |
BU90,91,95,96 |
2 | ||
| 42427A - BOLT (FOR REAR AXLE BEARING LOCK NUT SET) | ||||
| 90109-08015 |
BU90,91,95,96 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36120 |
BU90,91,95,96 |
1 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-36040 |
BU90,91,95,96 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02046 |
BU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,9#..DM1,DM4,T3,T4,TW1 左側 |
1 | ||
| 90942-02045 |
BU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,9#..DM1,DM4,T3,T4,TW1 右側 |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-55031 |
BU90,91,95,96 |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-55031 |
BU90,91,95,96 |
6 | ||
| Common parts | ||||
| 90105-14030 | ||||
| 90170-12110 | ||||
| 90179-20007 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(8808- )WU75,90,95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-14030 | ||||
| 90170-12110 | ||||
| 90179-20007 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
| Linked diagrams | ||||
| 4103 | ||||
