BU90-MDFTX (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

diagram 31111 31111 31121 31121 33118 33118 33119 33119 33131 33131A 33132 9011908092 9161160825 9161161030 9161161030 9161161030 9161161030 9161161040 9161161040 9161161045 9161161045 9161161045 9161161045 9161161045 9161161045 9161961235 9161961235 9161961245 9161961250 9161961250 9165161050
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-36220

BU6#,70,8#,9#..5F..(CBU,IV3)

 1
31111-36221

BU6#,70,8#,9#..5F..(CBU,IV3)

 1
31111 - HOUSING, CLUTCH
31111-36220

BU6#,70,8#,9#..5F..(CBU,IV3)

 1
31111-36221

BU6#,70,8#,9#..5F..(CBU,IV3)

 1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-36040

BU6#,70,8#,9#..5F

 1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-36040

BU6#,70,8#,9#..5F

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-36021

BU6#,70,8#,9#..5F

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-36021

BU6#,70,8#,9#..5F

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-36020

BU6#,70,8#,9#..5F

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-36020

BU6#,70,8#,9#..5F

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-36050

BU6#,70,8#,9#..5F..(CBU,IV3)

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012

BU6#,70,8#,9#..5F..(CBU,IV3)

 1
Common parts
90119-08092
91611-60825
91611-61030
91611-61040
91611-61045
91619-61235
91619-61245
91619-61250
91651-61050

(8708- )CBU,IV3

Click highlighted areas on diagram

diagram 33101 33104 33104A 33111A 33111C 33111J 33111J 33111U 33111X 33124C 33131 33131A 33141A 33151 33161 33162 33449B 9011908332 9011910121 9011910186 9011910390 9161160610 9161160812 9161161016 9161161030 9161161045
Part # Description Qty Price
33101 - CASE SUB-ASSY, MANUAL TRANSMISSION
33101-36050

BU6#,70,8#,9#..5F..(CBU,IV3)

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

BU6#,70,8#,9#..5F..(CBU,IV3)

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

BU6#,70,8#,9#..5F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006

BU6#,70,8#,9#..5F

 1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-11600

BU6#,70,8#,9#..5F..(CBU,IV3)

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12146

BU6#,70,8#,9#..5F

長さ=17,外径=12

 2
90250-12216

BU6#,70,8#,9#..5F

長さ=14,外径=12

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12146

BU6#,70,8#,9#..5F

長さ=17,外径=12

 2
90250-12216

BU6#,70,8#,9#..5F

長さ=14,外径=12

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001

BU6#,70,8#,9#..5F..(CBU,IV3)

長さ=11,外径=11

 1
90253-13017

BU6#,70,8#,9#..5F..(CBU,IV3)

長さ=12,外径=13

 2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008

BU6#,70,8#,9#..5F

 1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-36030

BU6#,70,8#,9#..5F..(CBU,IV3)

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-36050

BU6#,70,8#,9#..5F..(CBU,IV3)

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012

BU6#,70,8#,9#..5F..(CBU,IV3)

 1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
90311-48011

BU6#,70,8#,9#..5F..(CBU,IV3)

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33017-36010

BU6#,70,8#,9#..5F..(CBU,IV3)

 1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36010

BU6#,70,8#,9#..5F

 1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020

BU6#,70,8#,9#..5F

 1
33449B - MAGNET, TRANSMISSION
33449-36010

BU6#,70,8#,9#..5F..(CBU,IV3)

 1
Common parts
90119-08332
90119-10121
90119-10186
90119-10390
91611-60610
91611-60812
91611-61016
91611-61030
91611-61045

(8708- )WU75,9#

Click highlighted areas on diagram

diagram 33104 33104A 33111 33111A 33111J 33111J 33111J 33111X 33124C 33141A 33141F 33142 33151 33161 33162 9010112412 9011910121 9161160825 9161161016 9161961235 9161961245 9161961260 9161961265 9451201200
Part # Description Qty Price
Common parts
90101-12412
90119-10121
91611-60825
91611-61016
91619-61235
91619-61245
91619-61260
91619-61265
94512-01200

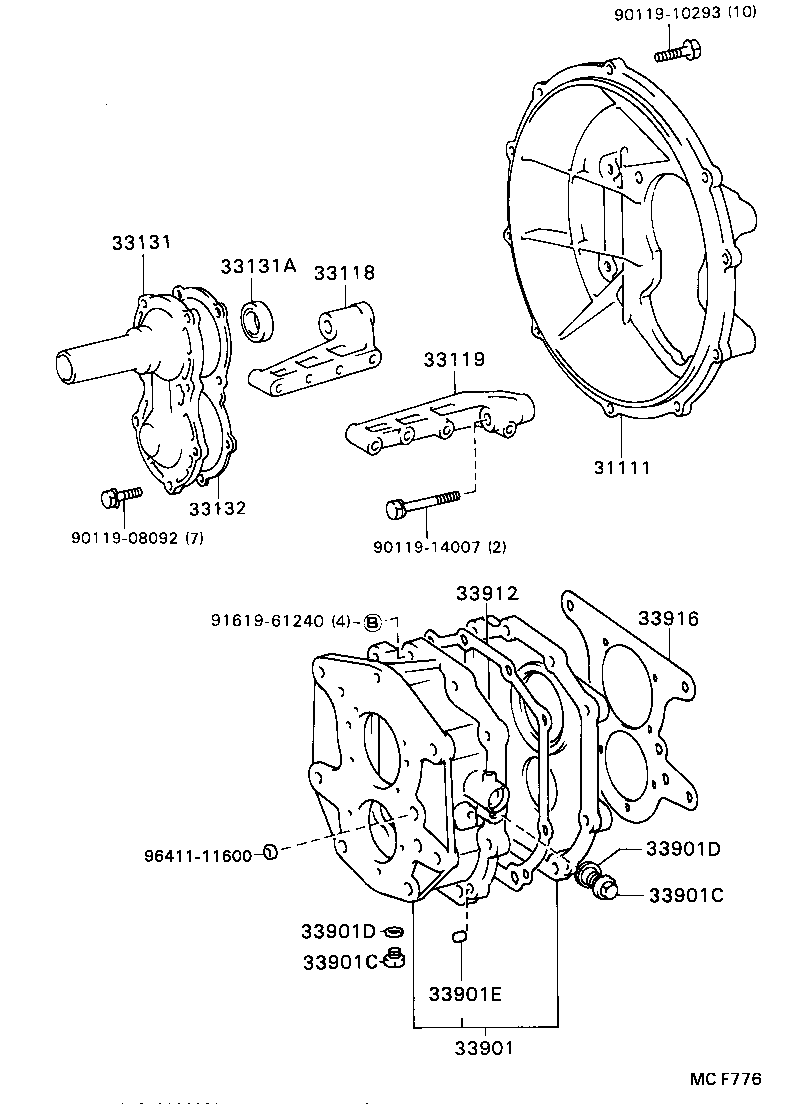

(8708- )WU75,9#

Click highlighted areas on diagram

diagram 31111 33118 33119 33131 33131A 33132 33901 33901C 33901C 33901D 33901D 33901E 33912 33916 9011908092 9011910293 9011914007 9161961240 9641111600
Part # Description Qty Price
Common parts
90119-08092
90119-10293
90119-14007
91619-61240
96411-11600
