BU90-MDFTX (1987)
Toyota Dyna/Toyoace

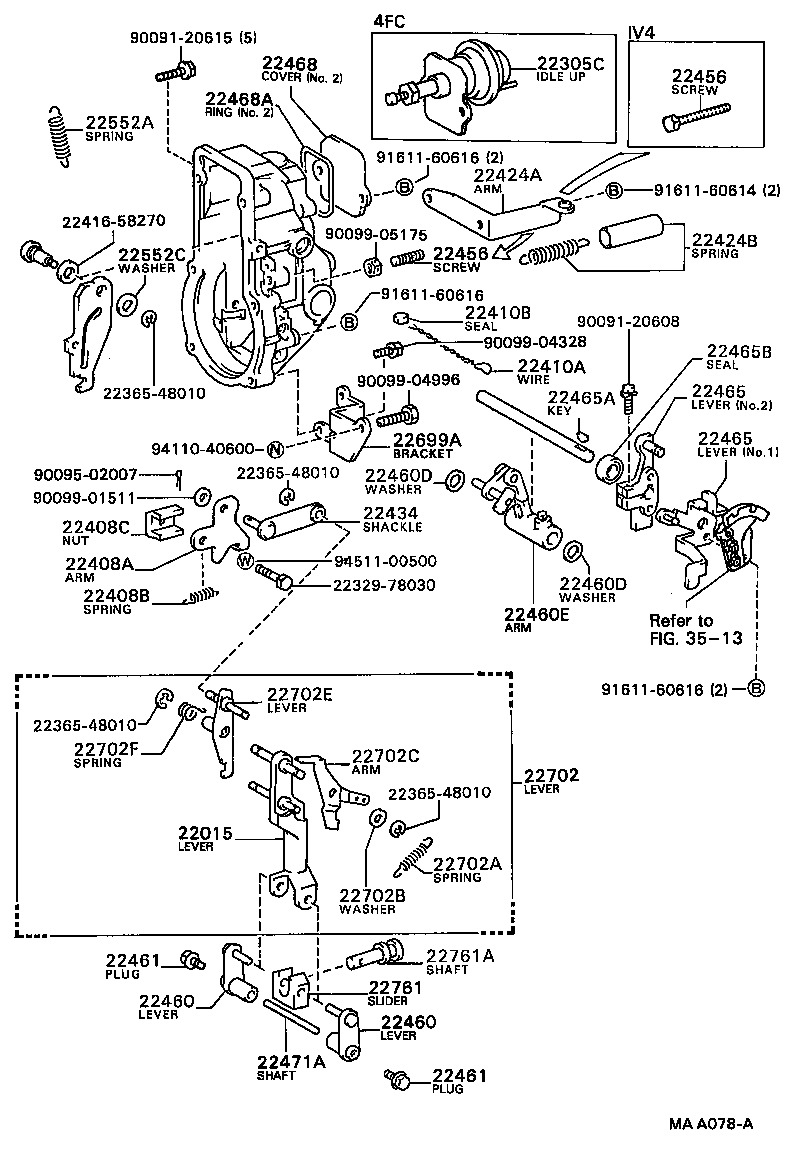

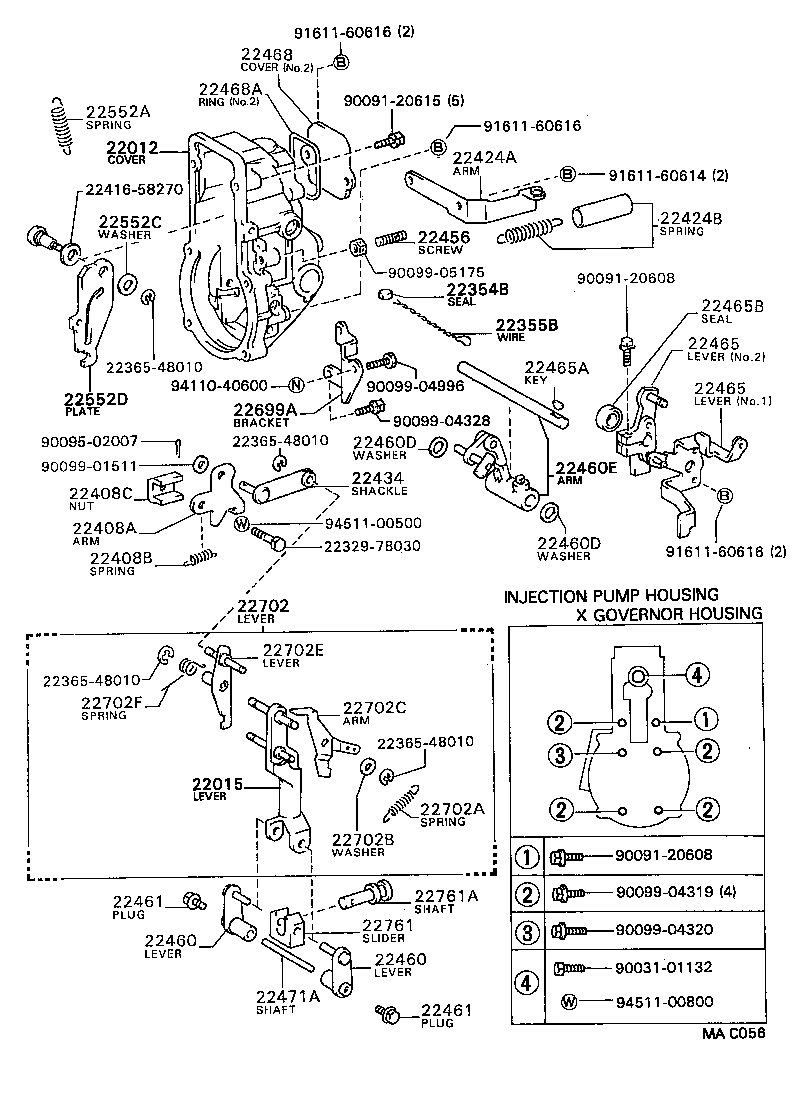

ILLUST NO. 2 OF 2(8708- )11B,13B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22408A - ARM SUB-ASSY(FOR CONTROL LACK) | ||||
| 22408-78031 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22408B - SPRING, RETURN(FOR ARM) | ||||
| 22432-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22408C - NUT, ARM | ||||
| 22428-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22424A - ARM, SPRING | ||||
| 22424-58230 |
11B,13B#..BU61,62,64,81,82,85,9#..5F |
1 | ||
| 22424B - SPRING, RETURN(FOR SPRING ARM) | ||||
| 22440-78030 |
13BT..BU85,90,95 |
1 | ||
| 22434 - SHACKLE | ||||
| 22016-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22456 - SCREW, STOP | ||||
| 22776-78032 |
13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22456 - SCREW, STOP | ||||
| 22776-78032 |
13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22460 - LEVER SUB-ASSY, SUPPORT | ||||
| 22011-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22460 - LEVER SUB-ASSY, SUPPORT | ||||
| 22011-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22460D - WASHER, LOCK(FOR STEERING LEVER) | ||||
| 22416-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.75 |
2 | ||
| 22737-78037 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.60 |
2 | ||
| 22737-78038 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 厚さ=0.65 |
2 | ||
| 22737-78039 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 厚さ=0.70 |
2 | ||
| 22460D - WASHER, LOCK(FOR STEERING LEVER) | ||||
| 22416-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.75 |
2 | ||
| 22737-78037 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.60 |
2 | ||
| 22737-78038 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 厚さ=0.65 |
2 | ||
| 22737-78039 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 厚さ=0.70 |
2 | ||
| 22460E - ARM ASSY, GUIDE | ||||
| 22460-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22461 - PLUG, SCREW | ||||
| 22446-78030 |
13BT..BU85,90,95 GOVERNOR COVER |
2 | ||
| 22129-78030 |
13BT..BU85,90,95 FULL ROAD STOPPER HO |
1 | ||
| 22461 - PLUG, SCREW | ||||
| 22446-78030 |
13BT..BU85,90,95 GOVERNOR COVER |
2 | ||
| 22129-78030 |
13BT..BU85,90,95 FULL ROAD STOPPER HO |
1 | ||
| 22465 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-58270 |
13BT..BU85,90,95 |
1 | ||
| 22701-58231 |
11B,13B#..BU61,62,64,81,82,85,9# NO.2 |
1 | ||
| 22465 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-58270 |
13BT..BU85,90,95 |
1 | ||
| 22701-58231 |
11B,13B#..BU61,62,64,81,82,85,9# NO.2 |
1 | ||
| 22465A - KEY, WOODRUFF(FOR ADJUSTING LEVER) | ||||
| 90099-13013 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22465B - SEAL, OIL(FOR ADJUSTING LEVER) | ||||
| 90099-15022 |
13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22468 - COVER, PLATE | ||||
| 22458-78030 |
11B,13B#..BU61,62,64,81,82,85,9#..5F NO.2 |
1 | ||
| 22458-58270 |
13BT..BU85,90,95 NO.1 |
1 | ||
| 22468A - O, RING | ||||
| 90099-14039 |
13BT..BU85,90,95 NO.1 |
1 | ||
| 90099-14069 |
13BT..BU85,90,95 NO.2 |
2 | ||
| 22471A - SHAFT, LEVER SUPPORTING | ||||
| 22558-78031 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22552A - SPRING, RETURN(FOR CAM PLATE) | ||||
| 22432-78031 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22699A - BRACKET, ADJUSTING | ||||
| 22562-58230 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22702 - LEVER ASSY, FLOATING | ||||
| 22702-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22702A - SPRING, FLOATING ARM | ||||
| 22432-78032 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22702B - WASHER, PLATE(FOR FLOATING LEVER) | ||||
| 90099-01519 |
11B,13B#..BU61,62,64,81,82,85,9#..CBU,IV3 厚さ=0.40 |
1 | ||
| 22702C - ARM, FLOATING | ||||
| 22014-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22702E - LEVER SUB-ASSY, CONTROL | ||||
| 22490-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22702F - SPRING, RETURN(FOR CONTROL LEVER) | ||||
| 22432-78033 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22761 - SLIDER(FOR SPEED CONTROL) | ||||
| 22761-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22761A - SHAFT, SLIDING WEIGHT | ||||
| 22752-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 長さ=31.9 |
1 | ||
| 22752-78033 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 長さ=31.3 |
1 | ||
| 22752-78031 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 長さ=31.7 |
1 | ||
| 22752-78034 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 長さ=31.1 |
1 | ||
| 22752-78032 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 長さ=31.5 |
1 | ||
| 22752-78036 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 長さ=30.7 |
1 | ||
| 22752-78035 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 長さ=30.9 |
1 | ||
| Common parts | ||||
| 22329-78030 | ||||
| 22365-48010 | ||||
| 22416-58270 | ||||
| 90091-20608 | ||||
| 90091-20615 | ||||
| 90095-02007 | ||||
| 90099-01511 | ||||
| 90099-04328 | ||||
| 90099-04996 | ||||
| 90099-05175 | ||||
| 91611-60614 | ||||
| 91611-60616 | ||||
| 94110-40600 | ||||
| 94511-00500 | ||||
| Linked diagrams | ||||
| 3513 | ||||

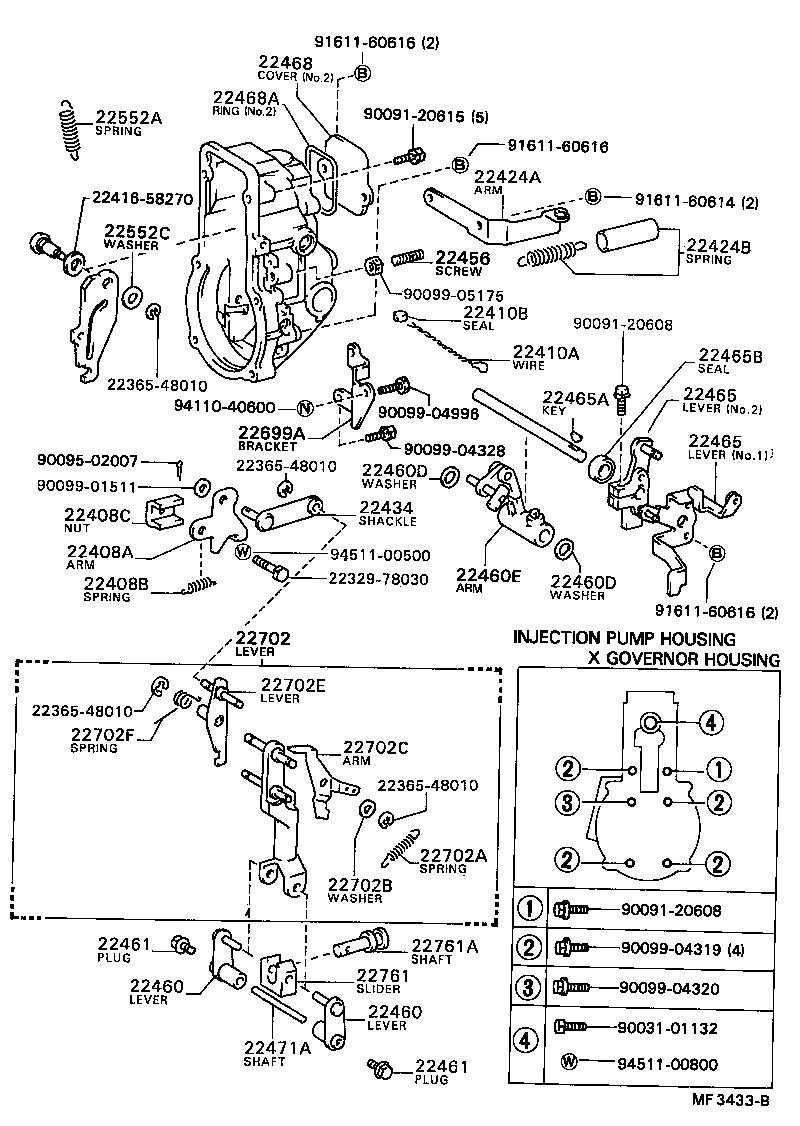

ILLUST NO. 2 OF 2(8708- )13BT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22408A - ARM SUB-ASSY(FOR CONTROL LACK) | ||||
| 22408-78031 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22408B - SPRING, RETURN(FOR ARM) | ||||
| 22432-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22408C - NUT, ARM | ||||
| 22428-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22424A - ARM, SPRING | ||||
| 22424-58230 |
11B,13B#..BU61,62,64,81,82,85,9#..5F |
1 | ||
| 22424B - SPRING, RETURN(FOR SPRING ARM) | ||||
| 22440-78030 |
13BT..BU85,90,95 |
1 | ||
| 22434 - SHACKLE | ||||
| 22016-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22456 - SCREW, STOP | ||||
| 22776-78032 |
13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22460 - LEVER SUB-ASSY, SUPPORT | ||||
| 22011-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22460 - LEVER SUB-ASSY, SUPPORT | ||||
| 22011-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22460D - WASHER, LOCK(FOR STEERING LEVER) | ||||
| 22416-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.75 |
2 | ||
| 22737-78037 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.60 |
2 | ||
| 22737-78038 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 厚さ=0.65 |
2 | ||
| 22737-78039 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 厚さ=0.70 |
2 | ||
| 22460D - WASHER, LOCK(FOR STEERING LEVER) | ||||
| 22416-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.75 |
2 | ||
| 22737-78037 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.60 |
2 | ||
| 22737-78038 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 厚さ=0.65 |
2 | ||
| 22737-78039 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 厚さ=0.70 |
2 | ||
| 22460E - ARM ASSY, GUIDE | ||||
| 22460-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22461 - PLUG, SCREW | ||||
| 22446-78030 |
13BT..BU85,90,95 GOVERNOR COVER |
2 | ||
| 22129-78030 |
13BT..BU85,90,95 FULL ROAD STOPPER HO |
1 | ||
| 22461 - PLUG, SCREW | ||||
| 22446-78030 |
13BT..BU85,90,95 GOVERNOR COVER |
2 | ||
| 22129-78030 |
13BT..BU85,90,95 FULL ROAD STOPPER HO |
1 | ||
| 22465 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-58270 |
13BT..BU85,90,95 |
1 | ||
| 22701-58231 |
11B,13B#..BU61,62,64,81,82,85,9# NO.2 |
1 | ||
| 22465 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-58270 |
13BT..BU85,90,95 |
1 | ||
| 22701-58231 |
11B,13B#..BU61,62,64,81,82,85,9# NO.2 |
1 | ||
| 22465A - KEY, WOODRUFF(FOR ADJUSTING LEVER) | ||||
| 90099-13013 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22465B - SEAL, OIL(FOR ADJUSTING LEVER) | ||||
| 90099-15022 |
13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22468 - COVER, PLATE | ||||
| 22458-78030 |
11B,13B#..BU61,62,64,81,82,85,9#..5F NO.2 |
1 | ||
| 22458-58270 |
13BT..BU85,90,95 NO.1 |
1 | ||
| 22468A - O, RING | ||||
| 90099-14039 |
13BT..BU85,90,95 NO.1 |
1 | ||
| 90099-14069 |
13BT..BU85,90,95 NO.2 |
2 | ||
| 22471A - SHAFT, LEVER SUPPORTING | ||||
| 22558-78031 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22552A - SPRING, RETURN(FOR CAM PLATE) | ||||
| 22432-78031 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22699A - BRACKET, ADJUSTING | ||||
| 22562-58230 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22702 - LEVER ASSY, FLOATING | ||||
| 22702-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22702A - SPRING, FLOATING ARM | ||||
| 22432-78032 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22702B - WASHER, PLATE(FOR FLOATING LEVER) | ||||
| 90099-01519 |
11B,13B#..BU61,62,64,81,82,85,9#..CBU,IV3 厚さ=0.40 |
1 | ||
| 22702C - ARM, FLOATING | ||||
| 22014-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22702E - LEVER SUB-ASSY, CONTROL | ||||
| 22490-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22702F - SPRING, RETURN(FOR CONTROL LEVER) | ||||
| 22432-78033 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22761 - SLIDER(FOR SPEED CONTROL) | ||||
| 22761-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22761A - SHAFT, SLIDING WEIGHT | ||||
| 22752-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 長さ=31.9 |
1 | ||
| 22752-78033 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 長さ=31.3 |
1 | ||
| 22752-78031 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 長さ=31.7 |
1 | ||
| 22752-78034 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 長さ=31.1 |
1 | ||
| 22752-78032 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 長さ=31.5 |
1 | ||
| 22752-78036 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 長さ=30.7 |
1 | ||
| 22752-78035 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 長さ=30.9 |
1 | ||
| Common parts | ||||
| 22329-78030 | ||||
| 22365-48010 | ||||
| 22416-58270 | ||||
| 90031-01132 | ||||
| 90091-20608 | ||||
| 90091-20615 | ||||
| 90095-02007 | ||||
| 90099-01511 | ||||
| 90099-04319 | ||||
| 90099-04320 | ||||
| 90099-04328 | ||||
| 90099-04996 | ||||
| 90099-05175 | ||||
| 91611-60614 | ||||
| 91611-60616 | ||||
| 94110-40600 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||

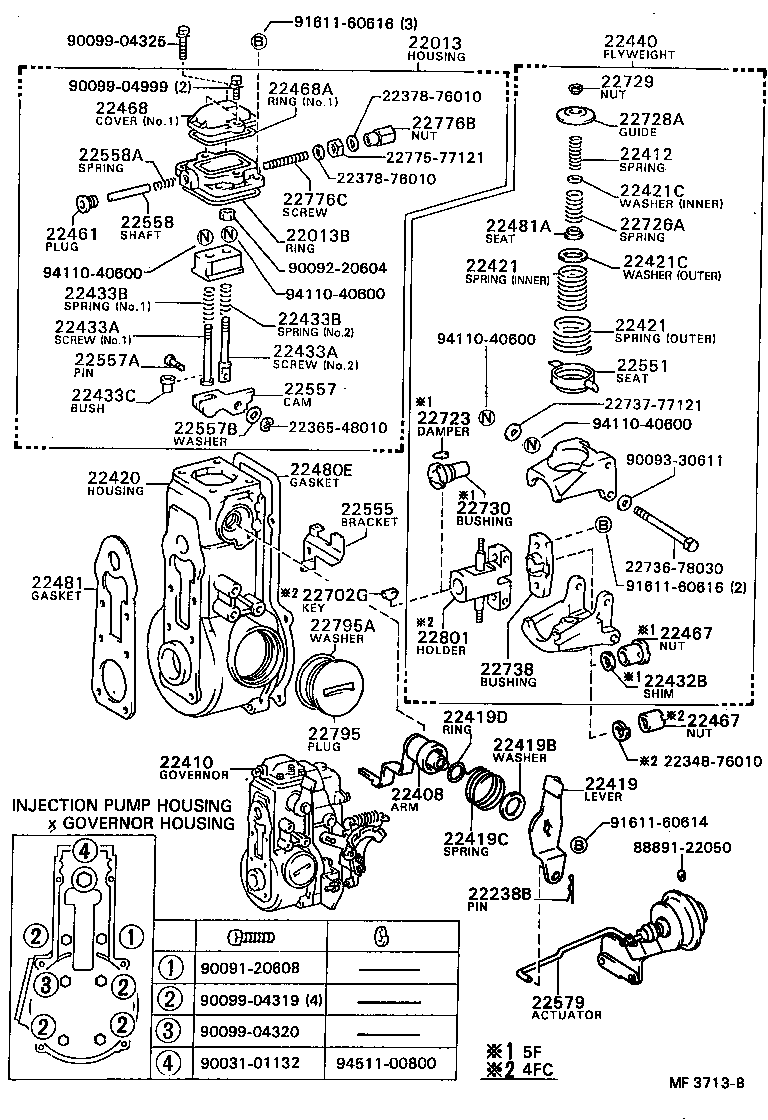

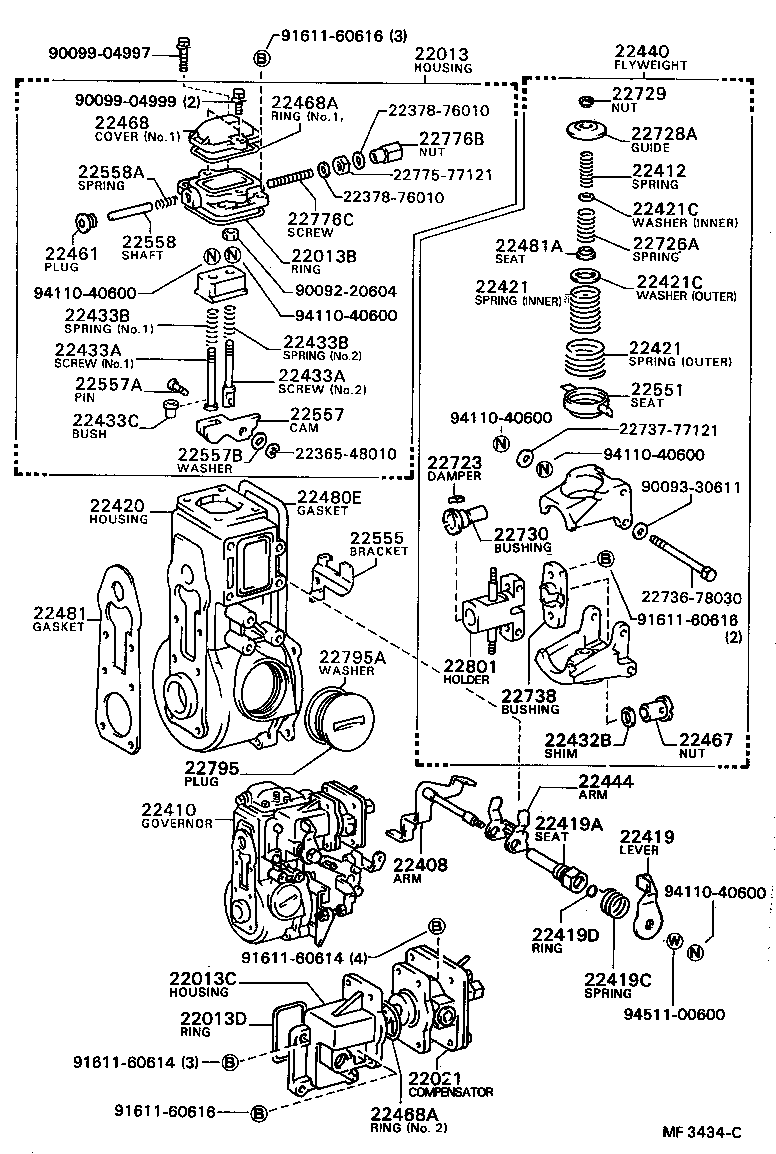

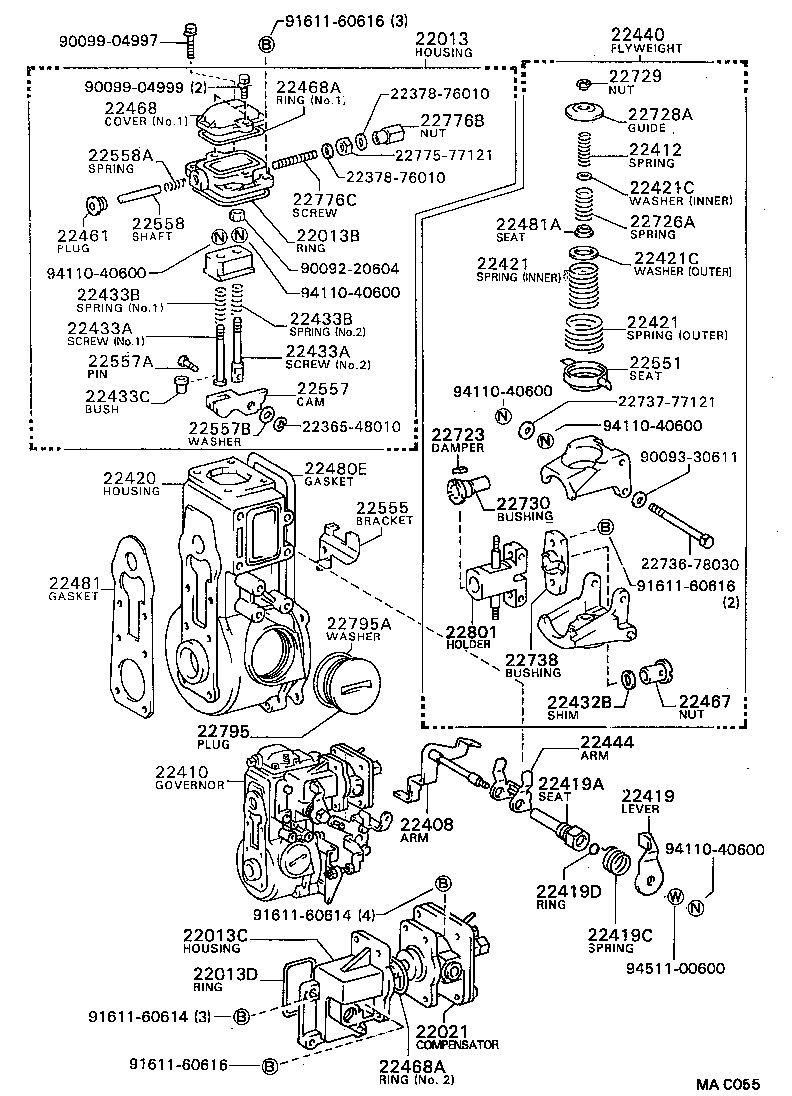

ILLUST NO. 1 OF 2(8708- )13BT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22013 - HOUSING SUB-ASSY, FULLROAD STOPPER | ||||
| 22013-58270 |
13BT..BU85,90,95 |
1 | ||
| 22013B - RING, O(FOR FULLROAD STOPPER HOUSING) | ||||
| 90099-14081 |
13BT..BU85,90,95 |
1 | ||
| 22013C - HOUSING, FULLROAD STOPPER, NO.2 | ||||
| 22559-58271 |
13BT..BU85,90,95 |
1 | ||
| 22013D - RING, O(FOR FULLROAD STOPPER HOUSING, NO.2) | ||||
| 90099-14002 |
13BT..BU85,90,95 |
1 | ||
| 22408 - ARM, STOPPER | ||||
| 22408-58270 |
13BT..BU85,90,95 |
1 | ||
| 22410 - GOVERNOR ASSY, INJECTION PUMP MECHANICAL | ||||
| 22410-58231 |
B,11B,13B#..BU6#,70,8#,9# |
1 | ||
| 22410-58270 |
13BT..BU85,90,95 |
1 | ||
| 22412 - SPRING, MECHANICAL GOVERNOR | ||||
| 22412-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22419 - LEVER, STOP | ||||
| 22419-58270 |
13BT..BU85,90,95 |
1 | ||
| 22419A - SEAT, RETURN SPRING(FOR STOPPER ARM) | ||||
| 22468-58270 |
13BT..BU85,90,95 |
1 | ||
| 22419C - SPRING, RETURN(FOR STOPPER LEVER) | ||||
| 22432-78050 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22419D - RING, O(FOR STOPPER LEVER) | ||||
| 90099-14080 |
13BT..BU85,90,95 |
1 | ||
| 22420 - HOUSING SUB-ASSY, MECHANICAL GOVERNOR | ||||
| 22017-58270 |
13BT..BU85,90,95 |
1 | ||
| 22421 - SPRING, IDLING | ||||
| 22768-78031 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 外側 |
2 | ||
| 22768-58230 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 内側 |
2 | ||
| 22421 - SPRING, IDLING | ||||
| 22768-78031 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 外側 |
2 | ||
| 22768-58230 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 内側 |
2 | ||
| 22421C - WASHER, IDLING SPRING | ||||
| 22416-78033 |
13BT..BU85,90,95 厚さ=0.3 |
1 | ||
| 22416-78032 |
13BT..BU85,90,95 厚さ=0.2 |
1 | ||
| 22416-78031 |
13BT..BU85,90,95 厚さ=0.80 |
2 | ||
| 22737-78031 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.40 |
2 | ||
| 22737-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.20 |
2 | ||
| 22416-78034 |
13BT..BU85,90,95 厚さ=0.4 |
1 | ||
| 22416-78035 |
13BT..BU85,90,95 厚さ=0.5 |
1 | ||
| 22737-78032 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.60 |
2 | ||
| 22737-78034 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.60 |
2 | ||
| 22737-78033 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.40 |
2 | ||
| 22737-78036 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.55 |
2 | ||
| 22737-78035 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.50 |
2 | ||
| 22421C - WASHER, IDLING SPRING | ||||
| 22416-78033 |
13BT..BU85,90,95 厚さ=0.3 |
1 | ||
| 22416-78032 |
13BT..BU85,90,95 厚さ=0.2 |
1 | ||
| 22416-78031 |
13BT..BU85,90,95 厚さ=0.80 |
2 | ||
| 22737-78031 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.40 |
2 | ||
| 22737-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.20 |
2 | ||
| 22416-78034 |
13BT..BU85,90,95 厚さ=0.4 |
1 | ||
| 22416-78035 |
13BT..BU85,90,95 厚さ=0.5 |
1 | ||
| 22737-78032 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.60 |
2 | ||
| 22737-78034 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.60 |
2 | ||
| 22737-78033 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.40 |
2 | ||
| 22737-78036 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.55 |
2 | ||
| 22737-78035 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.50 |
2 | ||
| 22432B - SHIM | ||||
| 22713-58231 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=1.65 |
1 | ||
| 22713-58233 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=1.75 |
1 | ||
| 22713-58235 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=1.85 |
1 | ||
| 22713-58230 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=1.60 |
1 | ||
| 22713-58232 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=1.70 |
1 | ||
| 22713-58236 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=1.90 |
1 | ||
| 22714-58230 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 厚さ=2.20 |
1 | ||
| 22713-58237 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=1.95 |
1 | ||
| 22713-58234 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=1.80 |
1 | ||
| 22713-58238 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=2.00 |
1 | ||
| 22713-58239 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=2.10 |
1 | ||
| 22714-58231 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 厚さ=2.30 |
1 | ||
| 22433A - SCREW, ADAPTER(FOR SLIDING BLOCK) | ||||
| 22433-58270 |
13BT..BU85,90,95 NO.1 |
1 | ||
| 22433-58271 |
13BT..BU85,90,95 NO.2 |
2 | ||
| 22433A - SCREW, ADAPTER(FOR SLIDING BLOCK) | ||||
| 22433-58270 |
13BT..BU85,90,95 NO.1 |
1 | ||
| 22433-58271 |
13BT..BU85,90,95 NO.2 |
2 | ||
| 22433B - SPRING(FOR ADAPTER SCREW) | ||||
| 22411-58270 |
13BT..BU85,90,95 NO.2 |
1 | ||
| 22411-78030 |
13BT..BU85,90,95;13B..BU62,85..4FC NO.1 |
1 | ||
| 22433B - SPRING(FOR ADAPTER SCREW) | ||||
| 22411-58270 |
13BT..BU85,90,95 NO.2 |
1 | ||
| 22411-78030 |
13BT..BU85,90,95;13B..BU62,85..4FC NO.1 |
1 | ||
| 22433C - BUSH(FOR ADAPTER SCREW) | ||||
| 22554-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22440 - FLYWEIGHT SUB-ASSY | ||||
| 22720-58230 |
11B,13B#..BU61,62,64,81,82,85,9#..5F |
1 | ||
| 22444 - ARM | ||||
| 22428-58270 |
13BT..BU85,90,95 |
1 | ||
| 22461 - PLUG, SCREW | ||||
| 22446-78030 |
13BT..BU85,90,95 GOVERNOR COVER |
2 | ||
| 22129-78030 |
13BT..BU85,90,95 FULL ROAD STOPPER HO |
1 | ||
| 22467 - NUT, ROUND | ||||
| 22722-58230 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 |
1 | ||
| 22468 - COVER, PLATE | ||||
| 22458-78030 |
11B,13B#..BU61,62,64,81,82,85,9#..5F NO.2 |
1 | ||
| 22458-58270 |
13BT..BU85,90,95 NO.1 |
1 | ||
| 22468A - O, RING | ||||
| 90099-14039 |
13BT..BU85,90,95 NO.1 |
1 | ||
| 90099-14069 |
13BT..BU85,90,95 NO.2 |
2 | ||
| 22468A - O, RING | ||||
| 90099-14039 |
13BT..BU85,90,95 NO.1 |
1 | ||
| 90099-14069 |
13BT..BU85,90,95 NO.2 |
2 | ||
| 22480E - GASKET, GOVERNOR COVER | ||||
| 22774-58270 |
13BT..BU85,90,95 |
1 | ||
| 22481 - GASKET | ||||
| 22442-78030 |
11B,13B#..BU61,64,81,82,85,9# |
1 | ||
| 22481A - SEAT, SPRING, INNER | ||||
| 22481-58230 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22551 - SEAT, SPRING(FOR FLYWEIGHT) | ||||
| 22551-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22555 - BRACKET, STOPPER | ||||
| 22555-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22557 - CAM, FULL STOP | ||||
| 22557-58270 |
13BT..BU85,90,95 |
1 | ||
| 22557A - PIN, CONNECTING(FOR FULL STOP CAM) | ||||
| 22423-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22557B - WASHER, PLATE(FOR CONNECTING PIN) | ||||
| 90099-01505 |
13B#..BU62,64,82,85,9#..CBU,IV3 厚さ=0.10 |
1 | ||
| 90099-01334 |
13B#..BU62,64,82,85,9#..CBU,IV3 厚さ=0.05 |
1 | ||
| 90099-30610 |
13BT..BU85,90,95 厚さ=0.20 |
1 | ||
| 22558 - SHAFT, SLIDING BLOCK | ||||
| 22558-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22558A - SPRING(FOR SLIDING BLOCK SHAFT) | ||||
| 22411-58271 |
13BT..BU85,90,95 |
1 | ||
| 22723 - DAMPER, FLYWEIGHT HOLDER | ||||
| 22723-68150 |
11B,13B#..BU61,62,64,81,82,85,9# |
36 | ||
| 22726A - SPRING, SPEED CONTROL | ||||
| 22726-58230 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
2 | ||
| 22728A - GUIDE, SPRING | ||||
| 22728-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
2 | ||
| 22729 - NUT, ADJUSTING(FOR FLYWEIGHT) | ||||
| 22729-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22730 - BUSHING ASSY, CAMSHAFT | ||||
| 22730-58230 |
11B,13B#..BU61,62,64,81,82,85,9#..5F |
1 | ||
| 22738 - BUSHING, GUIDE(FOR FLYWEIGHT) | ||||
| 22738-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22776B - NUT, CAP(FOR SCREW STOPPER) | ||||
| 22437-58230 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22776C - SCREW, STOPPER | ||||
| 22776-58270 |
13BT..BU85,90,95 |
1 | ||
| 22795 - PLUG, SCREW | ||||
| 22795-77121 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22795A - WASHER, SCREW PLUG | ||||
| 22561-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22801 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22801-58230 |
11B,13B#..BU61,62,64,81,82,85,9#..5F |
1 | ||
| Common parts | ||||
| 22365-48010 | ||||
| 22378-76010 | ||||
| 22736-78030 | ||||
| 22737-77121 | ||||
| 22775-77121 | ||||
| 90092-20604 | ||||
| 90093-30611 | ||||
| 90099-04997 | ||||
| 90099-04999 | ||||
| 91611-60614 | ||||
| 91611-60616 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
ILLUST NO. 1 OF 2(8708- )11B,13B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22013 - HOUSING SUB-ASSY, FULLROAD STOPPER | ||||
| 22013-58270 |
13BT..BU85,90,95 |
1 | ||
| 22013B - RING, O(FOR FULLROAD STOPPER HOUSING) | ||||
| 90099-14081 |
13BT..BU85,90,95 |
1 | ||
| 22408 - ARM, STOPPER | ||||
| 22408-58270 |
13BT..BU85,90,95 |
1 | ||
| 22410 - GOVERNOR ASSY, INJECTION PUMP MECHANICAL | ||||
| 22410-58231 |
B,11B,13B#..BU6#,70,8#,9# |
1 | ||
| 22410-58270 |
13BT..BU85,90,95 |
1 | ||
| 22412 - SPRING, MECHANICAL GOVERNOR | ||||
| 22412-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22419 - LEVER, STOP | ||||
| 22419-58270 |
13BT..BU85,90,95 |
1 | ||
| 22419C - SPRING, RETURN(FOR STOPPER LEVER) | ||||
| 22432-78050 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22419D - RING, O(FOR STOPPER LEVER) | ||||
| 90099-14080 |
13BT..BU85,90,95 |
1 | ||
| 22420 - HOUSING SUB-ASSY, MECHANICAL GOVERNOR | ||||
| 22017-58270 |
13BT..BU85,90,95 |
1 | ||
| 22421 - SPRING, IDLING | ||||
| 22768-78031 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 外側 |
2 | ||
| 22768-58230 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 内側 |
2 | ||
| 22421 - SPRING, IDLING | ||||
| 22768-78031 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 外側 |
2 | ||
| 22768-58230 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 内側 |
2 | ||
| 22421C - WASHER, IDLING SPRING | ||||
| 22416-78033 |
13BT..BU85,90,95 厚さ=0.3 |
1 | ||
| 22416-78032 |
13BT..BU85,90,95 厚さ=0.2 |
1 | ||
| 22416-78031 |
13BT..BU85,90,95 厚さ=0.80 |
2 | ||
| 22737-78031 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.40 |
2 | ||
| 22737-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.20 |
2 | ||
| 22416-78034 |
13BT..BU85,90,95 厚さ=0.4 |
1 | ||
| 22416-78035 |
13BT..BU85,90,95 厚さ=0.5 |
1 | ||
| 22737-78032 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.60 |
2 | ||
| 22737-78034 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.60 |
2 | ||
| 22737-78033 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.40 |
2 | ||
| 22737-78036 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.55 |
2 | ||
| 22737-78035 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.50 |
2 | ||
| 22421C - WASHER, IDLING SPRING | ||||
| 22416-78033 |
13BT..BU85,90,95 厚さ=0.3 |
1 | ||
| 22416-78032 |
13BT..BU85,90,95 厚さ=0.2 |
1 | ||
| 22416-78031 |
13BT..BU85,90,95 厚さ=0.80 |
2 | ||
| 22737-78031 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.40 |
2 | ||
| 22737-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.20 |
2 | ||
| 22416-78034 |
13BT..BU85,90,95 厚さ=0.4 |
1 | ||
| 22416-78035 |
13BT..BU85,90,95 厚さ=0.5 |
1 | ||
| 22737-78032 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.60 |
2 | ||
| 22737-78034 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.60 |
2 | ||
| 22737-78033 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.40 |
2 | ||
| 22737-78036 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.55 |
2 | ||
| 22737-78035 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC 厚さ=0.50 |
2 | ||
| 22432B - SHIM | ||||
| 22713-58231 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=1.65 |
1 | ||
| 22713-58233 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=1.75 |
1 | ||
| 22713-58235 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=1.85 |
1 | ||
| 22713-58230 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=1.60 |
1 | ||
| 22713-58232 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=1.70 |
1 | ||
| 22713-58236 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=1.90 |
1 | ||
| 22714-58230 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 厚さ=2.20 |
1 | ||
| 22713-58237 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=1.95 |
1 | ||
| 22713-58234 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=1.80 |
1 | ||
| 22713-58238 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=2.00 |
1 | ||
| 22713-58239 |
11B,13B#..BU61,62,64,81,82,85,9#..5F 厚さ=2.10 |
1 | ||
| 22714-58231 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 厚さ=2.30 |
1 | ||
| 22433A - SCREW, ADAPTER(FOR SLIDING BLOCK) | ||||
| 22433-58270 |
13BT..BU85,90,95 NO.1 |
1 | ||
| 22433-58271 |
13BT..BU85,90,95 NO.2 |
2 | ||
| 22433A - SCREW, ADAPTER(FOR SLIDING BLOCK) | ||||
| 22433-58270 |
13BT..BU85,90,95 NO.1 |
1 | ||
| 22433-58271 |
13BT..BU85,90,95 NO.2 |
2 | ||
| 22433B - SPRING(FOR ADAPTER SCREW) | ||||
| 22411-58270 |
13BT..BU85,90,95 NO.2 |
1 | ||
| 22411-78030 |
13BT..BU85,90,95;13B..BU62,85..4FC NO.1 |
1 | ||
| 22433B - SPRING(FOR ADAPTER SCREW) | ||||
| 22411-58270 |
13BT..BU85,90,95 NO.2 |
1 | ||
| 22411-78030 |
13BT..BU85,90,95;13B..BU62,85..4FC NO.1 |
1 | ||
| 22433C - BUSH(FOR ADAPTER SCREW) | ||||
| 22554-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22440 - FLYWEIGHT SUB-ASSY | ||||
| 22720-58230 |
11B,13B#..BU61,62,64,81,82,85,9#..5F |
1 | ||
| 22461 - PLUG, SCREW | ||||
| 22446-78030 |
13BT..BU85,90,95 GOVERNOR COVER |
2 | ||
| 22129-78030 |
13BT..BU85,90,95 FULL ROAD STOPPER HO |
1 | ||
| 22467 - NUT, ROUND | ||||
| 22722-58230 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 |
1 | ||
| 22467 - NUT, ROUND | ||||
| 22722-58230 |
13BT..BU85;13B#..BU62,90,95..35T,IV4 |
1 | ||
| 22468 - COVER, PLATE | ||||
| 22458-78030 |
11B,13B#..BU61,62,64,81,82,85,9#..5F NO.2 |
1 | ||
| 22458-58270 |
13BT..BU85,90,95 NO.1 |
1 | ||
| 22468A - O, RING | ||||
| 90099-14039 |
13BT..BU85,90,95 NO.1 |
1 | ||
| 90099-14069 |
13BT..BU85,90,95 NO.2 |
2 | ||
| 22480E - GASKET, GOVERNOR COVER | ||||
| 22774-58270 |
13BT..BU85,90,95 |
1 | ||
| 22481 - GASKET | ||||
| 22442-78030 |
11B,13B#..BU61,64,81,82,85,9# |
1 | ||
| 22481A - SEAT, SPRING, INNER | ||||
| 22481-58230 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22551 - SEAT, SPRING(FOR FLYWEIGHT) | ||||
| 22551-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22555 - BRACKET, STOPPER | ||||
| 22555-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22557 - CAM, FULL STOP | ||||
| 22557-58270 |
13BT..BU85,90,95 |
1 | ||
| 22557A - PIN, CONNECTING(FOR FULL STOP CAM) | ||||
| 22423-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22557B - WASHER, PLATE(FOR CONNECTING PIN) | ||||
| 90099-01505 |
13B#..BU62,64,82,85,9#..CBU,IV3 厚さ=0.10 |
1 | ||
| 90099-01334 |
13B#..BU62,64,82,85,9#..CBU,IV3 厚さ=0.05 |
1 | ||
| 90099-30610 |
13BT..BU85,90,95 厚さ=0.20 |
1 | ||
| 22558 - SHAFT, SLIDING BLOCK | ||||
| 22558-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22558A - SPRING(FOR SLIDING BLOCK SHAFT) | ||||
| 22411-58271 |
13BT..BU85,90,95 |
1 | ||
| 22723 - DAMPER, FLYWEIGHT HOLDER | ||||
| 22723-68150 |
11B,13B#..BU61,62,64,81,82,85,9# |
36 | ||
| 22726A - SPRING, SPEED CONTROL | ||||
| 22726-58230 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
2 | ||
| 22728A - GUIDE, SPRING | ||||
| 22728-78030 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
2 | ||
| 22729 - NUT, ADJUSTING(FOR FLYWEIGHT) | ||||
| 22729-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
2 | ||
| 22730 - BUSHING ASSY, CAMSHAFT | ||||
| 22730-58230 |
11B,13B#..BU61,62,64,81,82,85,9#..5F |
1 | ||
| 22738 - BUSHING, GUIDE(FOR FLYWEIGHT) | ||||
| 22738-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22776B - NUT, CAP(FOR SCREW STOPPER) | ||||
| 22437-58230 |
13B..BU62..IV4;13BT..BU85,90,95;13B..BU62,85..4FC |
1 | ||
| 22776C - SCREW, STOPPER | ||||
| 22776-58270 |
13BT..BU85,90,95 |
1 | ||
| 22795 - PLUG, SCREW | ||||
| 22795-77121 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22795A - WASHER, SCREW PLUG | ||||
| 22561-78030 |
11B,13B#..BU61,62,64,81,82,85,9# |
1 | ||
| 22801 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22801-58230 |
11B,13B#..BU61,62,64,81,82,85,9#..5F |
1 | ||
| Common parts | ||||
| 22348-76010 | ||||
| 22365-48010 | ||||
| 22378-76010 | ||||
| 22736-78030 | ||||
| 22737-77121 | ||||
| 22775-77121 | ||||
| 88891-22050 | ||||
| 90031-01132 | ||||
| 90091-20608 | ||||
| 90092-20604 | ||||
| 90093-30611 | ||||
| 90099-04319 | ||||
| 90099-04320 | ||||
| 90099-04325 | ||||
| 90099-04999 | ||||
| 91611-60614 | ||||
| 91611-60616 | ||||
| 94110-40600 | ||||
| 94511-00800 | ||||
ILLUST NO. 1 OF 2(8808-8910)13BT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 22365-48010 | ||||
| 22378-76010 | ||||
| 22736-78030 | ||||
| 22737-77121 | ||||
| 22775-77121 | ||||
| 90092-20604 | ||||
| 90093-30611 | ||||
| 90099-04997 | ||||
| 90099-04999 | ||||
| 91611-60614 | ||||
| 91611-60616 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
ILLUST NO. 2 OF 2(8808-8910)13BT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 22329-78030 | ||||
| 22365-48010 | ||||
| 22416-58270 | ||||
| 90031-01132 | ||||
| 90091-20608 | ||||
| 90091-20615 | ||||
| 90095-02007 | ||||
| 90099-01511 | ||||
| 90099-04319 | ||||
| 90099-04320 | ||||
| 90099-04328 | ||||
| 90099-04996 | ||||
| 90099-05175 | ||||
| 91611-60614 | ||||
| 91611-60616 | ||||
| 94110-40600 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
