BU90-MDDTXJ3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )13BT

Click highlighted areas on diagram

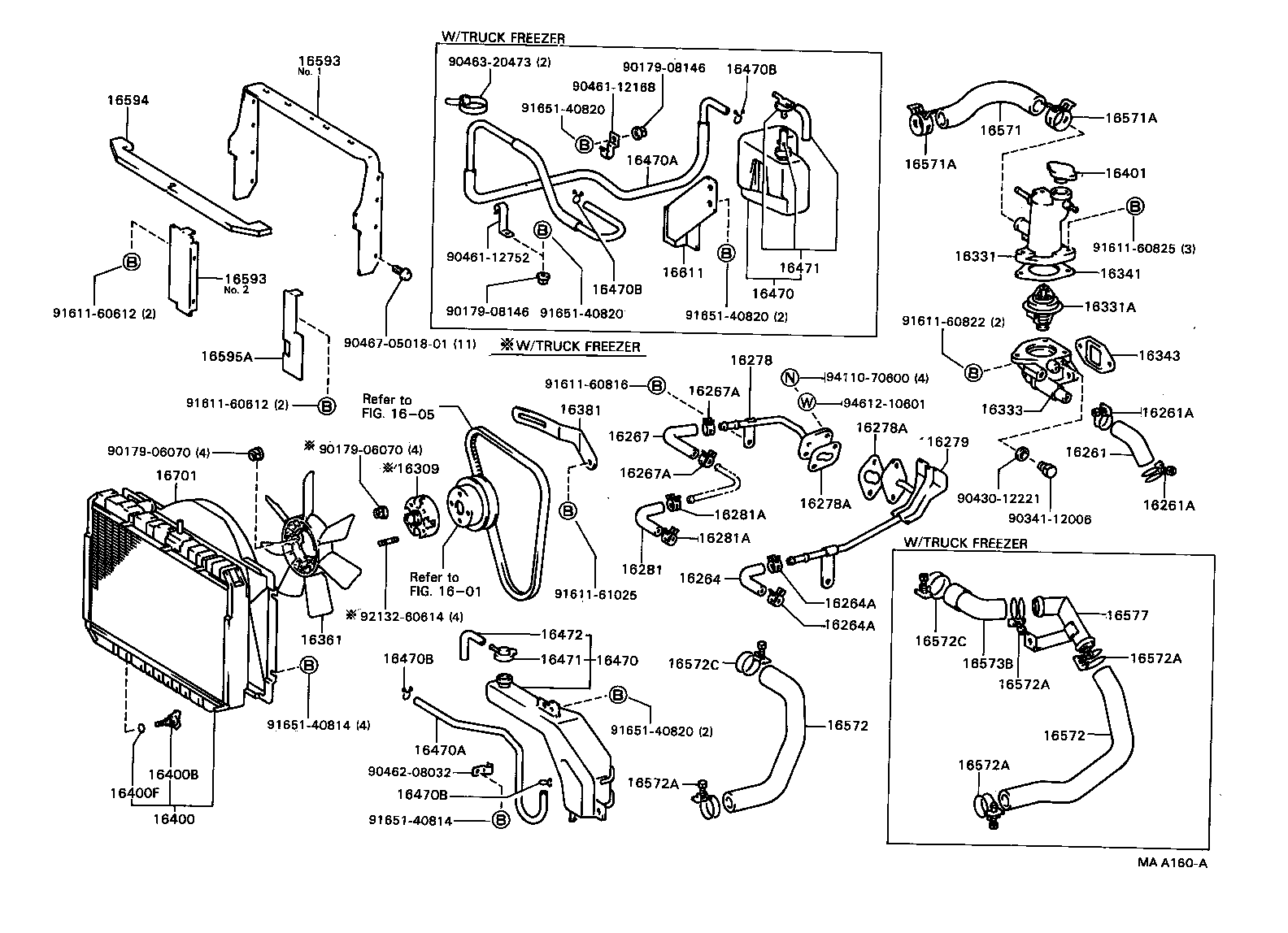

diagram 1601 1605 16261 16261A 16261A 16264 16264A 16264A 16267 16267A 16267A 16278 16278A 16278A 16279 16281 16281A 16281A 16309 16331 16331A 16333 16341 16343 16361 16381 16400 16400B 16400F 16401 16470 16470 16470A 16470A 16470B 16470B 16470B 16470B 16471 16471 16472 16571 16571A 16571A 16572 16572 16572A 16572A 16572A 16572A 16572C 16572C 16573B 16577 16593 16593 16594 16595A 16611 16701 9017906070 9017906070 9017908146 9017908146 9034112006 9043012221 9046112168 9046112752 9046208032 9046320473 904670501801 9161160612 9161160612 9161160816 9161160822 9161160825 9161161025 9165140814 9165140814 9165140820 9165140820 9165140820 9165140820 9213260614 9411070600 9461210601
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-56012

B,11B,13B#..BU6#,70,8#,9#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-67103

B,11B,13B#..BU6#,70,8#,9#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-67103

B,11B,13B#..BU6#,70,8#,9#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-58011

13BT..BU85,90,95

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96132-31000

13BT..BU85,90,95

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96132-31000

13BT..BU85,90,95

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-58012

13BT..BU85,90,95

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96132-31000

13BT..BU85,90,95

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96132-31000

13BT..BU85,90,95

 2
16278 - PIPE, WATER BY-PASS, NO.2
16278-58011

13BT..BU85,90,95

 1
16278A - GASKET, WATER BY-PASS
16347-28010

13BT..BU85,90,95

 2
16278A - GASKET, WATER BY-PASS
16347-28010

13BT..BU85,90,95

 2
16279 - PIPE, WATER BY-PASS, NO.3
16279-58011

13BT..BU85,90,95

 1
16281 - HOSE, WATER BY-PASS, NO.4
16281-58011

13BT..BU85,90,95

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96132-31000

13BT..BU85,90,95

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96132-31000

13BT..BU85,90,95

 2
16309 - SHAFT SUB-ASSY, FAN DRIVE
16309-58010

13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3

 1
16331 - OUTLET, WATER
16331-58020

13BT..BU85,90,95

 1
16331A - THERMOSTAT
90916-03059

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

*WAX 88−100,*WAX 88-100

 1
16333 - HOUSING, WATER OUTLET
16333-56060

B,11B,13B#..BU6#,70,8#,9#

 1
16341 - GASKET, WATER OUTLET
16341-56020

B,11B,13B#..BU6#,70,8#,9#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-56020

B,11B,13B#..BU6#,70,8#,9#

 1
16361 - FAN
16361-56070

13BT..BU85;11B,13B#..BU61,62,64,81,82,90,95

 1
16381 - BAR, FAN BELT ADJUSTING
16381-56030

B,11B,13B#..BU6#,70,8#,9#..CBU,IV3

 1
16400 - RADIATOR ASSY
16400-58201

13BT..BU85,90,95..T3

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24051

13B#..BU85,9#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24051

B,11B,13B#..BU6#,70,8#,9#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-71010

B,11B,13B#..BU6#,70,8#,9#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-58020

13B#..BU85,9#

 1
16470-58030

13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3

ｱﾘ(ﾄﾗｯｸ ﾌﾘ-ｻﾞ)

 1
16470-58010

13B..BU93;13B#..BU85,90,95..TR..03S

ｶｽﾀﾑ ﾊﾟｯｹ-ｼﾞ

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-58020

13B#..BU85,9#

 1
16470-58030

13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3

ｱﾘ(ﾄﾗｯｸ ﾌﾘ-ｻﾞ)

 1
16470-58010

13B..BU93;13B#..BU85,90,95..TR..03S

ｶｽﾀﾑ ﾊﾟｯｹ-ｼﾞ

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3

長さ=600

 2
90445-12146

13BT..BU85,90,95

 1
90447-12077

13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3

ｱﾘ(ﾄﾗｯｸ ﾌﾘ-ｻﾞ)

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3

長さ=600

 2
90445-12146

13BT..BU85,90,95

 1
90447-12077

13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3

ｱﾘ(ﾄﾗｯｸ ﾌﾘ-ｻﾞ)

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

13B#..BU85,9#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

13B#..BU85,9#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

13B#..BU85,9#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

13B#..BU85,9#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-56070

13B#..BU85,9#

 1
16405-58030

13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3

ｱﾘ(ﾄﾗｯｸ ﾌﾘ-ｻﾞ)

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-56070

13B#..BU85,9#

 1
16405-58030

13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3

ｱﾘ(ﾄﾗｯｸ ﾌﾘ-ｻﾞ)

 1
16472 - HOSE, BREATHER
16472-58010

13B#..BU85,9#

 1
16571 - HOSE, RADIATOR, INLET
16571-58030

13B#..BU85,9#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10490

B,11B,13B#..BU6#,70,8#,9#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10490

B,11B,13B#..BU6#,70,8#,9#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-58031

13B#..BU85,9#

 1
16572-58061

13B#..BU85,90..T3..5F..(20T,30T,35T)..IV3

ｱﾘ(ﾄﾗﾂｸ ﾌﾘ-ｻﾞ)

 1
16572 - HOSE, RADIATOR, OUTLET
16572-58031

13B#..BU85,9#

 1
16572-58061

13B#..BU85,90..T3..5F..(20T,30T,35T)..IV3

ｱﾘ(ﾄﾗﾂｸ ﾌﾘ-ｻﾞ)

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510

13B#..BU85,9#

 1
96111-10510

13B#..BU85,90..T3..5F..(20T,30T,35T)..IV3

 3
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510

13B#..BU85,9#

 1
96111-10510

13B#..BU85,90..T3..5F..(20T,30T,35T)..IV3

 3
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510

13B#..BU85,9#

 1
96111-10510

13B#..BU85,90..T3..5F..(20T,30T,35T)..IV3

 3
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510

13B#..BU85,9#

 1
96111-10510

13B#..BU85,90..T3..5F..(20T,30T,35T)..IV3

 3
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
96111-10570

13B#..BU85,93,98;13B#..BU62,90,95..35T,IV4

 1
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
96111-10570

13B#..BU85,93,98;13B#..BU62,90,95..35T,IV4

 1
16573B - HOSE, RADIATOR, NO.3
16573-58011

13B#..BU85,90..T3..5F..(20T,30T,35T)..IV3

 1
16577 - PIPE, RADIATOR, NO.7
16577-58010

13B#..BU85,90..T3..5F..(20T,30T,35T)..IV3

 1
16593 - GUIDE, RADIATOR AIR, NO.1
16593-58050

13B#..BU85,9#

 1
16593 - GUIDE, RADIATOR AIR, NO.1
16593-58050

13B#..BU85,9#

 1
16594 - GUIDE, RADIATOR AIR, NO.2
16594-58030

13BT..BU85,90,95

 1
16595A - GUIDE, RADIATOR AIR, NO.1 LH
16595-58030

13BT..BU85,90,95

 1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-58010

13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3

ｱﾘ(ﾄﾗｯｸ ﾌﾘ-ｻﾞ)

 1
16611-58020

13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3

 1
16701 - SHROUD SUB-ASSY, FAN
16701-58050

13BT..BU85,90,95..T3

 1
16701-58070

13B#..BU85,90..(T2,T3)..5F..(20T,30T,35T)..IV3

ｱﾘ(ﾄﾗｯｸ ﾌﾘ-ｻﾞ)

 1
Common parts
90179-06070
90179-08146
90341-12006
90430-12221
90461-12168
90461-12752
90462-08032
90463-20473
90467-0501801
91611-60612
91611-60816
91611-60822
91611-60825
91611-61025
91651-40814
91651-40820
92132-60614
94110-70600
94612-10601
Linked diagrams
1601
1605

(8808-8910)13BT

Click highlighted areas on diagram

diagram 1601 1601 1605 16261 16261A 16261A 16264 16264A 16264A 16267 16267A 16267A 16278 16278A 16278A 16279 16281 16281A 16281A 16309 16331 16331A 16331F 16333 16341 16343 16361 16381 16400 16400B 16400F 16470 16470 16470A 16470A 16471 16471 16472 16472 16571 16571A 16571A 16572 16572 16572A 16572A 16572A 16572C 16572C 16572C 16573B 16577 16593 16593A 16594 16595A 16611 16701 1703 8716 9017906070 9017906070 9017908088 9017908141 9017908141 9046112168 9046112752 9046208032 9046320473 904670501801 9046711085 9046711085 9046711085 9046711085 9161160612 9161160612 9161160814 9161160816 9161160825 9161161025 9165140814 9165140814 9165160820 9165560825 9165660820 9165660820 9213260614 9411070600 9461210601
Part # Description Qty Price
Common parts
90179-06070
90179-08088
90179-08141
90461-12168
90461-12752
90462-08032
90463-20473
90467-0501801
90467-11085
91611-60612
91611-60814
91611-60816
91611-60825
91611-61025
91651-40814
91651-60820
91655-60825
91656-60820
92132-60614
94110-70600
94612-10601
Linked diagrams
1601
1605
1703
8716
