BU90-MDDTXJ3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - Oct 1989
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 5(8808- )TD

Click highlighted areas on diagram

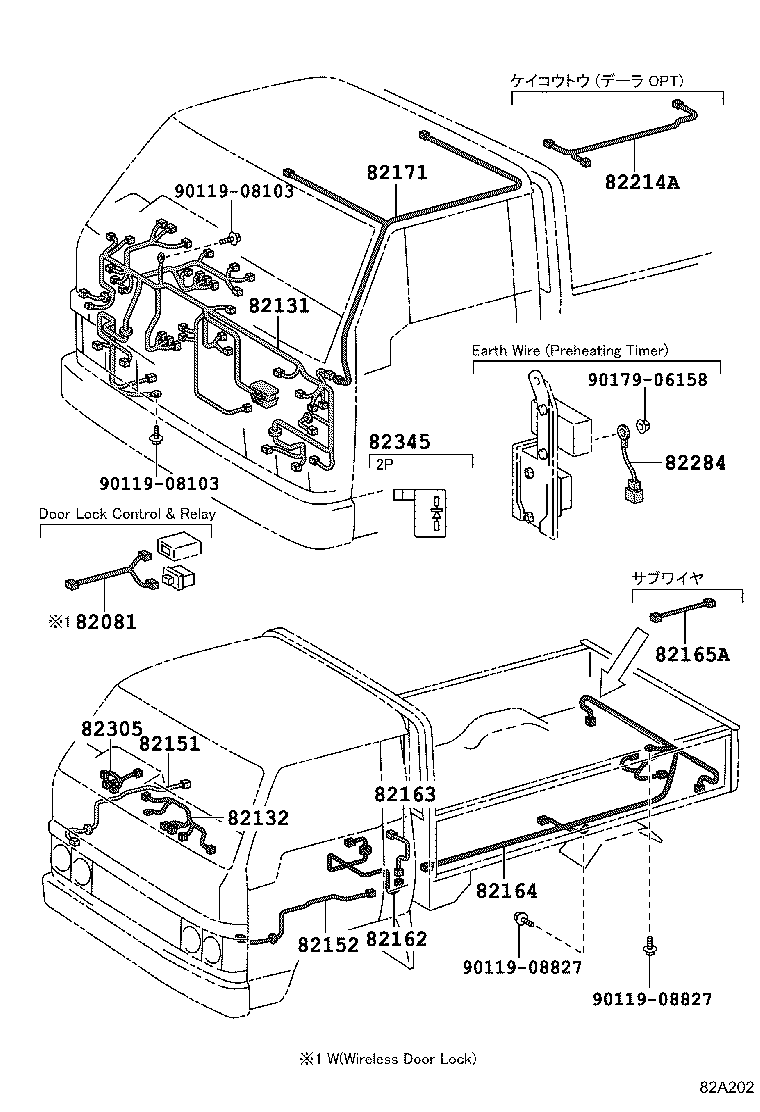

diagram 82081 82131 82132 82151 82152 82162 82163 82164 82165A 82171 82214A 82284 82305 82345 9011908103 9011908103 9011908827 9011908827 9017906158
Part # Description Qty Price
82131 - WIRE, COWL
82135-95471

BU85,90,95

 1
82135-95482

BU85,90,95

ｱﾘ(ｶﾝﾚｲﾁ ｼﾖｳ ﾋ-ﾀ)

 1
82135-95484

BU90..T3..IV3

TECS ﾚｲﾄｳｼﾔ

 1
82135-95B48

BU90..T3..IV3

TECS ﾚｲﾄｳｼﾔ & ｵ-ﾅ ｶｽﾀﾑ ｼﾖｳ

 1
82135-95B47

BU85,90,95

ｵ-ﾅ ｶｽﾀﾑ ｼﾖｳ

 1
82132 - WIRE, COWL, NO.2
82132-95402

BU94..T3..IV3;BU94..TD..IV3;BU87,88..03S..DSL..IV3;BU74,91,96..(30T,35T)..DSL..IV3;BU60,61,66,67,73,83,84,85,90,95..(DM1,T1,T2,T3,T4)..IV3

 1
82151 - WIRE, FRONT DOOR, RH
82151-95404

BU94..T3;BU67,72,74,78,85,90,95;BU87,96..TR..5F..03S..DSL;BU66,88,91..(DM2,DM3,T2,T3,T4)..DSL

ｵ-ﾅ ｶｽﾀﾑ ｼﾖｳ

 1
82152 - WIRE, FRONT DOOR, LH
82152-95401

BU94..T3;BU67,72,74,78,85,90,95;BU87,96..TR..5F..03S..DSL;BU66,88,91..(DM2,DM3,T2,T3,T4)..DSL

ｵ-ﾅ ｶｽﾀﾑ ｼﾖｳ

 1
82164 - WIRE, FRAME
82164-95458

BU90,91

 1
82171 - WIRE, ROOF, NO.1
82171-95401

BU94..T3;BU85,90,94,95..TD;BU88,91,96..03S..DSL

 1
82214A - WIRE, LAMP
82214-95401

BU60..T3..ST;BU66..TR..20T;BU60,72..T1,T2,T4;BU61,67,74,78,8#,9#..(TR,V)..03S

 1
82284 - WIRE, EARTH
82284-95402

BU66,67,85,87,88,9#..5F

ｱﾘ(ｶﾝﾚｲﾁ ｼﾖｳ ﾋ-ﾀ)

 1
82284-95401

BU85,90,95

 1
82305 - WIRE SUB-ASSY, TO TACHOGRAPH
82305-95404

BU94..T3;BU83,84,85,87,90,95..5F;BU66,91,96..5F..(275,30T,35T)..DSL;BU70,88..(HRF,T2,T3,T4,TW1)..5F..DSL

 1
82345 - DIODE
82345-12050

BU6#,7#,8#,9#..DSL,TD

 1
Common parts
90119-08103
90119-08827
90179-06158

ILLUST NO. 3 OF 5(8808- )

Click highlighted areas on diagram

diagram 82431 88648L 88648L 88648L
Part # Description Qty Price

ILLUST NO. 4 OF 5(8808- )

Click highlighted areas on diagram

diagram 82210C
Part # Description Qty Price
82210C - FUSIBLE LINK
90982-08188

BU6#,7#,8#,9#

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08253

BU6#,7#,8#,9#

80A,ｵｽ端子,黒

 1
90982-08228

BU6#,7#,8#,9#

50A,ｵｽ端子,赤

 1

ILLUST NO. 1 OF 5(8808- )DSL,TD

Click highlighted areas on diagram

diagram 82001 82001 82112 82121 82121 82163A 82163A 82165 82165 82210C 82210C 82210C 82210C 82210C 8235837010 82671 82671 82672 82672 9011908826 9011908826 9011908827
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07181

BU85,88,9#

ENGINE--FRAME

 1
90980-07254

BU85,90,95

BODY--FRAME

 1
82001 - CABLE, BOND, NO.1
90980-07181

BU85,88,9#

ENGINE--FRAME

 1
90980-07254

BU85,90,95

BODY--FRAME

 1
82121 - WIRE, ENGINE
82126-95432

BU85,90,95

 1
82126-95440

BU90..TOY..T3..IV3

TECS ﾚｲﾄｳｼﾔ

 1
82126-95439

BU85,90,95

ｵ-ﾅ ｶｽﾀﾑ ｼﾖｳ OR ｱﾘ(ｶﾝﾚｲﾁ ｼﾖｳ ﾋ-ﾀ)

 1
82121 - WIRE, ENGINE
82126-95432

BU85,90,95

 1
82126-95440

BU90..TOY..T3..IV3

TECS ﾚｲﾄｳｼﾔ

 1
82126-95439

BU85,90,95

ｵ-ﾅ ｶｽﾀﾑ ｼﾖｳ OR ｱﾘ(ｶﾝﾚｲﾁ ｼﾖｳ ﾋ-ﾀ)

 1
82210C - FUSIBLE LINK
90982-08188

BU6#,7#,8#,9#

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08253

BU6#,7#,8#,9#

80A,ｵｽ端子,黒

 1
90982-08228

BU6#,7#,8#,9#

50A,ｵｽ端子,赤

 1
82210C - FUSIBLE LINK
90982-08188

BU6#,7#,8#,9#

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08253

BU6#,7#,8#,9#

80A,ｵｽ端子,黒

 1
90982-08228

BU6#,7#,8#,9#

50A,ｵｽ端子,赤

 1
82210C - FUSIBLE LINK
90982-08188

BU6#,7#,8#,9#

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08253

BU6#,7#,8#,9#

80A,ｵｽ端子,黒

 1
90982-08228

BU6#,7#,8#,9#

50A,ｵｽ端子,赤

 1
82210C - FUSIBLE LINK
90982-08188

BU6#,7#,8#,9#

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08253

BU6#,7#,8#,9#

80A,ｵｽ端子,黒

 1
90982-08228

BU6#,7#,8#,9#

50A,ｵｽ端子,赤

 1
82210C - FUSIBLE LINK
90982-08188

BU6#,7#,8#,9#

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08253

BU6#,7#,8#,9#

80A,ｵｽ端子,黒

 1
90982-08228

BU6#,7#,8#,9#

50A,ｵｽ端子,赤

 1
82671 - BLOCK, JUNCTION
82671-30030

BU61,66,67,72,73,74,78,84,85,87,88,9#

 1
82671 - BLOCK, JUNCTION
82671-30030

BU61,66,67,72,73,74,78,84,85,87,88,9#

 1
82672 - COVER, JUNKTION BLOCK
82672-95400

BU85,90,95

 1
82672 - COVER, JUNKTION BLOCK
82672-95400

BU85,90,95

 1
Common parts
82358-37010
90119-08826
90119-08827

ILLUST NO. 1 OF 5(8808- )

Click highlighted areas on diagram

diagram 82001 82001 82001 82121 82121 82163A 82165 82203 82210C 82210C 82210C 82210C 9011908826 9011908826 9011908827
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07181

BU85,88,9#

ENGINE--FRAME

 1
90980-07254

BU85,90,95

BODY--FRAME

 1
82001 - CABLE, BOND, NO.1
90980-07181

BU85,88,9#

ENGINE--FRAME

 1
90980-07254

BU85,90,95

BODY--FRAME

 1
82001 - CABLE, BOND, NO.1
90980-07181

BU85,88,9#

ENGINE--FRAME

 1
90980-07254

BU85,90,95

BODY--FRAME

 1
82121 - WIRE, ENGINE
82126-95432

BU85,90,95

 1
82126-95440

BU90..TOY..T3..IV3

TECS ﾚｲﾄｳｼﾔ

 1
82126-95439

BU85,90,95

ｵ-ﾅ ｶｽﾀﾑ ｼﾖｳ OR ｱﾘ(ｶﾝﾚｲﾁ ｼﾖｳ ﾋ-ﾀ)

 1
82121 - WIRE, ENGINE
82126-95432

BU85,90,95

 1
82126-95440

BU90..TOY..T3..IV3

TECS ﾚｲﾄｳｼﾔ

 1
82126-95439

BU85,90,95

ｵ-ﾅ ｶｽﾀﾑ ｼﾖｳ OR ｱﾘ(ｶﾝﾚｲﾁ ｼﾖｳ ﾋ-ﾀ)

 1
82210C - FUSIBLE LINK
90982-08188

BU6#,7#,8#,9#

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08253

BU6#,7#,8#,9#

80A,ｵｽ端子,黒

 1
90982-08228

BU6#,7#,8#,9#

50A,ｵｽ端子,赤

 1
82210C - FUSIBLE LINK
90982-08188

BU6#,7#,8#,9#

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08253

BU6#,7#,8#,9#

80A,ｵｽ端子,黒

 1
90982-08228

BU6#,7#,8#,9#

50A,ｵｽ端子,赤

 1
82210C - FUSIBLE LINK
90982-08188

BU6#,7#,8#,9#

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08253

BU6#,7#,8#,9#

80A,ｵｽ端子,黒

 1
90982-08228

BU6#,7#,8#,9#

50A,ｵｽ端子,赤

 1
82210C - FUSIBLE LINK
90982-08188

BU6#,7#,8#,9#

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08253

BU6#,7#,8#,9#

80A,ｵｽ端子,黒

 1
90982-08228

BU6#,7#,8#,9#

50A,ｵｽ端子,赤

 1
Common parts
90119-08826
90119-08827

ILLUST NO. 5 OF 5(8808- )

Click highlighted areas on diagram

diagram 8271112200 8271112290 8271112320 8271112450 8271112590 8271114110 8271114320 8271122220 8271122270 8271122660 8271122870 8271124010 8271130380 8271132360 8271140040 8271192600 8271195015 8271195019 8271195404 8271195410 8271195411 8271195412 8271195413 8271195414 8271195417
Part # Description Qty Price
Common parts
82711-12200
82711-12290
82711-12320
82711-12450
82711-12590
82711-14110
82711-14320
82711-22220
82711-22270
82711-22660
82711-22870
82711-24010
82711-30380
82711-32360
82711-40040
82711-92600
82711-95015
82711-95019
82711-95404
82711-95410
82711-95411
82711-95412
82711-95413
82711-95414
82711-95417

ILLUST NO. 5 OF 5(8808- )

Click highlighted areas on diagram

diagram 8271195419 8271195420 8271195421 8271195719 9046108109 9046108202 9046108313 9046108514 9046108548 9046108972 9046110317 9046110363 9046110383 9046110423 9046110488 9046110526 9046306161 9046308030 9046308124 9046308375 9046313003 9046315002 9046320473 9046400052 9046400209
Part # Description Qty Price
Common parts
82711-95419
82711-95420
82711-95421
82711-95719
90461-08109
90461-08202
90461-08313
90461-08514
90461-08548
90461-08972
90461-10317
90461-10363
90461-10383
90461-10423
90461-10488
90461-10526
90463-06161
90463-08030
90463-08124
90463-08375
90463-13003
90463-15002
90463-20473
90464-00052
90464-00209

ILLUST NO. 5 OF 5(8808- )

Click highlighted areas on diagram

diagram 6324995700 827111A230 827111A310 827112A140 8271137010 8271137020 8271195406 8271195407 8271195422 8271195423 8271195426 8271195711 8281714350 8281728640 8281995402 9018904024 9046108183 9046315003 9046400161 9046400166 9048015083 9048030004 9048030320 9048032015
Part # Description Qty Price
Common parts
63249-95700
82711-1A230
82711-1A310
82711-2A140
82711-37010
82711-37020
82711-95406
82711-95407
82711-95422
82711-95423
82711-95426
82711-95711
82817-14350
82817-28640
82819-95402
90189-04024
90461-08183
90463-15003
90464-00161
90464-00166
90480-15083
90480-30004
90480-30320
90480-32015

ILLUST NO. 5 OF 5(8808- )

Click highlighted areas on diagram

diagram 8271137030 8271137040 8271195411 8271195426 9046112146
Part # Description Qty Price
Common parts
82711-37030
82711-37040
82711-95411
82711-95426
90461-12146

(8808- )

Click highlighted areas on diagram

diagram 82431 88648L 88648L 88648L
