BU90-MDDTXJ3 (1988)
Toyota Dyna/Toyoace
(8808- )BU90,91,95,96

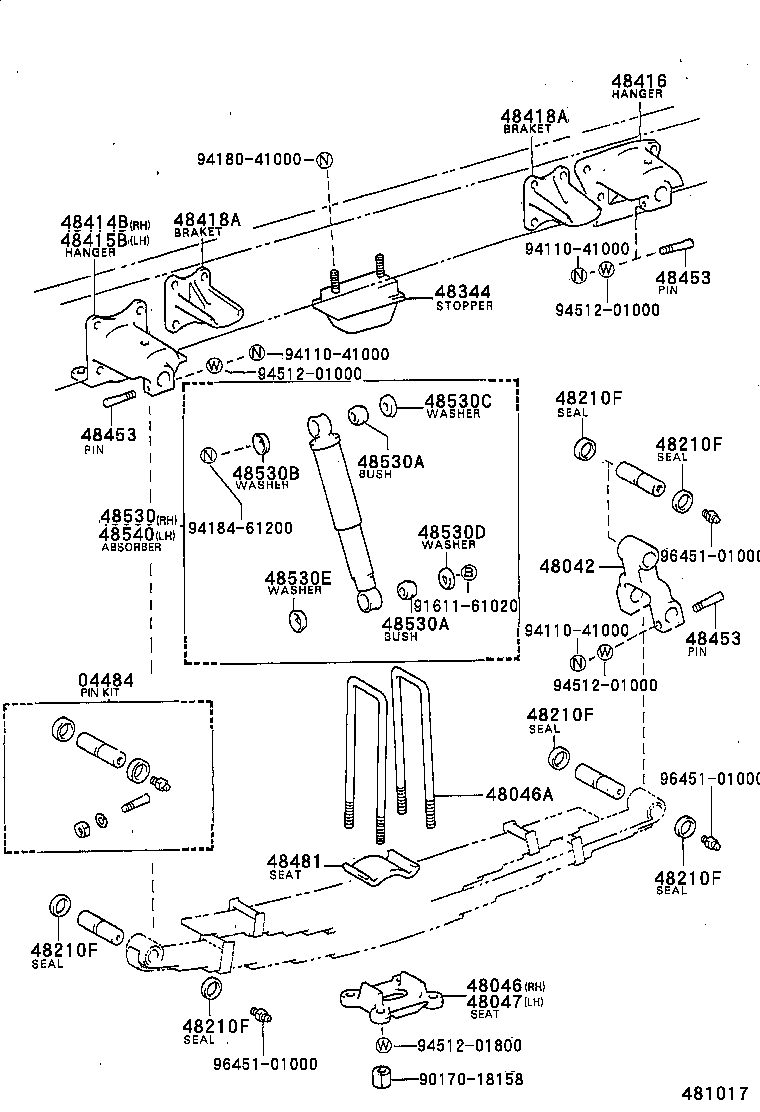

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-36030 |
BU90,91,95,96 |
6 | ||
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37901 |
BU90,91,95,96 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 42152-36030 |
BU90,91,95,96 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18002 |
BU90,91,95,96 長さ=330 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 42152-36030 |
BU90,91,95,96 |
1 | ||
| 48210F - SEAL, DUST(FOR REAR SPRING PIN) | ||||
| 90304-27009 |
BU90,91,95,96 |
8 | ||
| 48210F - SEAL, DUST(FOR REAR SPRING PIN) | ||||
| 90304-27009 |
BU90,91,95,96 |
8 | ||
| 48210F - SEAL, DUST(FOR REAR SPRING PIN) | ||||
| 90304-27009 |
BU90,91,95,96 |
8 | ||
| 48210F - SEAL, DUST(FOR REAR SPRING PIN) | ||||
| 90304-27009 |
BU90,91,95,96 |
8 | ||
| 48210F - SEAL, DUST(FOR REAR SPRING PIN) | ||||
| 90304-27009 |
BU90,91,95,96 |
8 | ||
| 48210F - SEAL, DUST(FOR REAR SPRING PIN) | ||||
| 90304-27009 |
BU90,91,95,96 |
8 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36190 |
BU87..V;BU87..T3,TW1;BU90,91,95,96..T3..5F |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36150 |
BU90,91,95,96 |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48414-36150 |
BU90,91,95,96 |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-36160 |
BU90,91,95,96 |
2 | ||
| 48418A - BRACKET, HELPER SPRING, FRONT | ||||
| 48418-37010 |
BU90,91,95,96 |
4 | ||
| 48418A - BRACKET, HELPER SPRING, FRONT | ||||
| 48418-37010 |
BU90,91,95,96 |
4 | ||
| 48453 - PIN, REAR SPRING PIN LOCK | ||||
| 48453-55010 |
BU90,91,95,96 |
6 | ||
| 48453 - PIN, REAR SPRING PIN LOCK | ||||
| 48453-55010 |
BU90,91,95,96 |
6 | ||
| 48453 - PIN, REAR SPRING PIN LOCK | ||||
| 48453-55010 |
BU90,91,95,96 |
6 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37011 |
BU90,91,95,96 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39725 |
BU66..275,30T;BU67,83,84,87,90,91,95,96..TR,V |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16011 |
BU6#,70,8#,9#..CBU,IV3 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16011 |
BU6#,70,8#,9#..CBU,IV3 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BU66..03S..WT;BU60,61,67,83,84,87,90,91,95,96..(TR,V)..WT |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU6#,8#,9#..WT..(CBU,IV3) |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03007 |
BU66..275,30T;BU67,83,84,87,90,91,95,96 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU6#,70,8#,9#..CBU,IV3 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39725 |
BU66..275,30T;BU67,83,84,87,90,91,95,96..TR,V |
1 | ||
| Common parts | ||||
| 90170-18158 | ||||
| 91611-61020 | ||||
| 94110-41000 | ||||
| 94180-41000 | ||||
| 94184-61200 | ||||
| 94512-01000 | ||||
| 94512-01800 | ||||
| 96451-01000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48223-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8808- )BU73..20T,IV4 ; (8808- )BU6#,70,72,74,78,8#,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48223-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94184-61000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48223-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48223-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48223-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48223-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48210F - SEAL, DUST(FOR REAR SPRING PIN) | ||||
| 90304-27009 |
BU90,91,95,96 |
8 | ||
| 48210F - SEAL, DUST(FOR REAR SPRING PIN) | ||||
| 90304-27009 |
BU90,91,95,96 |
8 | ||
| 48210F - SEAL, DUST(FOR REAR SPRING PIN) | ||||
| 90304-27009 |
BU90,91,95,96 |
8 | ||
| 48210F - SEAL, DUST(FOR REAR SPRING PIN) | ||||
| 90304-27009 |
BU90,91,95,96 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48223-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48223-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48223-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8808- )WU75,90,95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-36030 |
BU90,91,95,96 |
6 | ||
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37901 |
BU90,91,95,96 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 42152-36030 |
BU90,91,95,96 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18002 |
BU90,91,95,96 長さ=330 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 42152-36030 |
BU90,91,95,96 |
1 | ||
| 48210F - SEAL, DUST(FOR REAR SPRING PIN) | ||||
| 90304-27009 |
BU90,91,95,96 |
8 | ||
| 48210F - SEAL, DUST(FOR REAR SPRING PIN) | ||||
| 90304-27009 |
BU90,91,95,96 |
8 | ||
| 48210F - SEAL, DUST(FOR REAR SPRING PIN) | ||||
| 90304-27009 |
BU90,91,95,96 |
8 | ||
| 48210F - SEAL, DUST(FOR REAR SPRING PIN) | ||||
| 90304-27009 |
BU90,91,95,96 |
8 | ||
| 48210F - SEAL, DUST(FOR REAR SPRING PIN) | ||||
| 90304-27009 |
BU90,91,95,96 |
8 | ||
| 48210F - SEAL, DUST(FOR REAR SPRING PIN) | ||||
| 90304-27009 |
BU90,91,95,96 |
8 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36190 |
BU87..V;BU87..T3,TW1;BU90,91,95,96..T3..5F |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36150 |
BU90,91,95,96 |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48414-36150 |
BU90,91,95,96 |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-36160 |
BU90,91,95,96 |
2 | ||
| 48418A - BRACKET, HELPER SPRING, FRONT | ||||
| 48418-37010 |
BU90,91,95,96 |
4 | ||
| 48418A - BRACKET, HELPER SPRING, FRONT | ||||
| 48418-37010 |
BU90,91,95,96 |
4 | ||
| 48453 - PIN, REAR SPRING PIN LOCK | ||||
| 48453-55010 |
BU90,91,95,96 |
6 | ||
| 48453 - PIN, REAR SPRING PIN LOCK | ||||
| 48453-55010 |
BU90,91,95,96 |
6 | ||
| 48453 - PIN, REAR SPRING PIN LOCK | ||||
| 48453-55010 |
BU90,91,95,96 |
6 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37011 |
BU90,91,95,96 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39725 |
BU66..275,30T;BU67,83,84,87,90,91,95,96..TR,V |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16011 |
BU6#,70,8#,9#..CBU,IV3 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16011 |
BU6#,70,8#,9#..CBU,IV3 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BU66..03S..WT;BU60,61,67,83,84,87,90,91,95,96..(TR,V)..WT |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU6#,8#,9#..WT..(CBU,IV3) |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03007 |
BU66..275,30T;BU67,83,84,87,90,91,95,96 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU6#,70,8#,9#..CBU,IV3 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39725 |
BU66..275,30T;BU67,83,84,87,90,91,95,96..TR,V |
1 | ||
| Common parts | ||||
| 90170-18158 | ||||
| 91611-61020 | ||||
| 94110-41000 | ||||
| 94180-41000 | ||||
| 94184-61200 | ||||
| 94512-01000 | ||||
| 94512-01800 | ||||
| 96451-01000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48223-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-71000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 48216-3B060 | ||||
| 94110-71000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28120 |
BU90,91,95,96 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B300 |
BU90,91,95,96..T3..5F ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36300 |
BU90,91,95,96 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48218-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-3B300 |
BU90,91,95,96..T3..5F |
2 | ||
| Common parts | ||||
| 94184-61000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
