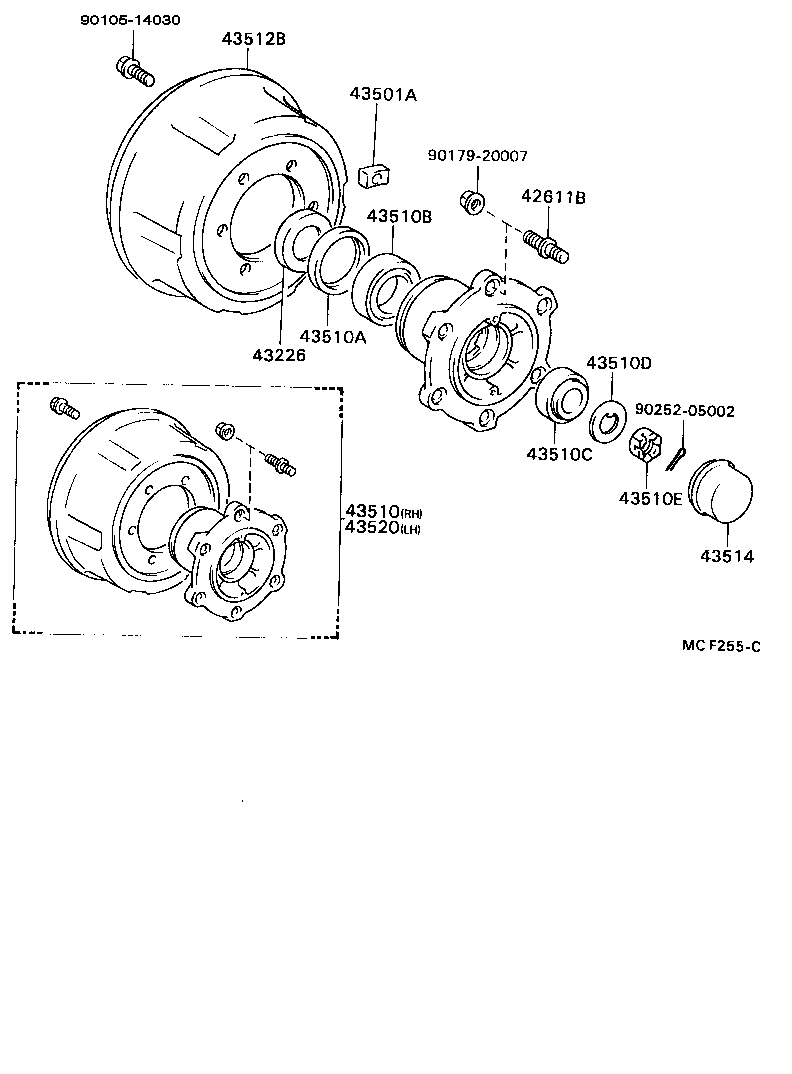

BU90-MDDTXJ3 (1988)
Toyota Dyna/Toyoace
(8808- )BU90,91,95,96
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02045 |
BU72..DM3,DM4,T3;BU73,74,90,91,95,96 右側 |
1 | ||
| 90942-02046 |
BU72..DM3,DM4,T3;BU73,74,90,91,95,96 左側 |
1 | ||
| 43226 - SPACER, STEERING KNUCKLE | ||||
| 43226-36010 |
BU90,91,95,96 |
2 | ||
| 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) | ||||
| 90937-01117 |
BU90,91,95,96 10G |
1 | ||
| 90937-01119 |
BU90,91,95,96 30G |
1 | ||
| 90937-01121 |
BU90,91,95,96 50G |
1 | ||
| 90937-01122 |
BU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,9#..DM1,DM4,T3,T4,TW1 60G |
1 | ||
| 90937-01118 |
BU90,91,95,96 20G |
1 | ||
| 90937-01120 |
BU90,91,95,96 40G |
1 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-36140 |
BU90,91,95,96 |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90033-19001 |
BU90,91,95,96 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-50001 |
BU90,91,95,96 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-35001 |
BU90,91,95,96 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-33001 |
BU90,91,95,96 |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90171-33001 |
BU90,91,95,96 |
2 | ||
| 43512B - DRUM, BRAKE | ||||
| 43512-36110 |
BU90,91,95,96 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-37020 |
BU90,91,95,96 |
2 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43520-36140 |
BU90,91,95,96 |
1 | ||
| Common parts | ||||
| 90105-14030 | ||||
| 90179-20007 | ||||
| 90252-05002 | ||||
(8808- )WU75,90,95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02045 |
BU72..DM3,DM4,T3;BU73,74,90,91,95,96 右側 |
1 | ||
| 90942-02046 |
BU72..DM3,DM4,T3;BU73,74,90,91,95,96 左側 |
1 | ||
| 43226 - SPACER, STEERING KNUCKLE | ||||
| 43226-36010 |
BU90,91,95,96 |
2 | ||
| 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) | ||||
| 90937-01117 |
BU90,91,95,96 10G |
1 | ||
| 90937-01119 |
BU90,91,95,96 30G |
1 | ||
| 90937-01121 |
BU90,91,95,96 50G |
1 | ||
| 90937-01122 |
BU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,9#..DM1,DM4,T3,T4,TW1 60G |
1 | ||
| 90937-01118 |
BU90,91,95,96 20G |
1 | ||
| 90937-01120 |
BU90,91,95,96 40G |
1 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-36140 |
BU90,91,95,96 |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90033-19001 |
BU90,91,95,96 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-50001 |
BU90,91,95,96 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-35001 |
BU90,91,95,96 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-33001 |
BU90,91,95,96 |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90171-33001 |
BU90,91,95,96 |
2 | ||
| 43512B - DRUM, BRAKE | ||||
| 43512-36110 |
BU90,91,95,96 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-37020 |
BU90,91,95,96 |
2 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43520-36140 |
BU90,91,95,96 |
1 | ||
| Common parts | ||||
| 90105-14030 | ||||
| 90179-20007 | ||||
| 90252-05002 | ||||
