BU90-MDDTXJ3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - Oct 1989
Engine 13BT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 9046816142 9411041000 9412040800 9451201000 9461311001
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-36110

BU78,85,88,9#..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35004

BU6#,7#,8#,9#..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

BU6#,7#,8#,9#..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

BU6#,7#,8#,9#..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

BU6#,7#,8#,9#..5F

 2
31321 - PAD, CLUTCH PEDAL
31321-36010

BU6#,7#,8#,9#..5F

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

BU6#,7#,8#,9#..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

BU6#,7#,8#,9#..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

BU6#,7#,8#,9#..5F

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

BU6#,7#,8#,9#..5F

 1
Common parts
90468-16142
94110-41000
94120-40800
94512-01000
94613-11001

(8808- )BU6#,70,78,8#,9#

Click highlighted areas on diagram

diagram 31481 31481 31481A 31481A 31482 31482 31482B 31482B 31484A 31484A 31487 31487 31488C 31488C 9011908086 9011908086 9017008204 9046108449 9046400378 9046400378 9048001054 9048001054 9161160816 9161160816 9161160816 9161160816 9622120906 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-36250

BU85,88,9#..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-36250

BU85,88,9#..5F

 1
31481A - HOSE, CLUTCH, NO.1
96932-34305

BU78,85,88,9#..5F

 1
31481A - HOSE, CLUTCH, NO.1
96932-34305

BU78,85,88,9#..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-36161

BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F..(DSL,TD)

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-36161

BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F..(DSL,TD)

 1
31482B - HOSE, CLUTCH, NO.2
96818-50310

BU78,88,91,94,96..5F;BU68,85,90,95..LPG,TD

 1
31482B - HOSE, CLUTCH, NO.2
96818-50310

BU78,88,91,94,96..5F;BU68,85,90,95..LPG,TD

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-36090

BU85,90..IV3;BU88..T3..5F..(20T,30T)..DSL..IV3

NO.1

 1
31484-36090

BU78,85,88,9#..5F

 1
31484-36140

BU85,90..IV3;BU88..T3..5F..(20T,30T)..DSL..IV3

NO.2

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-36090

BU85,90..IV3;BU88..T3..5F..(20T,30T)..DSL..IV3

NO.1

 1
31484-36090

BU78,85,88,9#..5F

 1
31484-36140

BU85,90..IV3;BU88..T3..5F..(20T,30T)..DSL..IV3

NO.2

 1
31487 - PLATE, RELEASE TUBE SET
31487-36150

BU6#,70,8#,9#..5F

 1
31487 - PLATE, RELEASE TUBE SET
31487-36150

BU6#,70,8#,9#..5F

 1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31488-36330

BU78,85,88,9#..5F

 1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31488-36330

BU78,85,88,9#..5F

 1
Common parts
90119-08086
90170-08204
90461-08449
90464-00378
90480-01054
91611-60816
96221-20906
96991-12080

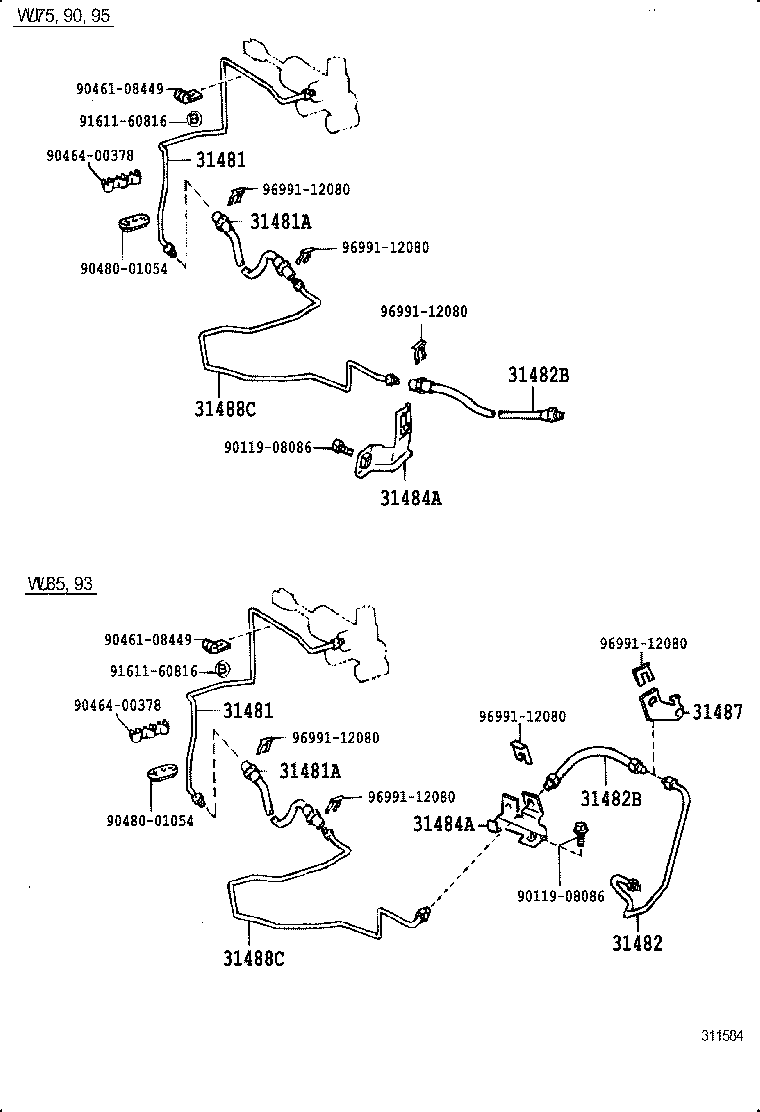

(8808- )WU75,9#

Click highlighted areas on diagram

diagram 31481 31481 31481A 31481A 31482 31482B 31482B 31484A 31484A 31487 31488C 31488C 9011908086 9011908086 9046108449 9046108449 9046400378 9046400378 9048001054 9048001054 9161160816 9161160816 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080
Part # Description Qty Price
Common parts
90119-08086
90461-08449
90464-00378
90480-01054
91611-60816
96991-12080

(8808- )

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 9046816142 9411041000 9412040800 9451201000 9461311001
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-36110

BU78,85,88,9#..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35004

BU6#,7#,8#,9#..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

BU6#,7#,8#,9#..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

BU6#,7#,8#,9#..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

BU6#,7#,8#,9#..5F

 2
31321 - PAD, CLUTCH PEDAL
31321-36010

BU6#,7#,8#,9#..5F

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

BU6#,7#,8#,9#..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

BU6#,7#,8#,9#..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

BU6#,7#,8#,9#..5F

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

BU6#,7#,8#,9#..5F

 1
Common parts
90468-16142
94110-41000
94120-40800
94512-01000
94613-11001
