BU90-MDDTXJ3 (1988)
Toyota Dyna/Toyoace
(8808- )B,11B,14B#,3B
24V 30A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56370 |
13BT..BU85,90,95 24V 30A |
1 | ||
| 27020-56433 |
13BT..BU90..T3..IV3 24V 40A,TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56110 |
13BT..BU85,90,95 |
1 | ||
| 27310-56430 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 90099-10137 |
13BT..BU85,90,95 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-57060 |
13BT..BU85,90,95 |
1 | ||
| 27312-56070 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56433 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27330-56360 |
13BT..BU85,90,95 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-56310 |
13BT..BU85,90,95 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-57080 |
13BT..BU85,90,95 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
13BT..BU85,90,95 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
13BT..BU85,90,95 |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-57061 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27411-57060 |
13BT..BU85,90,95 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57051 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27700-57040 |
13BT..BU85,90,95 |
1 | ||
| Common parts | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10240 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 90179-10091 | ||||
| 91611-60840 | ||||
| 93319-14025 | ||||
| 94612-11001 | ||||

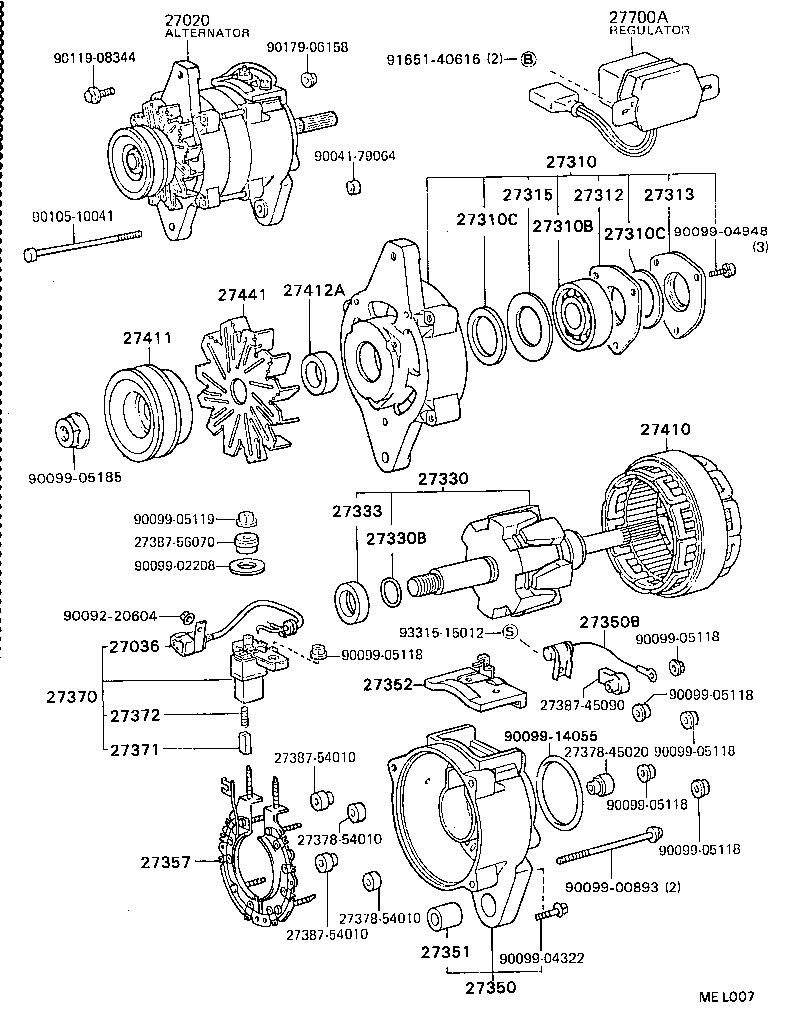

(8808-8910)13BT
24V 30A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56370 |
13BT..BU85,90,95 24V 30A |
1 | ||
| 27020-56433 |
13BT..BU90..T3..IV3 24V 40A,TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-56390 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27036-57080 |
13BT..BU85,90,95 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56110 |
13BT..BU85,90,95 |
1 | ||
| 27310-56430 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 90099-10137 |
13BT..BU85,90,95 |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
13BT..BU85,90,95 |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
13BT..BU85,90,95 |
2 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-57060 |
13BT..BU85,90,95 |
1 | ||
| 27312-56070 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
13BT..BU85,90,95 |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
13BT..BU85,90,95 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56433 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27330-56360 |
13BT..BU85,90,95 |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
13BT..BU85,90,95 |
1 | ||
| 27333 - COLLAR, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
13BT..BU85,90,95 |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-56110 |
13BT..BU85,90,95 |
1 | ||
| 27350-56431 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52082 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 90099-52066 |
13BT..BU85,90,95 |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
13BT..BU85,90,95 |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-57060 |
13BT..BU85,90,95 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-56310 |
13BT..BU85,90,95 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-57080 |
13BT..BU85,90,95 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
13BT..BU85,90,95 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
13BT..BU85,90,95 |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-56310 |
13BT..BU85,90,95 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-57061 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27411-57060 |
13BT..BU85,90,95 |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
13BT..BU85,90,95 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-54070 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27441-56090 |
13BT..BU85,90,95 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57051 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27700-57040 |
13BT..BU85,90,95 |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90041-79064 | ||||
| 90092-20604 | ||||
| 90099-00893 | ||||
| 90099-02208 | ||||
| 90099-04322 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05185 | ||||
| 90099-14055 | ||||
| 90105-10041 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 91651-40616 | ||||
| 93315-15012 | ||||

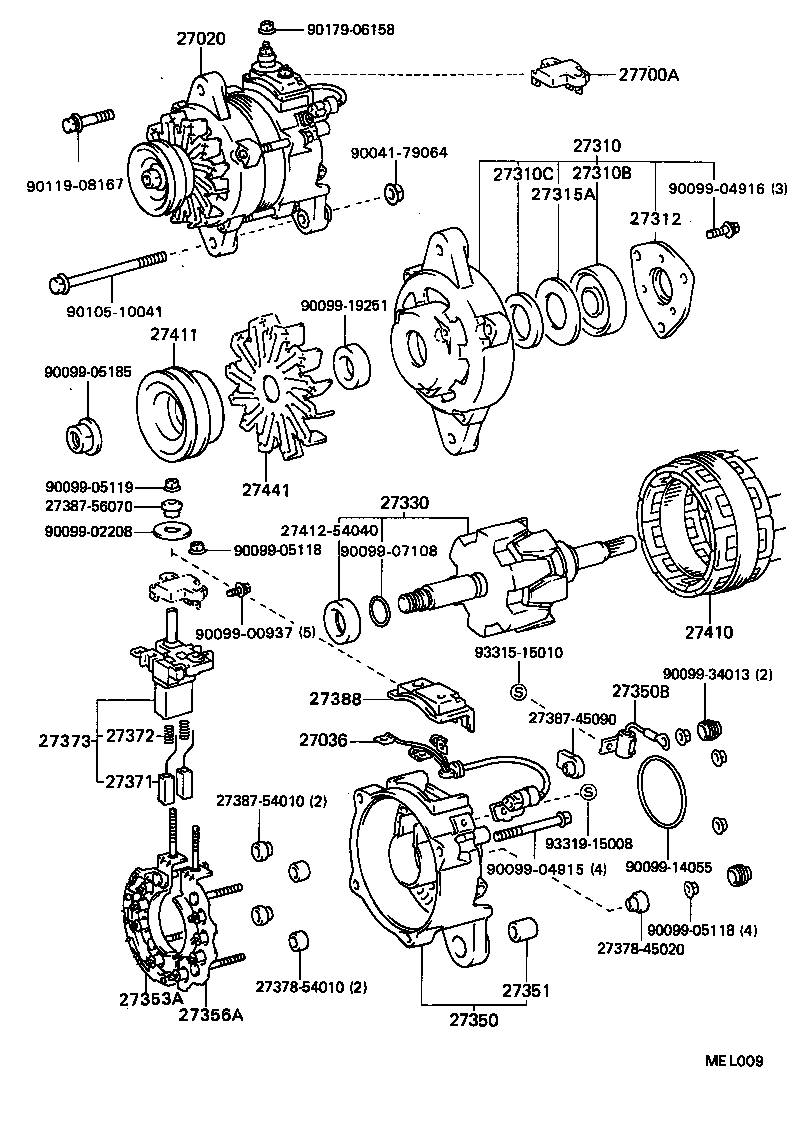

(8808-8910)13BT
24V 40A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56370 |
13BT..BU85,90,95 24V 30A |
1 | ||
| 27020-56433 |
13BT..BU90..T3..IV3 24V 40A,TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-56390 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27036-57080 |
13BT..BU85,90,95 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56110 |
13BT..BU85,90,95 |
1 | ||
| 27310-56430 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 90099-10137 |
13BT..BU85,90,95 |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
13BT..BU85,90,95 |
2 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-57060 |
13BT..BU85,90,95 |
1 | ||
| 27312-56070 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27315A - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56433 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27330-56360 |
13BT..BU85,90,95 |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-56110 |
13BT..BU85,90,95 |
1 | ||
| 27350-56431 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52082 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 90099-52066 |
13BT..BU85,90,95 |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
13BT..BU85,90,95 |
1 | ||
| 27353A - HOLDER, W/RECTIFIER | ||||
| 27353-56430 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27356A - HOLDER SUB-ASSY, RECTIFIER | ||||
| 27356-56430 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
13BT..BU85,90,95 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
13BT..BU85,90,95 |
2 | ||
| 27373 - HOLDER, ALTERNATOR BRUSH, A | ||||
| 27373-57120 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-56430 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-56310 |
13BT..BU85,90,95 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-57061 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27411-57060 |
13BT..BU85,90,95 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-54070 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27441-56090 |
13BT..BU85,90,95 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57051 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27700-57040 |
13BT..BU85,90,95 |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 27412-54040 | ||||
| 90041-79064 | ||||
| 90099-00937 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05185 | ||||
| 90099-07108 | ||||
| 90099-14055 | ||||
| 90099-19251 | ||||
| 90099-34013 | ||||
| 90105-10041 | ||||
| 90119-08167 | ||||
| 90179-06158 | ||||
| 93315-15010 | ||||
| 93319-15008 | ||||
(8808- )B,11B,14B#
24V 50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56370 |
13BT..BU85,90,95 24V 30A |
1 | ||
| 27020-56433 |
13BT..BU90..T3..IV3 24V 40A,TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56110 |
13BT..BU85,90,95 |
1 | ||
| 27310-56430 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 90099-10137 |
13BT..BU85,90,95 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-57060 |
13BT..BU85,90,95 |
1 | ||
| 27312-56070 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56433 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27330-56360 |
13BT..BU85,90,95 |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52082 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 90099-52066 |
13BT..BU85,90,95 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-56310 |
13BT..BU85,90,95 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-57080 |
13BT..BU85,90,95 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
13BT..BU85,90,95 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
13BT..BU85,90,95 |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-57061 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27411-57060 |
13BT..BU85,90,95 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57051 |
13BT..BU90..T3..IV3 TECS ﾚｲﾄｳｼﾔ |
1 | ||
| 27700-57040 |
13BT..BU85,90,95 |
1 | ||
| Common parts | ||||
| 27387-42020 | ||||
| 27388-42010 | ||||
| 27389-42010 | ||||
| 27446-58040 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90105-10240 | ||||
| 90119-08051 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 93319-14025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
