BU90-MDDTX3 (1984)
Toyota Dyna/Toyoace
Production
Sep 1984
-
Aug 1987
Engine
13BT
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138S - RESISTOR, BLOWER | ||||
| 87138-95411 |
BU6#,7#,8#,9#..CBU,IV3 |
1 | ||
| 87138S - RESISTOR, BLOWER | ||||
| 87138-95411 |
BU6#,7#,8#,9#..CBU,IV3 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-95A01 |
BU6#,7#,8#,9#..CBU,IV3 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-95A01 |
BU6#,7#,8#,9#..CBU,IV3 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95409 |
BU77,85,9# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95409 |
BU77,85,9# |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95422 |
BU77,85,9# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95401 |
BU77,85,9# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95401 |
BU77,85,9# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95404 |
BU77,85,9# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95404 |
BU77,85,9# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
BU6#,7#,8#,9#..CBU,IV3 400G |
2 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
BU6#,7#,8#,9#..CBU,IV3 400G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 87104-95407 |
BU6#,7#,8#,9#..CBU,IV3 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 87104-95407 |
BU6#,7#,8#,9#..CBU,IV3 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95407 |
BU77,85,9# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95407 |
BU77,85,9# |
1 | ||
| Common parts | ||||
| 88718-95426 | ||||
| 88718-95A06 | ||||
| 88718-95A21 | ||||
| 93385-16016 | ||||
| 93385-18014 | ||||
| 93385-18020 | ||||
| 93385-18025 | ||||

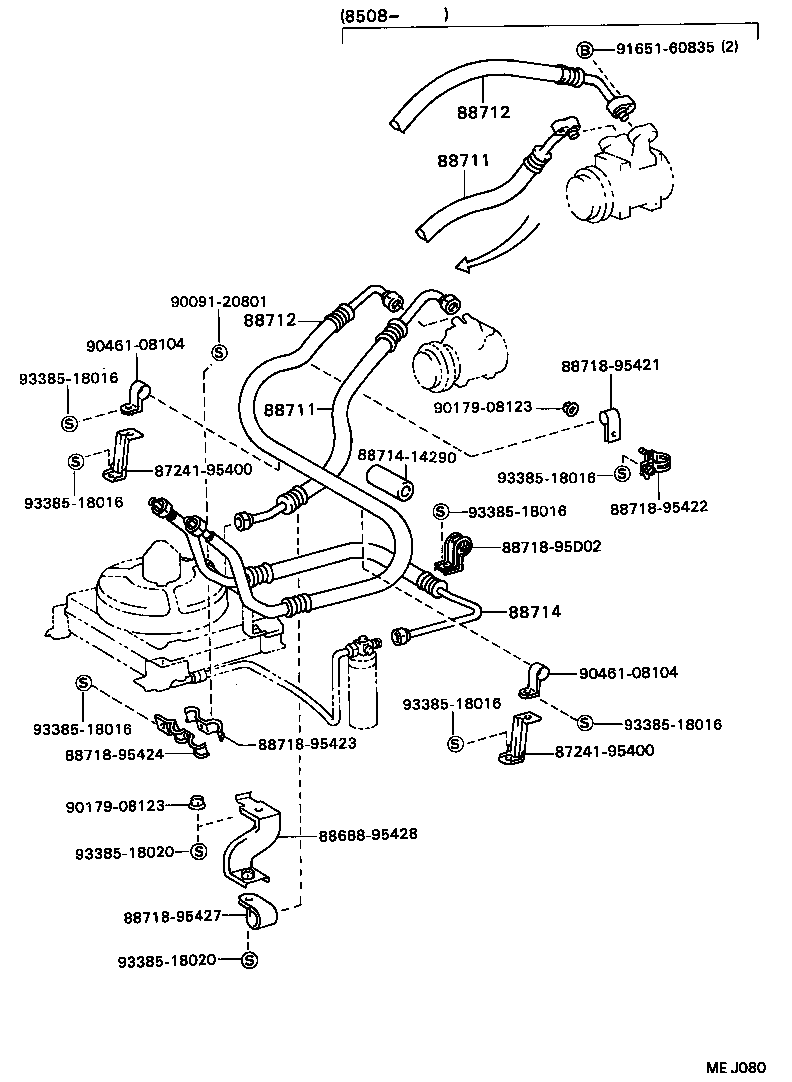

ILLUST NO. 2 OF 2(8409- )BU77,85,9#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95410 |
BU85,9# |
1 | ||
| 88711-95413 |
BU85,9# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95410 |
BU85,9# |
1 | ||
| 88711-95413 |
BU85,9# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95412 |
BU85,9# |
1 | ||
| 88712-95417 |
BU77,85,9# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95412 |
BU85,9# |
1 | ||
| 88712-95417 |
BU77,85,9# |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95409 |
BU77,85,9# |
1 | ||
| Common parts | ||||
| 87241-95400 | ||||
| 88688-95428 | ||||
| 88714-14290 | ||||
| 88718-95421 | ||||
| 88718-95422 | ||||
| 88718-95423 | ||||
| 88718-95424 | ||||
| 88718-95427 | ||||
| 88718-95D02 | ||||
| 90179-08123 | ||||
| 90461-08104 | ||||
| 91651-60835 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
(8808-9309)BU78,85,88,9#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87241-95400 | ||||
| 88688-95422 | ||||
| 88688-95433 | ||||
| 88718-95421 | ||||
| 88718-95422 | ||||
| 88718-95423 | ||||
| 88718-95424 | ||||
| 88718-95427 | ||||
| 88718-95A21 | ||||
| 88718-95D02 | ||||
| 90091-20801 | ||||
| 90179-08123 | ||||
| 90461-08104 | ||||
| 91651-60835 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
| 93385-18025 | ||||
(8808-9309)BU85,88,9#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87241-95400 | ||||
| 88569-36070 | ||||
| 88688-36180 | ||||
| 88688-36190 | ||||
| 88713-60010 | ||||
| 88714-12140 | ||||
| 88714-30290 | ||||
| 88714-89103 | ||||
| 88714-95402 | ||||
| 88718-95423 | ||||
| 88718-95424 | ||||
| 88718-95427 | ||||
| 88718-95A21 | ||||
| 88718-95D02 | ||||
| 88899-36030 | ||||
| 90091-20801 | ||||
| 90099-01225 | ||||
| 90099-21010 | ||||
| 90179-08123 | ||||
| 90461-08104 | ||||
| 90461-10240 | ||||
| 90480-36010 | ||||
| 91666-40832 | ||||
| 93385-16016 | ||||
| 93385-18020 | ||||
| 93385-18025 | ||||
ILLUST NO. 1 OF 2(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138S - RESISTOR, BLOWER | ||||
| 87138-95411 |
BU6#,7#,8#,9#..CBU,IV3 |
1 | ||
| 87138S - RESISTOR, BLOWER | ||||
| 87138-95411 |
BU6#,7#,8#,9#..CBU,IV3 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-95A01 |
BU6#,7#,8#,9#..CBU,IV3 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-95A01 |
BU6#,7#,8#,9#..CBU,IV3 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95409 |
BU77,85,9# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95409 |
BU77,85,9# |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95422 |
BU77,85,9# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95401 |
BU77,85,9# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95401 |
BU77,85,9# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95404 |
BU77,85,9# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95404 |
BU77,85,9# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
BU6#,7#,8#,9#..CBU,IV3 400G |
2 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
BU6#,7#,8#,9#..CBU,IV3 400G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 87104-95407 |
BU6#,7#,8#,9#..CBU,IV3 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 87104-95407 |
BU6#,7#,8#,9#..CBU,IV3 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95407 |
BU77,85,9# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95407 |
BU77,85,9# |
1 | ||
| Common parts | ||||
| 88718-95426 | ||||
| 88718-95A06 | ||||
| 88718-95A21 | ||||
| 93385-16016 | ||||
| 93385-18014 | ||||
| 93385-18020 | ||||
| 93385-18025 | ||||

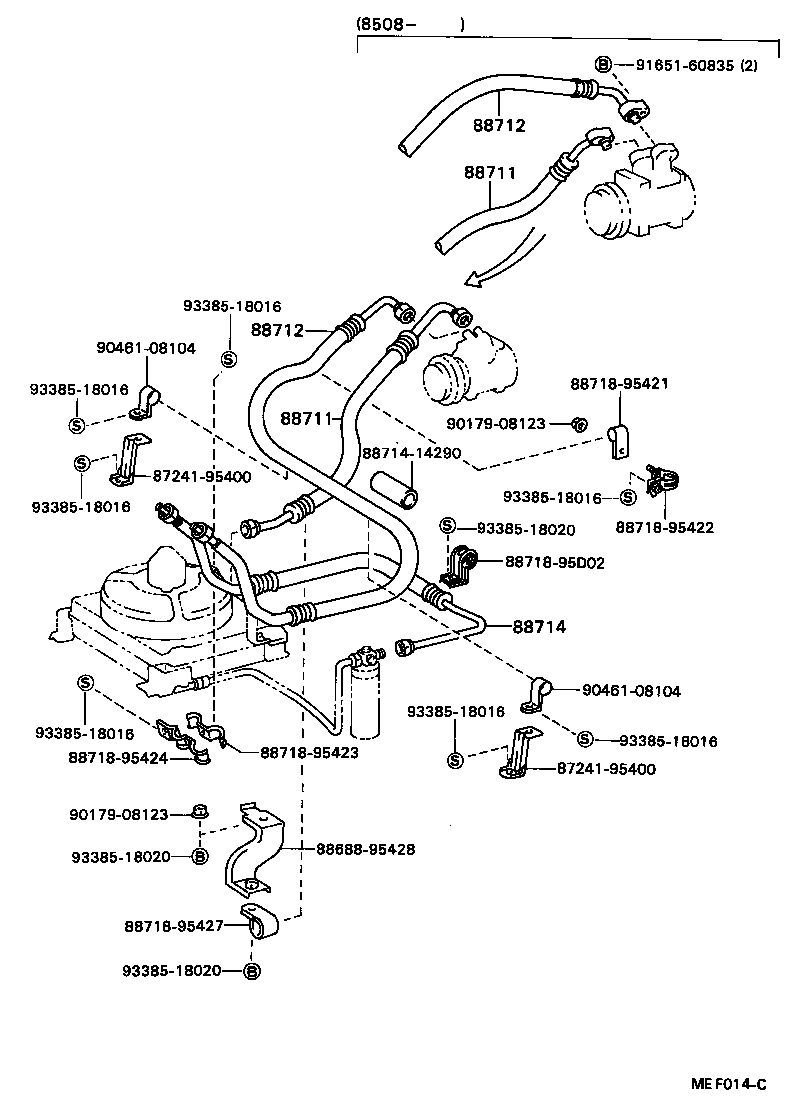

ILLUST NO. 2 OF 2(8409- )WU75,9#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87241-95400 | ||||
| 88688-95428 | ||||
| 88714-14290 | ||||
| 88718-95421 | ||||
| 88718-95422 | ||||
| 88718-95423 | ||||
| 88718-95424 | ||||
| 88718-95427 | ||||
| 88718-95D02 | ||||
| 90091-20801 | ||||
| 90179-08123 | ||||
| 90461-08104 | ||||
| 91651-60835 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
(8808-9309)WU75,85,9#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87241-95400 | ||||
| 88714-14290 | ||||
| 88718-95421 | ||||
| 88718-95422 | ||||
| 88718-95423 | ||||
| 88718-95424 | ||||
| 88718-95428 | ||||
| 88718-95A21 | ||||
| 88718-95D02 | ||||
| 90091-20801 | ||||
| 90179-08123 | ||||
| 90461-08104 | ||||
| 91651-60835 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
| 93385-18025 | ||||
| 99699-95428 | ||||
